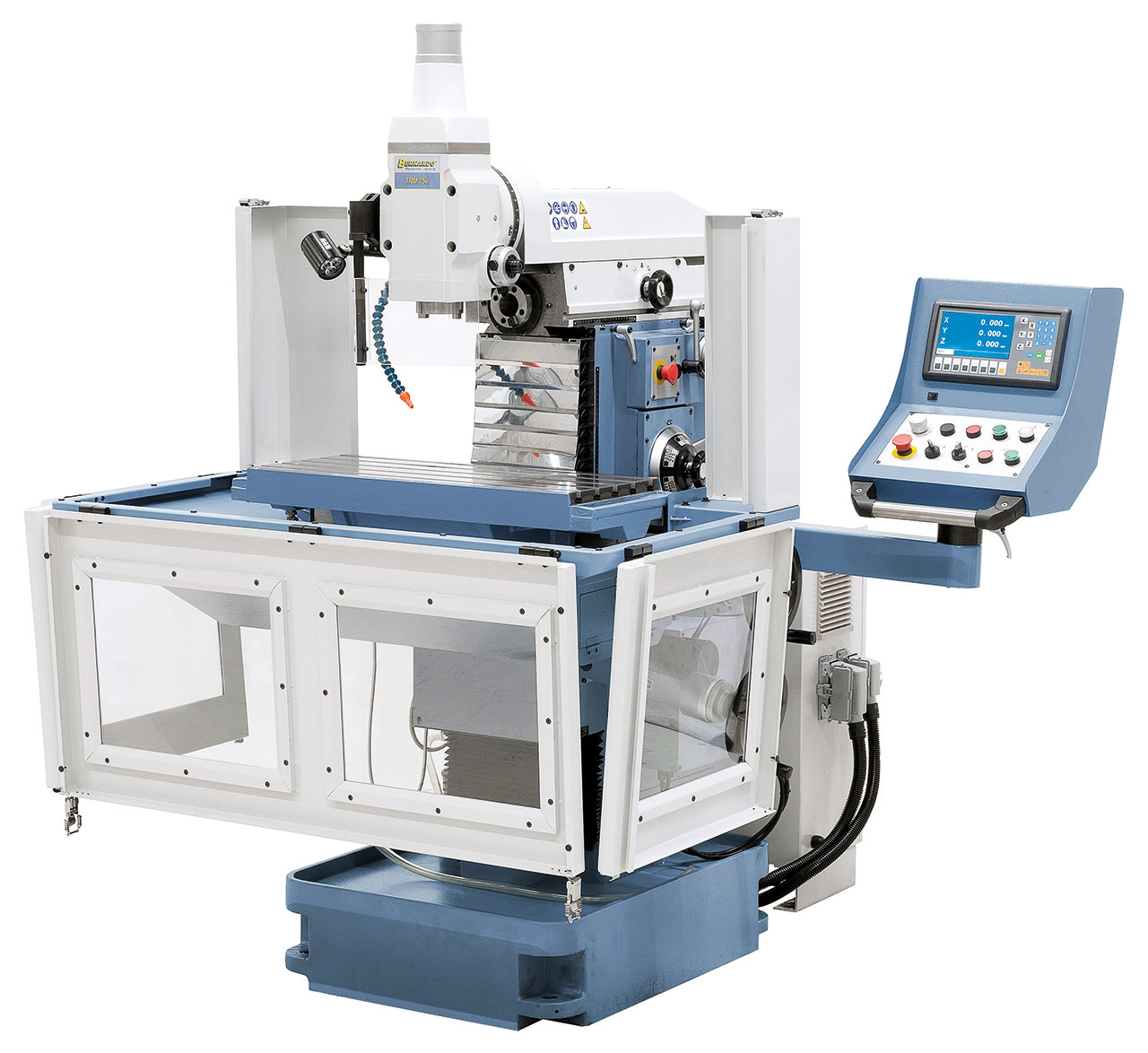

Universal-tool room milling machine TRM 750 incl. 3-axis digital readout **

Art.Nr.: 02-1326XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

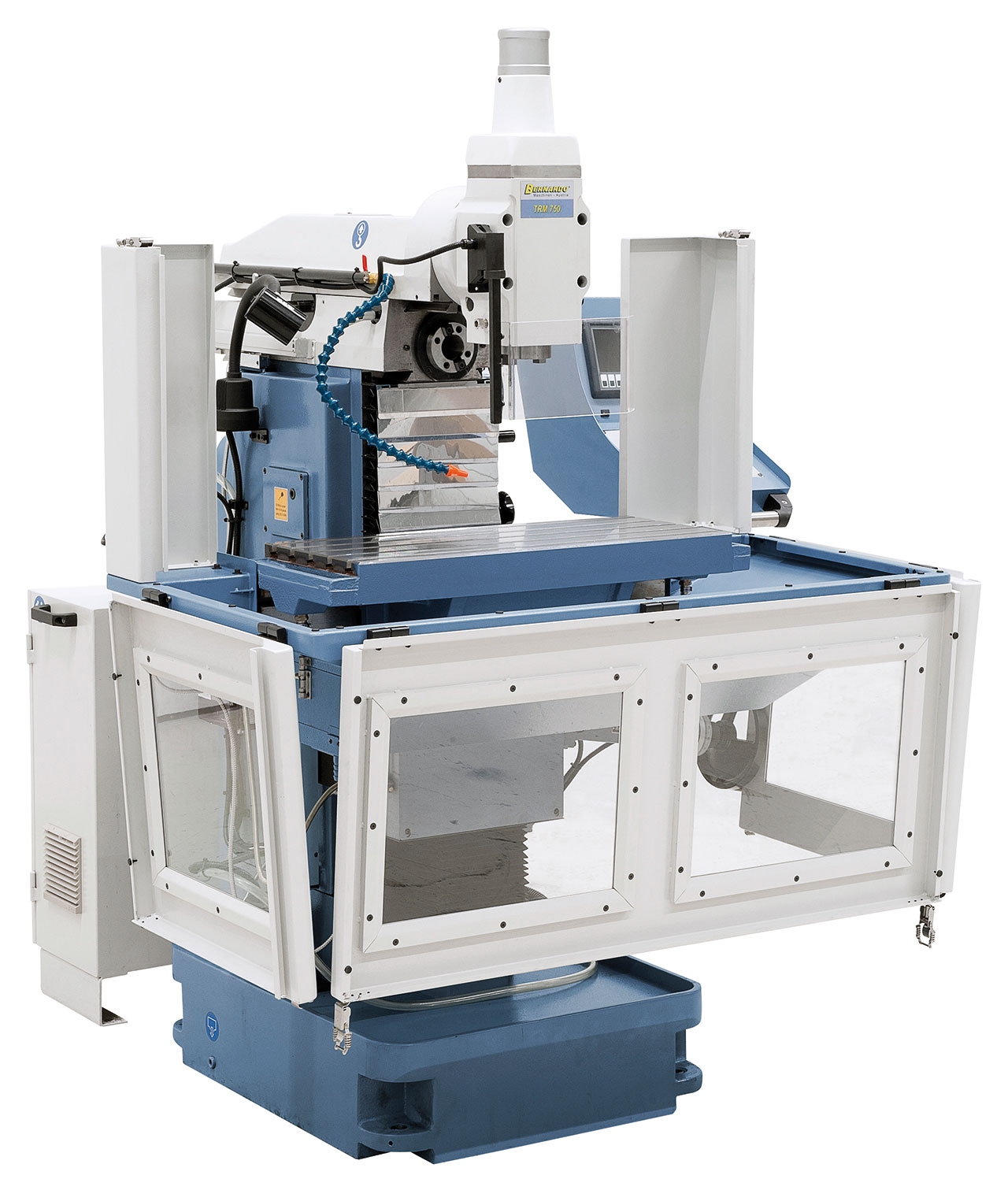

The TRM 750 universal milling machine is suitable for milling works ranging from a low to a medium level of difficulty. The standard equipment of this model allows for horizontal, vertical and inclined milling works. This machine is mainly used in tool and mould construction, in model making and for training purposes.

Price on request

Request product now

Availability

Out of Stock

Product Properties

  • Ball screws in all three axis minimize play

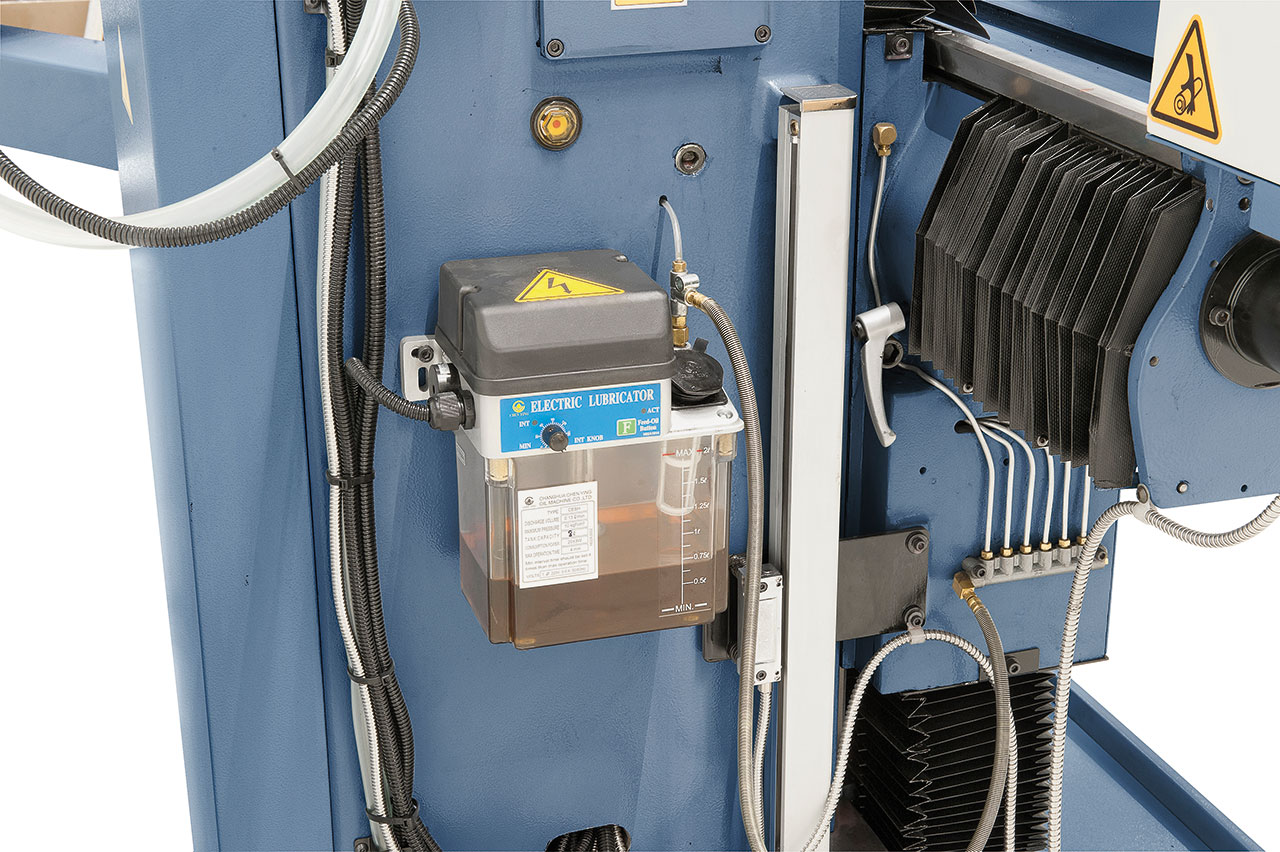

  • Electrical central lubrication for the guideways comes standard

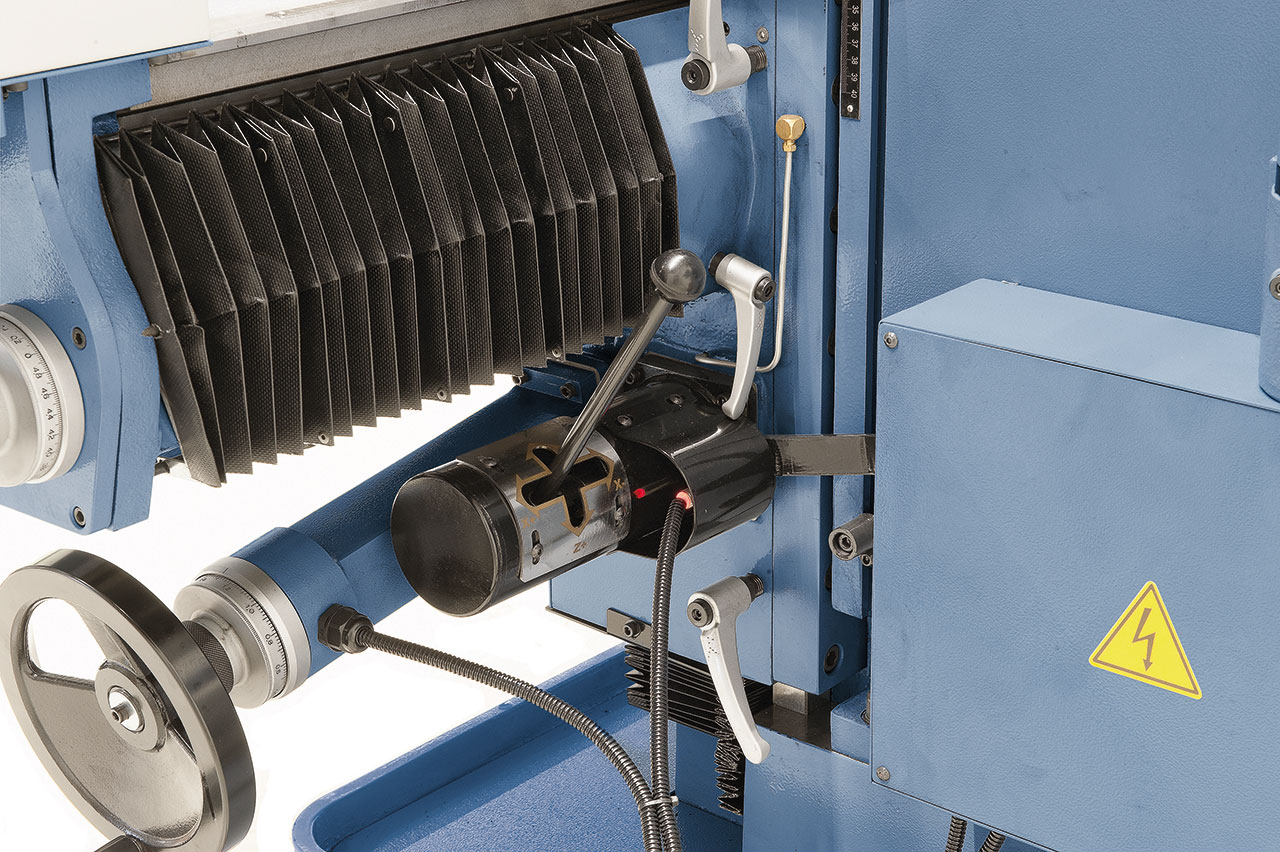

  • Complete with manual, automatic and rapid feed in all three axis

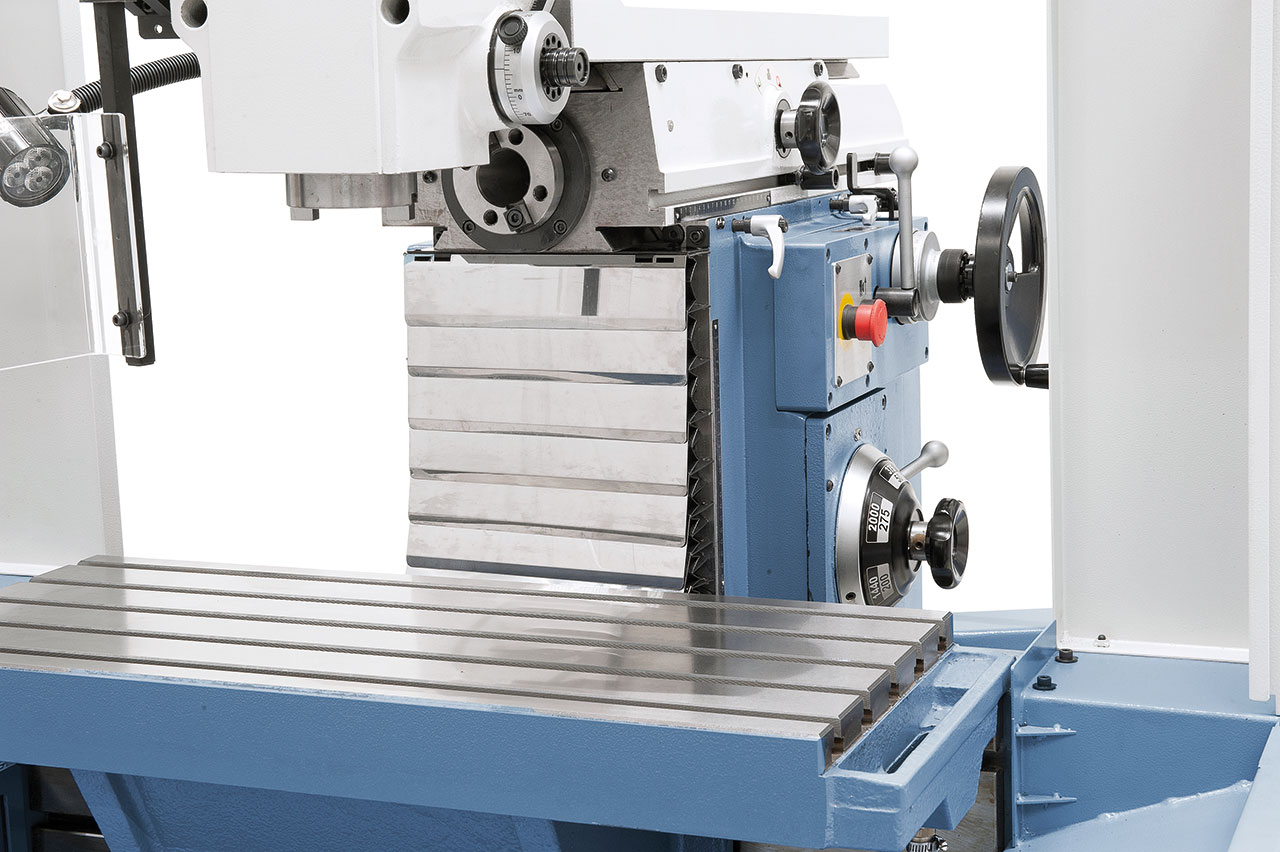

  • Vertical clamping area with 2 T-slots allows clamping of work table, universal tilting table and oversize workpieces
  • Large dovetail guiding in x-, y- and z-axis
  • Feeding speed adjustable by frequency inverter
  • Solid grey cast-iron machine base guarantees precision and minimizes vibrations
  • Optimal adjustments of spindle speed and feed allow for economic machining of various materials
  • Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.

Product Specifications

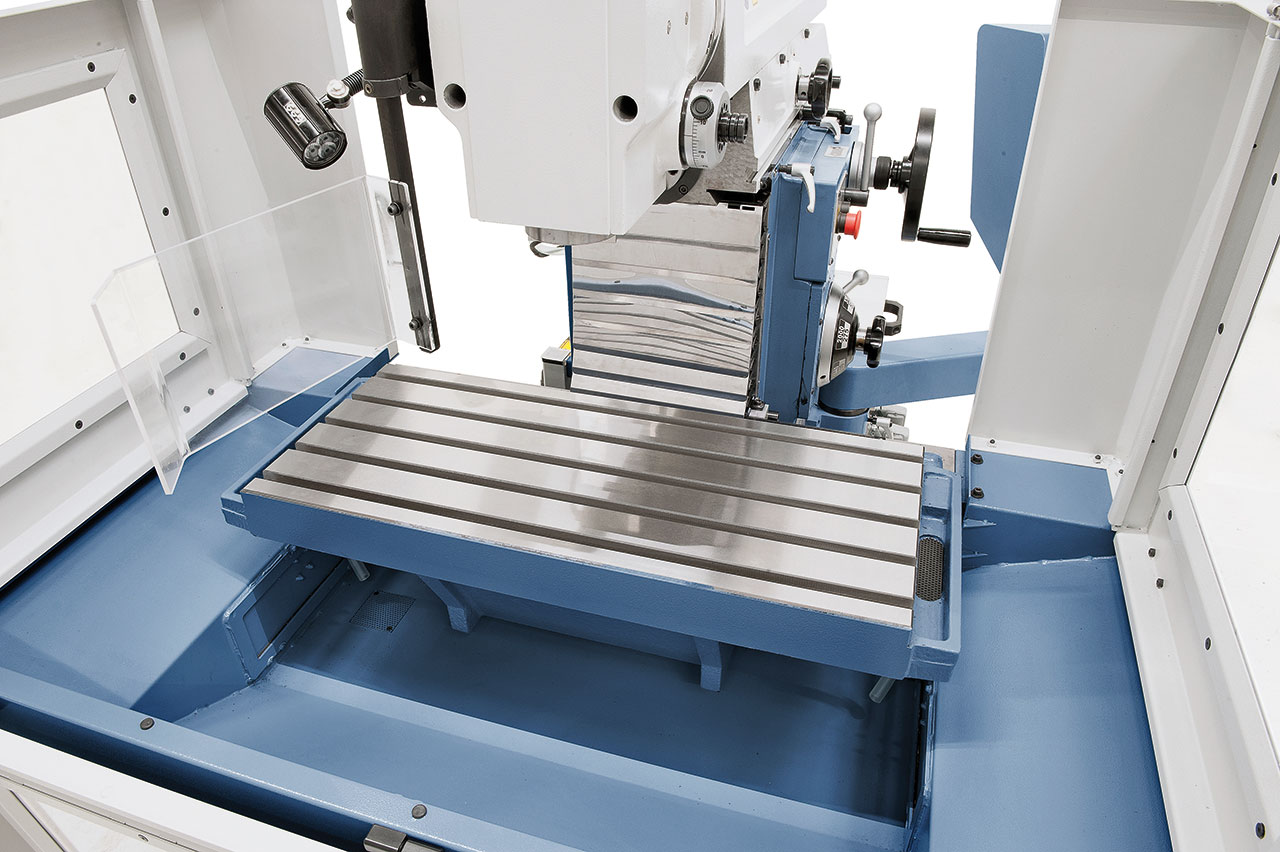

Table size

750 x 320 mm

Vertical clamping surface

825 x 225 mm

Travel longitudinal (x)

310 (350*) mm

Travel cross (y)

160 (200*) mm

Travel vertical (z)

295 (335*) mm

Table load

280 kg

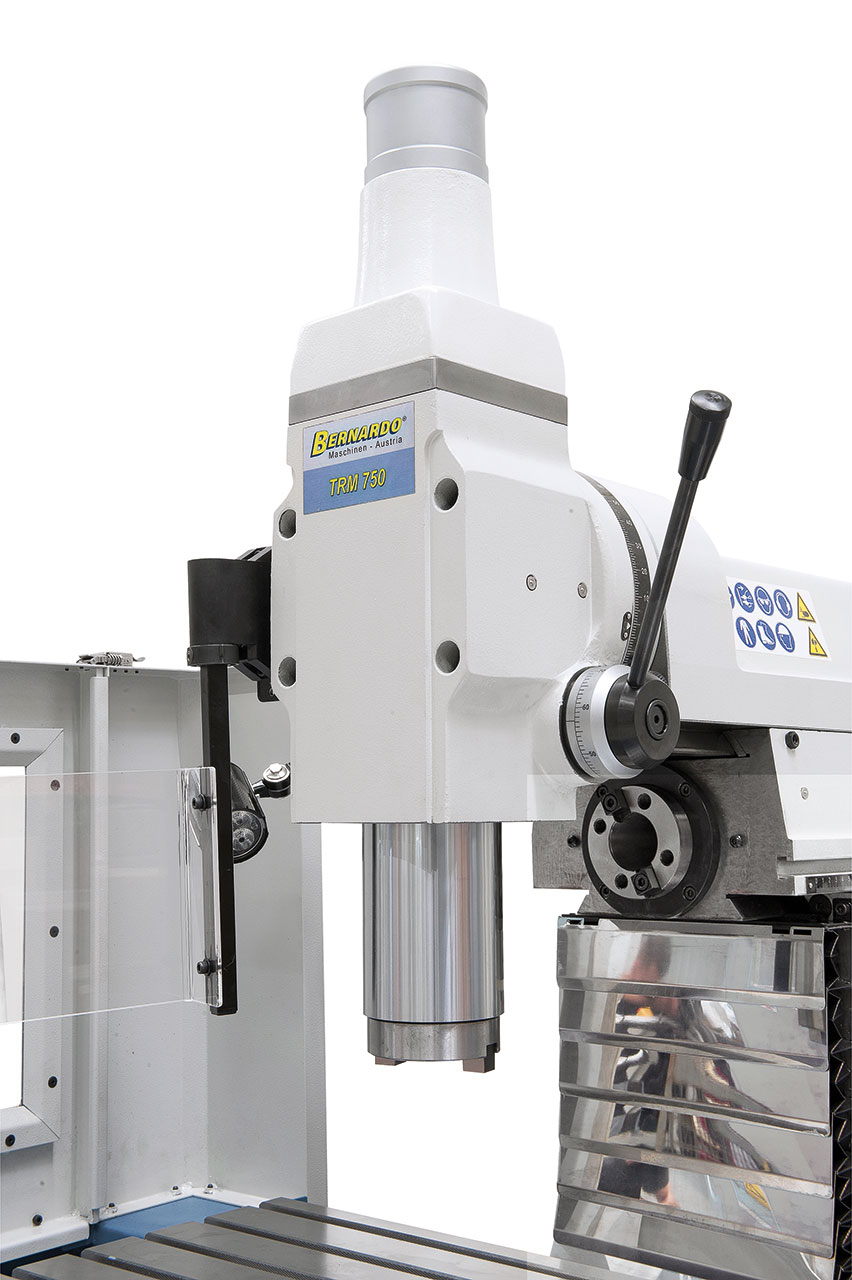

Vertical milling head



Spindle speed

(12) 50 - 2000 rpm

Spindle taper

ISO 40

Spindle stroke

120 mm

Distance spindle to column max.

485 mm

Distance spindle / table

65 - 405 mm

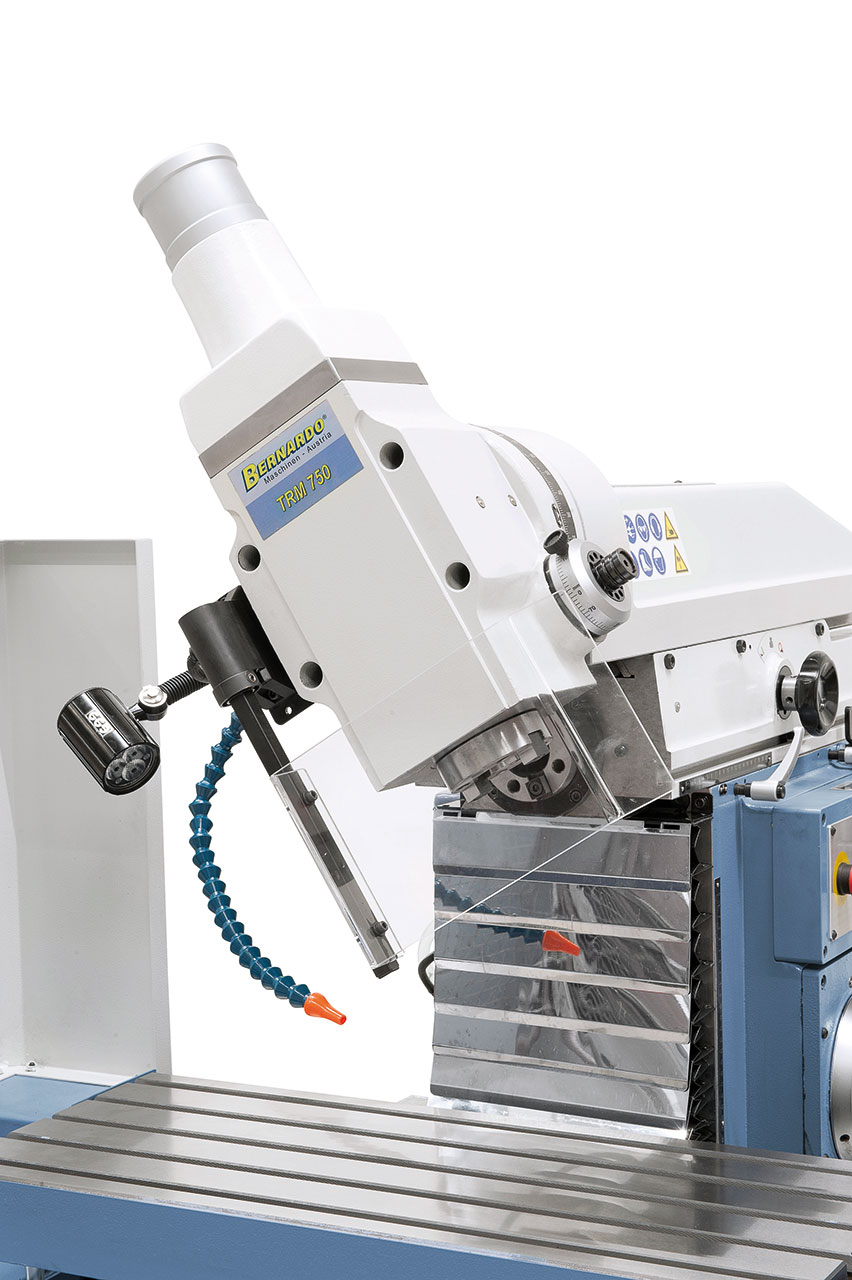

Spindle head tilting range

-90° to +90°

Horizontal milling head



Spindle speed

(12) 50 - 2000 rpm

Spindle taper

ISO 40

Distance spindle / table

35 - 370 mm

Feeding speeds



x-axis

8 - 450 mm/min

y-axis

8 - 450 mm/min

z-axis

8 - 450 mm/min

Rapid feed (x / y / z)

720 mm/min

T-slot (quantity / width / distance)

5 / 14 mm / 63 mm

T-slot vertical table (quantity / width / distance)

2 / 14 mm / 126 mm

Feeding motor

0,375 kW

Main motor

2,2 kW

Machine dimension (B x T x H)

1450 x 1230 x 1920 mm

Weight approx.

1280 kg




* manual

Delivery Contents

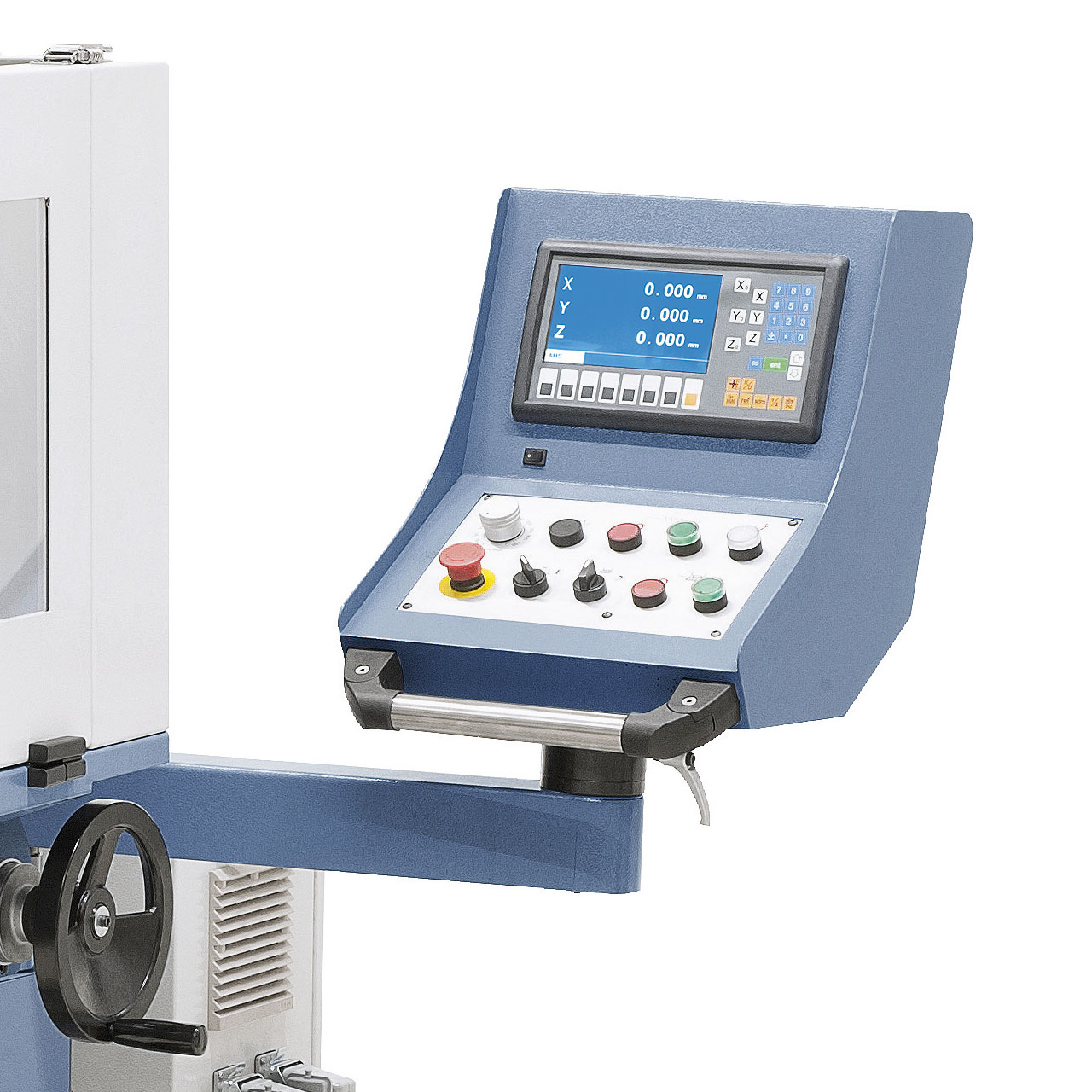

  • 3-axis digital readout ES-12 H with LCD-display
  • LED machine light
  • Coolant device
  • Power feed for x-, y- and z-axis

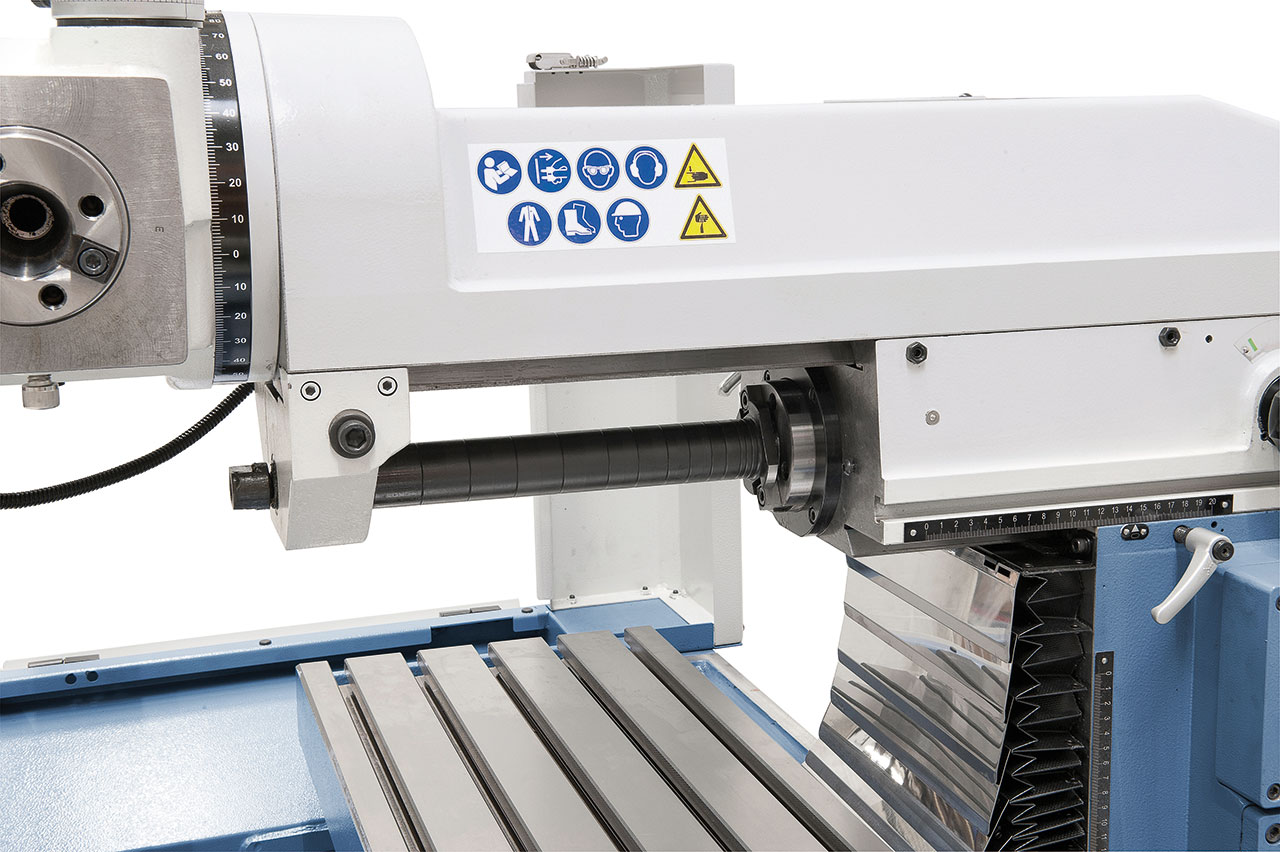

  • Horizontal counter bearing
  • Table housing
  • Ball screw in all 3 axis
  • Pneumatic tool clamping
  • Electrical central lubrication
  • Frequency inverter Delta for power feeds
  • Steel cover
  • Long milling arbor ISO 40/27 mm
  • Adapter ISO 40 / MT 3
  • Morse taper drill sleeve MT 3 / 2
  • Morse taper drill sleeve MT 3 / 1
  • Collet chuck ISO 40 with collets 5 - 25 mm (7 pcs.)
  • Tools
