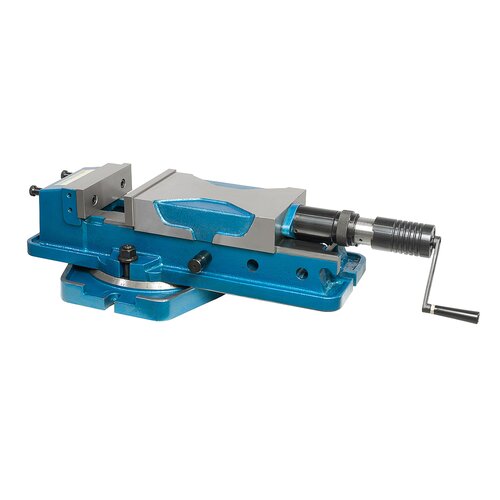

Hydraulic machine vise with swivel base PHV 200
Art.Nr.: 28-2122€2,388.00
Availability
Out of Stock
Product Properties
- Useable on modern CNC machines and machining centre
- Clamping system mechanical / hydraulic by crank handle
- Hardened and grounded guideways
- Integrated low-pull type mechanism avoid the lifting of the moveable jaw and a overturning of the workpiece
- Quick adjustment of the clamping range through setting pins
- Alternatively mechanical clamping or mechanic / hydraulic clamping through adjusting of the adusting sleeve
- Constant clamping force on the complete clamping range
- Long flat guideways of the moveable jaw
- Quick changeable and inexpensive hydraulic unit
- Various jaws available
- Complete with swivel base and 360° scale

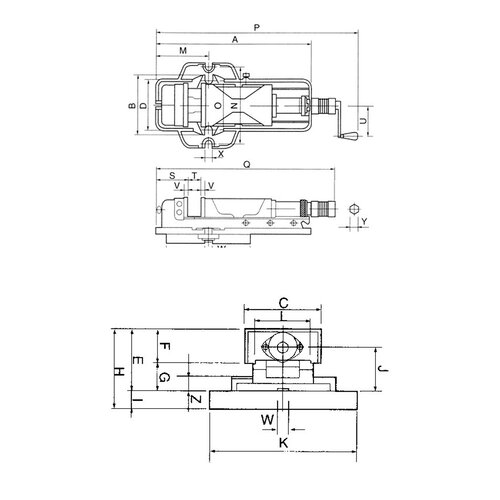

Product Specifications
|
A |
700 mm |
|
B |
280 mm |
|
C |
200 mm |
|
D |
240 mm |
|
E |
163 mm |
|
F |
63 mm |
|
G |
100 mm |
|
H |
205 mm |
|
J |
125 mm |
|
K |
400 mm |
|
L |
165 mm |
|
M |
265 mm |
|
P |
830 / 1140 mm |
|
Q |
725 / 1035 mm |
|
R |
365 mm |
|
S |
150 mm |
|
T |
300 mm |
|
U |
125 mm |
|
V |
18 mm |
|
W |
18 mm |
|
X |
22 mm |
|
Y |
14 mm |
|
Z |
36 mm |
|
Clamping range I |
0 - 110 mm |
|
Clamping range II |
100 - 210 mm |
|
Clamping range III |
200 - 310 mm |
|
Max. clamping force |
6000 kg |
|
Weight approx. |
113 kg |
