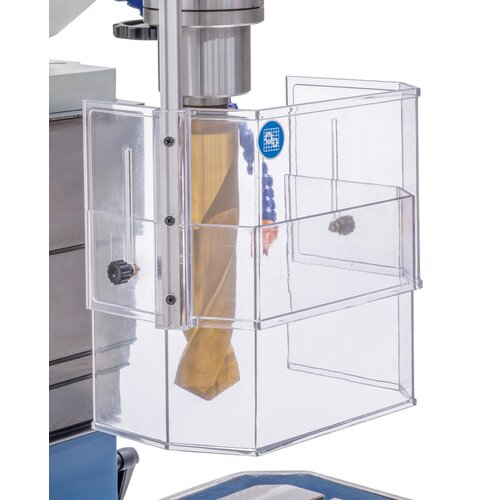

Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.
Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.

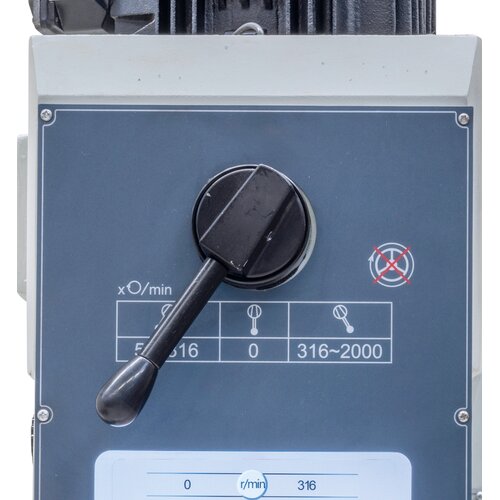

Intermediate transmission system allows for easy gear settings. Speed selection at the control panel.
Intermediate transmission system allows for easy gear settings. Speed selection at the control panel.

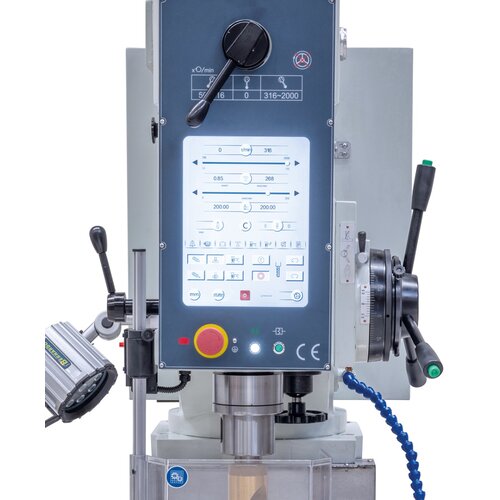

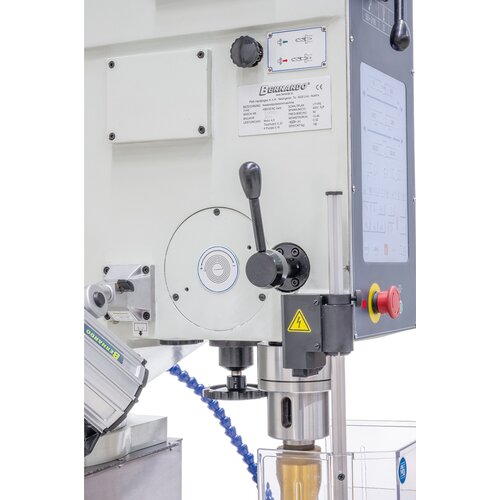

User-friendly control elements are clearly arranged.
User-friendly control elements are clearly arranged.

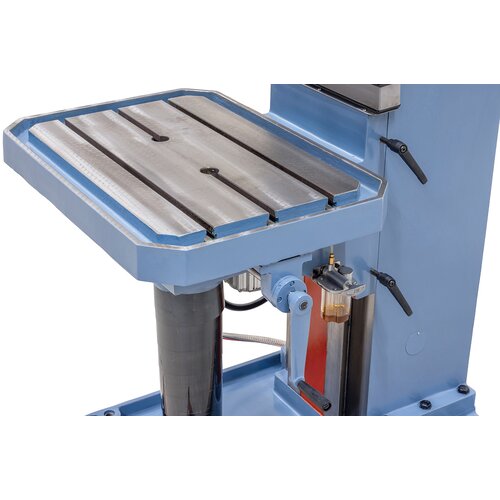

Surface treated, large work table.
Surface treated, large work table.

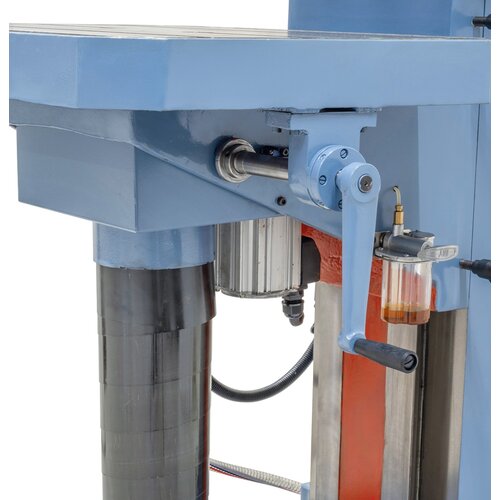

Motorized table stroke noticably reduces non-productive times.
Motorized table stroke noticably reduces non-productive times.

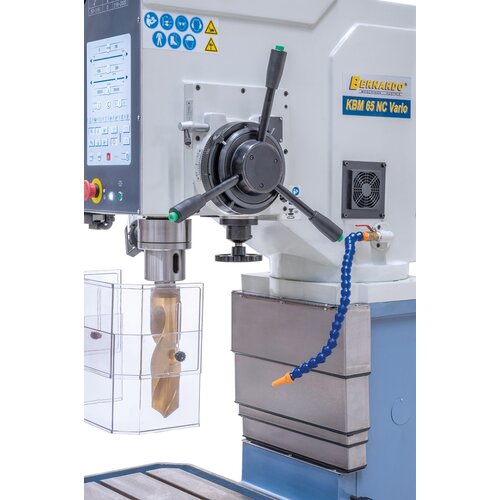

Equipped with automatic spindle feed and digital display for drill depth to allow accurate operation.
Equipped with automatic spindle feed and digital display for drill depth to allow accurate operation.

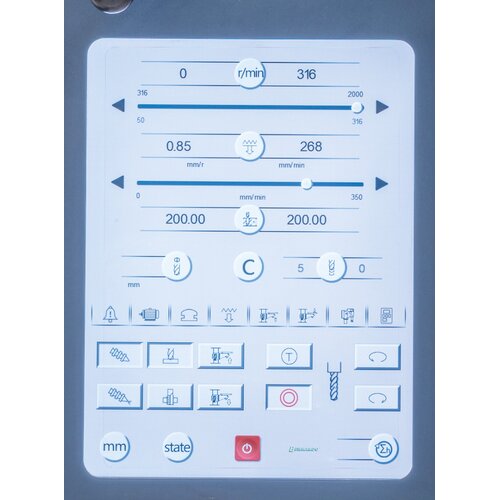

Large touchscreen for all settings, such as speed, drilling, left and right turning, height adjustment of work table,….
Large touchscreen for all settings, such as speed, drilling, left and right turning, height adjustment of work table,….
Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.
Intermediate transmission system allows for easy gear settings. Speed selection at the control panel.
User-friendly control elements are clearly arranged.
Surface treated, large work table.
Motorized table stroke noticably reduces non-productive times.
Equipped with automatic spindle feed and digital display for drill depth to allow accurate operation.
Large touchscreen for all settings, such as speed, drilling, left and right turning, height adjustment of work table,….

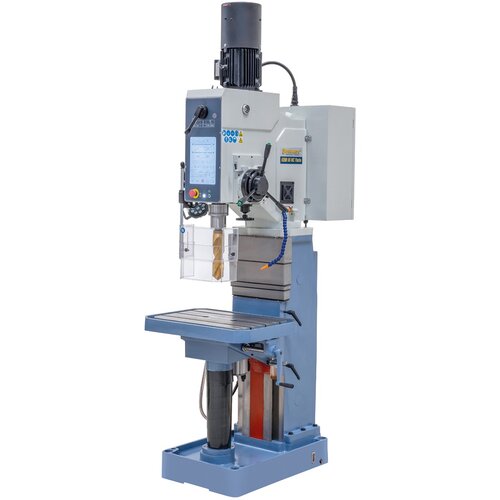

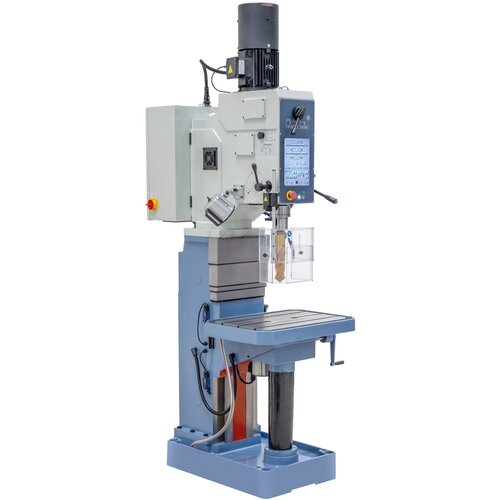

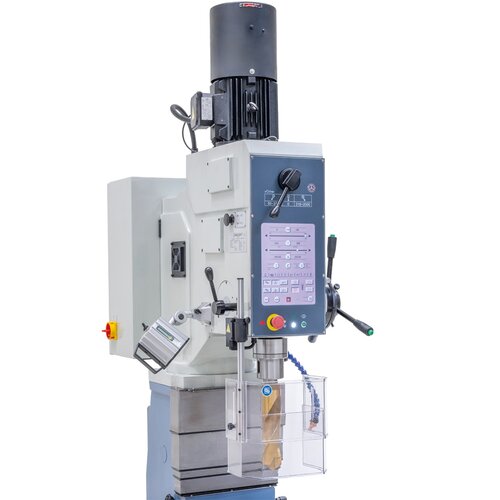

Box-column drill press KBM 65 NC Vario *

Art.Nr.: 01-1346XL0
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The KBM 65 NC Vario box-column drilling press comes with stepless speed setting, allowing ideal adjustment of cutting speed to each workpiece. The special features of this model are the operation via a large touchscreen and the spindle feed by a servo motor.

€15,840.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • The standard Bohrtronic control calculates the ideal speed or feed rate for drilling and thread cutting after entering the tool diameter and material (cast iron / steel)
  • Solid construction of column and base designed for excessive use

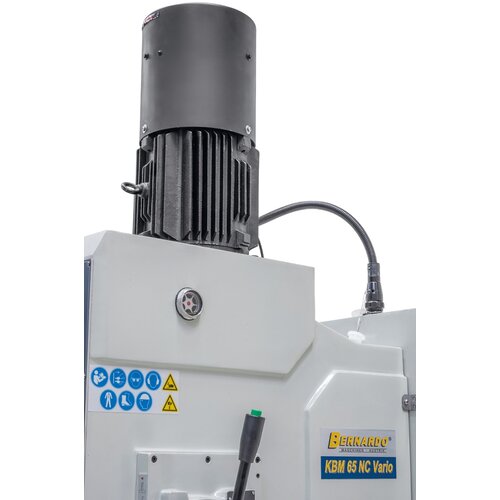

  • Powerful drive motor features high torque and large feed force
  • Solid grey cast iron construction maximizes table load capacity
  • Polished gear wheel, in oil bath, ensure smooth operation
  • Tapping device comes with automatic change of rotation at adjusted drill depth
  • The quill feed takes place by a high quality servo motor
  • All settings are made directly on the large touchscreen display
  • Motorized table height adjustment included

Product Specifications

Drilling capacity in steel

60 mm

Drilling capacity in cast iron

70 mm

Thread cutting max.

M36

Morse taper

MT 5

Spindle speeds / 2 steps

50 – 316 / 316 – 2000 rpm

Feed range, stepless

1 – 350 mm/min

Distance spindle to column

310 mm

Distance spindle to table max.

750 mm

Spindle stroke

215 mm

Table size / T-Slot size

735 x 520 mm / 14 mm

Table lift

380 mm

Motor power

4,0 kW

Machine dimension (W x D x H)

805 x 1130 x 2600 mm

Weight approx.

920 kg

Delivery Contents

  • Keyless drill chuck 3 - 16 mm / B 18
  • Drill chuck arbor MT 5 / B 18
  • Morse taper drill sleeve MT 5 / 4, MT 4 / 3, MT 4 / 2, MT 3 / 1
  • Motoric table stroke
  • Coolant device
  • Touchscreen with Bohrtronic control
  • Automatic tool release device
  • Electromagnetic spindle feed
  • Thread cutting device
  • Initial filling with Shell Tellus 46
  • LED machine light
  • Digital speed indication
  • Digital drill depth indication
  • Telescopic cover
  • Height adjustable protective cover
