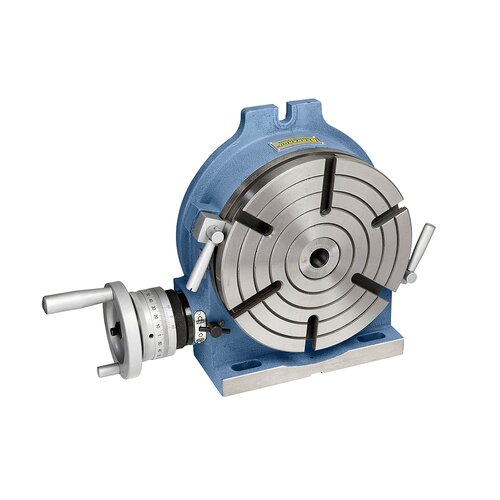

Horizontal & vertical rotary table HV 10 - 250 mm
Art.Nr.: 27-1002€618.00
Availability
In Stock
Deliverable in 2-3 business days
Product Properties
- Suitable for milling and drilling works on horizontal or vertical milling machines, drilling machines, etc.
- Table is made of high-quality Meehanite casting
- Worm shaft hardened and grounded, worm gear made of special cast
- 2 clamping lever for clamping of the table
- Transmission ratio of worm gearbox 90:1
- Grade indexing via scale drum with adjustable nonius
- Direct indexing via 360° scale mounted on the table
Product Specifications
|
Table diameter |
250 mm |
|
Ratio |
90:1 |
|
Morse taper |
MT 3 |
|
Quantity of T-slots |
6 pcs. |
|
Max. load horizontal |
90 kg |
|
Max. load vertical |
50 kg |
|

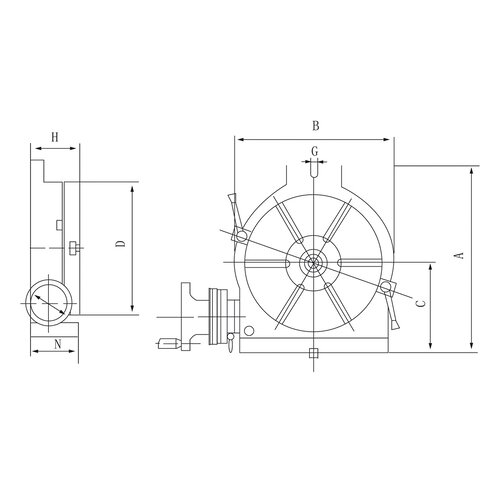

A |
325 mm |
|
B |
280 mm |
|
C |
165 mm |
|
D |
250 mm |
|
E |
14 mm |
|
G |
17 mm |
|
H |
115 mm |
|
N |
113 mm |
|
Weight ca. |
43 kg |
