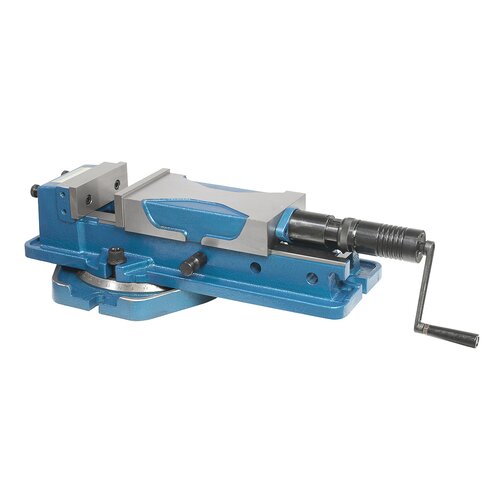

Hydraulic machine vise with swivel base PHV 160
Art.Nr.: 28-2121€1,668.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- Useable on modern CNC machines and machining centre
- Clamping system mechanical / hydraulic by crank handle
- Hardened and grounded guideways
- Integrated low-pull type mechanism avoid the lifting of the moveable jaw and a overturning of the workpiece
- Quick adjustment of the clamping range through setting pins
- Alternatively mechanical clamping or mechanic / hydraulic clamping through adjusting of the adusting sleeve
- Constant clamping force on the complete clamping range
- Long flat guideways of the moveable jaw
- Quick changeable and inexpensive hydraulic unit
- Various jaws available
- Complete with swivel base and 360° scale

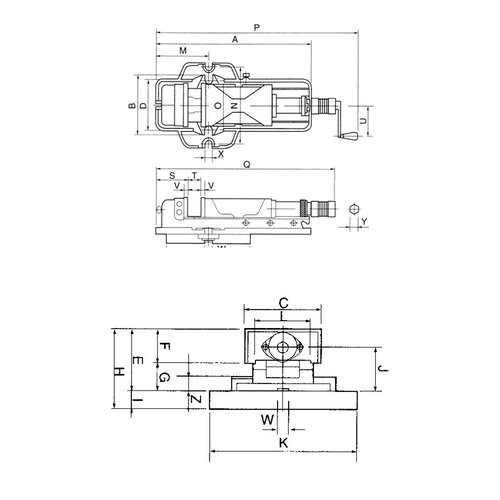

Product Specifications
|
A |
625 mm |
|
B |
240 mm |
|
C |
160 mm |
|
D |
205 mm |
|
E |
140 mm |
|
F |
58 mm |
|
G |
82 mm |
|
H |
179 mm |
|
J |
105 mm |
|
K |
340 mm |
|
L |
125 mm |
|
M |
208 mm |
|
P |
755 / 1055 mm |
|
Q |
640 / 940 mm |
|
R |
320 mm |
|
S |
125 mm |
|
T |
300 mm |
|
U |
125 mm |
|
V |
15 mm |
|
W |
16 mm |
|
X |
18 mm |
|
Y |
14 mm |
|
Z |
27 mm |
|
Clamping range I |
0 - 110 mm |
|
Clamping range II |
100 - 210 mm |
|
Clamping range III |
200 - 310 mm |
|
Max. clamping force |
4000 kg |
|
Weight approx. |
72 kg |
