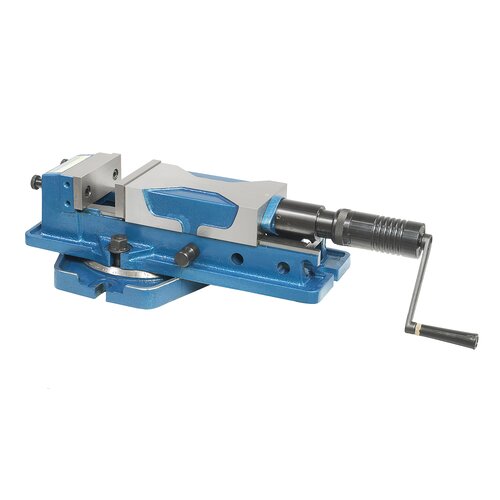

Hydraulic machine vise with swivel base PHV 130
Art.Nr.: 28-2120€1,548.00
Availability
In Stock
Deliverable in 2-3 business days
Product Properties
- Useable on modern CNC machines and machining centre
- Clamping system mechanical / hydraulic by crank handle
- Hardened and grounded guideways
- Integrated low-pull type mechanism avoid the lifting of the moveable jaw and a overturning of the workpiece
- Quick adjustment of the clamping range through setting pins
- Alternatively mechanical clamping or mechanic / hydraulic clamping through adjusting of the adusting sleeve
- Constant clamping force on the complete clamping range
- Long flat guideways of the moveable jaw
- Quick changeable and inexpensive hydraulic unit
- Various jaws available
- Complete with swivel base and 360° scale

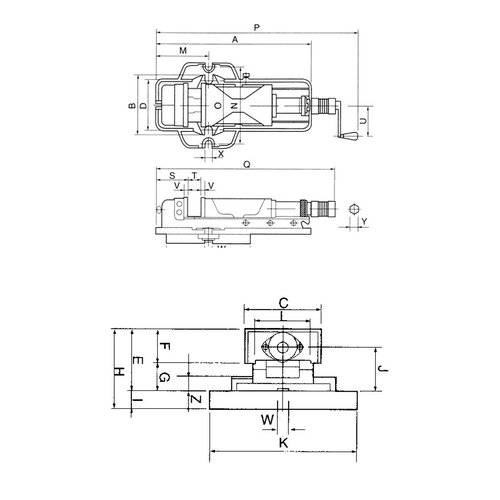

Product Specifications
|
A |
505 mm |
|
B |
190 mm |
|
C |
130 mm |
|
D |
170 mm |
|
E |
127 mm |
|
F |
55 mm |
|
G |
72 mm |
|
H |
163 mm |
|
J |
95 mm |
|
K |
290 mm |
|
L |
106 mm |
|
M |
180 mm |
|
P |
695 / 920 mm |
|
Q |
570 / 795 mm |
|
R |
260 mm |
|
S |
105 mm |
|
T |
220 mm |
|
U |
125 mm |
|
V |
15 mm |
|
W |
16 mm |
|
X |
18 mm |
|
Y |
14 mm |
|
Z |
25 mm |
|
Clamping range I |
0 - 75 mm |
|
Clamping range II |
70 - 150 mm |
|
Clamping range III |
145 - 225 mm |
|
Max. clamping force |
3500 kg |
|
Weight approx. |
46 kg |
