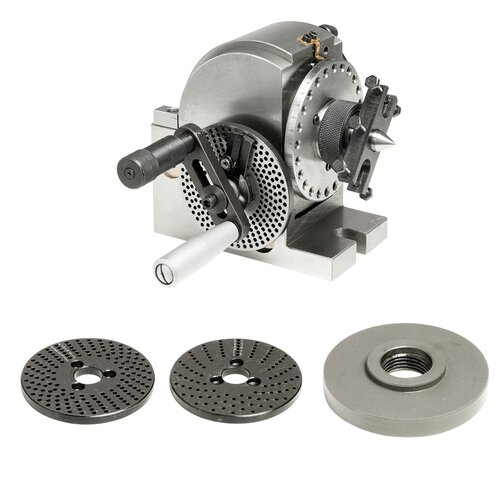

Semi-universal dividing head BS-0
Art.Nr.: 27-1045€564.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- Spindle in precision taper bearing
- Worm made of chromium-nickel steel, hardened and grounded
- Phosphor bronze worm gear
- Ratio unlatchable for direct dividing (40:1)
- Tiltable from horizontal to vertical (-10° to +90°)
- Direct dividing with 24 rests
- Each divide from 2 to 50 and many divides from 52 to 380 possible
Standard accessories:
- Tailstock
- 2 dividing plates
- Dead center
- Driving dog
- Flange
Product Specifications
|
Ratio |
40:1 |
|
Height |
170 mm |
|
Width with centering tip |
195 mm |
|
Length |
230 mm |
|
Centering tip |
MT 2 |
|
Flange |
125 mm |
|
Tiltable |
0° bis 90° |
|
Spindle bore |
18 mm |
|
T-slot size |
16 mm |
|
Direct dividing disc (division) |
24 (15°) |
|
Weight approx. |
16,8 kg |
|

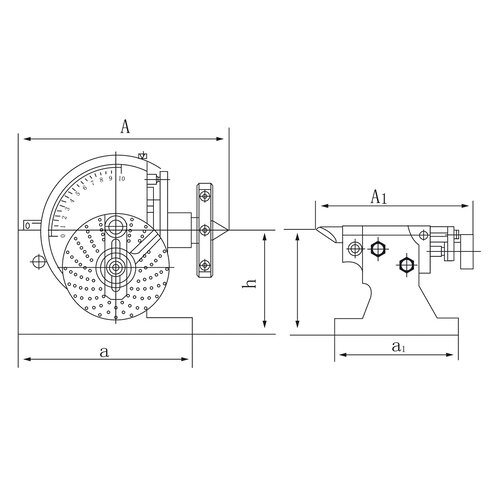

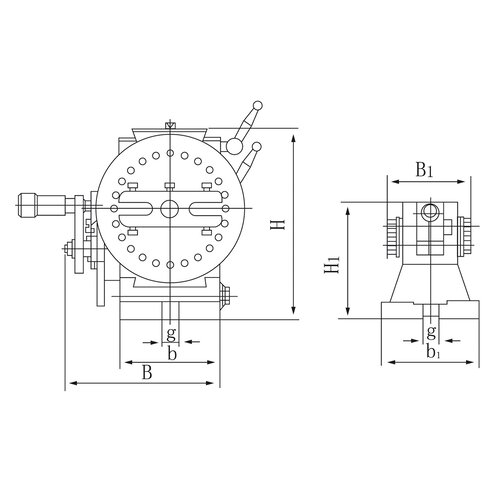

Dimension dividing head |
|
Dimension tailstock |
||
|
A |
195 mm |
|
A1 |
175 mm |
|
B |
140 mm |
|
B1 |
87 mm |
|
H |
170 mm |
|
H1 |
107 mm |
|
h |
100 mm |
|
h1 |
100 mm |
|
a |
166 mm |
|
a1 |
130 mm |
|
b |
90 mm |
|
b1 |
92 mm |
|
g |
16 mm |
|
g1 |
16 mm |
