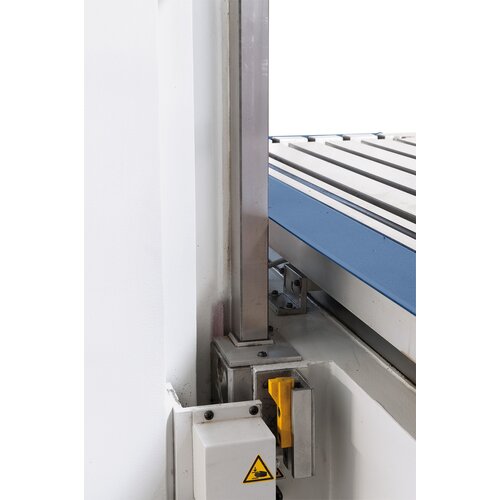

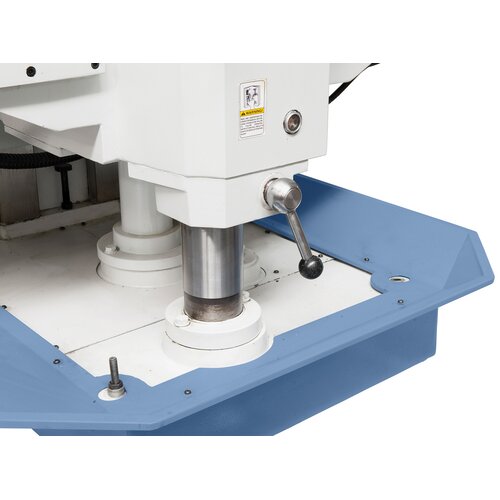

Manual clamping of z-axis for heightened stability.
Manual clamping of z-axis for heightened stability.

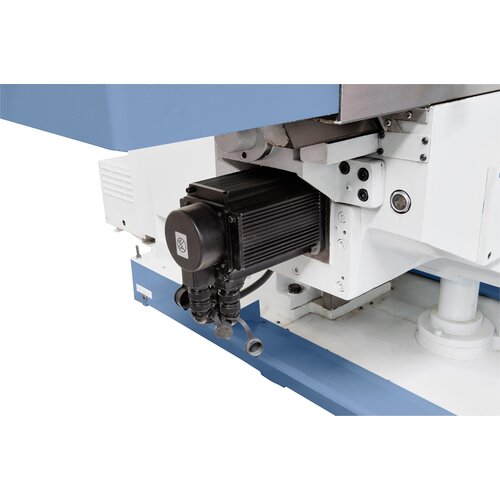

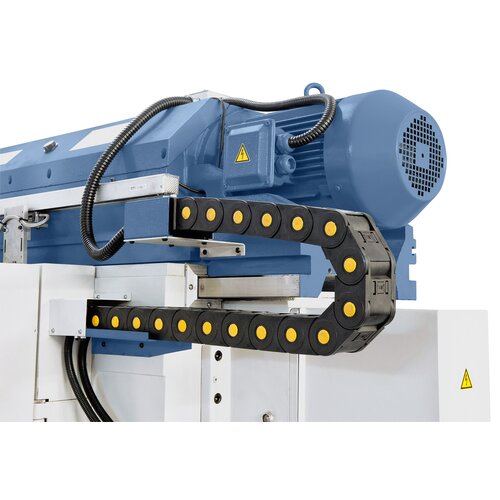

3 powerful servo motors in x-, y- and z-axis comes standard.
3 powerful servo motors in x-, y- and z-axis comes standard.

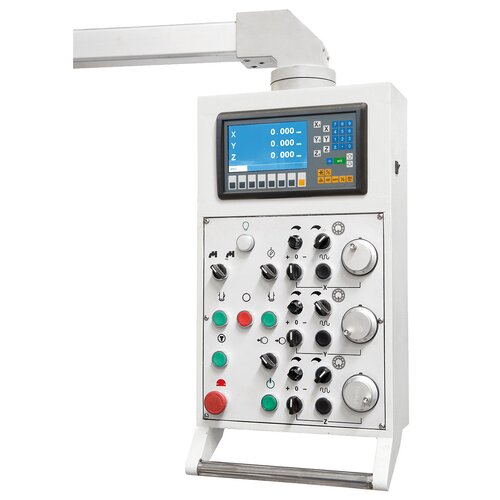

Clearly arranged panel with integrated digital readout and electronic handwheels.
Clearly arranged panel with integrated digital readout and electronic handwheels.

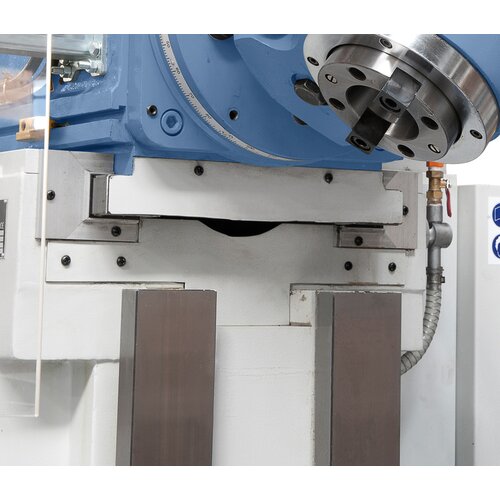

Large rectangular guides at the y- and zaxis guarantees an increase in stability.
Large rectangular guides at the y- and zaxis guarantees an increase in stability.

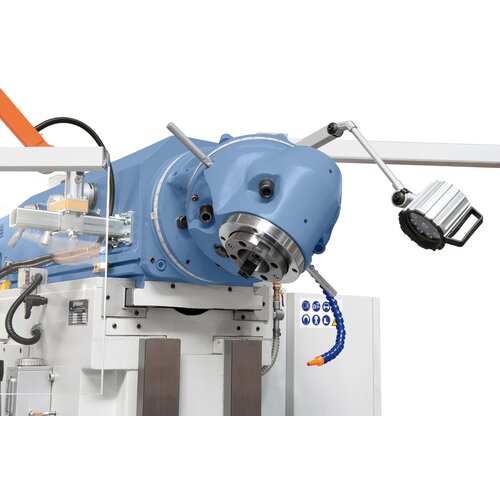

The adjustment of the 90° and 45° level allows the universal mill head to be set to various different angles.
The adjustment of the 90° and 45° level allows the universal mill head to be set to various different angles.

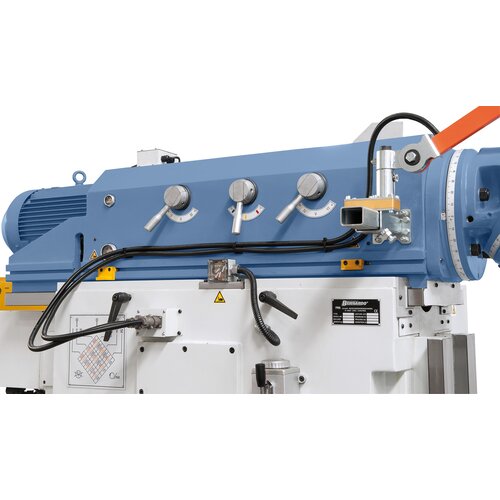

User-friendly control elements allow easy and quick speed change.
User-friendly control elements allow easy and quick speed change.
Manual clamping of z-axis for heightened stability.
3 powerful servo motors in x-, y- and z-axis comes standard.
Clearly arranged panel with integrated digital readout and electronic handwheels.
Large rectangular guides at the y- and zaxis guarantees an increase in stability.
The adjustment of the 90° and 45° level allows the universal mill head to be set to various different angles.
User-friendly control elements allow easy and quick speed change.

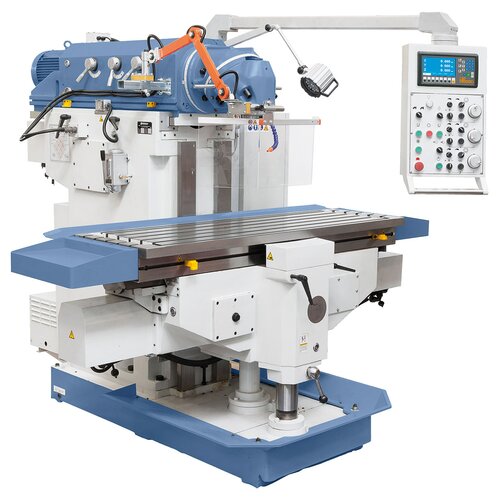

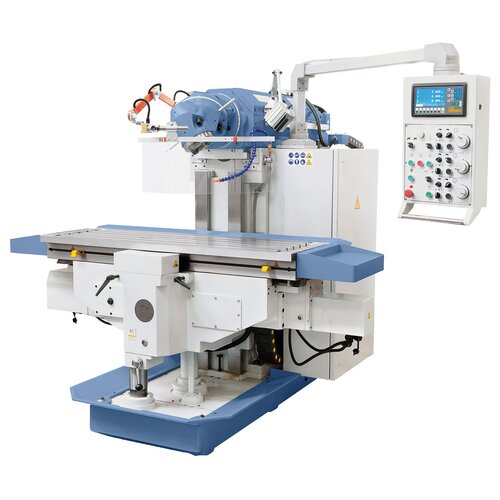

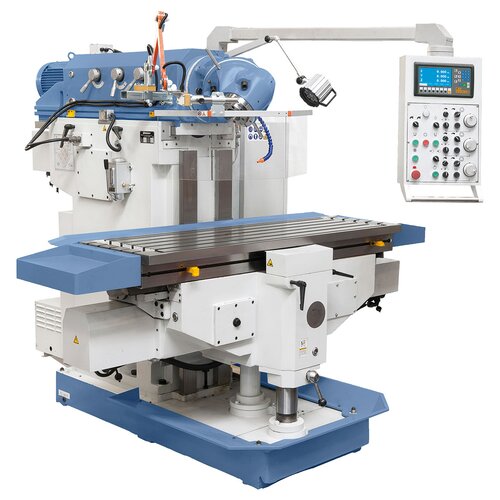

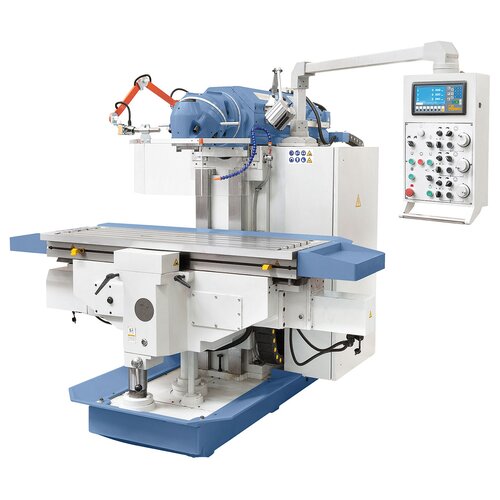

Universal milling machine VARIOMILL FU 1600 E Servo *

Art.Nr.: 02-1286XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The universal milling machine Variomill FU 1600 E Servo feature a solid, heavy grey cast iron construction, making this model ideal for heavy machining of oversize workpieces. Features of this machine include servo drive in all axis, a large work table and large travel.

€49,608.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Stepless feed settings and rapid feed in all axis, driven by servo motors
  • Turcite-B coating in x-axis reduces slip-stick effect
  • Clearly arranged spindle speed control unit on machine arm
  • Ball screws in all three axis minimize play
  • Hardened, nitrated, polished gear wheels in oil bath
  • Machine body in heavy construction for vibration-free run

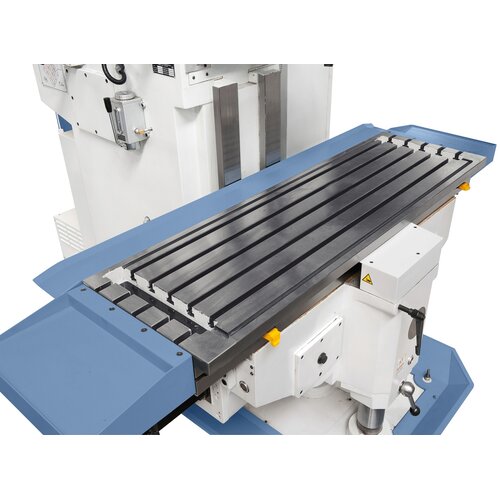

  • Large cross table with T-slots, treated surface
  • Central lubrication for the guideways comes standard
  • Optimal adjustment of spindle speed and feed allow for economic
    machining of various materials
  • Large dovetail guidings in x-axis, rectangular guiding in y- and z-axis
    guarantees stability

Product Specifications

Table size

1600 x 500 mm

Spindle taper

ISO 50

Spindle speed

(27) 30 – 2050 rpm

Travel longitudinal (x)

1200 mm

Travel cross (y)

700 mm

Travel vertical (z)

500 mm

Distance spindle to table

50 – 550 mm

Distance spindle to column

28 – 728 mm

Feed range longitudinal (stepless)

10 – 1000 mm/min

Feed range cross (stepless)

10 – 1000 mm/min

Feed range vertical (stepless)

5 – 500 mm/min

Rapid feed x- and y-axis

2200 mm/min

Rapid feed z-axis

1100 mm/min

Table load

1800 kg

T-slot (Width / Distance / Quantity)

5 / 18 mm / 80 mm

Main motor

7,5 kW

Machine dimension (W x D x H)

2200 x 2285 x 2100 mm

Weight approx.

4500 kg

Delivery Contents

  • 3-axis digital readout ES-12 H with LCD-display
  • Electronic handwheels
  • Drawbar
  • Coolant device
  • Coolant tray
  • LED machine light
  • Universal mill head
  • Universal protective cover
  • Spindle brake
  • Ball screws in all axis
  • Automatic central lubrication
  • Taper shell end mill holder
  • Tools
