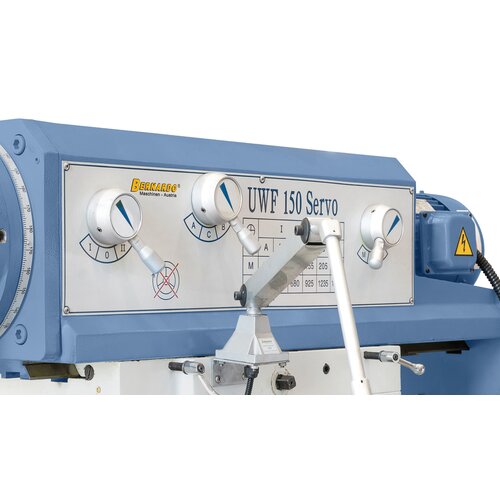

User-friendly control elements allow easy and quick speed change.
User-friendly control elements allow easy and quick speed change.

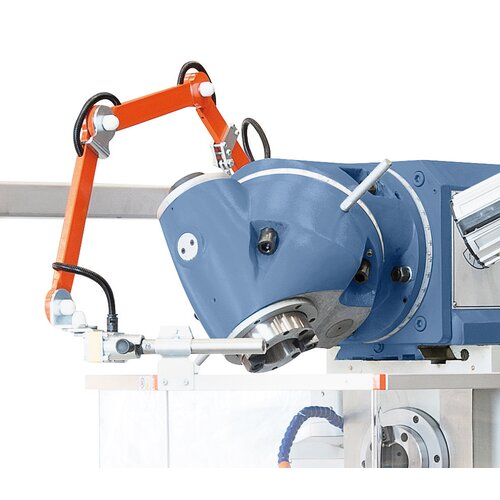

Universal mill head adjustable to various angles.
Universal mill head adjustable to various angles.

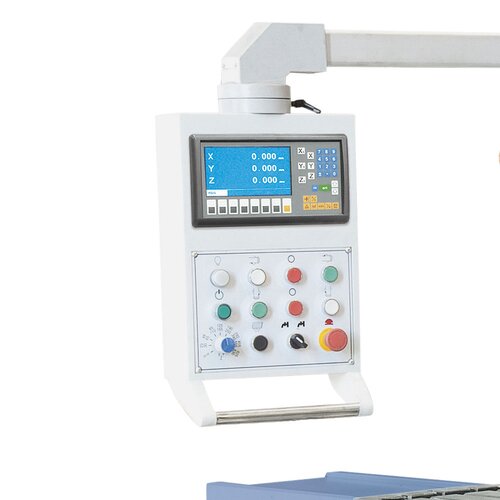

User-friendly and clearly arranged panel, serially equipped with digital readout.
User-friendly and clearly arranged panel, serially equipped with digital readout.

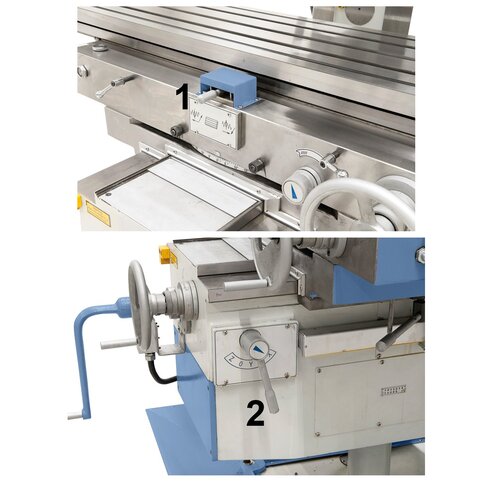

1: Selector lever for feed direction / 2: Selector lever for feed axis
1: Selector lever for feed direction / 2: Selector lever for feed axis
User-friendly control elements allow easy and quick speed change.
Universal mill head adjustable to various angles.
User-friendly and clearly arranged panel, serially equipped with digital readout.
1: Selector lever for feed direction / 2: Selector lever for feed axis

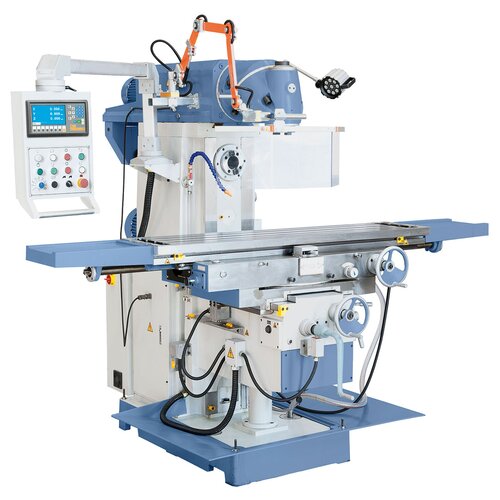

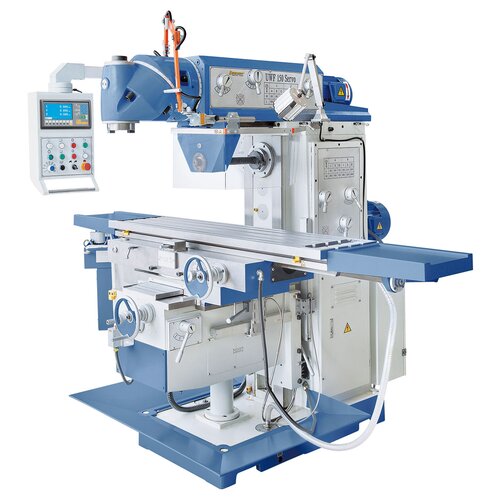

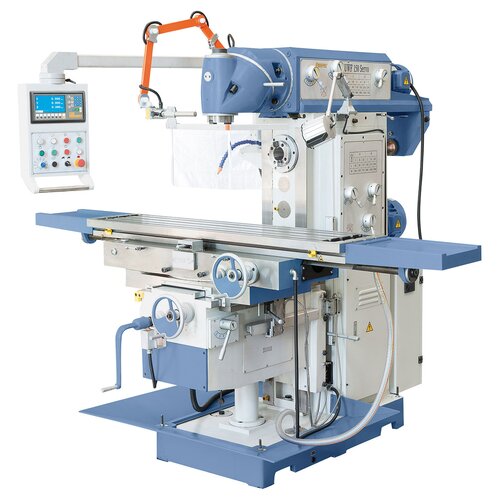

Universal milling machine UWF 150 Servo *

Art.Nr.: 02-1289XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The UWF 150 Servo is a solidly constructed universal milling machine featuring a moveable arm and big clamping area. The big dimensioned guidings in all axis guarantees absolute precision and stability. Especial features of this machine are the tiltable work table, the rectangular guiding in y- and z-axis and the servo drive for feeds and rapid feed in all axis.

€28,716.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Logical, clearly arranged gearshift for speed change
  • Hardened and polished guideways guarantees top accuracy
  • Setting of the required feed speed by potentiometer on the contro panel
  • Digital readout for x-, y- and z-axis come standard
  • Finely graduated feeds in all axis, driven by servomotor
  • Universal mill head system „Huron“ adjusts to various angles
  • Complete with rapid feed in x-, y- and z-axis to reduce downtime
  • Optimal adjustments of spindle speed and feed allow for economic machining of various materials
  • Central lubrication in x- and y-axis comes standard

Product Specifications

Table size

1600 x 360 mm

Spindle taper horizontal

ISO 50

Spindle taper vertical

ISO 50

Spindle speed horizontal

(12) 60 - 1800 rpm

Travel longitudinal (x)

1300 mm

Travel cross (y)

300 mm

Travel vertical (z)

400 mm

Distance spindle to table horizontal

15 - 415 mm

Distance spindle to table vertical

185 - 585 mm

Distance spindle to column

215 - 840 mm

Table tiltable

-45° to +45°

Max. workpiece weight

300 kg

Feed range longitudinal

(8) 30 - 830 mm/min

Feed range cross

(8) 30 - 830 mm/min

Feed range vertical

(8) 23 - 625 mm/min

Rapid feed x-, y- and z-axis

1200 / 800 / 600 mm/min

T-slot (Quantity / Width / Distance)

3 / 18 mm / 80 mm

Motor power horizontal

5,5 kW

Motor power vertical

4,0 kW

Servomotor (Torque / Output)

10 Nm / 1,5 kW

Coolant pump output

90 W

Coolant pump flow rate

25 l/min

Machine dimension (W x D x H)

2530 x 2200 x 2300 mm

Weight approx.

2650 kg

Delivery Contents

  • 3-axis digital readout ES-12 H with LCD-display
  • Drawbar M 24
  • LED machine light
  • Coolant device
  • Horizontal counter bearing
  • Coolant tray
  • Power feed for x-, y- and z-axis
  • Universal protective cover
  • Long milling arbor ISO 50/27 mm, ISO 50/32 mm
  • Taper shell end mill holder ISO 50/32 mm
  • Morse taper drill sleeve ISO 50 / MT 4
  • Central lubrication for x- and y-axis
  • Tools
