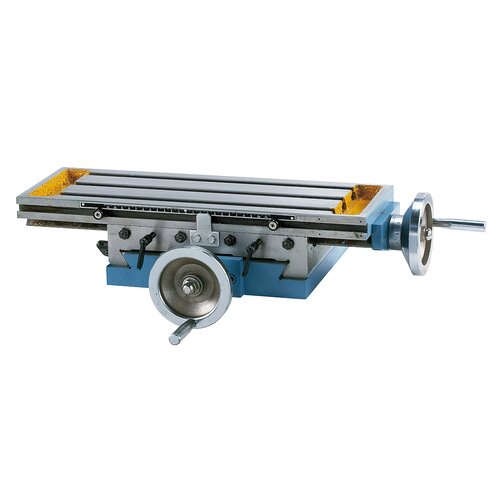

Cross table KT 165 - 495 x 165 mm
Art.Nr.: 27-1095€432.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- for small milling works on table and column drilling machines
- Working surface grounded
- Dovetailg guiding adjustable via gibs
Product Specifications
|
Length |
610 mm |
|
Width |
380 mm |
|
Height |
115 mm |
|
T-slot size |
10 mm |
|
Quantity of T-slots |
3 pcs. |
|
Table length |
495 mm |
|
Table width |
165 mm |
|
Max. workpiece weight |
40 kg |
|
Base width |
280 mm |
|
Base length |
260 mm |
|
Travel x-axis |
230 mm |
|
Travel y-axis |
105 mm |
|
Nonius handwheels |
0,04 mm |
|
Weight approx. |
36 kg |
