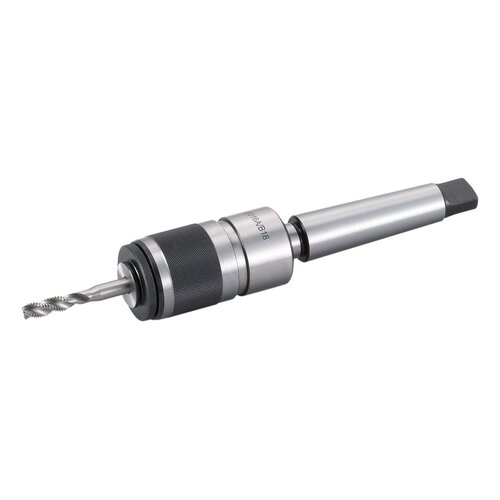

Double roller tapping chuck set MT 5, M 12 - M 24
Art.Nr.: 24-1094€408.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- For use of screw tap for through hole or blind holes
- Quick change inserts serially with adjustable safety overload clutch
- Machined thread cutting with hand feed at core drilling machines, table and column drilling machines,...
- Quick and easy change of the screw tape without tools
- Useable on machines with left and right turning
- Maintenance free execution
Content
M 12 / M 14 / M 16 / M 18 / M 20 / M 22 / M 24
Available sizes
- MT 2 from M3 to M12
- MT 3 from M3 to M12
- MT 4 from M3 to M12
- MT 3 from M12 to M24
- MT 4 from M12 to M24
- MT 5 from M12 to M24

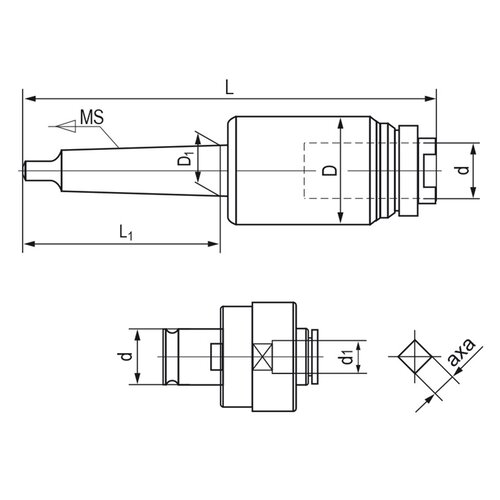

Product Specifications
|
Morse taper |
MT 5 |
|
D |
66 mm |
|
D1 |
44,399 mm |
|
d |
30 mm |
|
L1 |
149,5 mm |
|
L |
284 mm |
|
Cutting range |
M12 - M24 |
|
Torque |
150 Nm |
|
Weight approx. |
4,50 kg |
