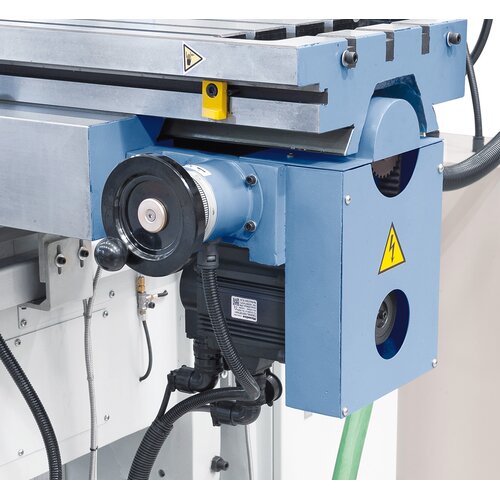

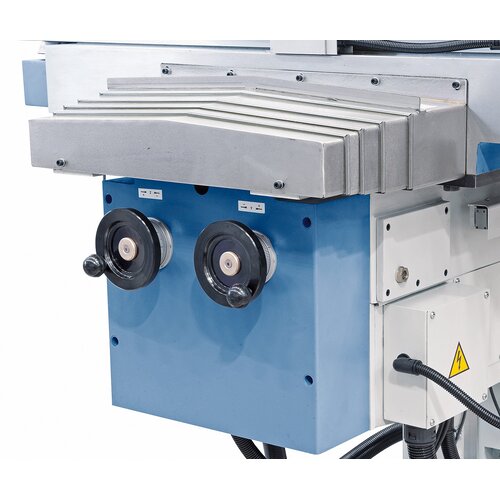

Electronic hand wheels for manual travel and 3 powerful servo motors in x-, y- and z-axis come standard.
Electronic hand wheels for manual travel and 3 powerful servo motors in x-, y- and z-axis come standard.
Electronic hand wheels for manual travel and 3 powerful servo motors in x-, y- and z-axis come standard.
Electronic hand wheels for manual travel and 3 powerful servo motors in x-, y- and z-axis come standard.

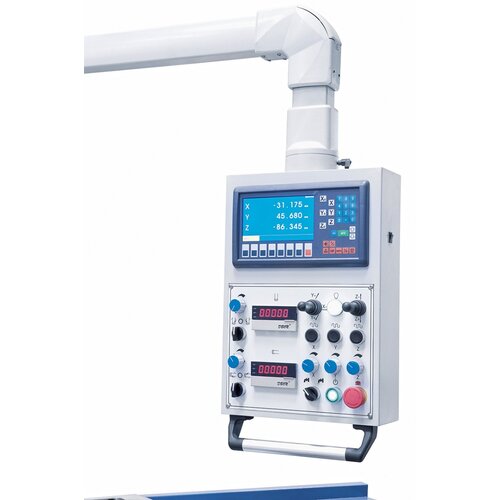

Quick and easy setting of the required feed speed directly at the control panel.
Quick and easy setting of the required feed speed directly at the control panel.

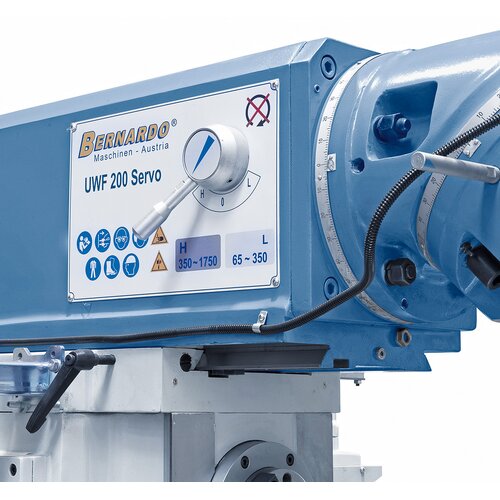

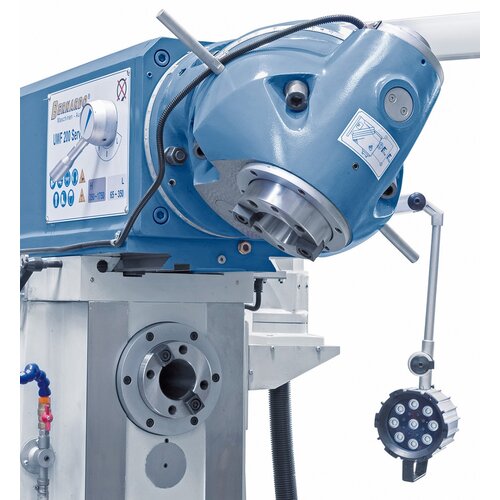

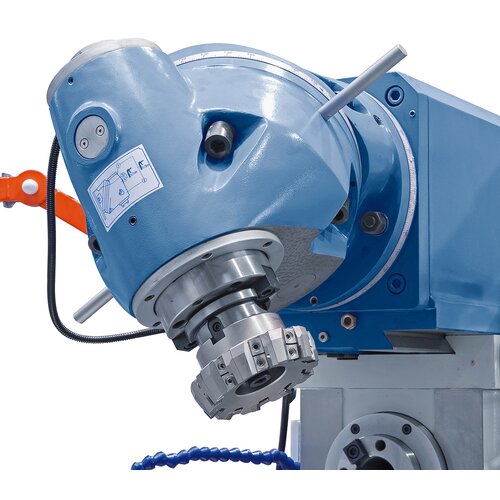

The adjustment of the 90° and 45° level allows the universal mill head to be set to various different angles.
The adjustment of the 90° and 45° level allows the universal mill head to be set to various different angles.

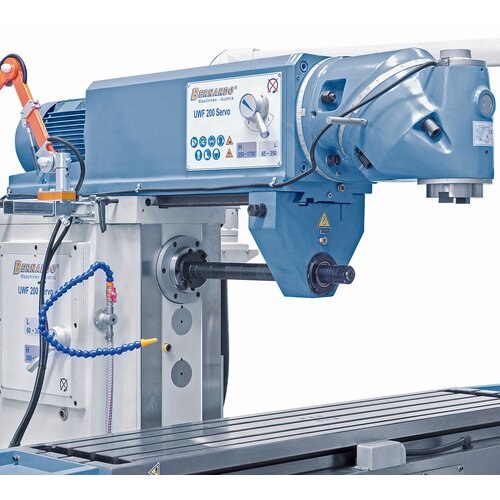

Complete with counter bearing and long milling arbor for horizontal milling.
Complete with counter bearing and long milling arbor for horizontal milling.
Electronic hand wheels for manual travel and 3 powerful servo motors in x-, y- and z-axis come standard.
Electronic hand wheels for manual travel and 3 powerful servo motors in x-, y- and z-axis come standard.
Quick and easy setting of the required feed speed directly at the control panel.
The adjustment of the 90° and 45° level allows the universal mill head to be set to various different angles.
Complete with counter bearing and long milling arbor for horizontal milling.

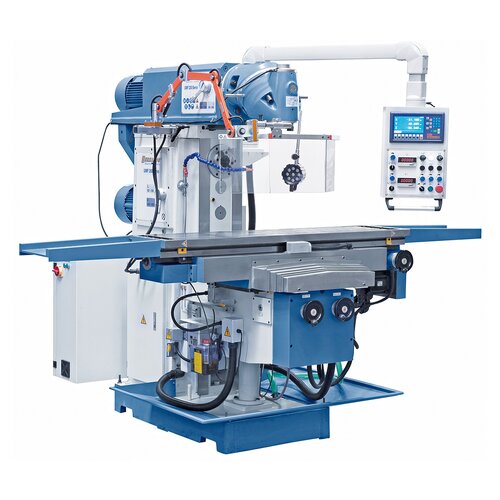

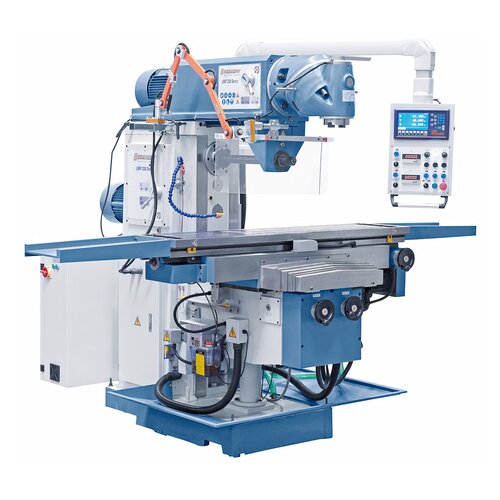

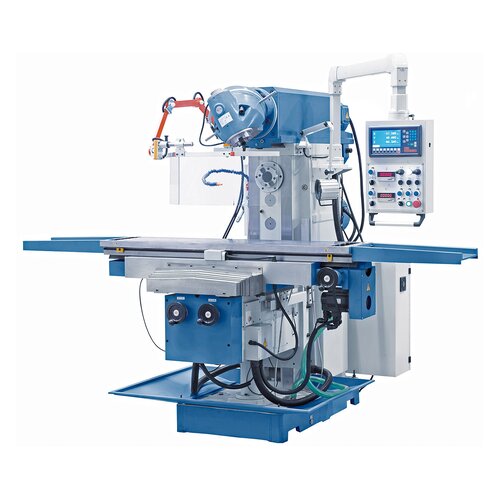

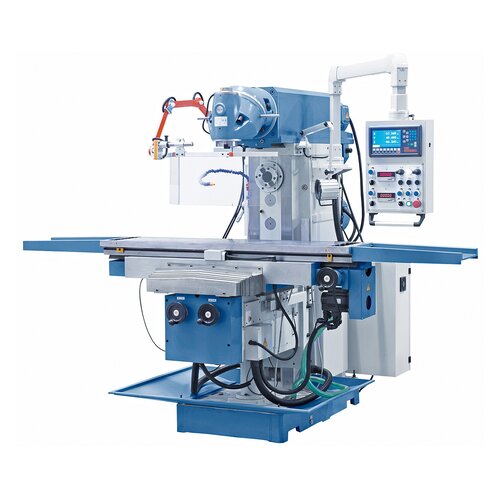

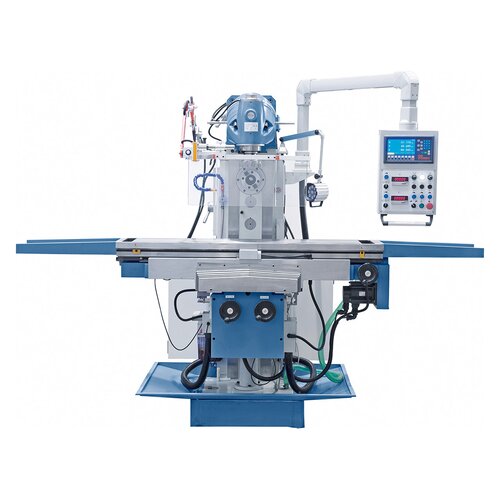

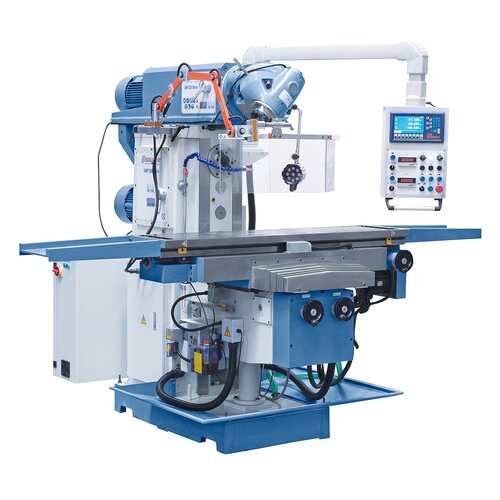

Universal milling machine UWF 200 Servo **

Art.Nr.: 02-1293XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The UWF 200 Servo universal milling machine milling machine is designed for processing workpieces of up to 300 kg. The solid, sturdy grey cast-iron construction and rigidity meet all the requirements for top accuracy. Features of this machine include servo drive with electronic handwheels in all axis and the stepless speed adjustment.

€36,444.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

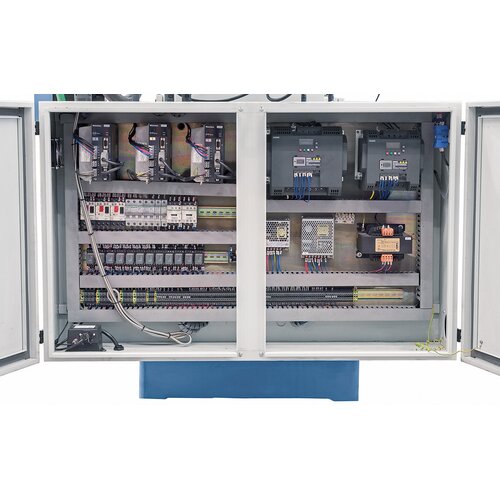

  • Stepless feed settings and rapid feed in all axis, driven by servo motors
  • Ball screws in all three axis minimize play

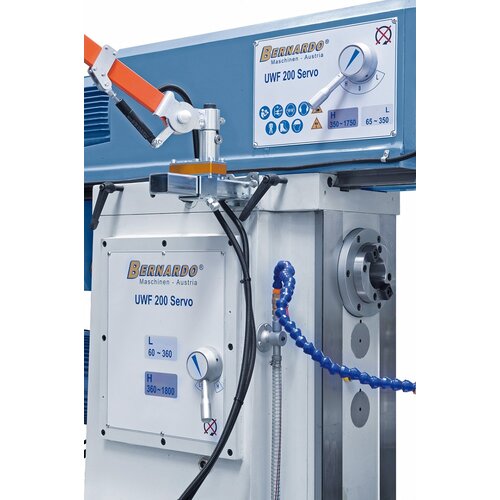

  • Variable speed adjustment of horizontal and vertical spindle with optimal torque
  • Hardened and polished guideways guarantees top accuracy
  • 3 electronic handwheels for manual travel in all axis come standard

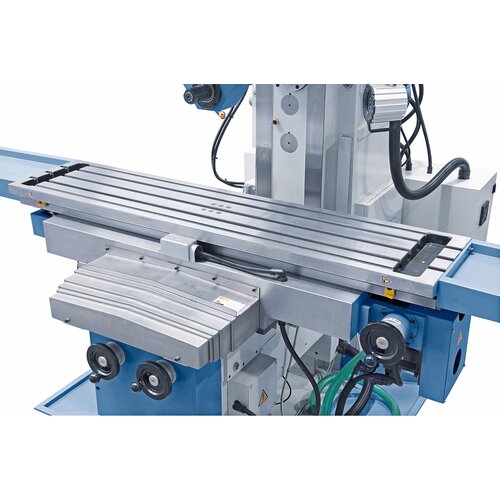

  • Large cross table with T-slots, treated surface

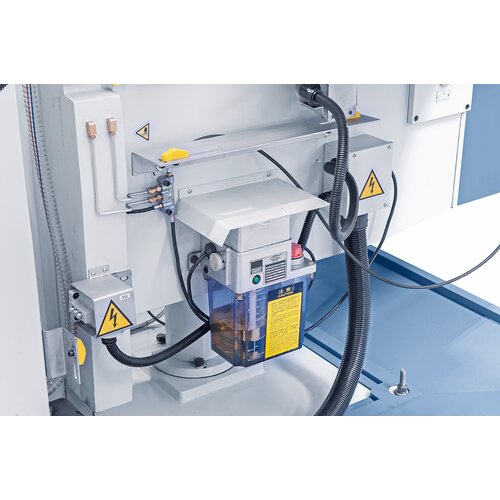

  • Central lubrication for the guideways comes standard
  • Setting of the required feed speed by potentiometer on the contro panel
  • Complete with rapid feed in x-, y- and z-axis to reduce downtime
  • Large rectangular guiding in y-axis, dovetail guiding in x- and z-axis guarantees stability

Product Specifications

Table size

1600 x 360 mm

Spindle taper horizontal

ISO 50

Spindle taper vertical

ISO 50

Spindle speed horizontal

(2) 60 - 360 / 360 - 1800 rpm

Spindle speed vertical

(2) 65 - 350 / 350 - 1750 rpm

Travel longitudinal (x)

1300 mm

Travel cross (y)

300 mm

Travel vertical (z)

400 mm

Distance spindle to table horizontal

15 - 350 mm

Distance spindle to table vertical

180 - 610 mm

Distance spindle to column

250 - 980 mm

Max. workpiece weight

300 kg

T-slot (Quantity / Width / Distance)

3 / 18 / 80 mm

Feed range longitudinal

10 - 1000 mm/min

Feed range cross

10 - 1000 mm/min

Feed range vertical

10 - 500 mm/min

Rapid feed x- and y-axis

10 - 3000 mm/min

Rapid feed z-axis

10 - 750 mm/min

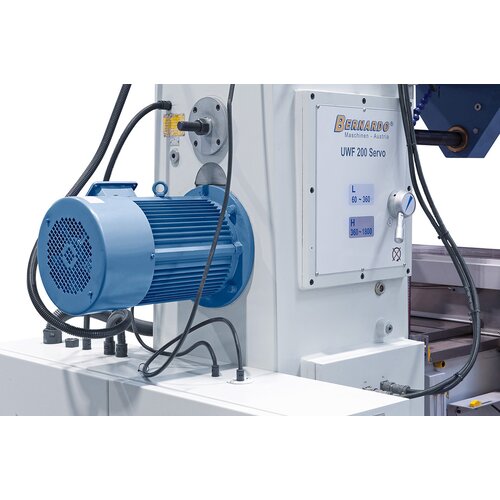

Motor power horizontal

7,5 kW

Motor power vertical

5,5 kW

Servomotor (Torque / Output)

10 Nm / 1,5 kW

Coolant pump output

90 W

Coolant pump flow rate

25 l / min

Machine dimension (W x D x H)

2790 x 2200 x 2200 mm

Weight approx.

2850 kg

Delivery Contents

  • 3-axis digital readout ES-12 H with LCD-display
  • Electronic handwheels
  • Stepless feed in all axis
  • Drawbar M 24
  • LED machine light
  • Coolant device
  • Horizontal counter bearing
  • Coolant tray
  • Universal protective cover
  • Long milling arbor ISO 50/27 mm, ISO 50/32 mm
  • Taper shell end mill holder ISO 50/32mm
  • Morse taper drill sleeve ISO 50 / MT 4
  • Automatic central lubrication
  • Tools
