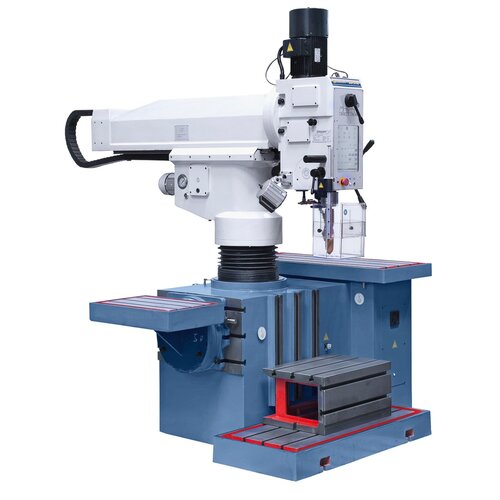

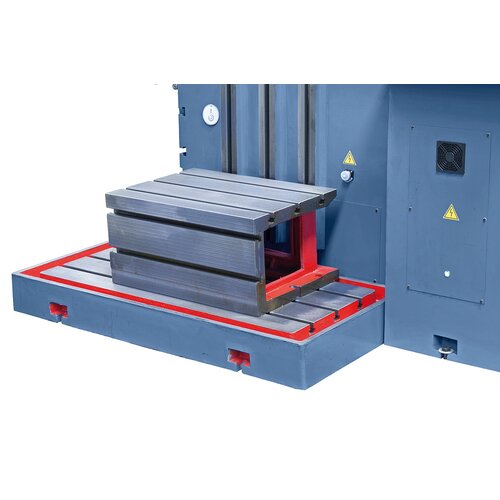

Process oversize workpieces by adding the clamping plate as an extra

Process oversize workpieces by adding the clamping plate as an extra

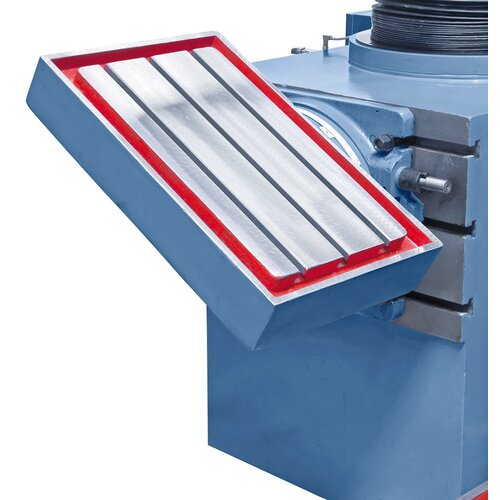

The optionally available horizontal table, tiltable from -50° to +50°, increases the number of applications significantly

The optionally available horizontal table, tiltable from -50° to +50°, increases the number of applications significantly

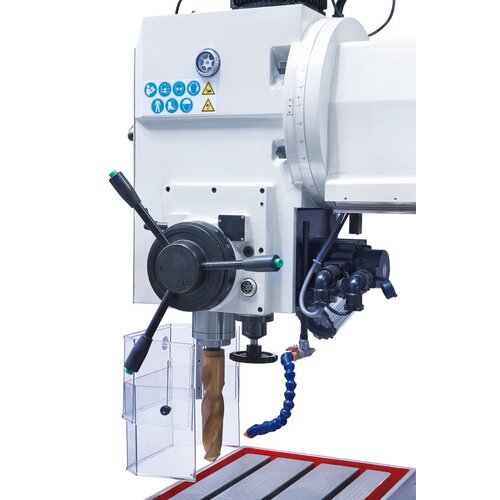

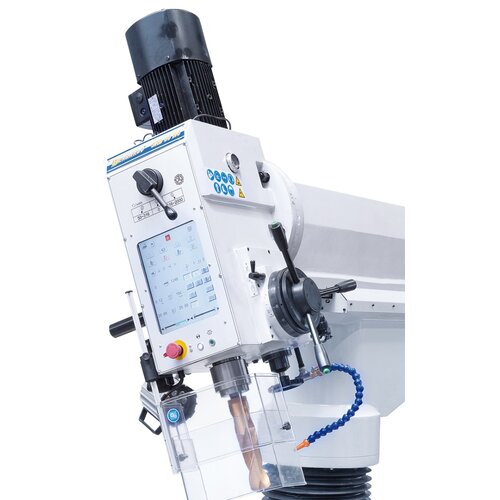

Tiltable drill head (-90˚ to +90˚) increases range of applications.

Tiltable drill head (-90˚ to +90˚) increases range of applications.

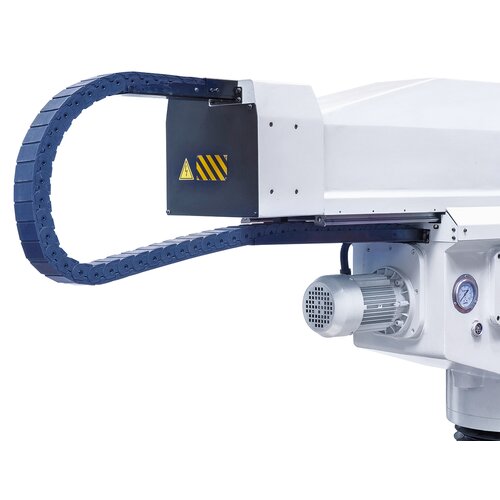

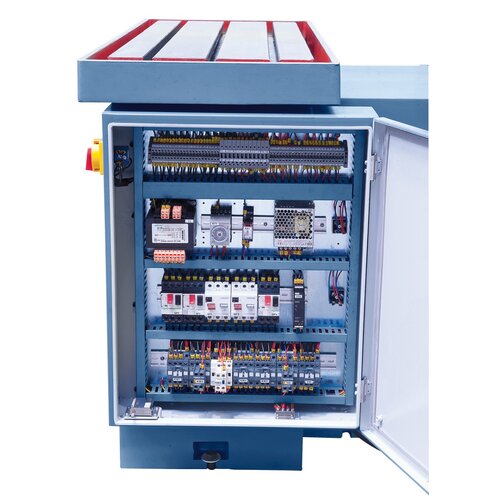

Motor for hydraulics and transmission chains located on back of machine

Motor for hydraulics and transmission chains located on back of machine

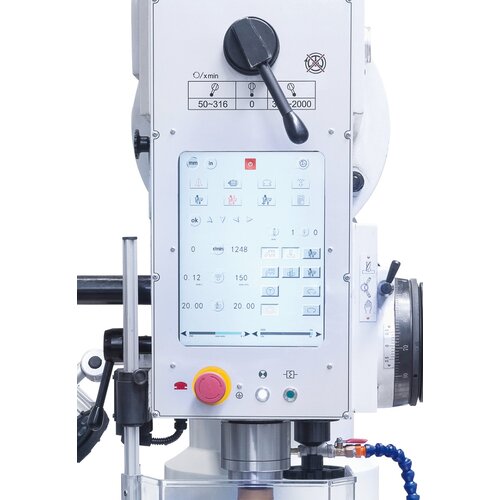

Large touchscreen for all settings, such as speed, drilling / thread cutting, height adjustment of support arm,….

Large touchscreen for all settings, such as speed, drilling / thread cutting, height adjustment of support arm,….

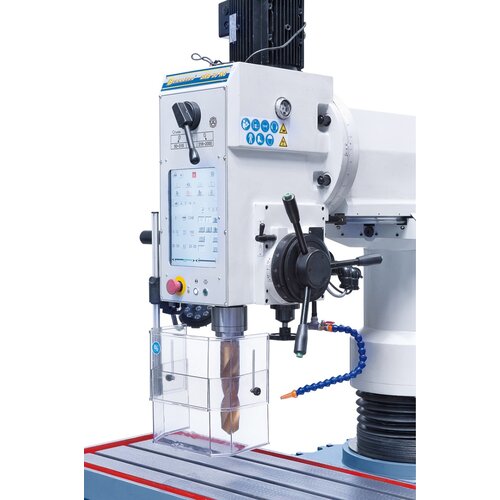

Suitable for drilling, countersinking and turning operations as well as minor milling operations

Suitable for drilling, countersinking and turning operations as well as minor milling operations

Process oversize workpieces by adding the clamping plate as an extra

The optionally available horizontal table, tiltable from -50° to +50°, increases the number of applications significantly

Tiltable drill head (-90˚ to +90˚) increases range of applications.

Motor for hydraulics and transmission chains located on back of machine

Large touchscreen for all settings, such as speed, drilling / thread cutting, height adjustment of support arm,….

Suitable for drilling, countersinking and turning operations as well as minor milling operations

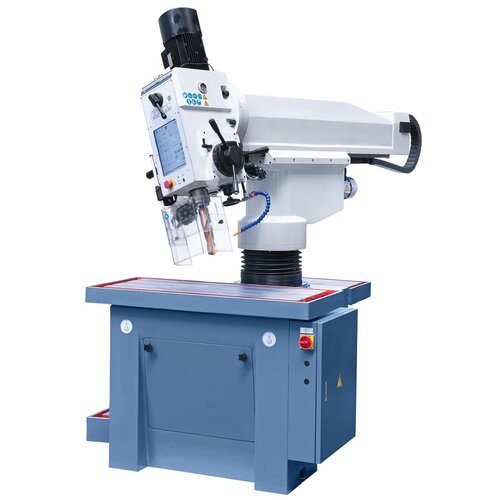

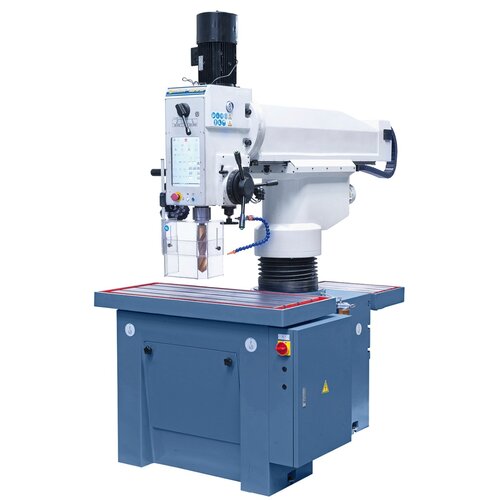

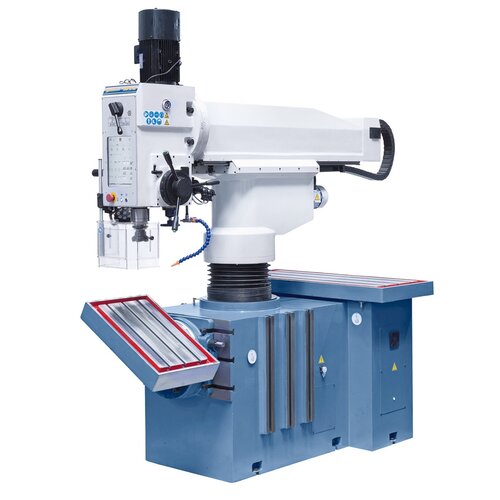

Radial drilling machine SRB 50 NC **

Art.Nr.: 01-1364XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The SRB 50 NC is a new addition to our radial drilling machines and features the biggest dimensions. The special features of this model are the operation via a large touchscreen and the spindle feed by a servo motor.

€37,440.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

The standard Bohrtronic control calculates the ideal speed or feed rate for drilling and thread cutting after entering the tool diameter and material (cast iron / steel)
Innovative design and construction allows numerous options for clamping and processing
Electromotive height adjustment of drill head without changing the drill position, ideal for drilling deep holes
Large table size (1200 x 500 mm) to allow simultaneous clamping of several workpieces
Quick adjustment of drill head to each workpiece, hydraulic clamping
Comes complete with electronic, stepless speed adjustment and 2 gear settings
Reinforced column guarantees rigidity of drill arm
Solid construction guarantees processing free from vibrations
The quill feed takes place by a high quality servo motor
Complete with stepless speed, set speed is visible on digital display

Product Specifications

Drilling capacity max.	50 mm
Thread cutting max.	M36
Distance spindle to column min./max.	360 - 950 mm
Vertical movement of the support	400 mm
Drill head tiltable	-90° to +90°
Spindle stroke	240 mm
Spindle speed, stepless	50 - 316 / 316 - 2000 rpm
Morse taper	MT 4
Feed range	1 - 300 mm/min
Distance spindle to table surface	390 - 780 mm
Table size	1200 x 500 mm
T-slot size	18 mm
Column diameter	240 mm
Motor power	3,0 kW
Machine dimension (W x D x H)	1250 x 2500 x 2800 mm
Weight approx.	2800 kg

Delivery Contents

Electromagnetic spindle feed
Touchscreen with Bohtronic control
Servomotor for spindle feed
Frequency inverter
Electromotive drill head adjustment
Initial filling with Shell Tellus 46
Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
Thread cutting device

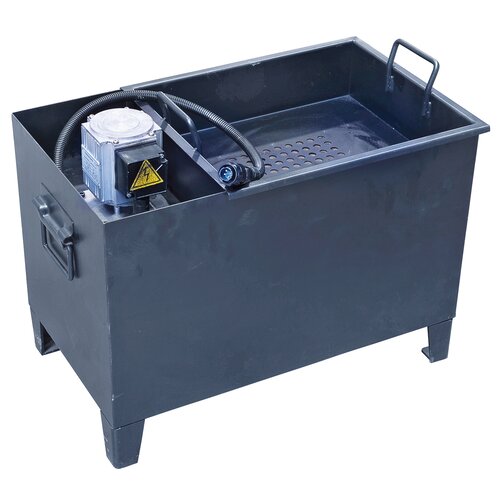

Coolant device
LED machine light
Height adjustable protective cover
Tools
