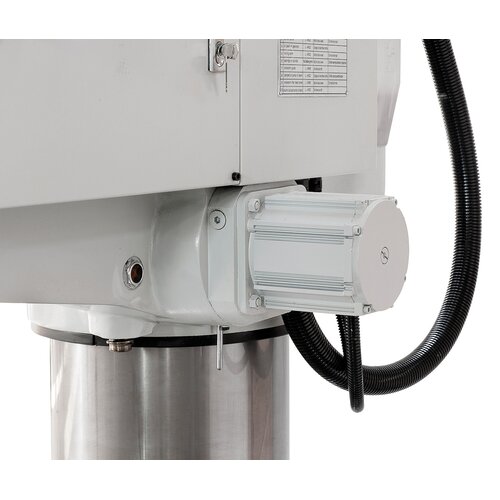

Complete with hydraulic motor for clamping of radial arm and drill head.
Complete with hydraulic motor for clamping of radial arm and drill head.

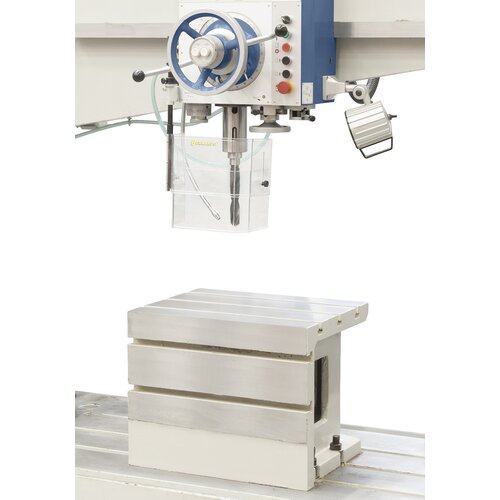

Precisely aligned spindle ensures accurate results, bos table and coolant device are part of standard equipment
Precisely aligned spindle ensures accurate results, bos table and coolant device are part of standard equipment

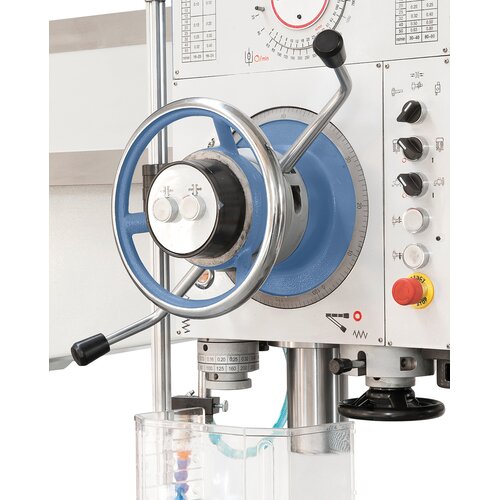

Speed/ feed adjustment situated on underside of drill head.
Speed/ feed adjustment situated on underside of drill head.

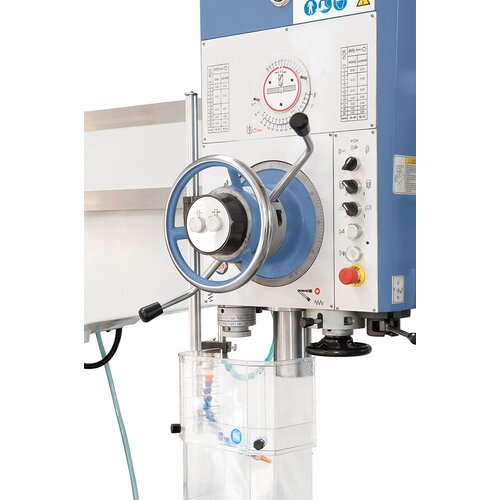

Clearly arranged control elements, clamping of drill head directly on handwheel.
Clearly arranged control elements, clamping of drill head directly on handwheel.
Complete with hydraulic motor for clamping of radial arm and drill head.
Precisely aligned spindle ensures accurate results, bos table and coolant device are part of standard equipment
Speed/ feed adjustment situated on underside of drill head.
Clearly arranged control elements, clamping of drill head directly on handwheel.

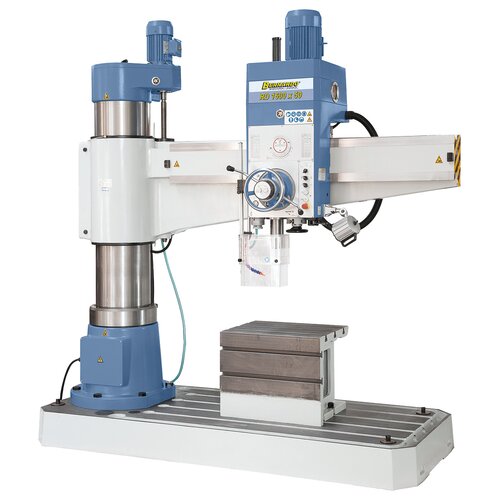

Radial drilling machine RD 1600 x 50 *

Art.Nr.: 01-1331XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The radial drilling machine RD 1250 x 50 is designed for economic processing of oversize single parts and small batch productions with top accuracy. The high performance, user friendliness and the large variety of applications makes this model ideal for mechanical engineering, repair shops and mechanic workshops.

€24,120.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Oversize base plate, ideal for processing of large workpieces
  • Torsion-free, polished column promotes sliding capacity of radial arm
  • Radial arm and drill head feature independent hydraulic clamp
  • Lifting motor allows for easy height adjustment of radial arm
  • Ideal for drilling, countersinking, reaming and tapping
  • Hardened, polished gears in oil bath
  • Polished surface ensures for smooth movement of drill head on radial arm

Product Specifications

Drilling capacity max.

50 mm

Thread cutting max.

M42

Distance spindle to column min./max.

350 – 1590 mm

Vertical movement of the support

590 mm

Travel of drill head (horizontally)

1240 mm

Spindle stroke

320 mm

Morse taper

MT 5

Spindle speeds

(16) 25 - 2000 rpm

Feed range

(16) 0,04 – 3,2 mm/rev.

Distance spindle to box table

150 - 740 mm

Distance spindle to base

645 - 1240 mm

Clamping area base

1600 x 980 mm

Box table (L x W x H)

620 x 490 x 495 mm

Motor power

4,0 kW

Machine dimension (W x D x H)

2450 x 980 x 2840 mm

Weight approx.

3500 kg

Delivery Contents

  • Box table
  • Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Coolant device
  • Lifting motor
  • Hydraulic motor
  • Tools
  • Height adjustable protective cover
