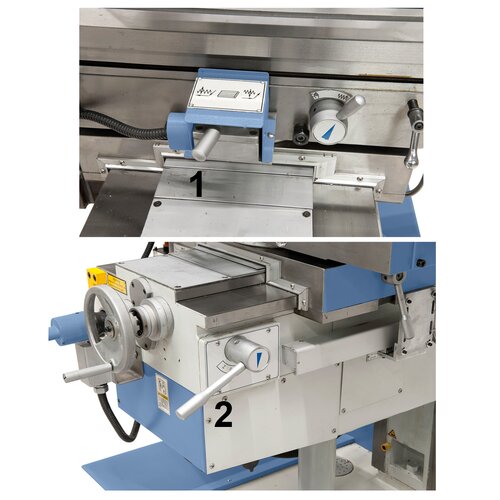

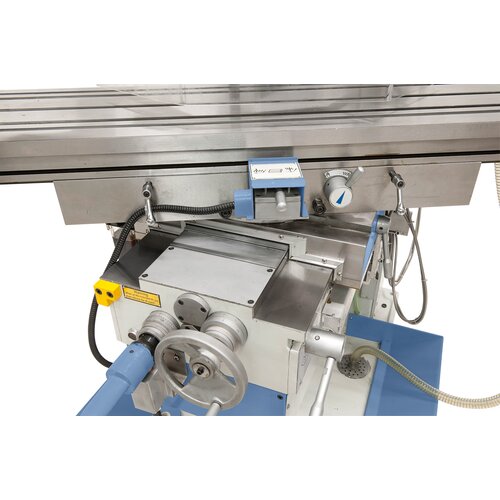

1. Selector lever for feed direction / 2. Selector lever for feed axis

1. Selector lever for feed direction / 2. Selector lever for feed axis

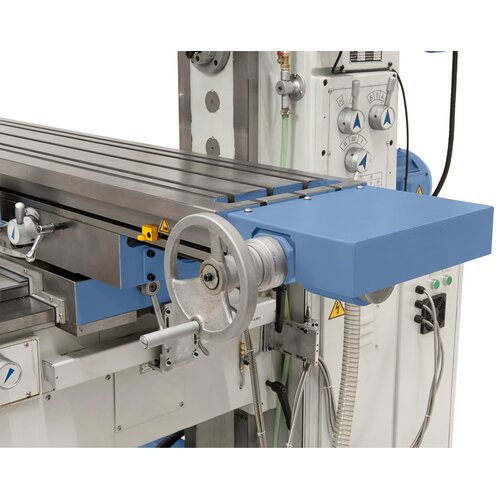

Tiltable milling table -45° to +45° increases range of applications significantly.

Tiltable milling table -45° to +45° increases range of applications significantly.

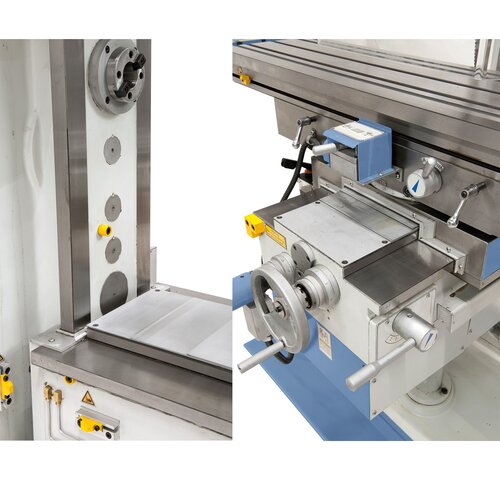

The large rectangular guides at the y- and z-axis guarantees an increase in stability.

The large rectangular guides at the y- and z-axis guarantees an increase in stability.

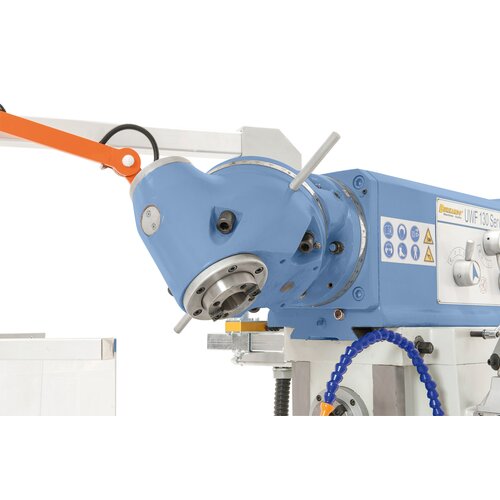

Universal mill head features 2 rotating axis, adjustable to various angles.

Universal mill head features 2 rotating axis, adjustable to various angles.

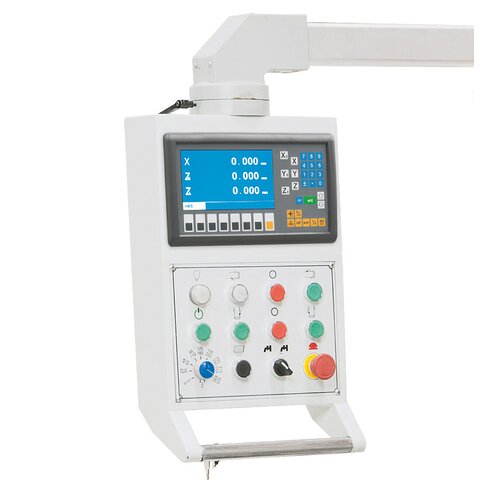

User-friendly and clearly arranged panel, serially equipped with digital readout.

User-friendly and clearly arranged panel, serially equipped with digital readout.

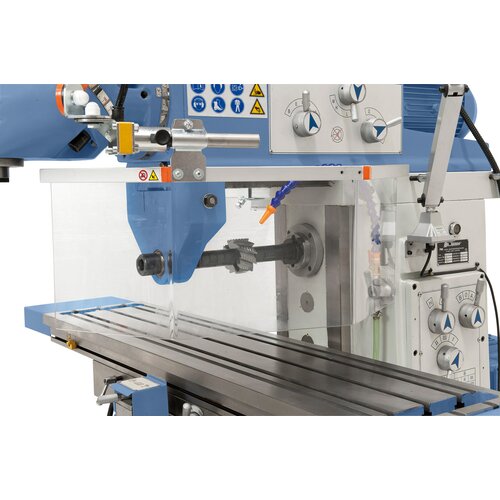

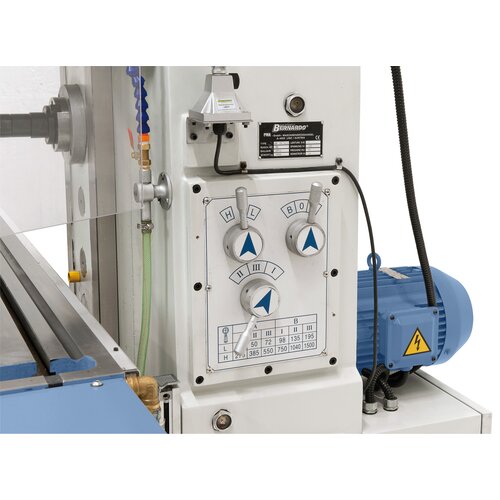

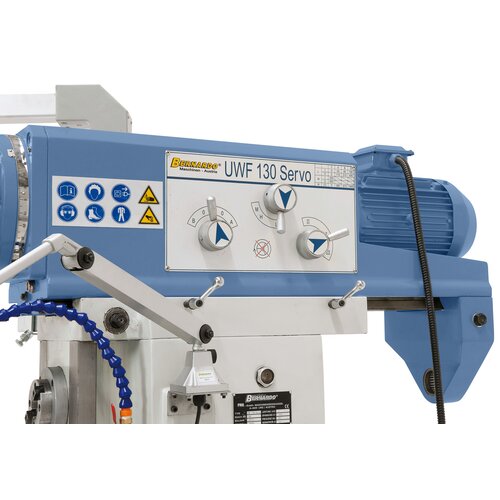

Horizontal spindle widens the range of applications significantly, gear unit allows for speed adjustment.

Horizontal spindle widens the range of applications significantly, gear unit allows for speed adjustment.

1. Selector lever for feed direction / 2. Selector lever for feed axis

Tiltable milling table -45° to +45° increases range of applications significantly.

The large rectangular guides at the y- and z-axis guarantees an increase in stability.

Universal mill head features 2 rotating axis, adjustable to various angles.

User-friendly and clearly arranged panel, serially equipped with digital readout.

Horizontal spindle widens the range of applications significantly, gear unit allows for speed adjustment.

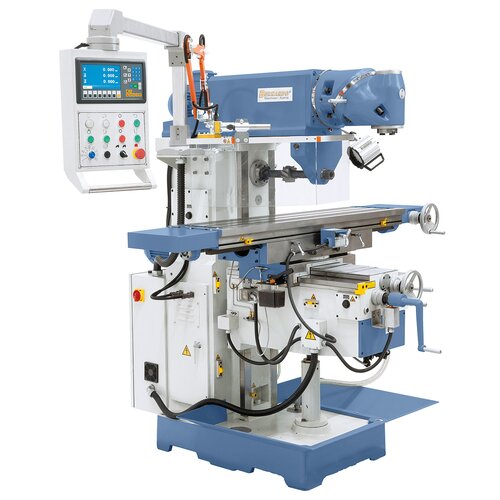

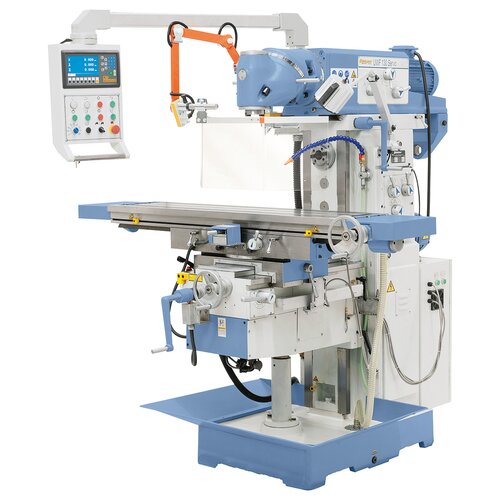

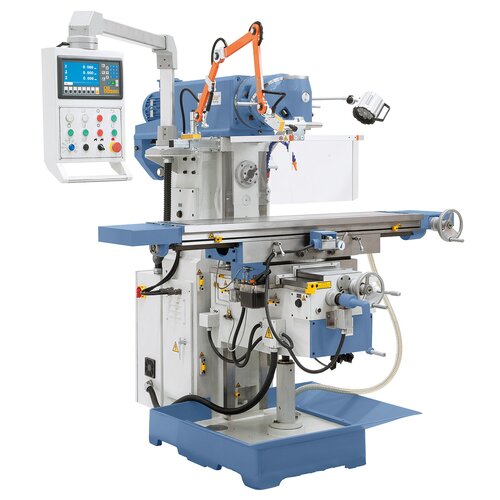

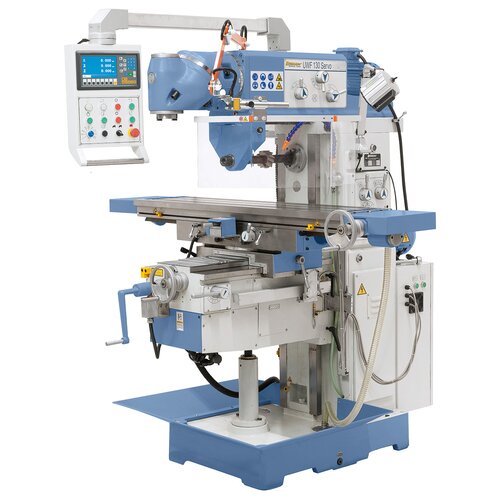

Universal milling machine UWF 130 Servo incl. 3-axis digital readout ES-12 H *

Art.Nr.: 02-1283XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The UWF 130 Servo universal milling machine with movable arm is an enhanced version of the established UWF 130. This machine comes with multifunctional use, including a fully adjustable mill head allowing the use of all angles and positions as well as a x-axis travel of 1000 mm. Especial feature of this machine is the rapid feed and 8 feeds in all axis, driven by servomotor.

€22,584.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

A servomotor for feeds and rapid feed in x-, y- and z-axis comes standard
Table adjustment in the x-axis is made rom the front of the machine
User-friendly arranged switches on swivelling contro panel
Polished gears, in oil bath, allows smooth running
High versatility due to horizontal spindle
Machine body in heavy construction for vibration-free working
Large cross table with T-slots, treated surface
Rectangular guide at the y- and z-axis increases stability
Central lubrication for the guideways comes standard

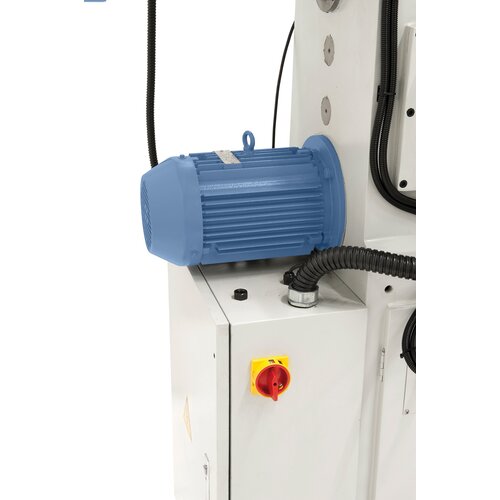

Horizontal spindle and universal mill head are driven by 2 independent motors

Product Specifications

Table size	1370 x 320 mm
Spindle taper horizontal	ISO 40
Spindle taper vertical	ISO 40
Spindle speed horizontal	(12) 35 - 1500 rpm
Spindle speed vertical	(11) 45 - 1660 rpm
Travel longitudinal (x)	1000 mm
Travel cross (y)	360 mm
Travel vertical (z)	400 mm
Distance spindle to table horizontal	30 - 430 mm
Distance spindle to table vertical	210 - 610 mm
Distance spindle to column	305 - 805 mm
Table tiltable	-45° to +45°
Max. worpiece weight	300 kg
Feed range longitudinal / cross	(8) 30 - 830 mm/min
Feed range vertical	(8) 23 - 625 mm/min
Rapid feed x-, y- and z-axis	1000 / 1000 / 750 mm/min
T-slot (Quantity / Width / Depth)	3 / 14 mm / 80 mm
Motor power horizontal	3,0 kW
Motor power vertical	3,0 kW
Servomotor (Torque / Output)	10 Nm / 1,5 kW
Coolant pump output	90 W
Coolant pump flow rate	25 l/min
Machine dimension (W x D x H)	1840 x 1830 x 2050 mm
Weight approx.	1540 kg

Delivery Contents

3-axis digital readout ES-12 H with LCD-display
Drawbar M 16
LED machine light
Power feed for x-, y- and z-axis
Coolant device
Horizontal counter bearing
Long milling arbor ISO 40 / 27 mm, ISO 40 / 40 mm
Taper shell end mill holder ISO 40 / 32 mm
Morse taper drill sleeve ISO 40 / MT 4, ISO 40 / MT 3, ISO 40 / MT 2
Coolant tray
Universal protective cover
Central lubrication for x-, y- and z-axis
