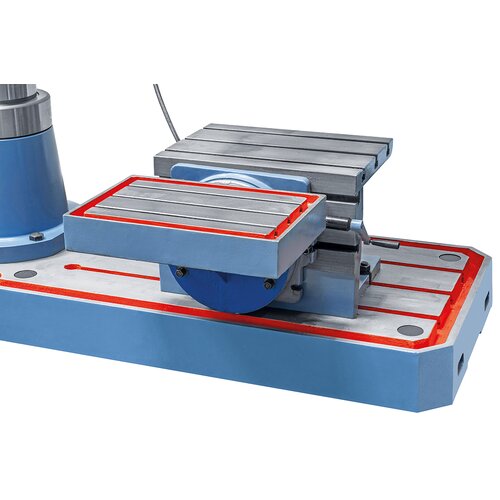

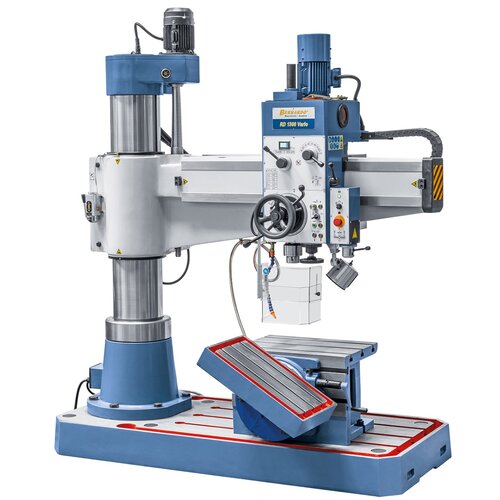

Picture shows optionally available horizontal swivel table.
Picture shows optionally available horizontal swivel table.

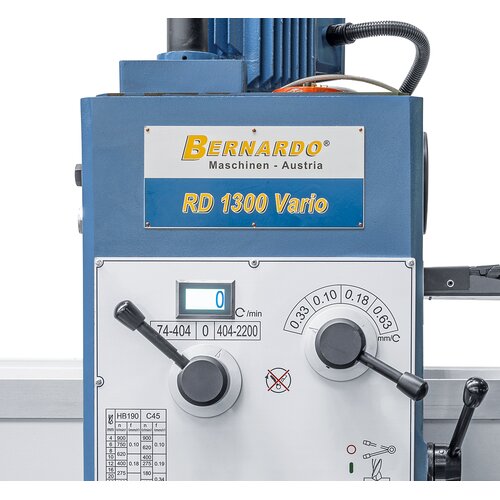

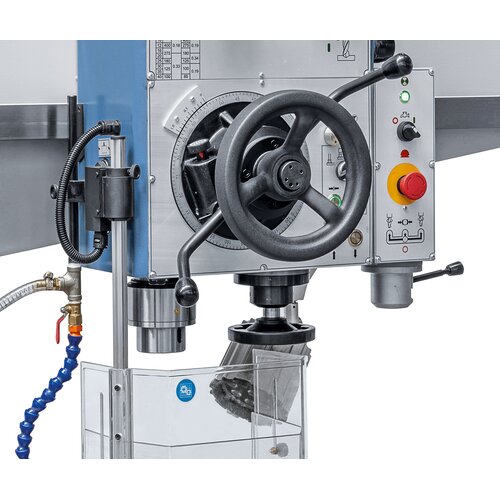

Speed and feed settings are on front of drill head.
Speed and feed settings are on front of drill head.

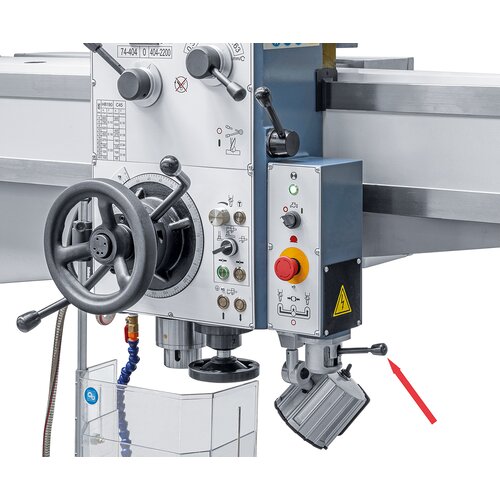

Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.
Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.

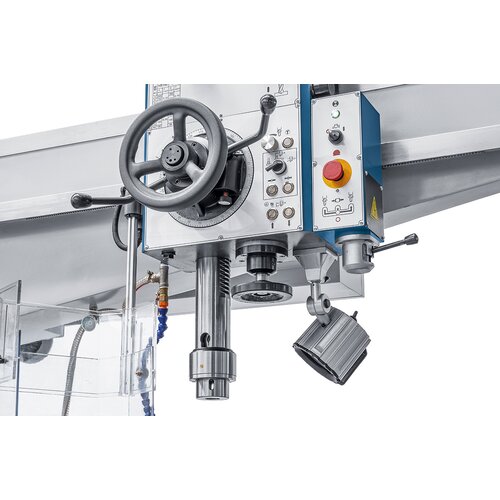

3-way spindle feed: lever allows quick adjustment, handwheel allows fine feed or automatic feed
3-way spindle feed: lever allows quick adjustment, handwheel allows fine feed or automatic feed

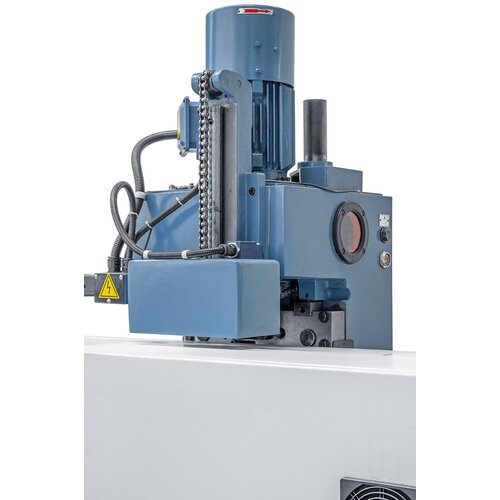

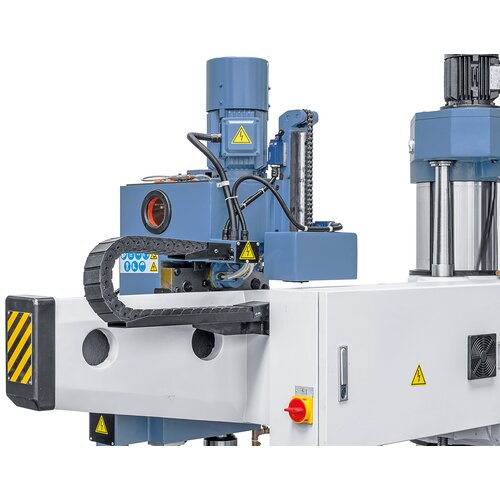

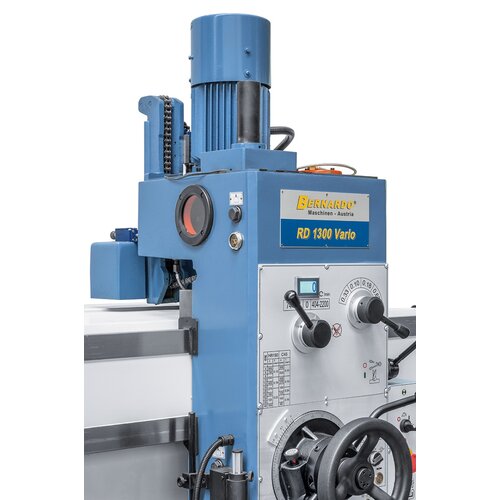

Counter weight for spindle and transmission chain on back of drill head.
Counter weight for spindle and transmission chain on back of drill head.
Picture shows optionally available horizontal swivel table.
Picture shows optionally available horizontal swivel table.
Picture shows optionally available horizontal swivel table.
Speed and feed settings are on front of drill head.
Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.
3-way spindle feed: lever allows quick adjustment, handwheel allows fine feed or automatic feed
Counter weight for spindle and transmission chain on back of drill head.
Picture shows optionally available horizontal swivel table.

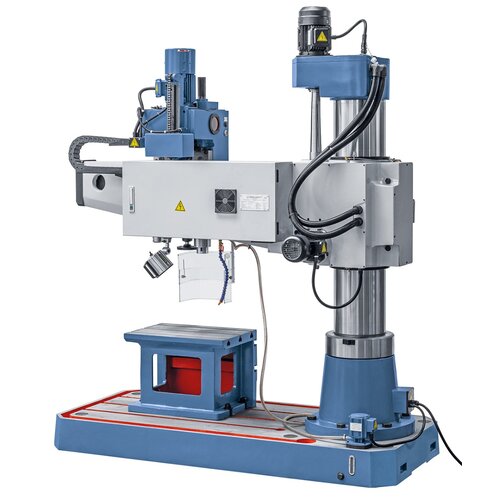

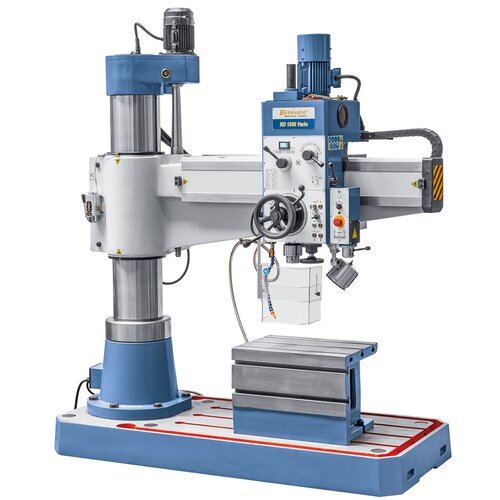

Radial drilling machine RD 1300 x 40 Vario *

Art.Nr.: 01-1326XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Our top range of radial drilling machine feature stepless speed adjustment, solid construction and high user friendliness. The column is mounted to improve the position of the radial arm and therefore maximize work comfort – significant for longer operating times.

€23,760.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Complete with stepless speed, set speed is visible on digital display
  • Spindle features high concentricity and automatic spindle brake
  • Radial arm, drill head and column each with hydraulic clamp
  • Large base plate, ideal for processing of oversize workpieces
  • Torsion-free, polished column increases sliding capacity of radial arm

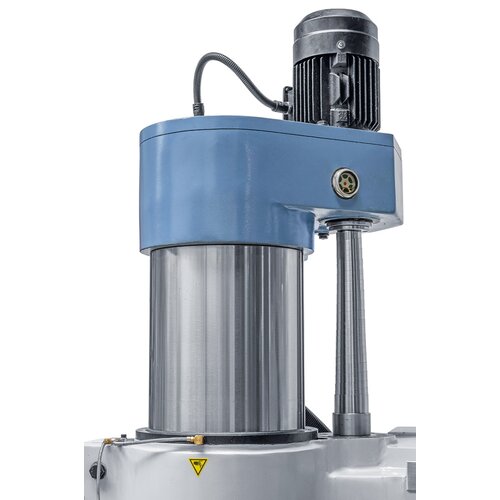

  • Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
  • Control switch allows for individual clamping or unclamping of drill head and/or column
  • Guiderails on radial arm are hardened and polished
  • Counter weight on spindle to ensure optimal balance
  • Ideal for drilling, countersinking, reaming and tapping

Product Specifications

Drilling capacity max.

40 mm

Thread cutting max.

M40

Distance spindle to column min./max.

300 - 1300 mm

Vertical movement of the support

600 mm

Travel of drill head (horizontally)

1000 mm

Spindle stroke

290 mm

Morse taper

MT 4

Spindle speeds

74 - 404 / 404 - 2200 rpm

Feed range

(4) 0,1 - 0,63 mm/rev.

Distance spindle to box table

100 - 700 mm

Distance spindle to base

570 - 1170 mm

Clamping area base

1220 x 900 mm

Box table (L x W x H)

640 x 450 x 450 mm

Motor power

2,2 kW

Machine dimension (W x D x H)

2050 x 1050 x 2560 mm

Weight approx.

2380 kg

Delivery Contents

  • Box table
  • Drill chuck arbor
  • Morse taper drill sleeve
  • LED machine light
  • Initial filling with Shell Tellus 46

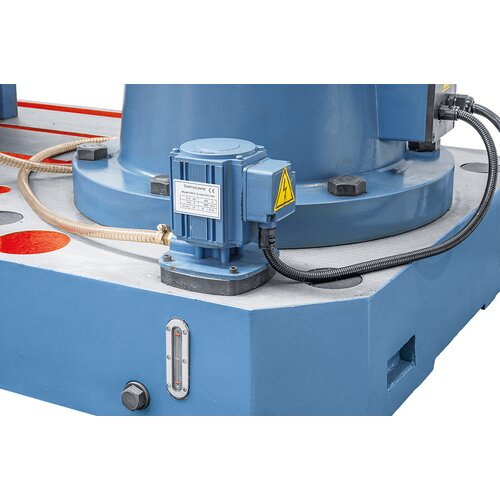

  • Coolant device
  • Frequency inverter
  • Digital readout of speeds
  • Lifting motor
  • Hydraulic motor
  • Height adjustable protective cover
  • Tools
