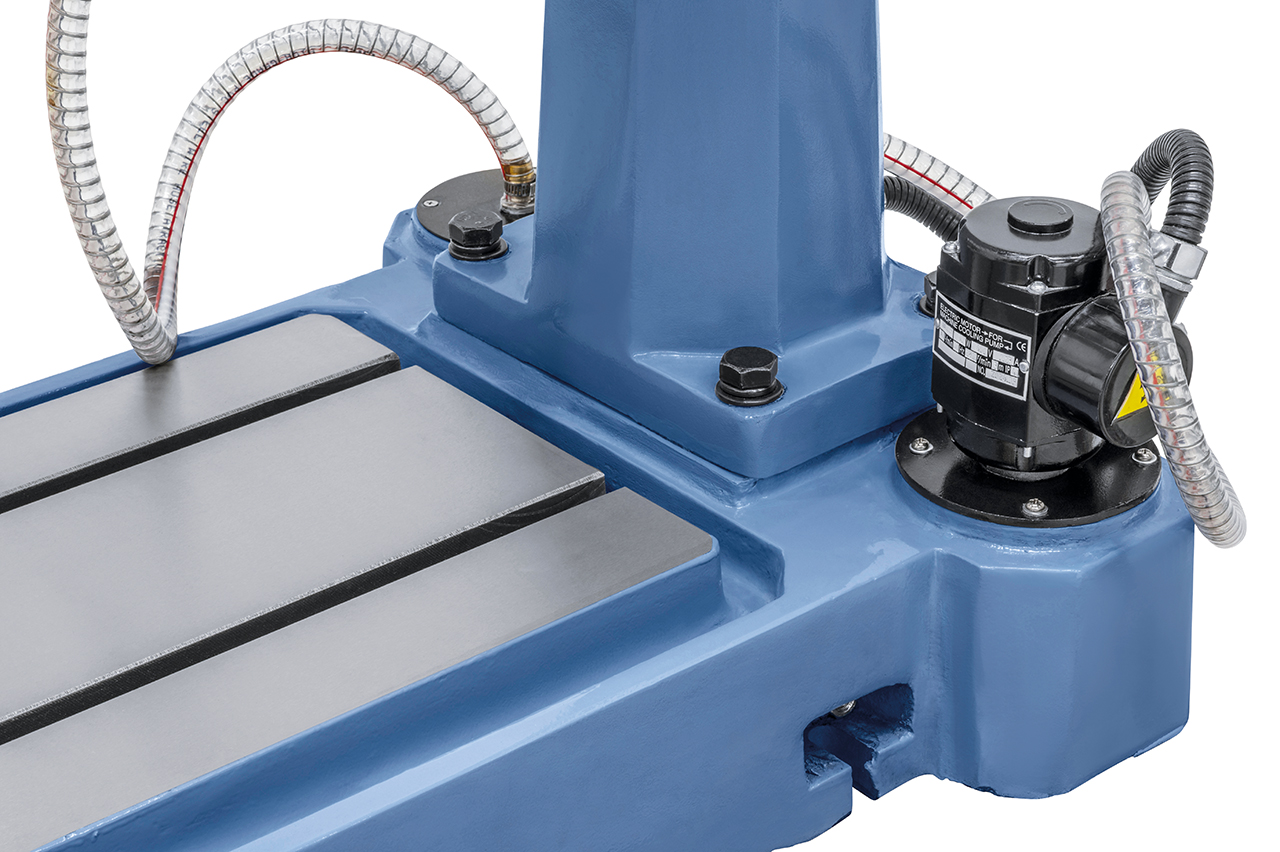

Treated machine base, serially equipped with integrated coolant pump.

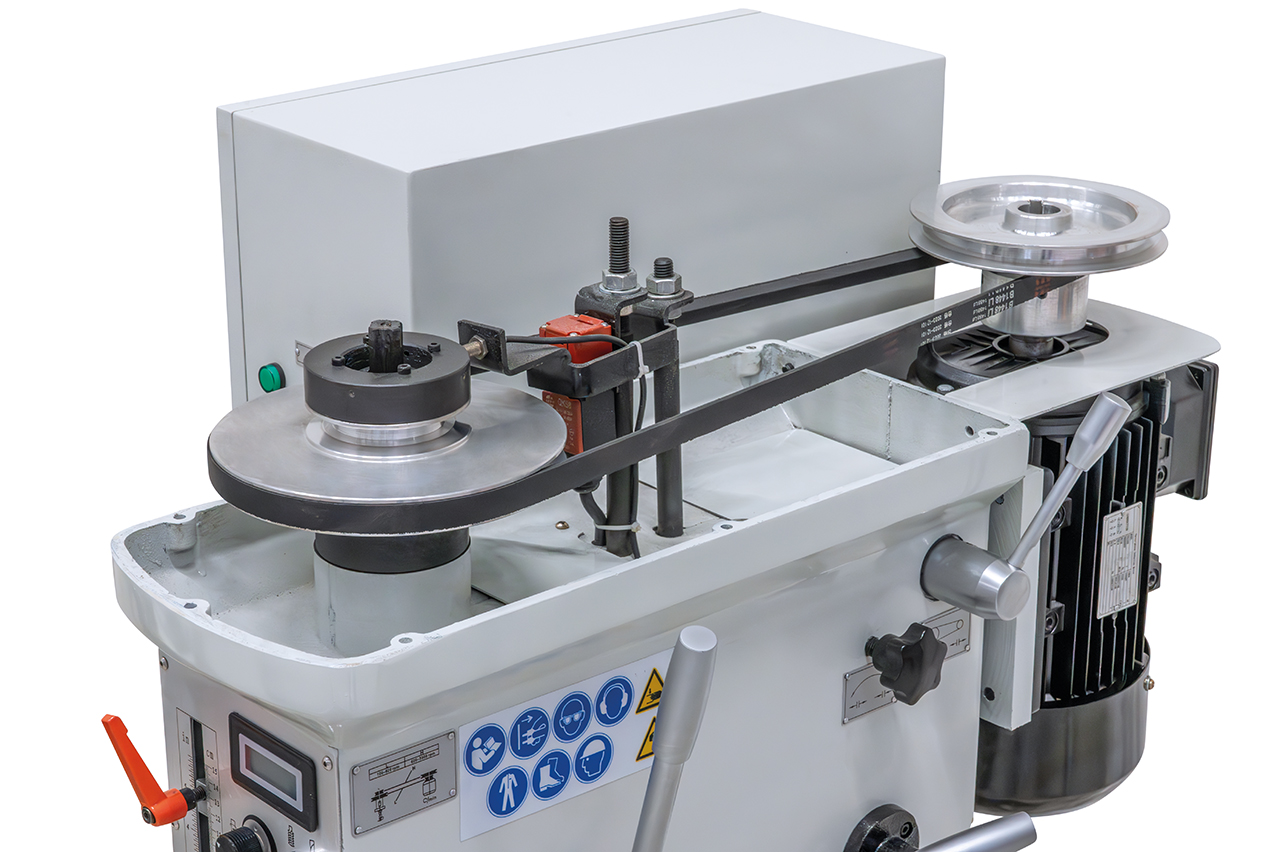

Balanced drive pulleys guarantees smooth running.

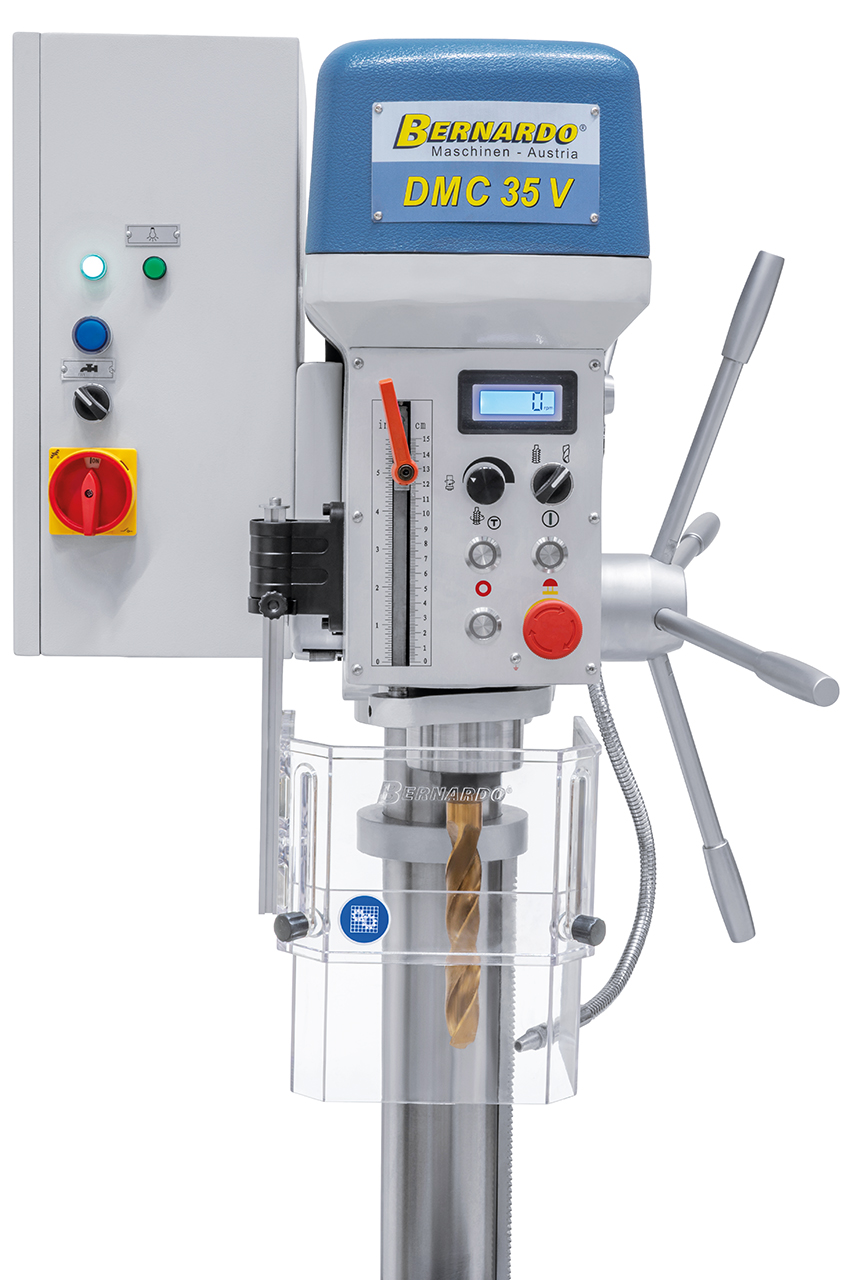

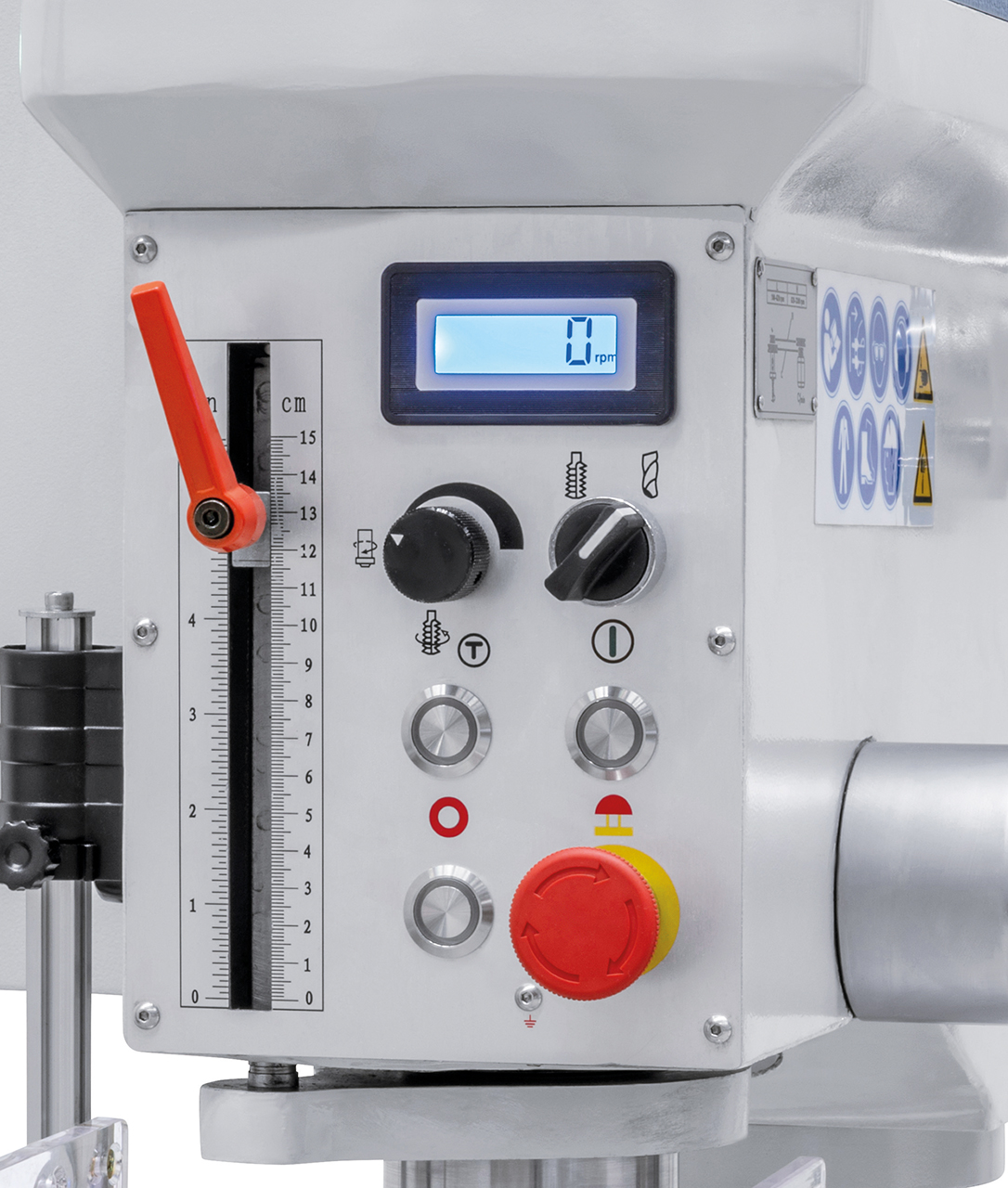

Serially equipped with digital speed indication. Ergonomically arranged control elements at the front.

Oszlopos fúrógép DMC 35 V

product.detail.art-no: 01-11872

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

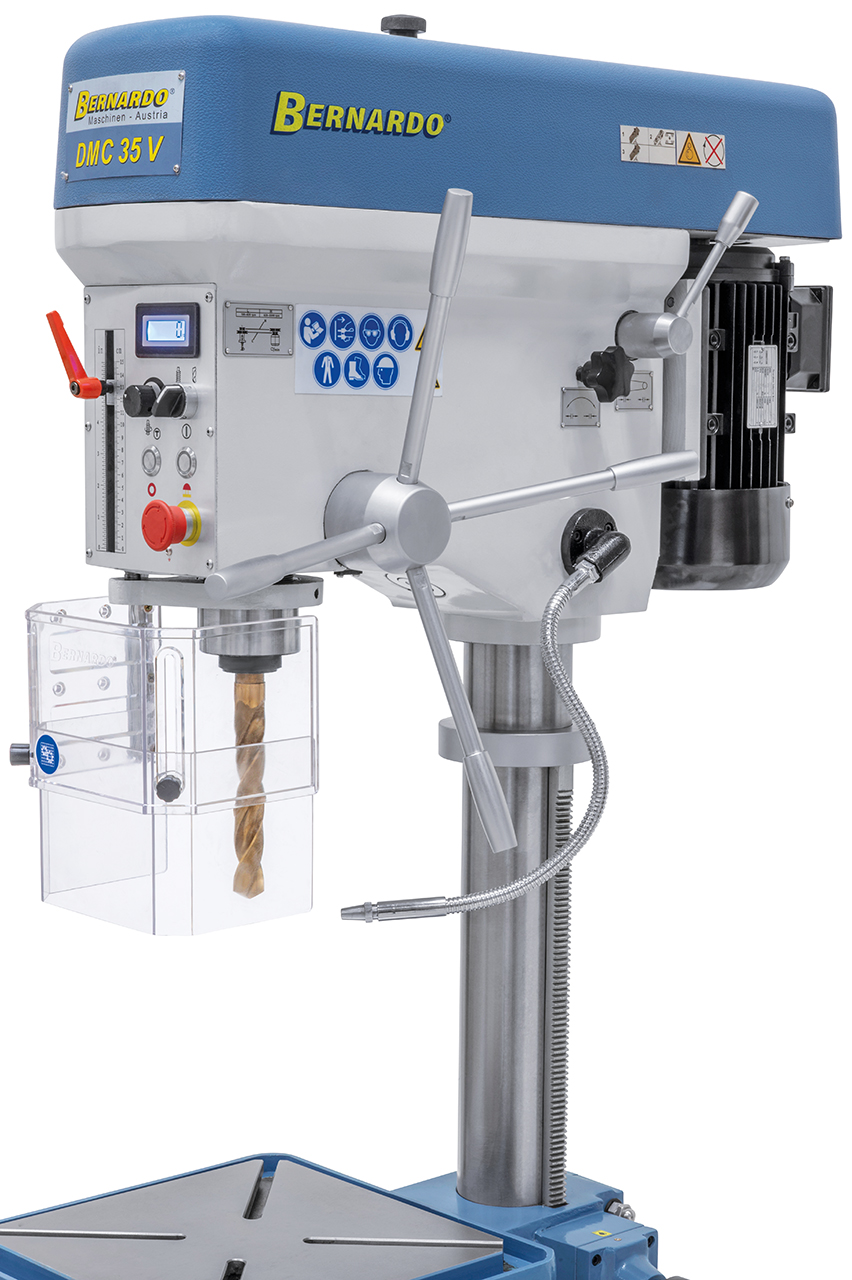

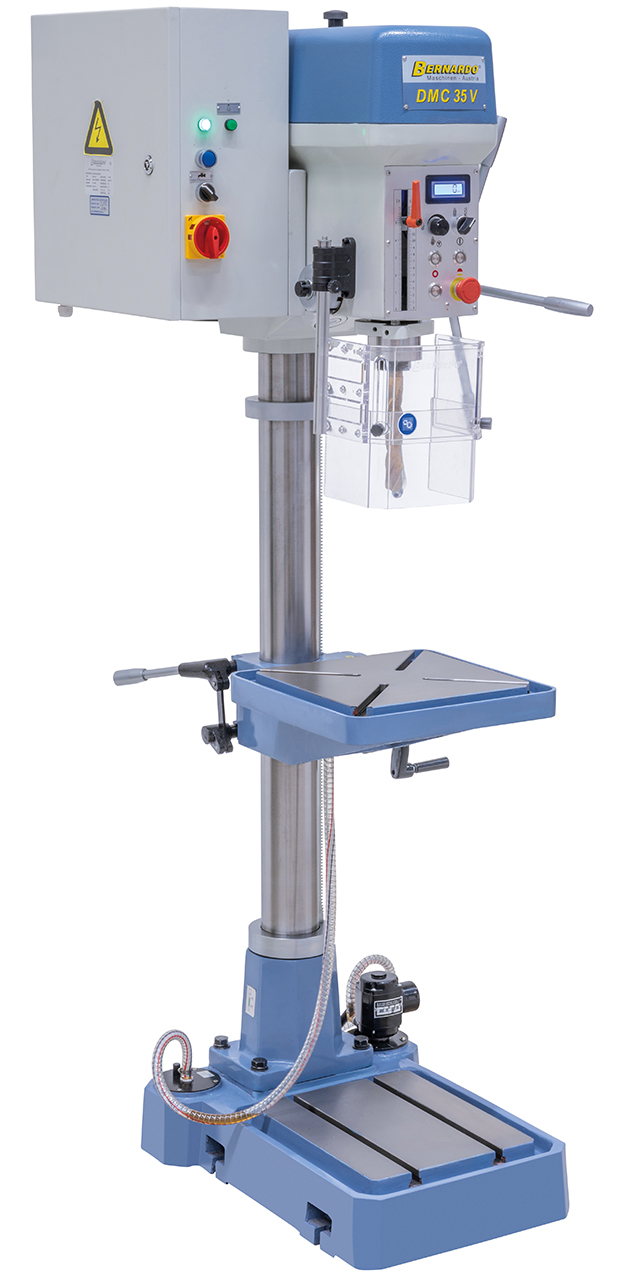

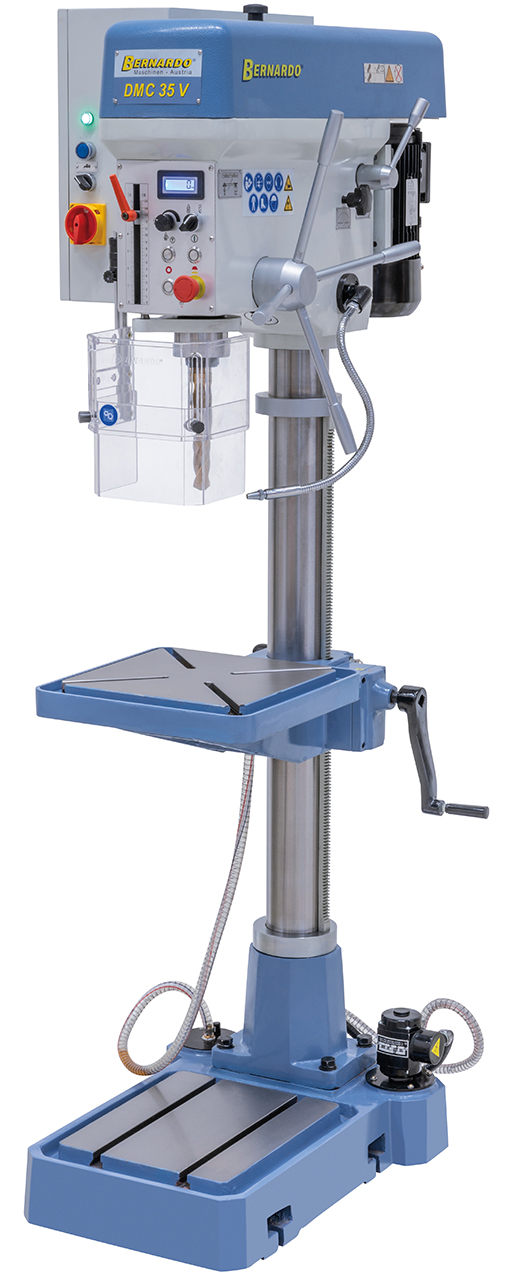

The DMC 35 V column drilling machine comes with stepless speed setting, allowing ideal adjustment of cutting speed to each workpiece. This model is predominantly used in repair shops, mechanical workshops and for training purposes.

3 144,00 EUR

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Protective cover in accordance to CE standards, adjustable to various drill bit sizes
Surface treated work table, height adjustable via gear rack and crank
Precisely treated base includes T-slots and integrated coolant device
Stepless speed setting allows optimal adjustment of cutting speed
Adjustable drill depth stop allows accurate spindle feed
High concentricity ≤ 0,02 mm measured at spindle

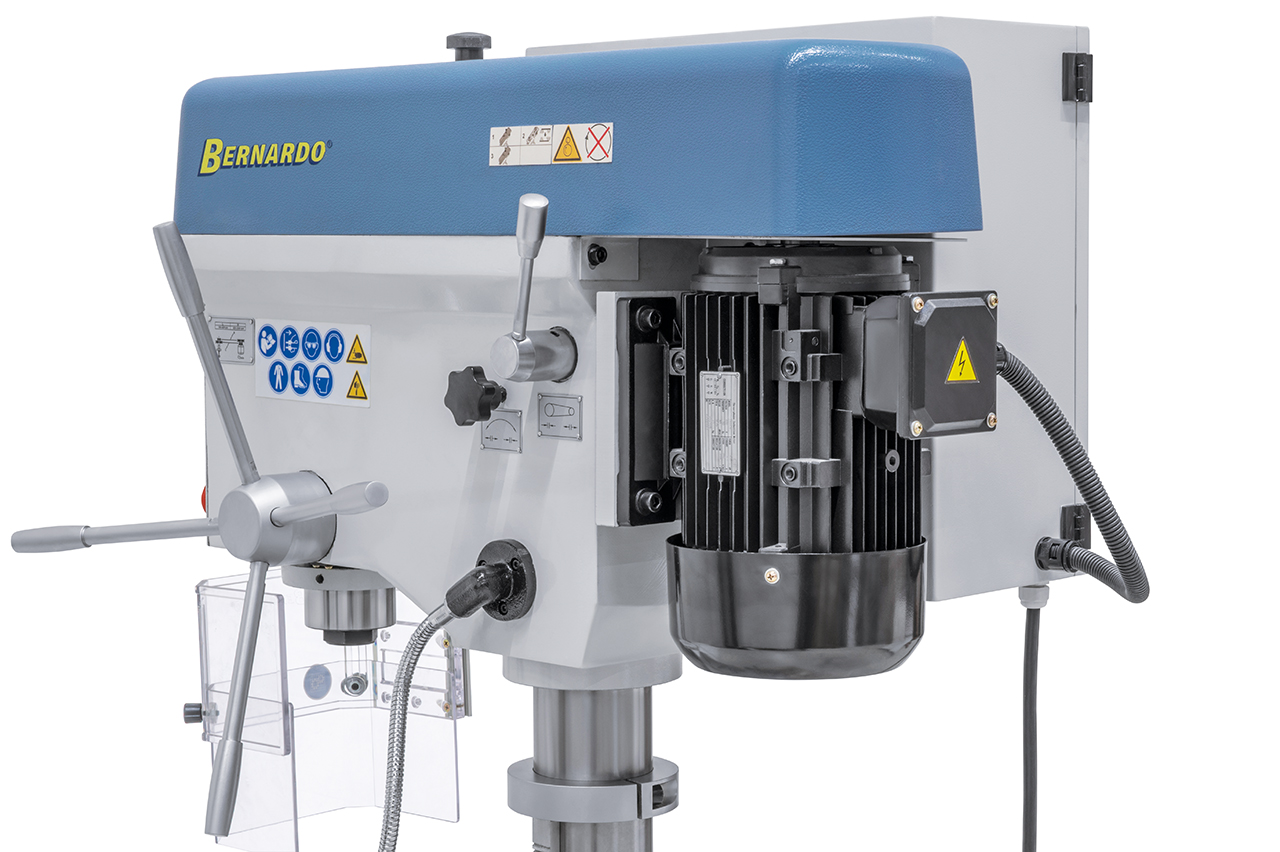

Powerful motor even at continuous operation
Solid and powerful drilling machine for high demands
Including automatic reverse rotation for thread cutting

Product Specifications

Drilling capacity max.	32 mm
Thread cutting max.	M 24
Morse taper	MT 3
Spindle speed, stepless	100 - 620 / 620 - 3300 rpm
Distance spindle to column	265 mm
Distance spindle to table max.	815 mm
Distance spindle to base	1240 mm
Spindle stroke	150 mm
Column diameter	100 mm
Table size / T-slot size	332 x 332 mm / 14 mm
Working surface of base	382 x 312 mm
Motor power output S₁ 100%	1,5 kW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Machine dimension (W x D x H)	600 x 940 x 1900 mm
Weight approx.	310 kg
