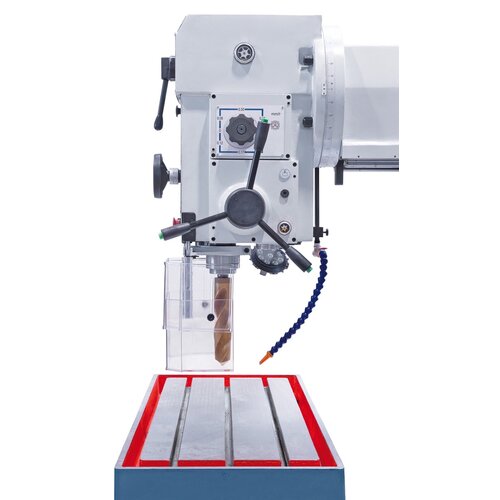

The high-quality linear guidings guarantees smooth movement of drill head.
The high-quality linear guidings guarantees smooth movement of drill head.

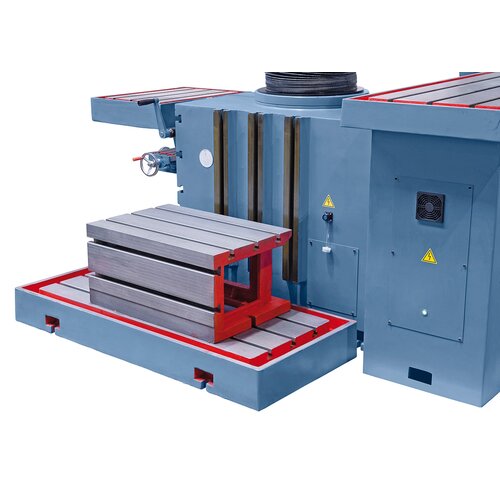

The serially available clamping plate allows work on oversized workpieces.
The serially available clamping plate allows work on oversized workpieces.

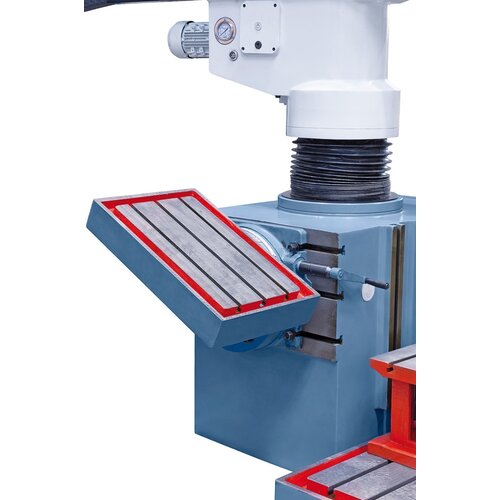

The tiltable table (-50° to +50°) increases the variety of applications.
The tiltable table (-50° to +50°) increases the variety of applications.
6 automatic drill feeds via electromagnetic clutch.
6 automatic drill feeds via electromagnetic clutch.

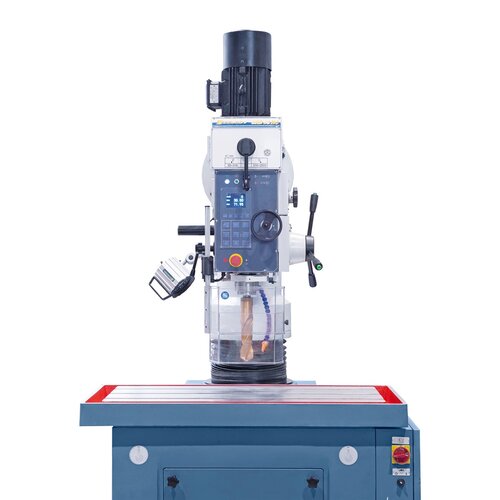

All settings are made directly on the large touchscreen display
All settings are made directly on the large touchscreen display

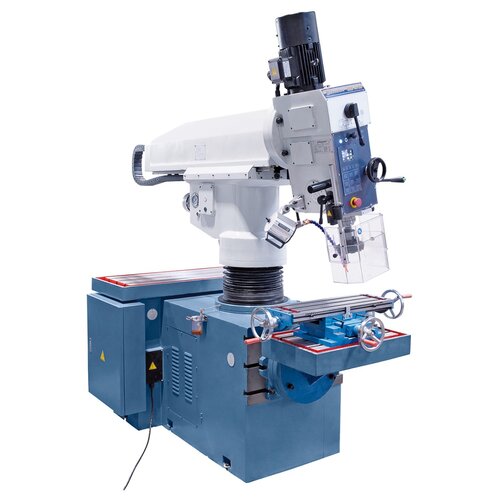

Tiltable (+/- 90°) drill head and multiple clamping increase efficiency. In addition, this model is suitable for milling.
Tiltable (+/- 90°) drill head and multiple clamping increase efficiency. In addition, this model is suitable for milling.
The high-quality linear guidings guarantees smooth movement of drill head.
The serially available clamping plate allows work on oversized workpieces.
The tiltable table (-50° to +50°) increases the variety of applications.
6 automatic drill feeds via electromagnetic clutch.
All settings are made directly on the large touchscreen display
Tiltable (+/- 90°) drill head and multiple clamping increase efficiency. In addition, this model is suitable for milling.

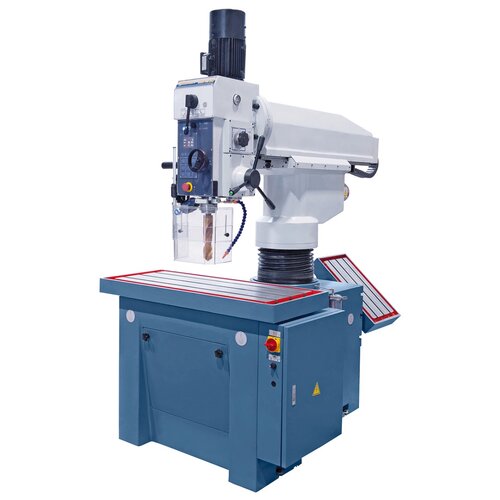

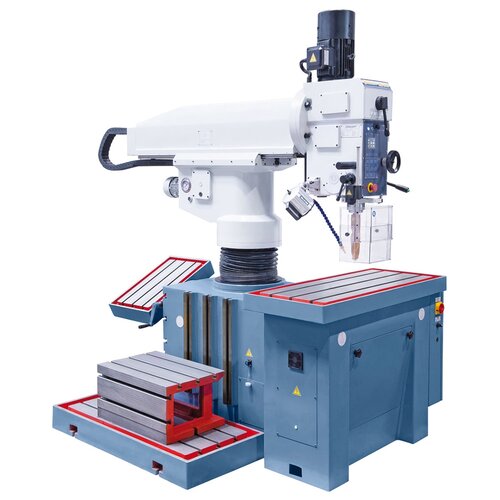

Radial drilling machine SRB 40 NC **

Art.Nr.: 01-1358XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The SRB 40 NC radial drilling machine is designed for economic processing of oversized workpieces and small series at highest accuracy. The solid construction makes this model popular in many areas, such as machine construction, repair shops, mechanics or production.

€34,680.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • The construction allows a variety of clamping and processing possibilities

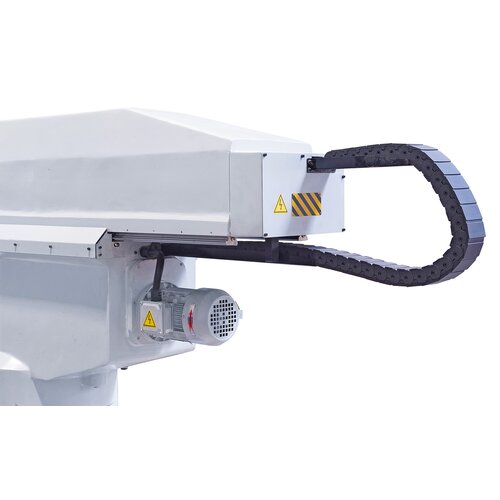

  • Electromotive height adjustment of drill head without changing drill position, ideal for deep hole drilling
  • Drill head tilts 180°, support tilts horizontal and can be moved forwards and backwards
  • Thread cutting device and 6 automatic drill feeds as standard
  • Large table size (1195 x 500 mm) for simultaneous mounting of several workpieces
  • Solid construction eliminates vibrations
  • Digital display of speed and drill depth included
  • Quick adjustment of drill head to workpiece,  hydraulic clamping
  • All settings are made directly on the large touchscreen display
  • Solidly designed column guarantees high rigidity of extension arm
  • Electronic, stepless speed adjustment as standard

Product Specifications

Drilling capacity max.

40 mm

Thread cutting max.

M30

Distance spindle to column min./max.

370 - 950 mm

Vertical movement of the support

390 mm

Drill head tiltable

-90° to +90°

Spindle stroke

200 mm

Spindle speed, stepless

50 - 316 / 316 - 2000 rpm

Morse taper

MT 4

Feed range

(6) 0,08 - 0,50 mm/rev.

Distance spindle to table surface

390 - 780 mm

Table size

1195 x 500 mm

T-slot size

18 mm

Column diameter

220 mm

Motor power

2,2 kW

Machine dimension (W x D x H)

1200 x 2450 x 2720 mm

Weight approx.

2800 kg

Delivery Contents

  • Electromagnetic spindle feed
  • Digital readout of speeds
  • Digital readout of drill depth
  • Electromotive drill head adjustment
  • Initial filling with Shell Tellus 46
  • Keyless drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
  • LED machine light
  • Thread cutting device
  • Tiltable horizontal table 400 x 600 mm
  • Box table 420 x 600 x 300 mm
  • Clamping plate 1200 x 550 mm
  • Coolant pump
  • Height adjustable protective cover
