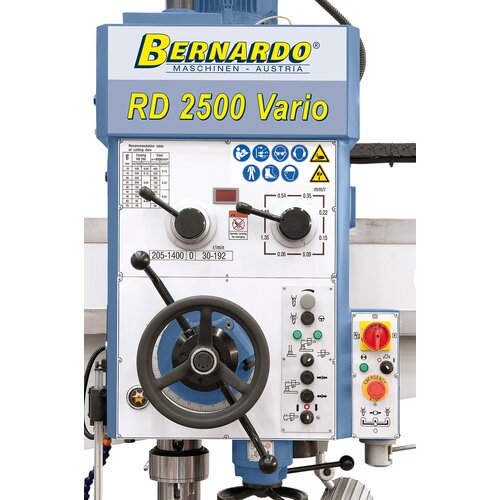

Speed and feed settings are on front of drill head.
Speed and feed settings are on front of drill head.

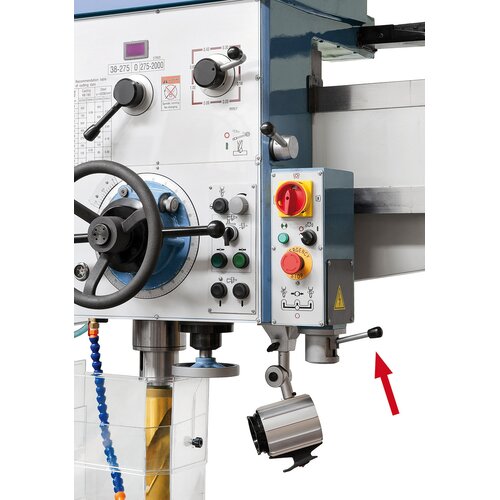

Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.
Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.

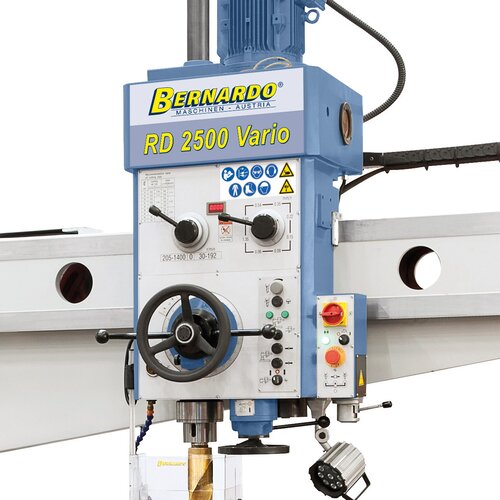

3-way spindle feed: lever allows quick adjustment, handwheel allows fine feed or automatic feed
3-way spindle feed: lever allows quick adjustment, handwheel allows fine feed or automatic feed

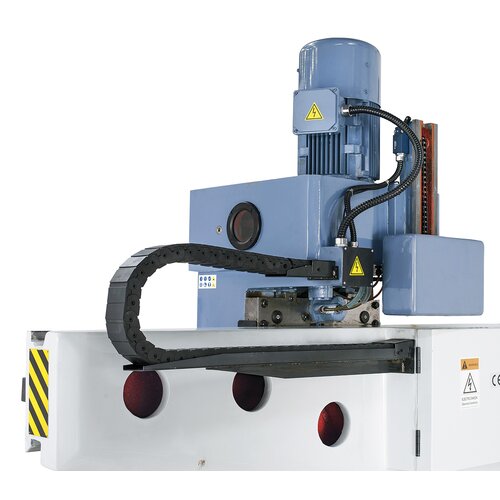

Counter weight for spindle and transmission chain on back of drill head.
Counter weight for spindle and transmission chain on back of drill head.
Speed and feed settings are on front of drill head.
Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.
3-way spindle feed: lever allows quick adjustment, handwheel allows fine feed or automatic feed
Counter weight for spindle and transmission chain on back of drill head.

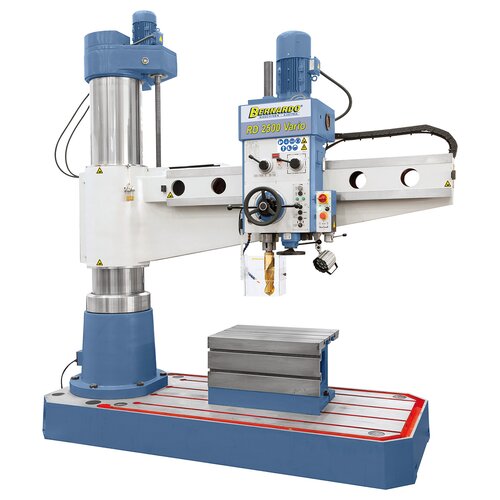

Radial drilling machine RD 2500 x 80 Vario *

Art.Nr.: 01-1336XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Our top range of radial drilling machine feature stepless speed adjustment, solid construction and high user friendliness. The column is mounted to improve the position of the radial arm and therefore maximize work comfort – significant for longer operating times.



€62,040.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Complete with stepless speed, set speed is visible on digital display
  • Spindle features high concentricity and automatic spindle brake
  • Radial arm, drill head and column each with hydraulic clamp
  • Large base plate, ideal for processing of oversize workpieces
  • Torsion-free, polished column increases sliding capacity of radial arm
  • Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
  • Control switch allows for individual clamping or unclamping of drill head and/or column
  • Guiderails on radial arm are hardened and polished
  • Counter weight on spindle to ensure optimal balance
  • Ideal for drilling, countersinking, reaming and tapping

Product Specifications

Drilling capacity max.

80 mm

Thread cutting max.

 M60

Distance spindle to column min./max.

450 - 2550 mm

Vertical movement of the support

820 mm
Travel of drill head (horizontally) 2100 mm

Spindle stroke

400 mm
Morse taper MT 6

Spindle speeds

 30 - 220, 200 - 1400 rpm

Feed range

(8) 0,06 - 1,38 mm/rev.

Distance spindle to box table

0 - 1120 mm

Distance spindle to base

400 - 1620 mm

Clamping area base

2500 x 1250 mm
Box table (L x W x H)

850 x 580 x 500 mm

Motor power

7,5 kW

Machine dimension (W x D x H)

3590 x 1250 x 3530 mm

Weight approx.

7400 kg

Delivery Contents

  • Box table
  • Drill chuck arbor MT 5 / B 16
  • Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Coolant device
  • Frequency inverter
  • Digital readout of speeds
  • Lifting motor
  • Hydraulic motor
  • Height adjustable protective cover
  • Tools
