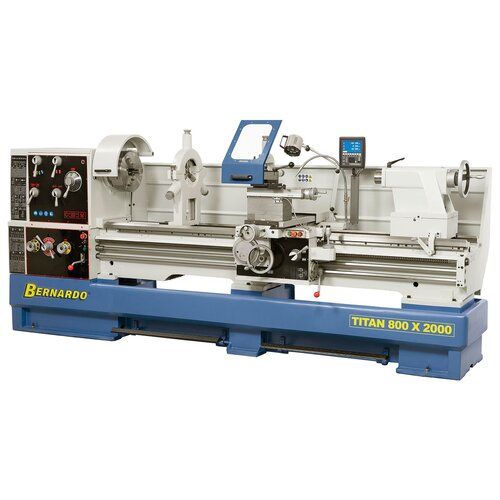

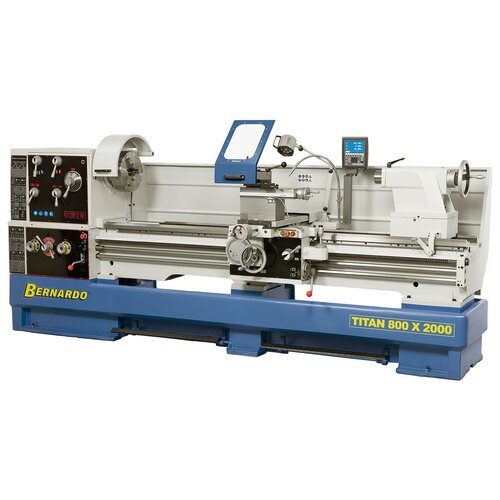

Heavy duty industrial lathe Titan 800 x 3000 incl. 3-axis digital readout *
Art.Nr.: 03-1357XLThe Titan 800 production lathe features top performance and high accuracy. This is an excellent model for medium to difficult turning works and extremely suitable for economic production of single units and serial operations in machine construction, plant engineering, production etc.
€39,372.00
incl. 20% VATAvailability
Product Properties
- Machine bed features strong reinforcements to minimize oscillations and to stabilize bed guiding
- Big range of applications range in general machine construction, production, single unit production etc.
- Grey cast-iron prism bed, inductively hardened and precisely polished
- State-of-the-art main spindle bedding with high-quality angular roller bearing
- Complete with rapid traverse longitudinal and cross to reduce downtime
- Removeable bridge allows processing of workpieces with a large diameter
- Electro-mechanical foot brake clearly reduces downtime

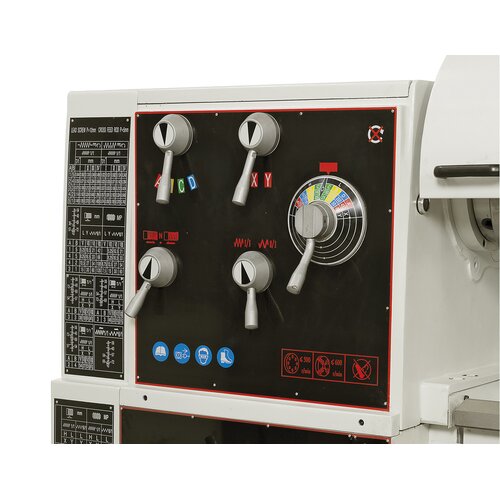

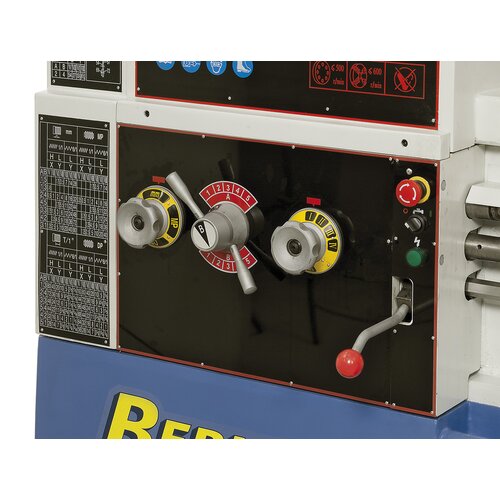

- Centrally located, practical switching of feeds and tapping with leadscrew and feed rod
- Hardened, polished gear wheels and shafts, even in feed drive
- Top performance even when face turning
- Large spindle bore (105 mm) for workpieces with a large diameter
- Mechanic coupling allows for soft start
Product Specifications
|
Distance between centers |
3000 mm |
|
Center height |
400 mm |
|
Swing over bed |
800 mm |
|
Swing over gap |
1000 mm |
|
Swing over cross slide |
540 mm |
|
Bed width |
400 mm |
|
Spindle bore |
105 mm |
|
Spindle nose fixture |
DIN 55029, D1-8 |
|
Spindle speed |
(16) 25 - 1600 rpm |
|
Longitudinal feed |
(25) 0,044 - 1,48 mm/rev. |
|
Cross feed |
(25) 0,022 - 0,74 mm/rev. |
|
Metric thread |
(54) 0,45 - 120 mm |
|
Inch thread |
(54) 7/16 - 80 threads/1" |
|

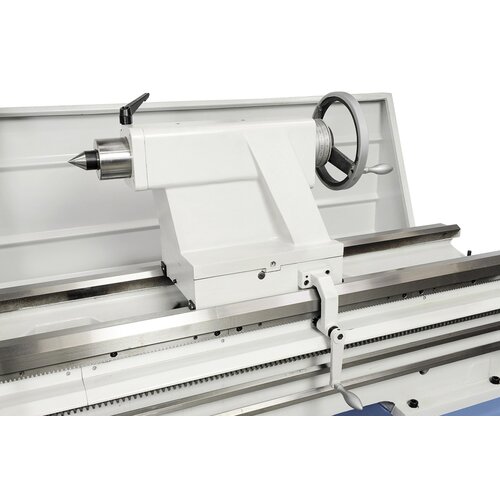

Diameter of tailstock sleeve |
90 mm |
|
Travel of tailstock sleeve |
235 mm |
|
Taper of tailstock sleeve |
MT 5 |
|
Motor power |
7,5 kW (10,0 HP) |
|
Machine dimension (W x D x H) |
4800 x 1320 x 1580 mm |
|
Weight approx. |
3820 kg |
Delivery Contents
- Cable guiding by energy chain

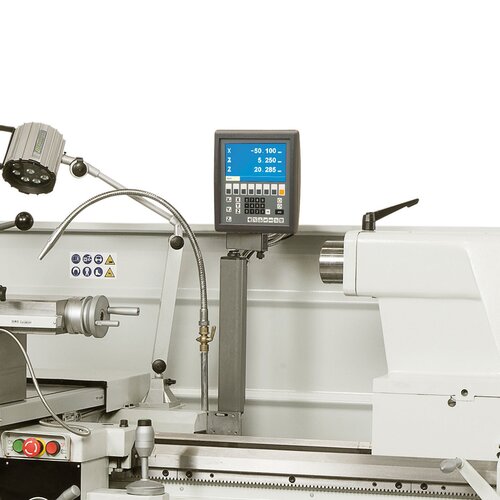

- 3-axis digital readout ES-12 V with LCD-display

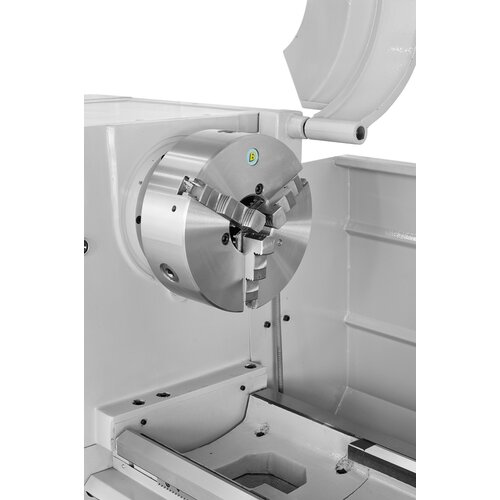

- 3-jaw chuck PS3-315 mm / D8
- Face plate 500 mm

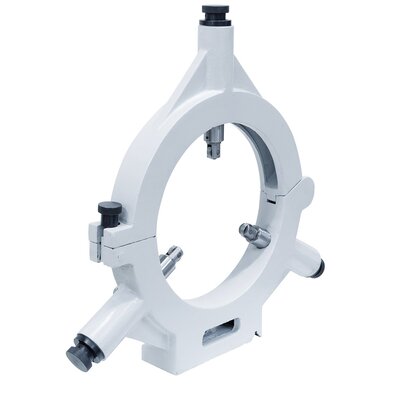

- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 100 mm
- 2 dead centers
- Motor with magnetic brake according to CE
- Foot pedal with brake function according to CE
- Initial filling with Shell Tellus 46
- Rapid feed longitudinal and cross
- Safety clutch
- Coolant device

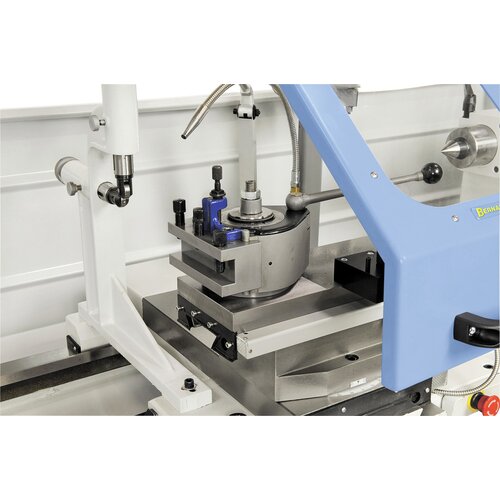

- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool post holder
- LED machine light
- Spindle support
- Change gears
- Morse taper drill sleeve
- Splash guard
- Tools
