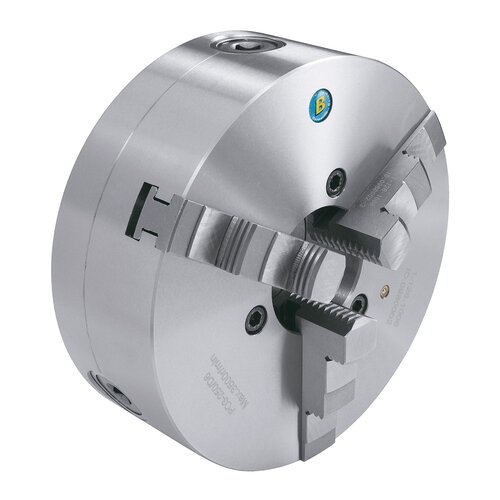

Bernardo Precision 3-jaw chuck PO3-D according DIN 55029 PO3-400/D8, steel
Art.Nr.: 21-1049F€2,352.00
Availability
Out of Stock
Product Properties
Execution:
- Precision 3-jaw chuck
- With Camlock direct mount according to DIN 55029
- Steel-design for higher speeds and longer life span
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

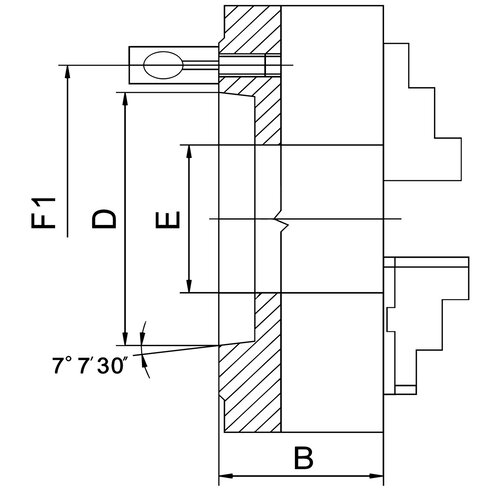

Product Specifications
|
Chuck size |
400/D8 |
|
Diameter |
400 mm |
|
Taper |
8 |
|
B |
108 mm |
|
D |
139,734 mm |
|
E |
136 mm |
|
F1 |
171,4 mm |
|
Camlock stud |
6 |
|
Max. speed |
2000 rpm |
|
Weight approx. |
101 kg |
