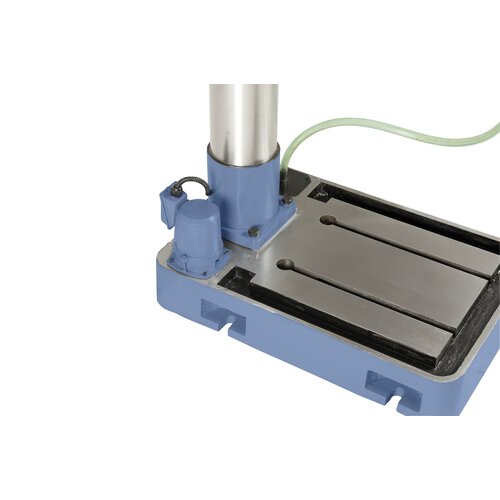

Well executed machine base features integrated coolant pump (7 l volume, 6 l/min output).
Well executed machine base features integrated coolant pump (7 l volume, 6 l/min output).

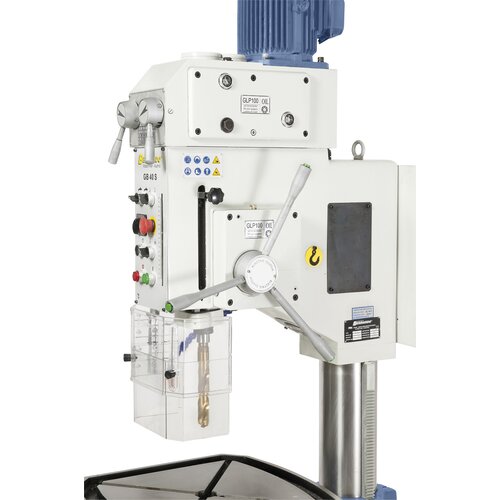

Machine comes complete with automatic spindle feed and work lamp to ensure precise workmanship.
Machine comes complete with automatic spindle feed and work lamp to ensure precise workmanship.

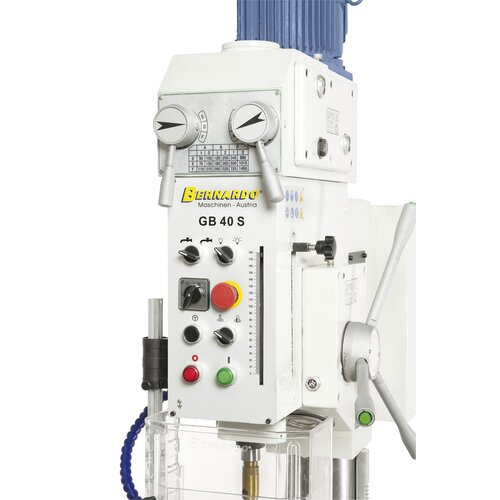

User-friendly arrangement of switches and control elements on gear head.
User-friendly arrangement of switches and control elements on gear head.
Well executed machine base features integrated coolant pump (7 l volume, 6 l/min output).
Machine comes complete with automatic spindle feed and work lamp to ensure precise workmanship.
User-friendly arrangement of switches and control elements on gear head.

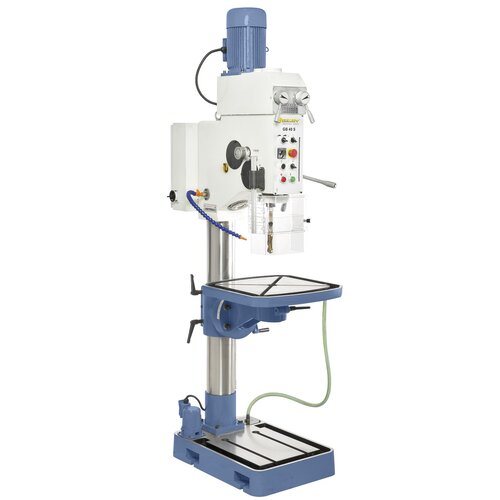

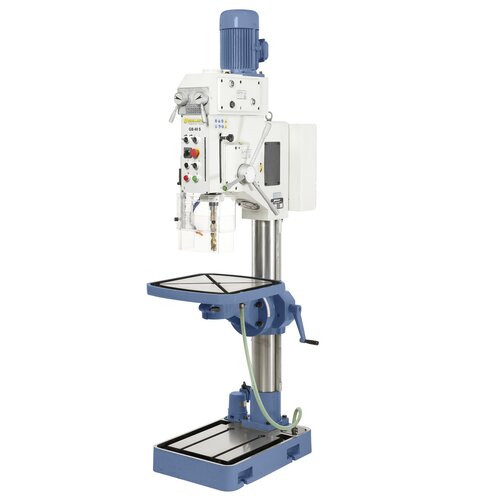

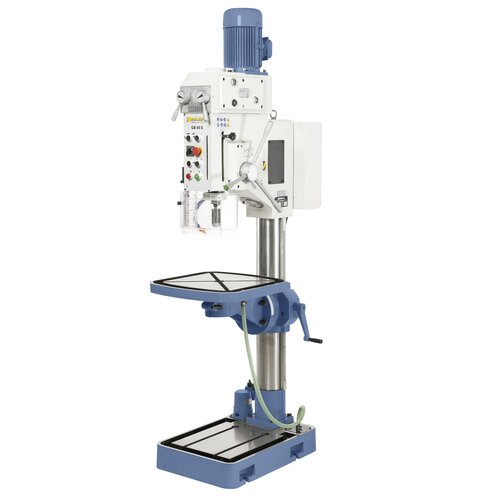

Gearhead drilling machine GB 40 S

Art.Nr.: 01-1281XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GB 40 S solid gearhead drilling machine is suitable for a large variety of applications, such as tapping, countersinking etc. Most commonly this model is used in repair shops or in production of small parts or low volume productions.

€5,700.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Gears operating in oil ensure smooth machine run
  • Comes complete with automatic spindle feed, tapping device and work lamp

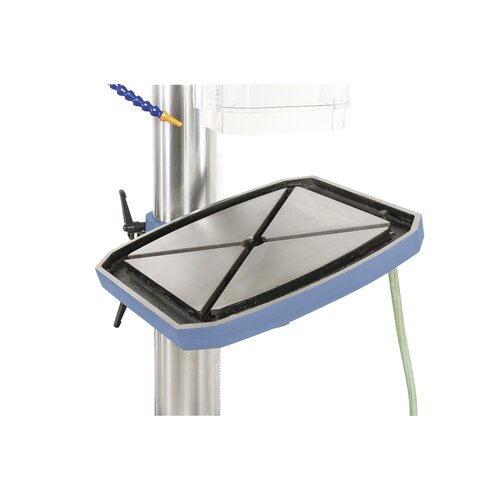

  • Solid work table turns 360° and features diagonal T-slots and coolant groove
  • Includes integrated coolant pump in machine base
  • Lever on gear box allows for speed settings
  • Powerful motor even at continuous operation
  • Height adjustable protective cover according to CE standards guarantees high safety
  • Adjustable drill depth stop with scale
  • 18 gear steps come standard

Product Specifications

Drilling capacity max.

40 mm

Thread cutting max

M24

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speeds

(18) 50 - 1450 rpm

Feed range

0,1 / 0,2 mm/rev.

Distance spindle to column

345 mm

Distance spindle to table max.

695 mm

Distance spindle to base

1200 mm

Spindle stroke

180 mm

Column diameter

140 mm

Table size / T-slot size

555 x 555 mm / 18 mm

Working surface of base

505 x 540 mm

Motor power output S1 100%

0,85 kW / 1,5 kW

Motor power input S6 40%

1,1 kW / 2,2 kW

Machine dimension (W x D x H)

560 x 960 x 2250 mm

Weight approx.

460 kg

Delivery Contents

  • Keyless drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Coolant device
  • Electromagnetic spindle feed
  • Thread cutting device
  • Initial filling with Shell Tellus 46
  • LED machine light
  • Automatic tool release device
  • Height adjustable protective cover
