Availability
Out of Stock
Product Properties

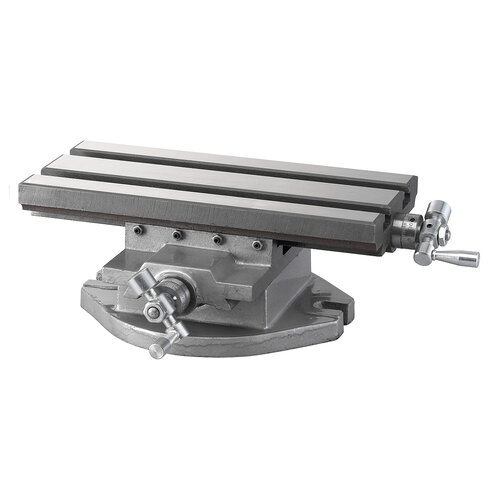

- for small milling works on table and column drilling machines
- Working surface grounded
- Dovetailg guiding adjustable via gibs
Product Specifications
|
Length |
390 mm |
|
Width |
310 mm |
|
Height |
117 mm |
|
T-slot size |
16 mm |
|
Quantity of T-slots |
2 pcs. |
|
Table length |
310 mm |
|
Table width |
140 mm |
|
Max. workpiece weight |
30 kg |
|
Base width |
230 mm |
|
Base length |
210 mm |
|
Travel x-axis |
165 mm |
|
Travel y-axis |
110 mm |
|
Nonius handwheels |
0,02 mm |
|
Weight approx. |
16 kg |
