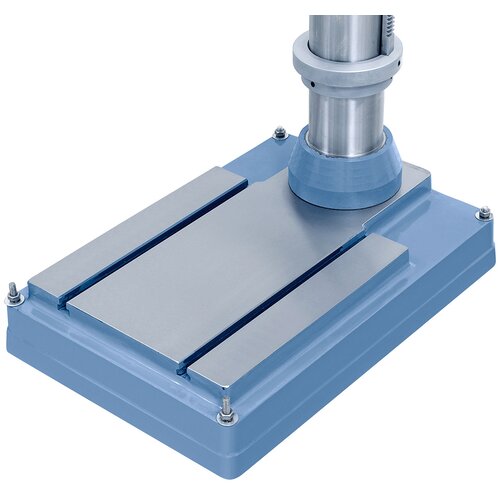

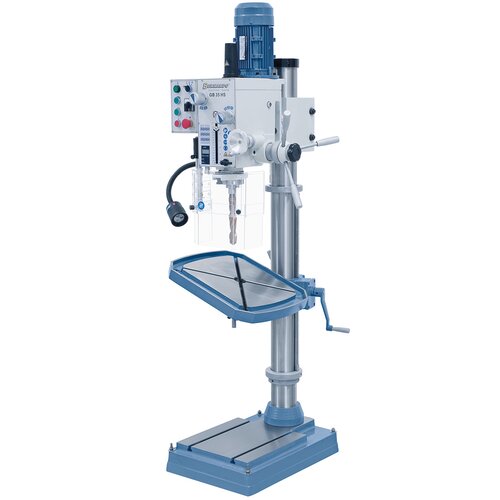

Treated base plate with T-slots allows clamping of oversize workpieces
Treated base plate with T-slots allows clamping of oversize workpieces

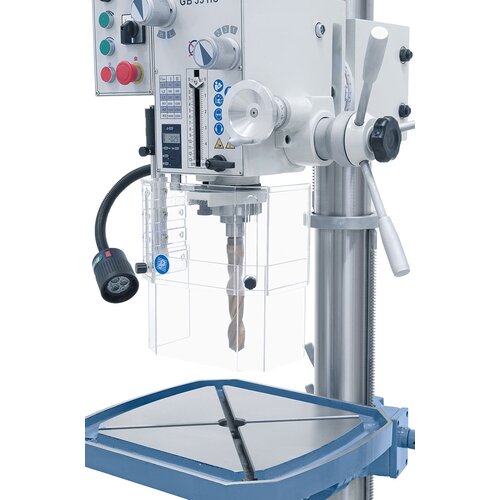

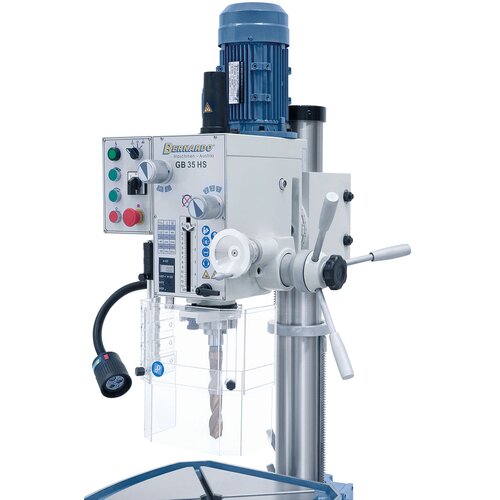

Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.
Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.

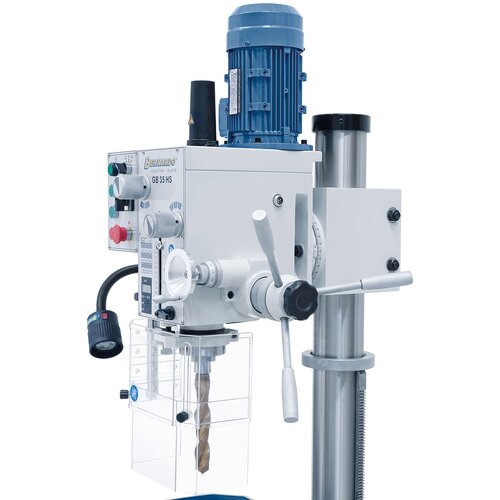

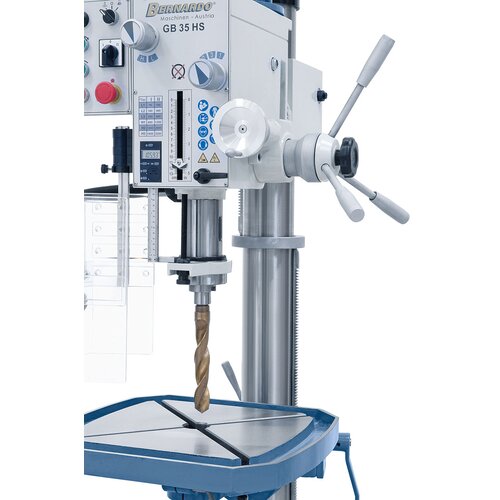

Ergonomically arranged levers allow accurate spindle feed.
Ergonomically arranged levers allow accurate spindle feed.
Treated base plate with T-slots allows clamping of oversize workpieces
Protective cover in accordance with CE-standards, adjustable to various drill bit sizes.
Ergonomically arranged levers allow accurate spindle feed.

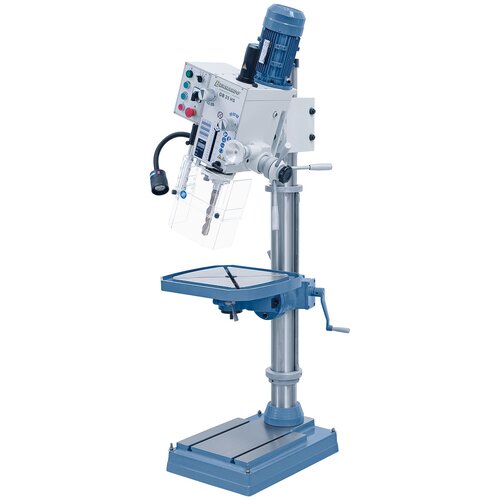

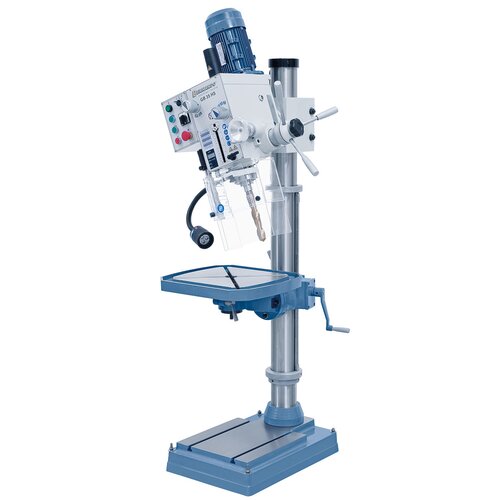

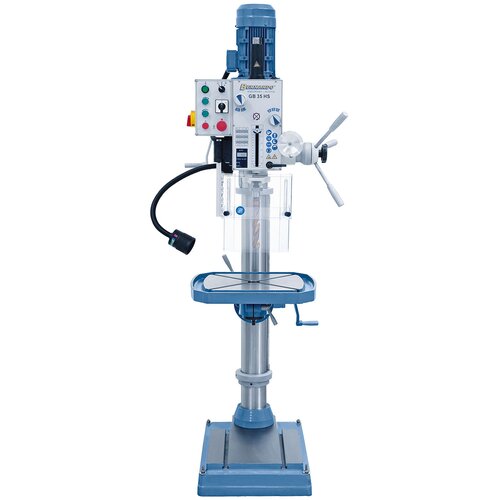

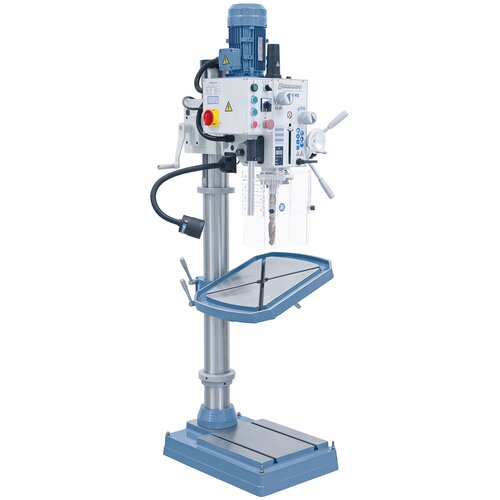

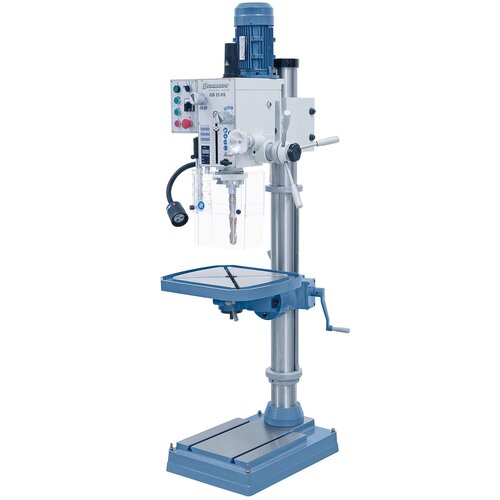

Gearhead drilling machine GB 35 HS

Art.Nr.: 01-1261
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GB 35 HS gearhead drilling machine features a robust and vibration-free construction. The tiltable, rotatable gear head makes these models ideal for general applications.

€3,282.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • 2-speed motor with 12 adjustable speeds, speed range 75 - 3200 rpm
  • Serially equipped with keyless drill chuck 1 - 16 mm / B 16

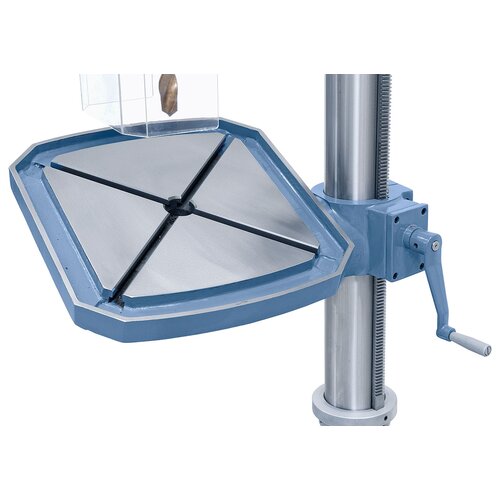

  • Large drill table features T-slots and coolant grooves
  • Machine base designed to mount oversized workpieces
  • Lever allows quick and easy speed change
  • Gear head is height adjustable, tilts 180˚ and rotates 360˚
  • Polished gear wheels, in oil bath, guarantees smooth running
  • Clutch allows change from manual to fine feed
  • Right and left turning for thread cutting
  • Digital display for spindle feed included

Product Specifications

Drilling capacity max.

32 mm

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 4

Spindle speeds

(12) 75 - 3200 rpm

Distance spindle to column

295 mm

Distance spindle to table max.

775 mm

Distance spindle to base

1185 mm

Spindle stroke

125 mm

Column diameter

115 mm

Table size

500 x 455 mm

T-slot size

14 mm

Working surface of base

375 x 365 mm

Motor power output S1 100%

1,1 / 1,5 kW (400 V)

Motor power input S6 40%

1,5 / 2,2 kW (400 V)

Machine dimension (W x D x H)

630 x 700 x 2050 mm

Weight approx.

335 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3
  • Height adjustable protective cover
  • Digital drill depth indication
  • Thread cutting device
  • LED machine light
  • Tools
