Picture show KBM 63
Picture show KBM 63

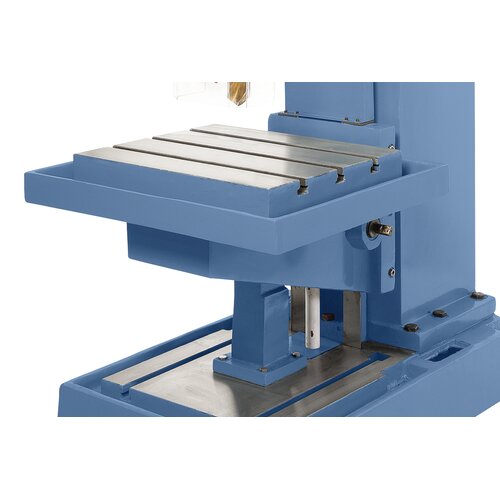

Surface treated, large work table.
Surface treated, large work table.

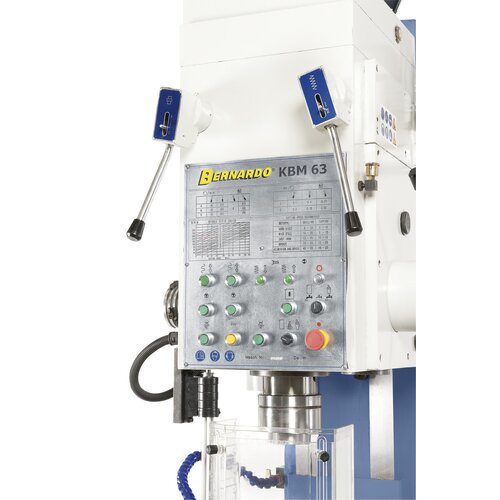

Clearly arranged drill head features various switches and control elements.
Clearly arranged drill head features various switches and control elements.

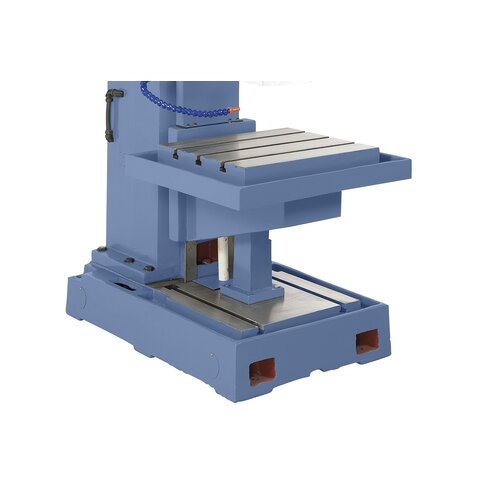

Large, solid base supplied with T-slots Working table can be dismounted for machining of high workpieces
Large, solid base supplied with T-slots Working table can be dismounted for machining of high workpieces

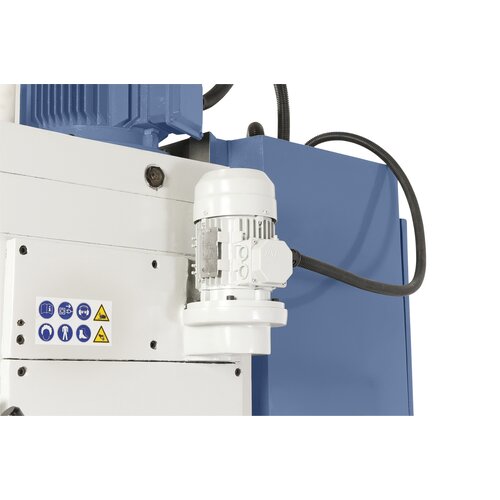

Feed motor reduces positioning time of spindle adjustment
Feed motor reduces positioning time of spindle adjustment
Tapping device featuring rapid and working feed and back stroke
Tapping device featuring rapid and working feed and back stroke

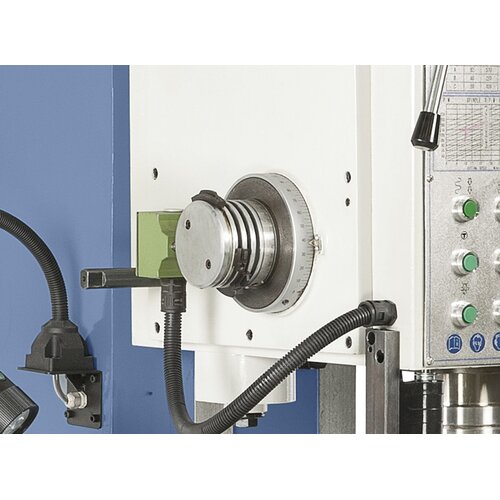

Star handle allows manual spindle feed, clutch lever allows automatic feed
Star handle allows manual spindle feed, clutch lever allows automatic feed
Picture show KBM 63
Surface treated, large work table.
Clearly arranged drill head features various switches and control elements.
Large, solid base supplied with T-slots Working table can be dismounted for machining of high workpieces
Feed motor reduces positioning time of spindle adjustment
Tapping device featuring rapid and working feed and back stroke
Star handle allows manual spindle feed, clutch lever allows automatic feed

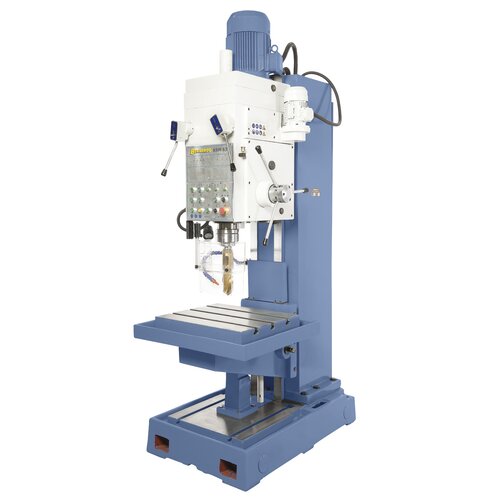

Box-column drill press KBM 80 *

Art.Nr.: 01-1345XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The KBM 80 is suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.

€21,960.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Solid construction of column and base designed for excessive use
  • Powerful drive motor features high torque and large feed force
  • Solid grey cast iron construction maximizes table load capacity
  • Tapping device comes with automatic change of rotation at adjusted drill depth
  • Convenient control lever allows for quick and easy feed and speed adjustment
  • Polished gear wheel, in oil bath, ensure smooth operartion
  • Automatic spindle feed, tapping device and work lamp included in standard equipment
  • Includes feed motor for rapid and work feed and back stroke
  • Wide, heavy-duty dovetail guidings feature adjustable gibs

Product Specifications

Drilling capacity in steel

80 mm

Thread cutting max.

M56

Torque

800 Nm

Travel of drill head

260 mm

Morse taper

MT 6

Spindle speed / steps

40 - 570 rpm, 9 steps

Feed range

(6) 0,1 - 0,78 mm/rev.

Feeding force

30000 N

Distance spindle to column

375 mm

Distance spindle to table max.

810 mm

Spindle stroke

250 mm

Table size / T-slot size

660 x 555 mm / 22 mm

Table lift

300 mm

Motor power

5,5 kW

Machine dimension (W x D x H)

900 x 1300 x 2850 mm

Weight approx.

2500 kg

Delivery Contents

  • Coolant device
  • Thread cutting device
  • Left and right turning
  • LED working light
  • Morse taper drill sleeve
  • Tools
  • Height adjustable protective cover
