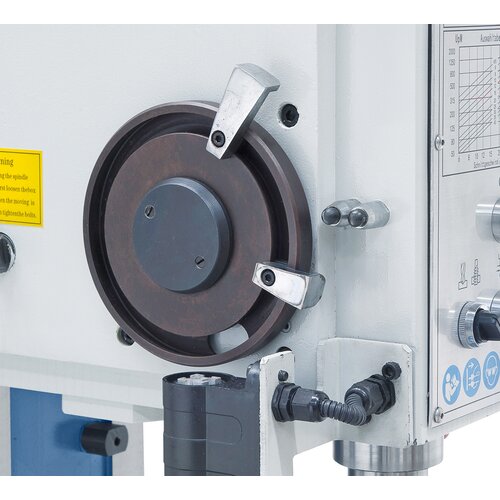

Tapping device with automatic spindle return, ideal for series production
Tapping device with automatic spindle return, ideal for series production

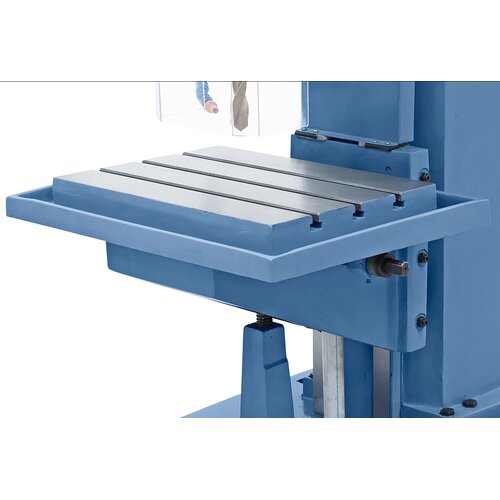

Surface treated large work table
Surface treated large work table

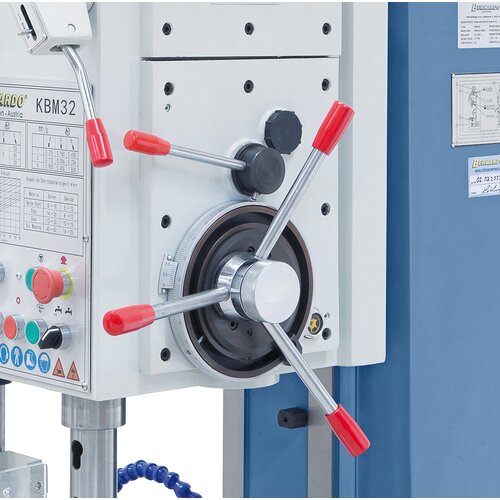

Star handle allows manual spindle feed, clutch lever allows automatic feed
Star handle allows manual spindle feed, clutch lever allows automatic feed

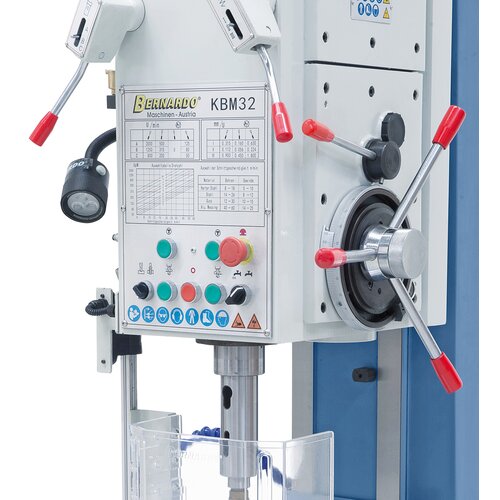

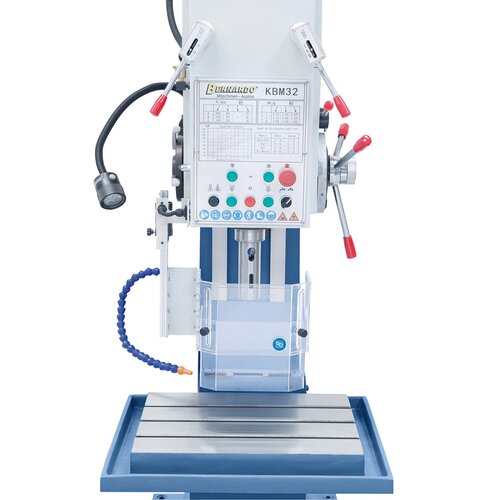

Clearly arranged drill head features various switches and control elements
Clearly arranged drill head features various switches and control elements
Tapping device with automatic spindle return, ideal for series production
Surface treated large work table
Star handle allows manual spindle feed, clutch lever allows automatic feed
Clearly arranged drill head features various switches and control elements

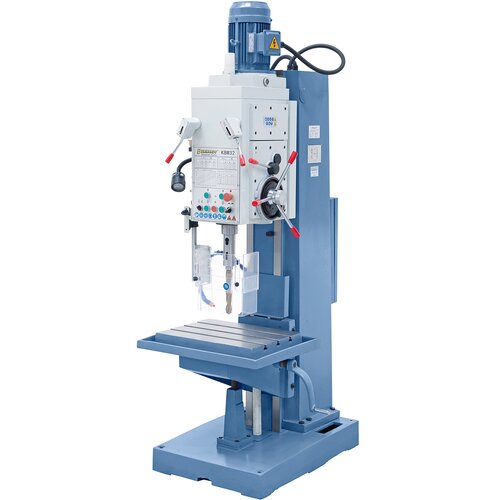

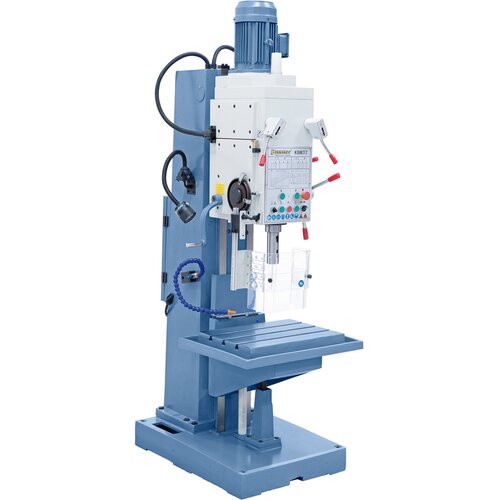

Box-column drill press KBM 32 *

Art.Nr.: 01-1341XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The KBM 32 is suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.

€9,900.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Solid construction of column and base designed for excessive use
  • Powerful drive motor features high torque and large feed force
  • Solid grey cast iron construction maximizes table load capacity
  • Tapping device comes with automatic change of rotation at adjusted drill depth
  • Convenient control lever allows for quick and easy feed and speed adjustment
  • Polished gear wheel, in oil bath, ensure smooth operartion
  • Automatic spindle feed, tapping device and work lamp included in standard equipment
  • Wide, heavy-duty dovetail guidings feature adjustable gibs

Product Specifications

Drilling capacity in steel

32 mm

Thread cutting max.

M22

Torque

160 Nm

Travel of drill head

200 mm

Morse taper

MT 4

Spindle speed / steps

50 - 2000 rpm, 9 steps

Feed range

(9) 0,056 - 1,80 mm/rev.

Feeding force

9000 N

Distance spindle to column

280 mm

Distance spindle to table max.

680 mm

Spindle stroke

200 mm

Table size / T-slot size

550 x 400 mm / 14 mm

Table lift

300 mm

Motor power

2,2 kW

Machine dimension (W x D x H)

700 x 960 x 2340 mm

Weight approx.

950 kg

Delivery Contents

  • Coolant device
  • Thread cutting device
  • Left and right turning
  • LED working light
  • Morse taper drill sleeve
  • Tools
  • Height adjustable protective cover
