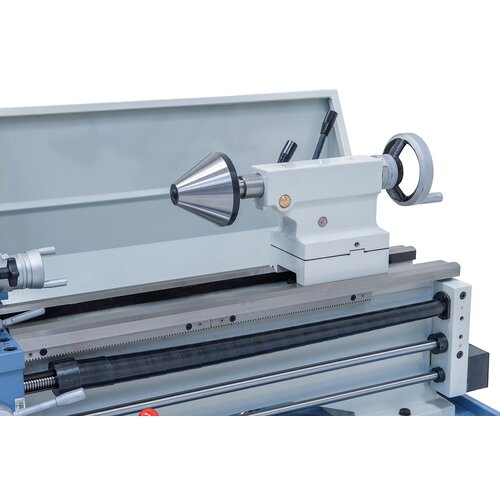

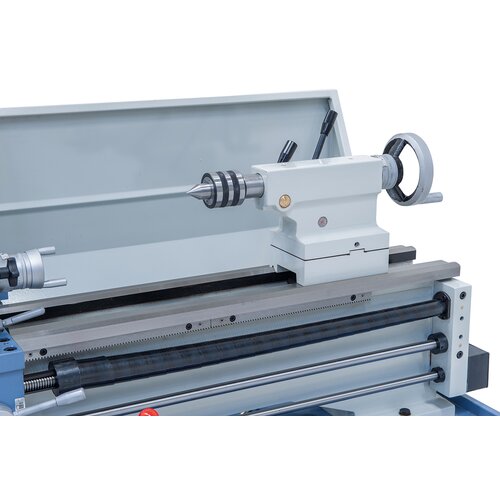

The tailstock with one-hand clamping can be moved for taper turning and is optionally available with a ball nose live center. v

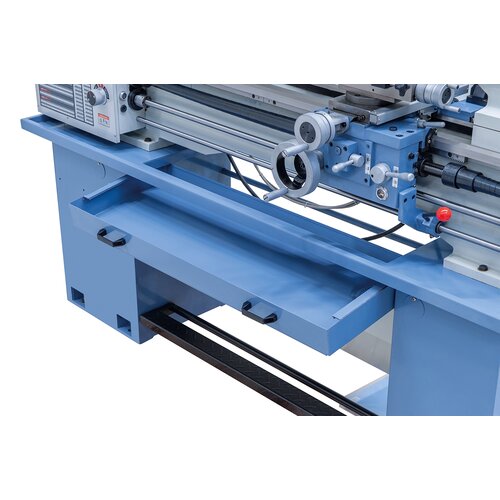

Complete with extractable chip tray.

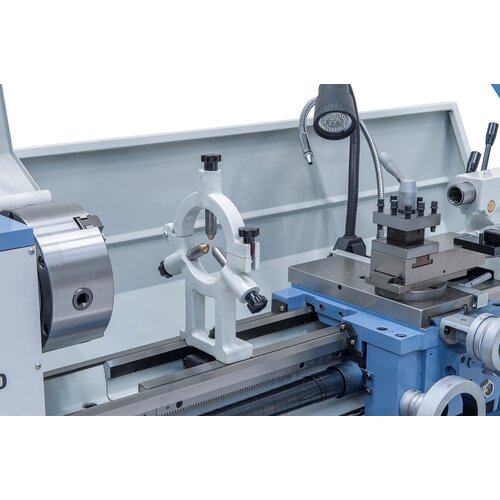

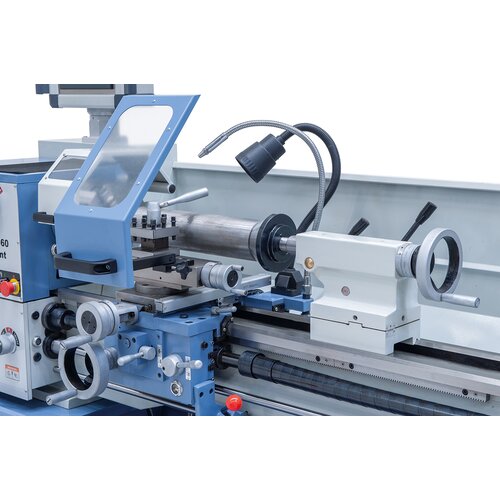

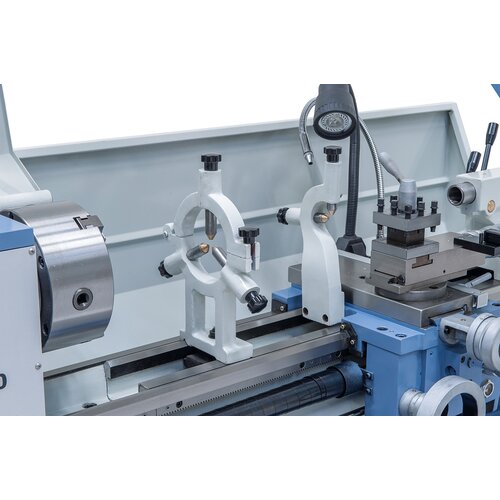

Steady rest with bronze guide to stabilize long workpieces.

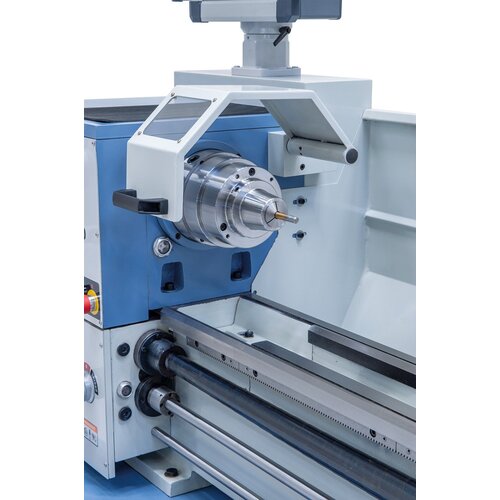

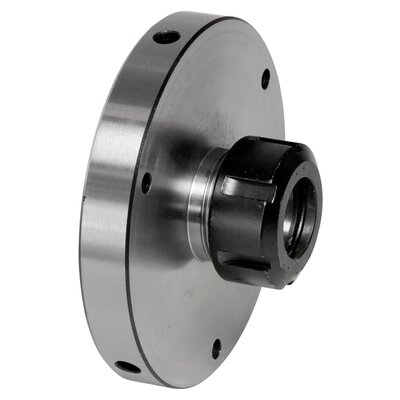

Optionally available: 5C fixture, clamping area 3 - 26 mm

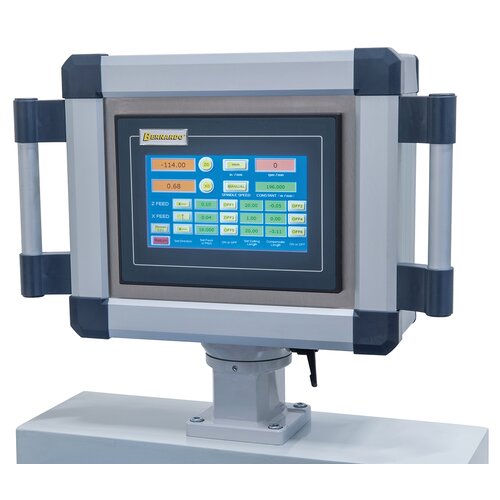

Reading the digital display and all settings (speed, feed rate, thread pitch,...) using the touchscreen.

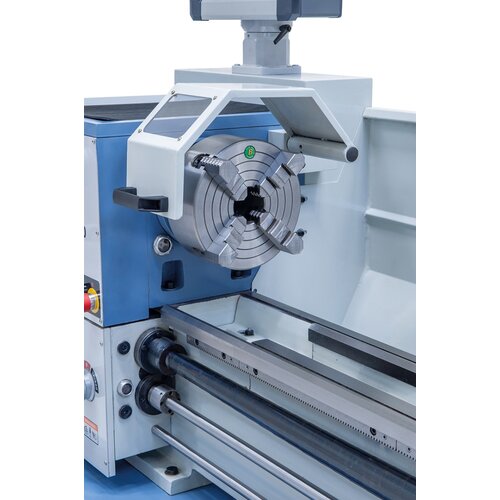

4-jaw chuck 200 mm allows centric clamping of square sections (optional)

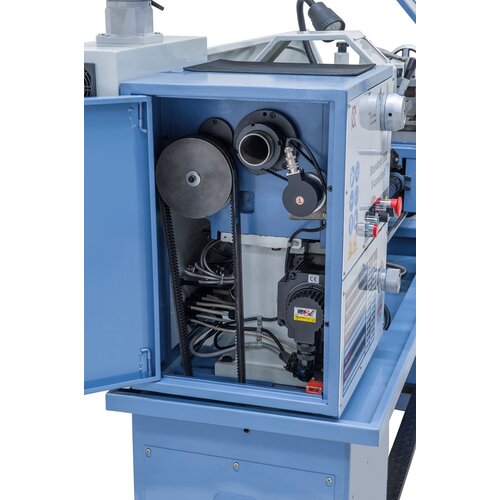

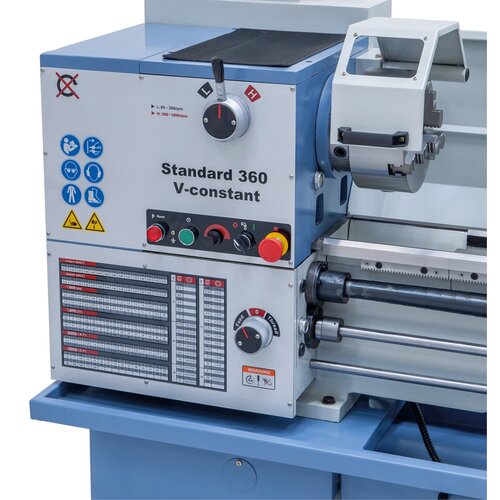

The solid head stock and the dynamically balanced main spindle ensure accuracy and smoothness even at higher speed.

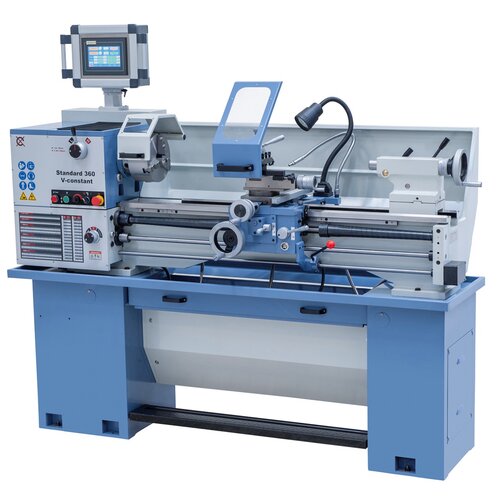

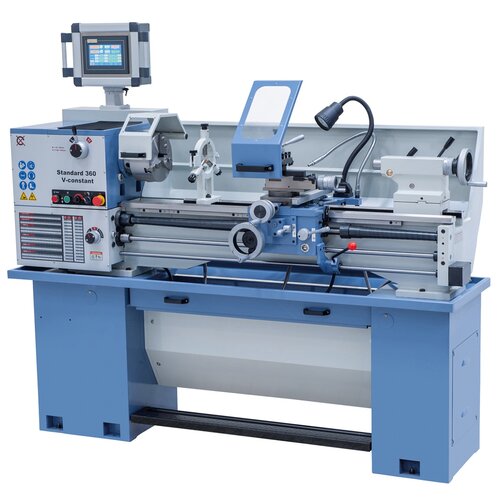

Universal turning lathe Standard 360 V - constant *

Art.Nr.: 03-1279XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Standard 360 V-constant universal lathe feature a solid construction and practicality. Making this model truly versatile for technical schools, repair shops and training workshops is the standard equipment which comprises all major accessories such as 2-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards. Furthermore, this model features the additional feature of “constant cutting speed”, allowing excellent results when processing work pieces with inconsistent diameters.

€11,220.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Constant cutting speed when face turning, spindle speed automatically adjusts to diameter of work piece
High surface quality due to the constant cutting speed when facing turning
Perfect machine for technical schools, repair shops and training workshops
State-of-the-art spindle bedding with high-quality, angular ball bearings
One-hand clamping for tailstock, adjustable for taper turning
Hardened and polished gear wheels and shafts
Ideal for processing of steel, non-ferrous materials and plastics
Removable bridge allows processing of workpieces of large diameter
Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
Clearly arranged speed and feed control settings, smooth operation and accurate control

Product Specifications

Distance between centers	1000 mm
Center height	180 mm
Swing over bed	360 mm
Swing over gap*	500 mm
Swing over cross slide	220 mm
Bed width	185 mm
Spindle bore	51 mm
Spindle nose fixture	DIN 55029, D1-5
Speed range, stepless	85 - 390 / 390 - 1800 rpm
Longitudinal feed	(30) 0,02 - 0,75 mm/rev.
Cross feed	(30) 0,02 - 0,75 mm/rev.
Metric thread	(65) 0,08 - 24 mm
Inch thread	(75) 1 - 112 threads/1“
Travel of tailstock sleeve	90 mm
Taper of tailstock sleeve	MT 3
Motor power output S₁ 100%	1,5 kW (400 V)
Motor power input S₆ 40%	2,2 kW (400 V)
Machine dimension (W x D x H)	1920 x 690 x 1760 mm
Weight approx.	620 kg

* Removable bed length: 210 mm

Delivery Contents

Control with 2-axis digital display via touchscreen

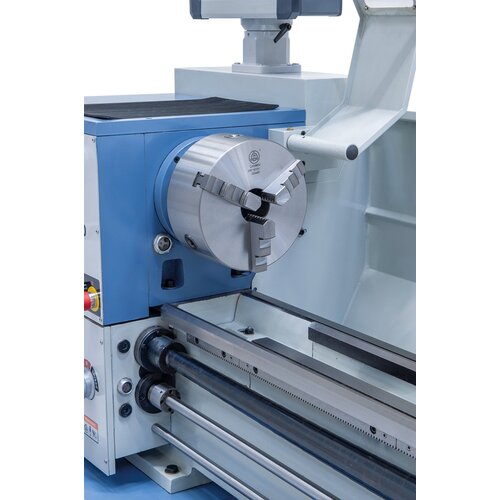

3-jaw chuck 200 mm
Steady rest – Passage up to 55 mm

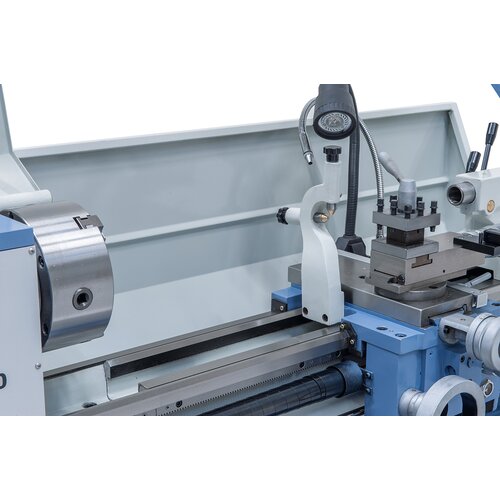

Follow rest – Passage up to 55 mm

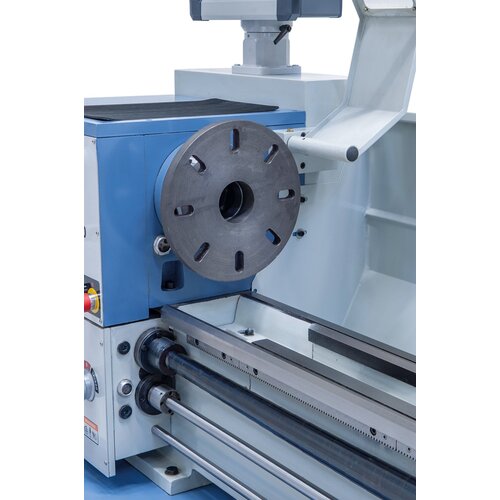

Face plate 260 mm
4-way tool post holder

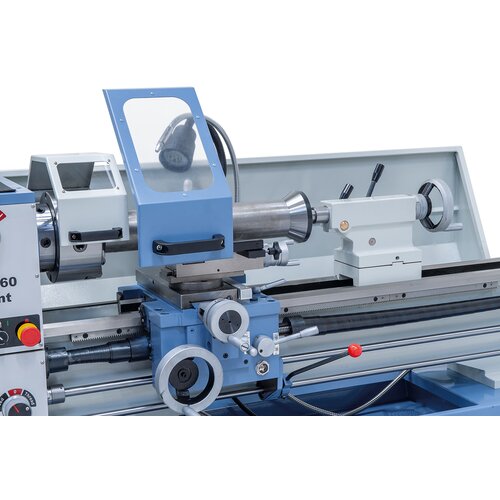

Protective device at tool holder
Safety clutch
Coolant device
Extractable chip tray
Frequency inverter
Servo motor for z- and x-axis
Foot pedal with brake function according CE
Splash guard
Thread dial
LED machine light
Digitale speed indication
Morse taper drill sleeve
2 dead centers
Stand
Tools

Suitable accessories

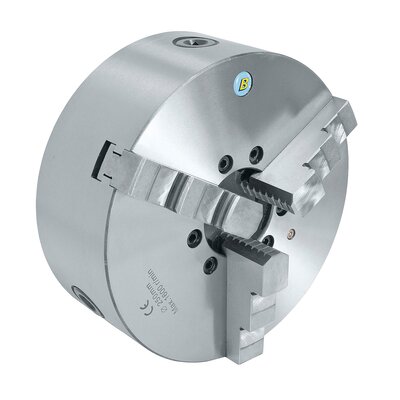

Bernardo 3-jaw chuck, DIN 55029, DK11-200/D5, cast iron
