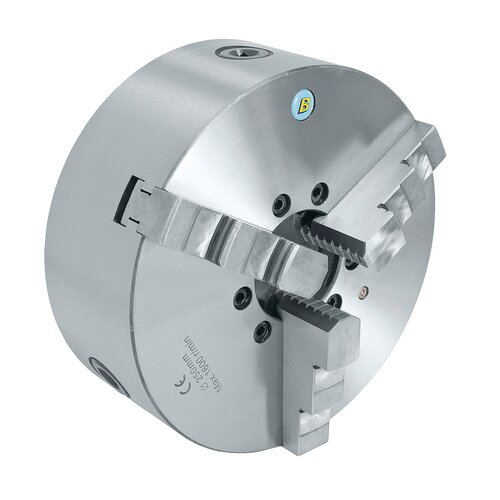

Bernardo 3-jaw chuck, DIN 55029, DK11-200/D5, cast iron
Art.Nr.: 21-0784€357.60
Availability
Out of Stock
Product Properties
Execution:
- Standard 3-jaw chuck with high-quality cast iron body
- With Camlock direct mount according to DIN 55029
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
Standard accessories:
- 1 set hard inside solid jaws DIJ-DK11
- 1 set hard outside solid jaws DOJ-DK11

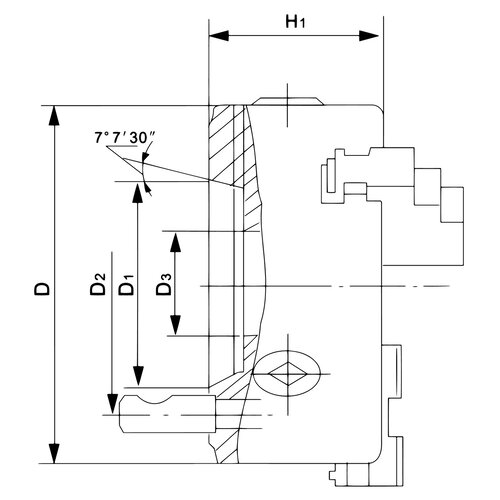

Product Specifications
|
Chuck size |
200/D5 |
|
D - diameter |
200 mm |
|
Taper |
5 |
|
D1 (max.) |
82,578 |
|
D2 |
104,8 mm |
|
D3 |
60 mm |
|
H1 |
90 mm |
|
Max. speed |
2000 rpm |
|
Weight approx. |
19 kg |
