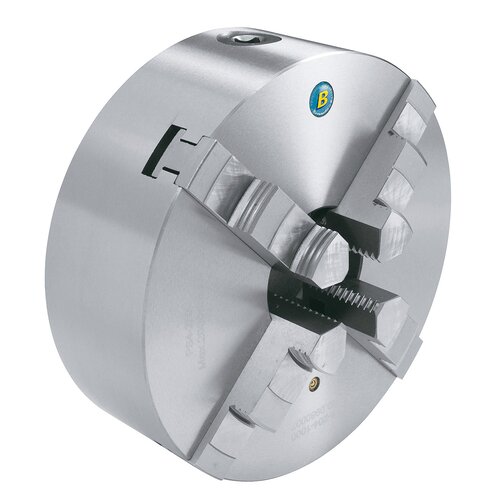

Bernardo Standard-4-jaw chuck DK12-D, DIN 55029, DK12-200/D5, cast iron

Art.Nr.: 21-0834

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

€462.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Execution:

Standard 4-jaw chuck with high-quality cast iron body
With Camlock direct mount according to DIN 55029
Inclusive each 1 set hard inside and hard outside solid jaws

Application:

Suitable for conventional turning lathes

Standard accessories:

1 set hard inside solid jaws DIJ-DK11
1 set hard outside solid jaws DOJ-DK11

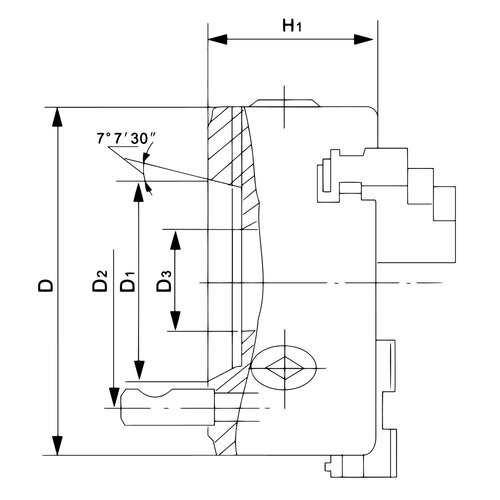

Product Specifications

Chuck size	200/D5
D - Diameter	200 mm
Taper	5
D1 (max.)	82,578 mm
D2	104,8 mm
D3	60 mm
H1	90 mm
Max. speed	2000 rpm
Weight approx.	19 kg
