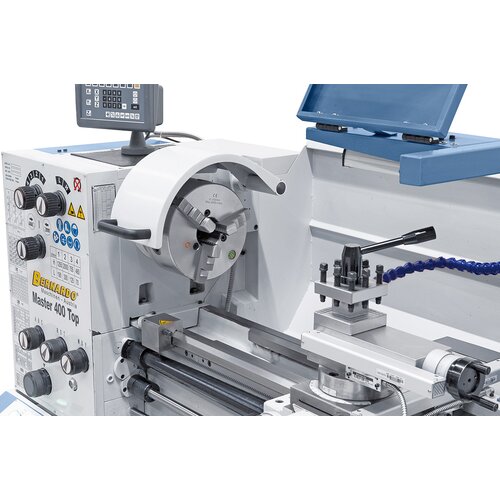

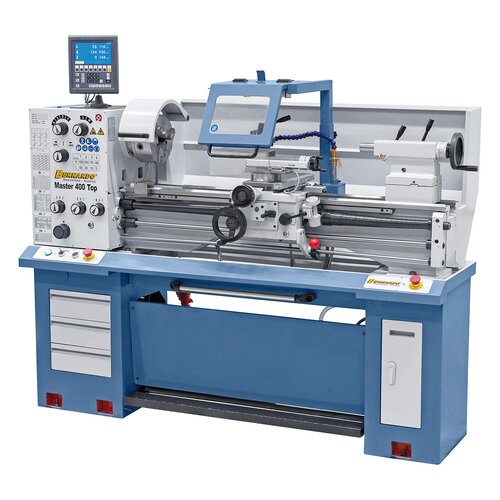

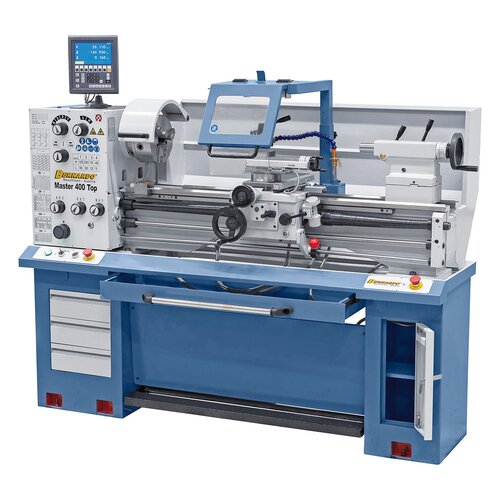

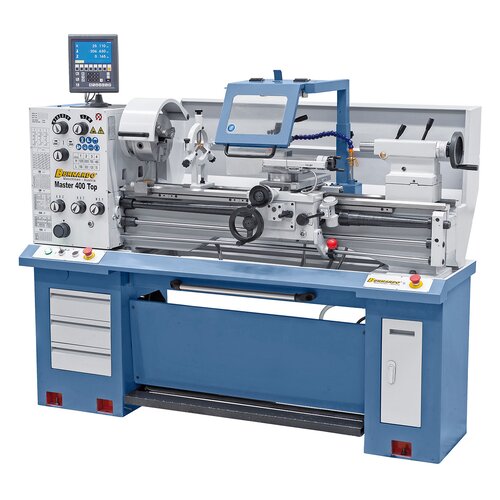

Universal turning lathe Master 400 Top incl. 3-axis-digital readout ES-12 V
Art.Nr.: 03-1284XLThe Master 400 Top universal lathe is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model is equipped with a 3-axis digital readout.
€9,816.00
incl. 20% VATAvailability
Product Properties
- Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
- 52 mm spindle bore to machine large shaft diameters comes standard
- Ideal for processing of steel, non-ferrous materials and plastics
- Chip tray extracts to front, keeping space requirements to a minimum

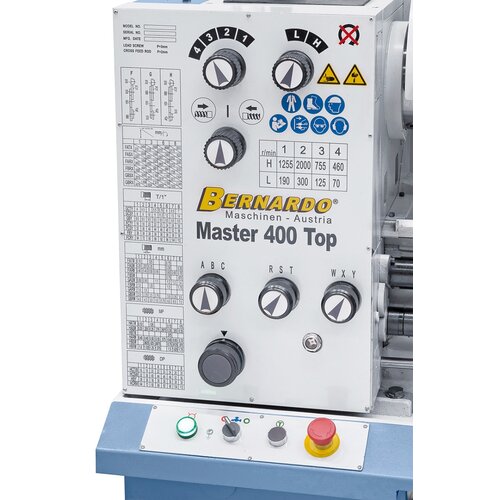

- Clear arranged speed and feed control settings, smooth operation and accurate control
- Electro-magnetic foot brake reduces downtime
- State-of-the-art spindle bedding with high-quality, angular ball bearings
- Grey cast-iron machine bed, inductive hardened and polished
- High spindle concentricity (≤ 0,015 mm)
- Hardened and polished spindle runs in oil bath
- The machine bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning
- Tailstock can be adjusted ± 5 mm for taper turning
Product Specifications
|
Distance between centers |
1000 mm |
|
Center height |
200 mm |
|
Swing over bed |
400 mm |
|
Swing over cross slide |
260 mm |
|
Bed width |
185 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1-5 |
|
Speed range |
(8) 70 – 2000 rpm |
|
Longitudinal feed |
(24) 0,0464 – 3,249 mm/rev. |
|
Cross feed |
(24) 0,01 – 0,7033 mm/rev. |
|
Metric thread |
(43) 0,1 – 7,0 mm |
|
Inch thread |
(56) 4 – 112 threads/1“ |
|
Diameter of tailstock sleeve |
42 mm |
|
Travel of tailstock sleeve |
100 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power |
1,5 kW (400 V) |
|
Machine dimension (W x D x H) |
1820 x 700 x 1600 mm |
|
Weight approx. |
640 kg |
Delivery Contents

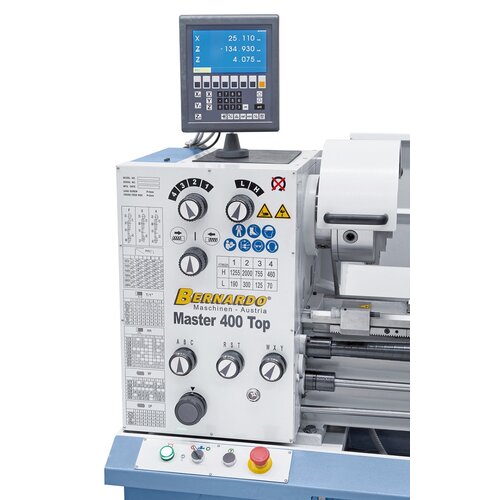

- 3-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck DK11-200 mm / D5

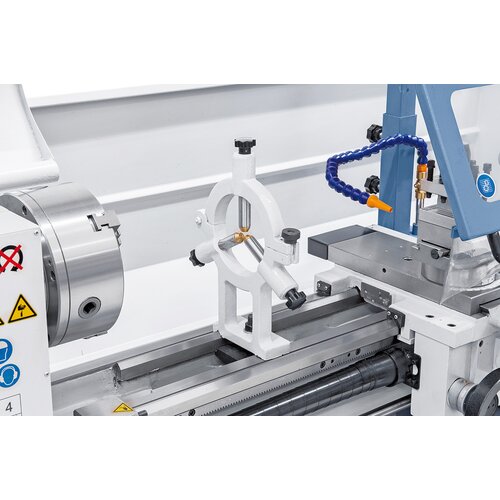

- Steady rest - Passage up to 70 mm

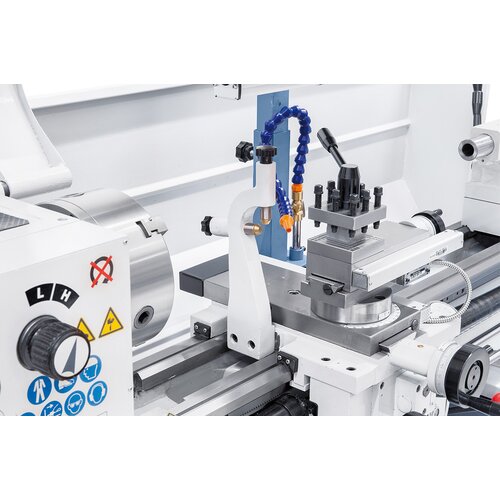

- Follow rest - Passage up to max. 60 mm

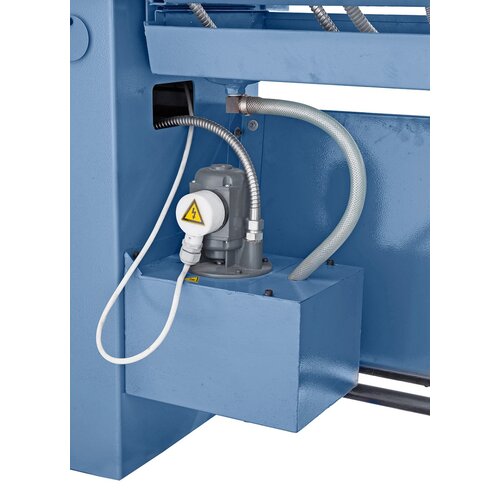

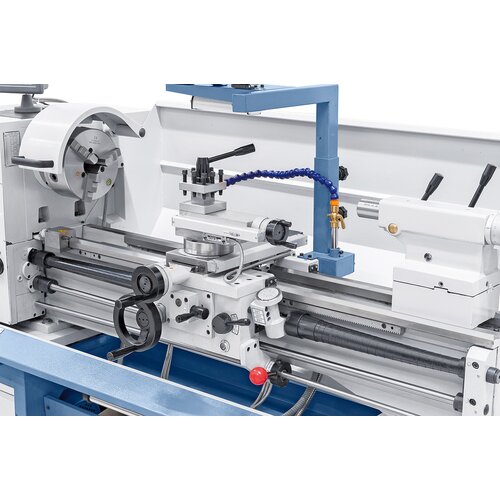

- Coolant device
- Initial filling with Shell Tellus 46
- Extractable chip tray
- Face plate 280 mm

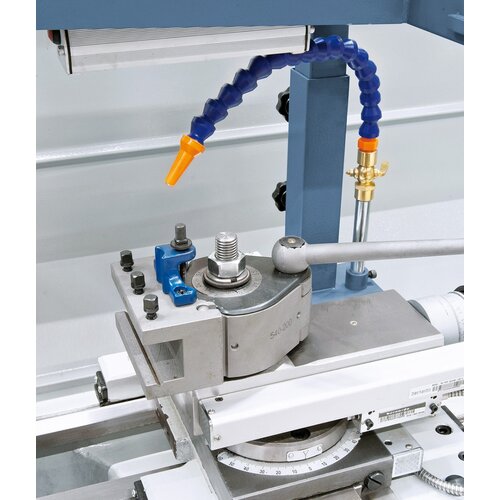

- 4-way tool post holder
- Protective cover at 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Thread dial

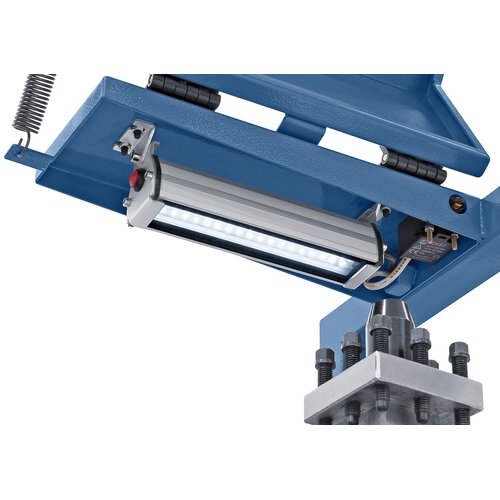

- LED machine light
- Morse taper drill sleeve

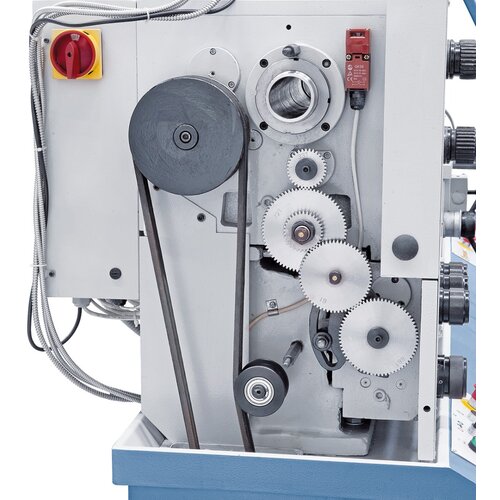

- Change gears
- 2 dead centers
- Foot pedal with brake function according to CE
- Motor with magnetic brake according to CE
- Splash guard
- Stand
- Tools
