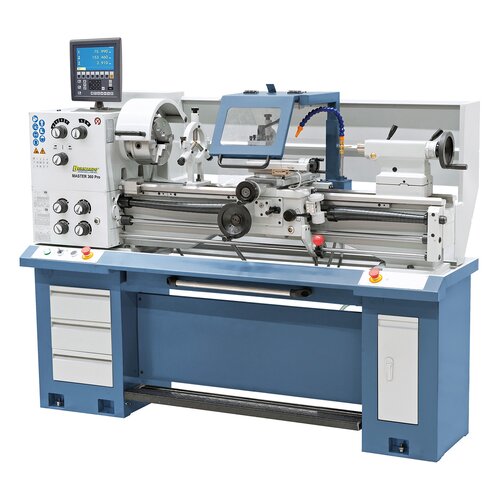

Universal turning lathe Master 360 Pro incl. 3-axis-digital readout ES-12 V
Art.Nr.: 03-1272XLThe Master 360 Pro is a solidly constructed universal lathe, offering a wide range of applications. Features of this model include the large turning diameter of 360 mm and the 52 mm spindle bore. Its construction (design, performance, feeds etc) covers all needs for training purposes, as well as for tool shops and repair shops.
€9,288.00
incl. 20% VATAvailability
Product Properties
- Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
- 52 mm spindle bore to machine large shaft diameters comes standard
- Ideal for processing of steel, non-ferrous materials and plastics
- Chip tray extracts to front, keeping space requirements to a minimum

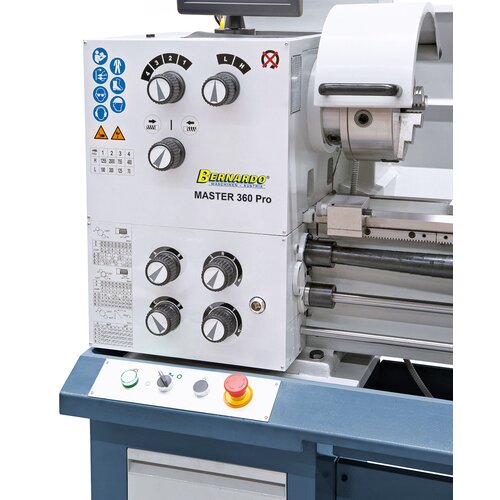

- Clear arranged speed and feed control settings, smooth operation and accurate control
- Electro-magnetic foot brake reduces downtime
- State-of-the-art spindle bedding with high-quality, angular ball bearings
- Grey cast-iron machine bed, inductive hardened and polished
- High spindle concentricity (≤ 0,015 mm)
- Hardened and polished spindle runs in oil bath
- Tailstock, spindle stock and all guides are adjustable

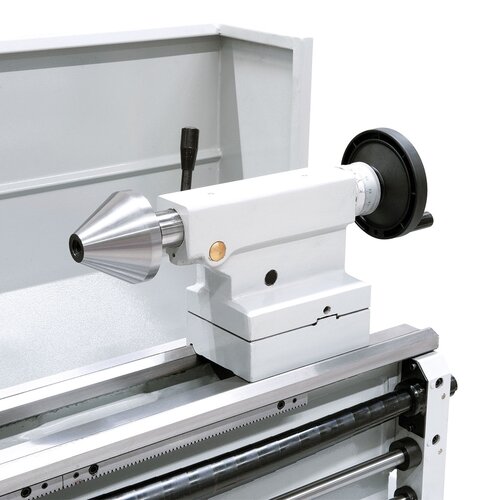

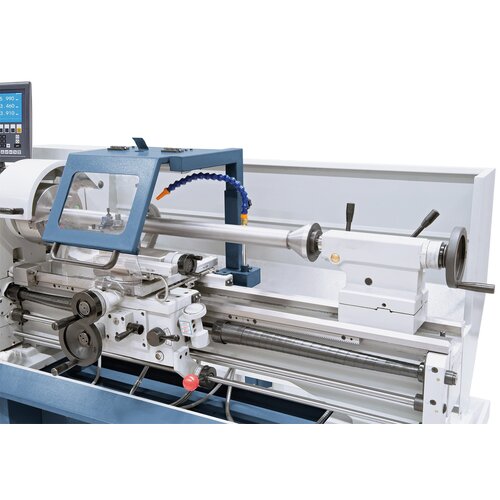

- Tailstock can be adjusted ± 5 mm for taper turning
Product Specifications
|
Distance between centers |
1000 mm |
|
Center height |
180 mm |
|
Swing over bed |
360 mm |
|
Swing over cross slide |
220 mm |
|
Bed width |
185 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1-5 |
|
Speed range |
(8) 70 - 2000 rpm |
|
Longitudinal feed |
(32) 0,052 - 1,392 mm/rev. |
|
Cross feed |
(32) 0,014 - 0,380 mm/rev. |
|
Metric thread |
(26) 0,4 - 7,0 mm |
|
Inch thread |
(34) 4 - 56 threads/1“ |
|
Diameter of tailstock sleeve |
42 mm |
|
Travel of tailstock sleeve |
100 mm |
|
Taper of tailstock sleeve |
MT 4 |
|
Motor power output S1 100% |
1,5 kW (400 V) |
|
Motor power input S6 40% |
2,2 kW (400 V) |
|
Machine dimension (W x D x H) |
1825 x 750 x 1600 mm |
|
Weight approx. |
575 kg |
Delivery Contents

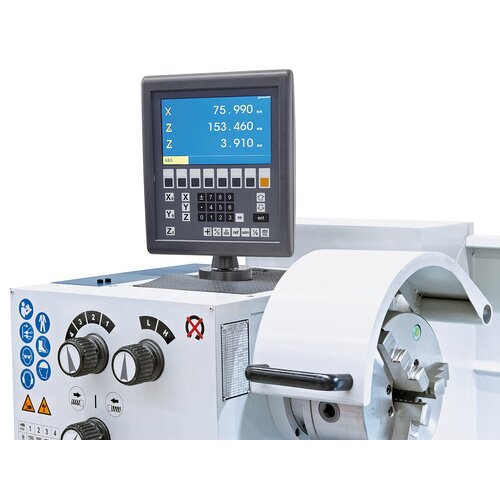

- 3-axis digital readout ES-12 V with LCD-display

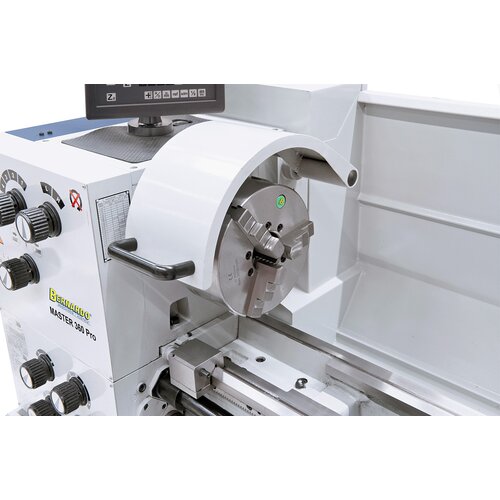

- 3-jaw chuck DK11-200 mm / D5

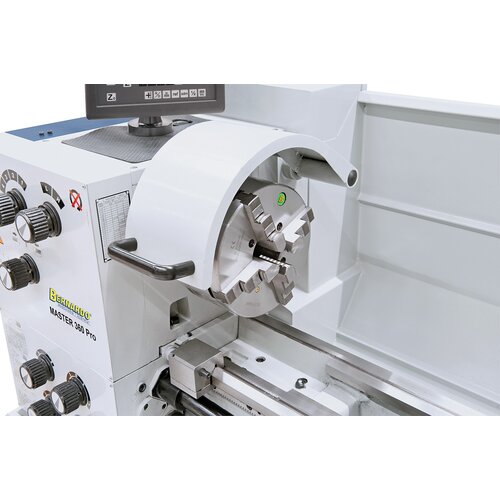

- Independent chuck K72-200 mm / D5
- Steady rest - Passage up to 70 mm
- Follow rest - Passage up to max. 60 mm
- Coolant device
- Initial filling with Shell Tellus 46
- Extractable chip tray

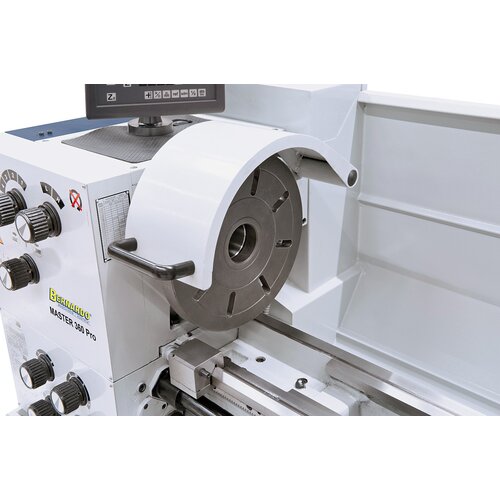

- Face plate 280 mm

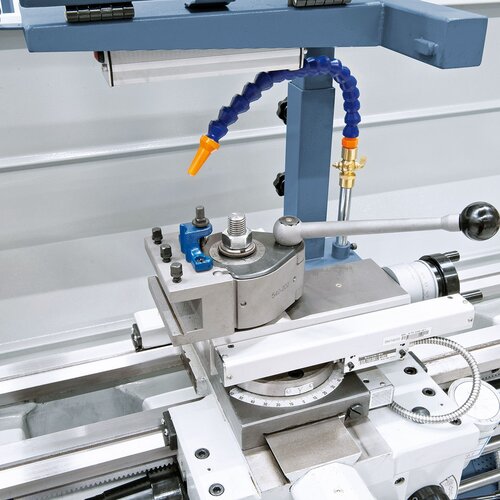

- 4-way tool post holder

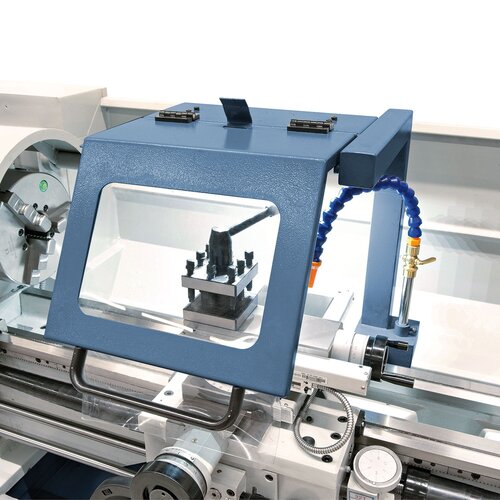

- Protective cover at 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Thread dial
- LED machine light
- Morse taper drill sleeve

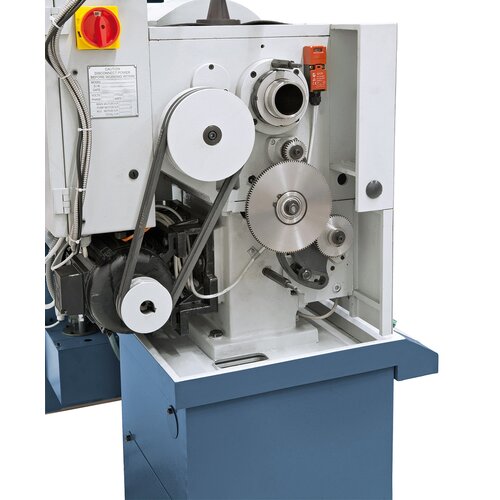

- Change gears
- 2 dead centers
- Foot pedal with brake function according to CE
- Motor with magnetic brake according to CE
- Stand with drawers
- Tools
