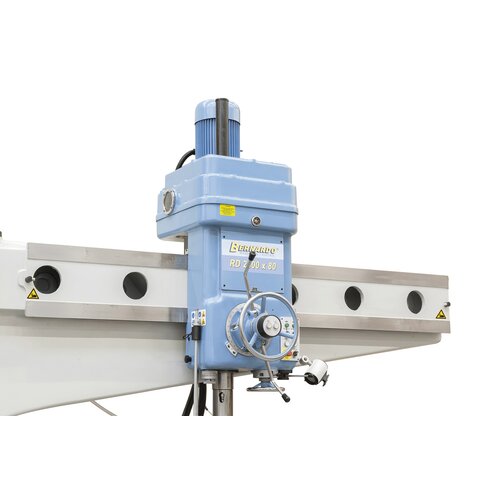

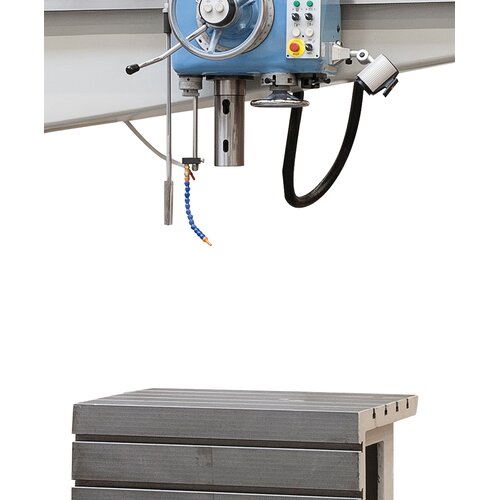

Precisely aligned spindle ensures accurate results, box table and coolant device are part of standard equipment.
Precisely aligned spindle ensures accurate results, box table and coolant device are part of standard equipment.

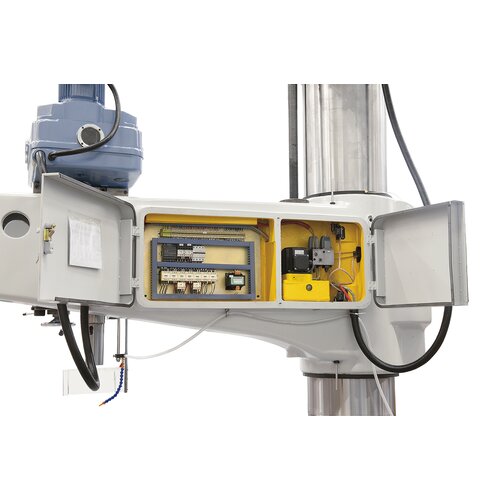

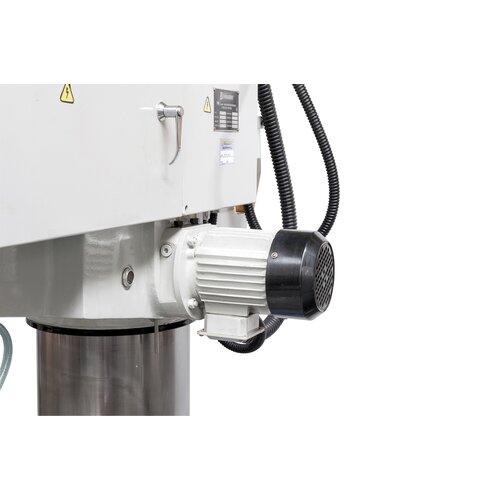

Complete with hydraulic motor for clamping of radial arm and drill head.
Complete with hydraulic motor for clamping of radial arm and drill head.

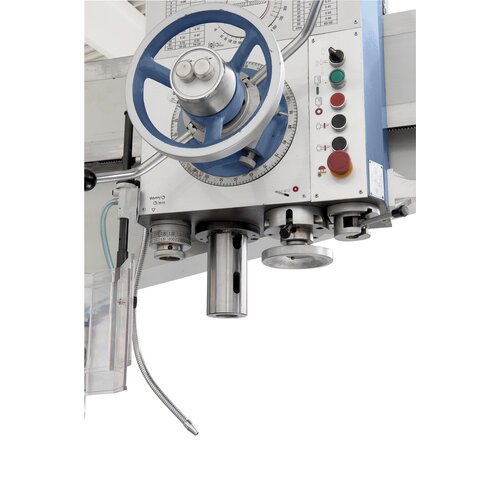

Speed/ feed adjustment situated on underside of drill head.
Speed/ feed adjustment situated on underside of drill head.

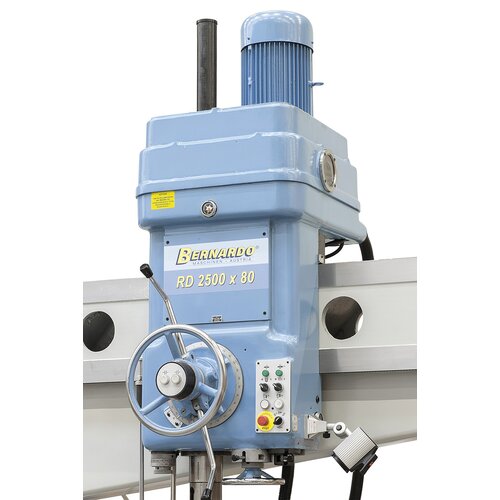

Clearly arranged control elements, clamping of drill head directly on handwheel.
Clearly arranged control elements, clamping of drill head directly on handwheel.
Precisely aligned spindle ensures accurate results, box table and coolant device are part of standard equipment.
Complete with hydraulic motor for clamping of radial arm and drill head.
Speed/ feed adjustment situated on underside of drill head.
Clearly arranged control elements, clamping of drill head directly on handwheel.

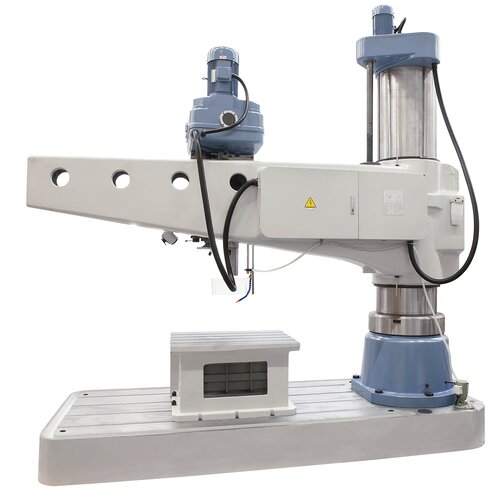

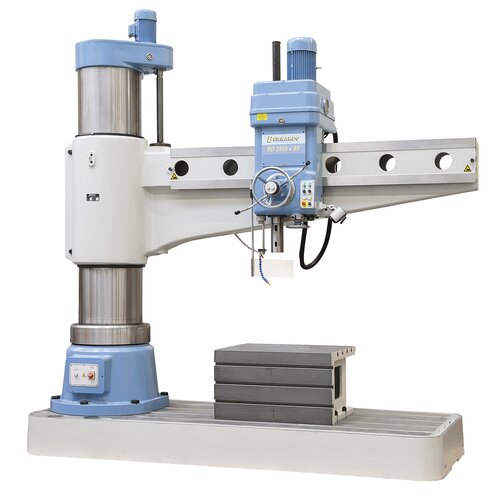

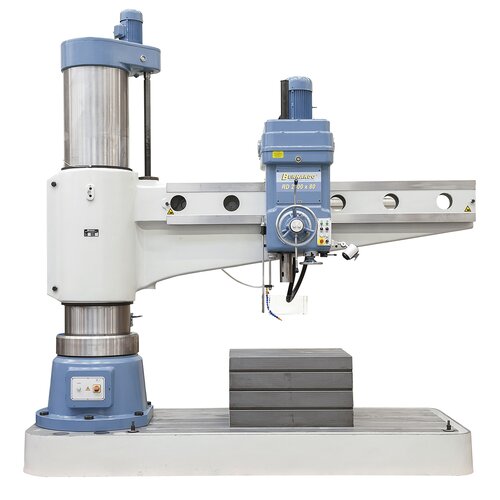

Radial drilling machine RD 2500 x 80 *

Art.Nr.: 01-1335XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The radial drilling machine RD 2500 is designed for economic processing of oversize single parts and small batch productions with top accuracy. The high performance, user friendliness and the large variety of applications makes this model ideal for mechanical engineering, repair shops and mechanic workshops.

€60,120.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Oversize base plate, ideal for processing of large workpieces
  • Torsion-free, polished column promotes sliding capacity of radial arm
  • Radial arm and drill head feature independent hydraulic clamp
  • Lifting motor allows for easy height adjustment of radial arm
  • Ideal for drilling, countersinking, reaming and tapping
  • Hardened, polished gears in oil bath
  • Polished surface ensures for smooth movement of drill head on radial arm

Product Specifications

Drilling capacity max.

80 mm

Thread cutting max.

M64

Distance spindle to column min./max.

500 - 2500 mm

Vertical movement of the support

1000 mm

Travel of drill head (horizontally)

2000 mm

Spindle stroke

450 mm

Morse taper

MT 6

Spindle speeds

(16) 16 - 1250 rpm

Feed range

(16) 0,04 – 3,2 mm/rev.

Distance spindle to box table

0 - 1440 mm

Distance spindle to base

550 x 2000 mm

Clamping area base

2450 x 1370 mm

Box table (L x W x H)

800 x 1000 x 560 mm

Motor power

7,5 kW

Machine dimension (W x D x H)

3750 x 1400 x 4025 mm

Weight approx.

11000 kg

Delivery Contents

  • Box table
  • Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Coolant device
  • Lifting motor
  • Hydraulic motor
  • Tools
  • Height adjustable protective cover
