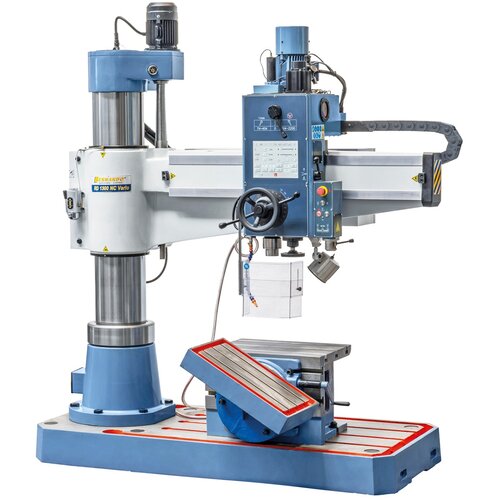

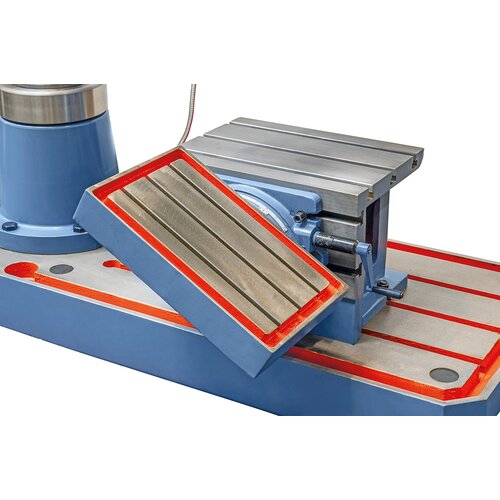

Picture shows optionally available horizontal swivel table.
Picture shows optionally available horizontal swivel table.

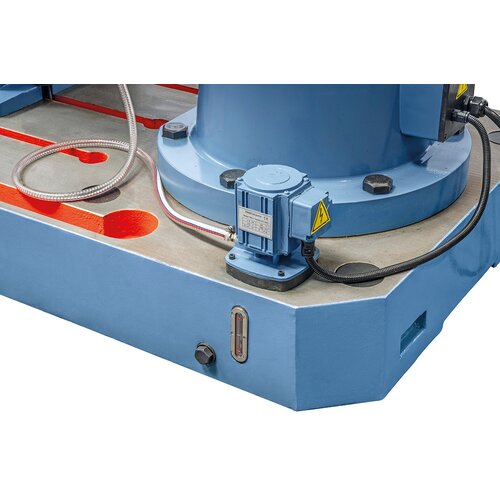

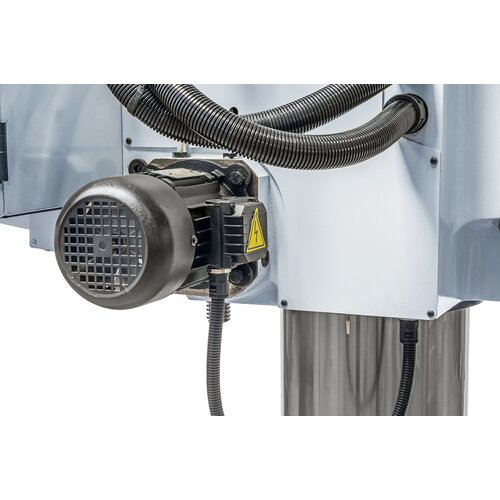

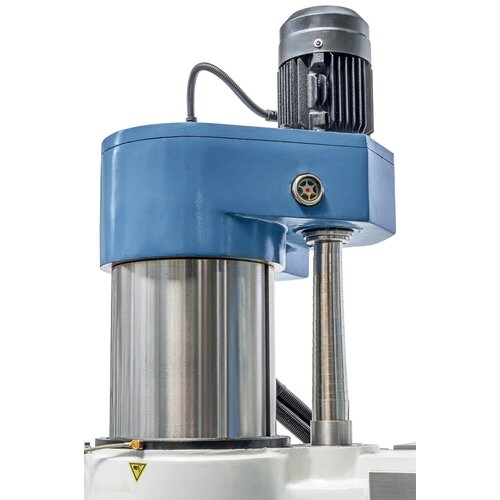

Serially with hydraulic motor for clamping the support, the column and of the drill head.
Serially with hydraulic motor for clamping the support, the column and of the drill head.

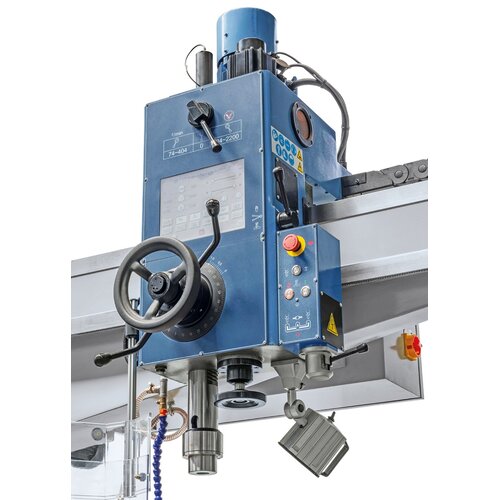

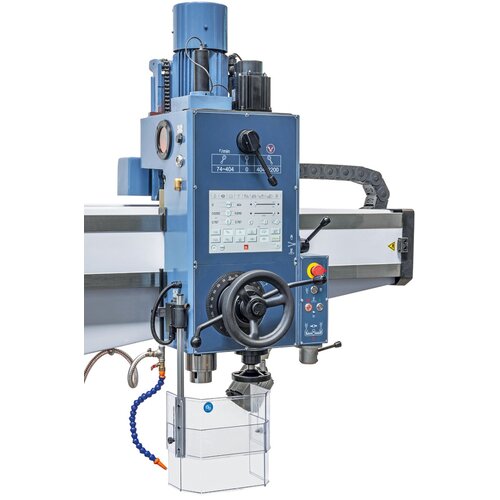

Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.
Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.

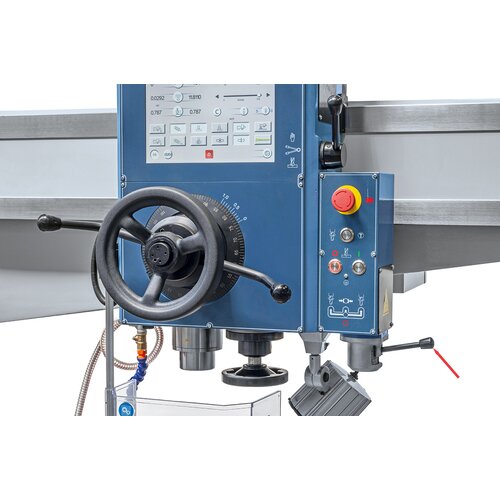

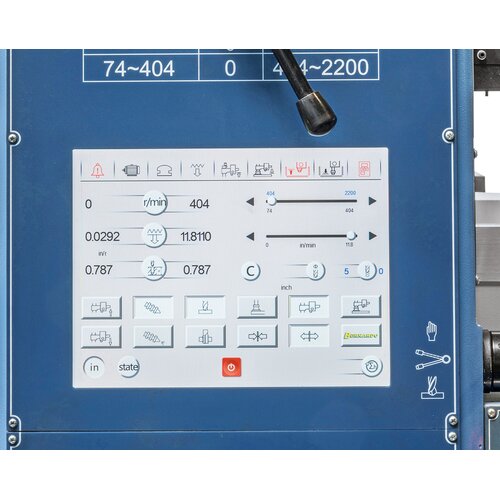

All settings are made directly on the large touchscreen display
All settings are made directly on the large touchscreen display

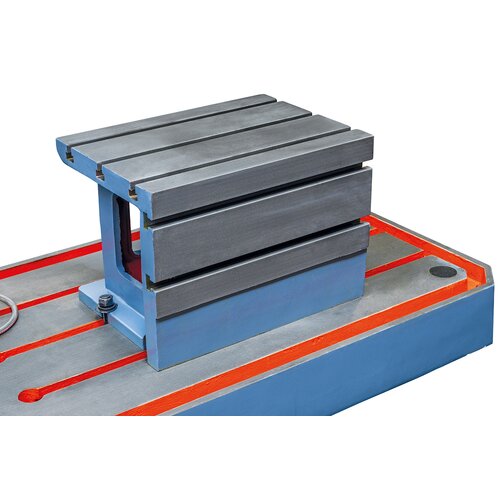

High-quality, box table with 5 T-slots, as standard accessory
High-quality, box table with 5 T-slots, as standard accessory

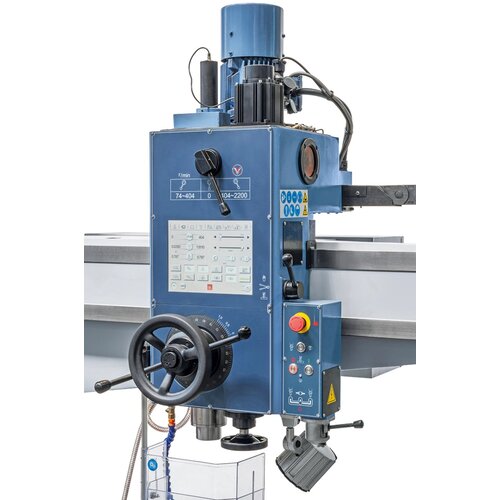

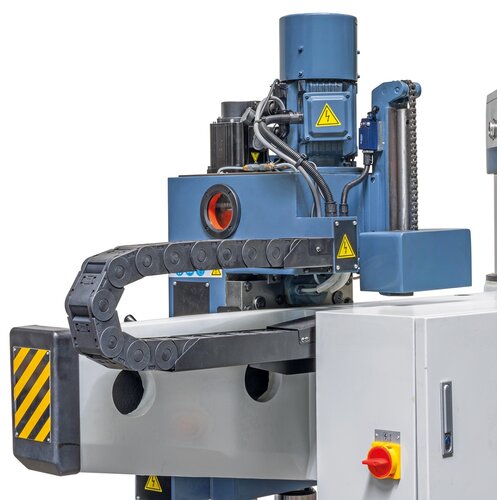

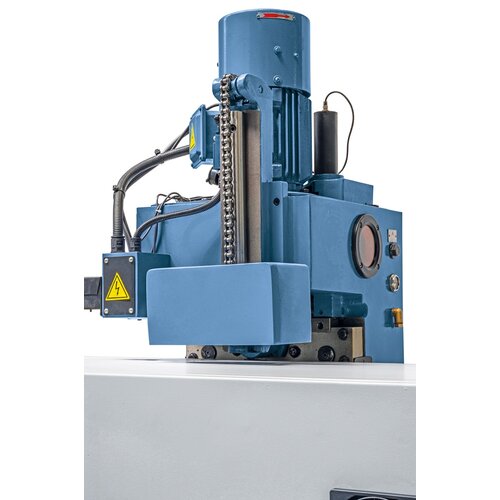

Counter weight for spindle and transmission chain on back of drill head.
Counter weight for spindle and transmission chain on back of drill head.
Picture shows optionally available horizontal swivel table.
Picture shows optionally available horizontal swivel table.
Picture shows optionally available horizontal swivel table.
Serially with hydraulic motor for clamping the support, the column and of the drill head.
Pilot switch on underside of drill head allows for change of spindle rotation/ spindle engage- or disengagement.
All settings are made directly on the large touchscreen display
High-quality, box table with 5 T-slots, as standard accessory
Counter weight for spindle and transmission chain on back of drill head.
Picture shows optionally available horizontal swivel table.

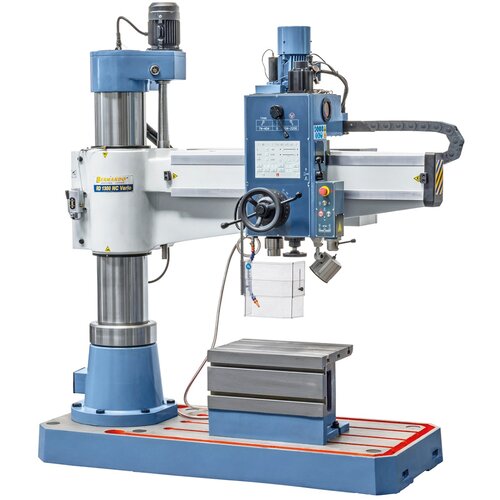

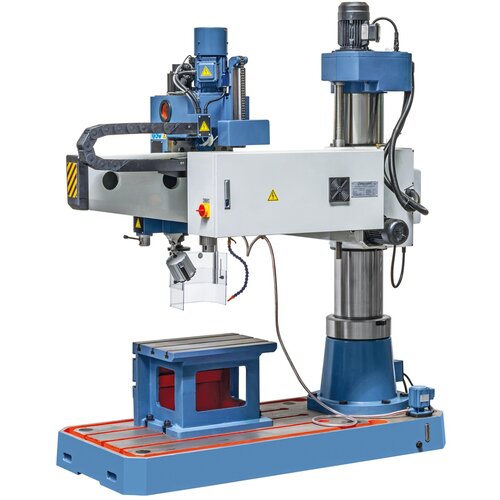

Radial drilling machine RD 1300 NC Vario *

Art.Nr.: 01-1329XL9
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The radial drilling machine RD 1300 NC Vario is highly suitable for drilling, countersinking and reaming of oversize workpieces, such as steel girders, flanges etc. The special features of this model are the operation via a large touchscreen and the spindle feed by a servo motor. The wide range of applications makes this model ideal for mechanical workshops, repair shops, machine construction and many more.

€24,600.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • The standard Bohrtronic control calculates the ideal speed or feed rate for drilling and thread cutting after entering the tool diameter and material (cast iron / steel)
  • Large touchscreen for all settings, such as speed, drilling / thread cutting, height adjustment of support arm,….
  • The quill feed takes place by a high quality servo motor
  • Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
  • Electronically adjustable drill depth including checking of the input value
  • Complete with stepless speed, set speed is visible on digital display
  • Display of the measurements either mm or inch
  • Guiderails on radial arm are hardened and polished
  • Counter weight on spindle to ensure optimal balance
  • Ideal for drilling, countersinking, reaming and tapping

Product Specifications

Drilling capacity max.

40 mm

Thread cutting max.

M40

Distance spindle to column min./max.

300 - 1300 mm

Vertical movement of the support

600 mm

Travel of drill head (horizontally)

1000 mm

Spindle stroke

290 mm

Morse taper

MT 4

Spindle speeds

74 - 404 / 404 - 2200 rpm

Feed range

(4) 0,1 - 0,63 mm/rev.

Distance spindle to box table

100 - 700 mm

Distance spindle to base

570 - 1170 mm

Clamping area base

1220 x 900 mm

Box table (L x W x H)

640 x 450 x 450 mm

Motor power

2,2 kW

Machine dimension (W x D x H)

2050 x 1050 x 2560 mm

Weight approx.

2380 kg

Delivery Contents

  • Box table
  • Drill chuck arbor
  • Morse taper drill sleeve
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Coolant device
  • Frequency inverter
  • Digital readout of speeds
  • Lifting motor
  • Hydraulic motor
  • Height adjustable protective cover
  • Tools
