High-quality workmanship ensures precise results.
High-quality workmanship ensures precise results.

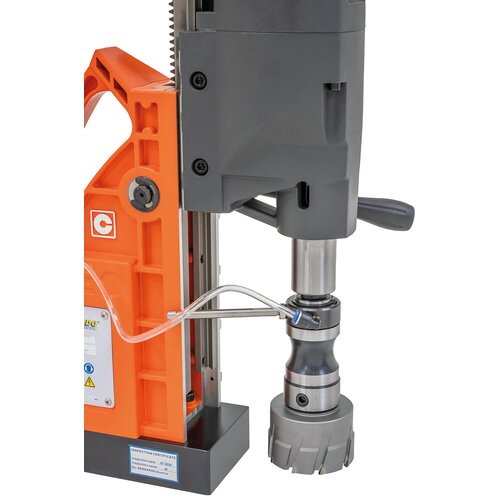

Consistent drilling results thanks to automatic internal cooling
Consistent drilling results thanks to automatic internal cooling
Extensive accessories included
Extensive accessories included

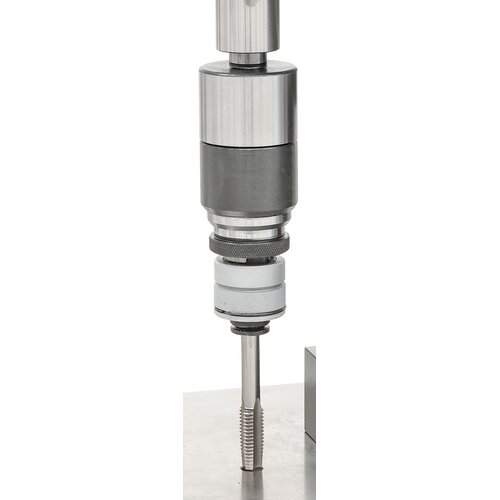

Thread cutting attachment available as an option
Thread cutting attachment available as an option
High-quality workmanship ensures precise results.
Consistent drilling results thanks to automatic internal cooling
Extensive accessories included
Thread cutting attachment available as an option

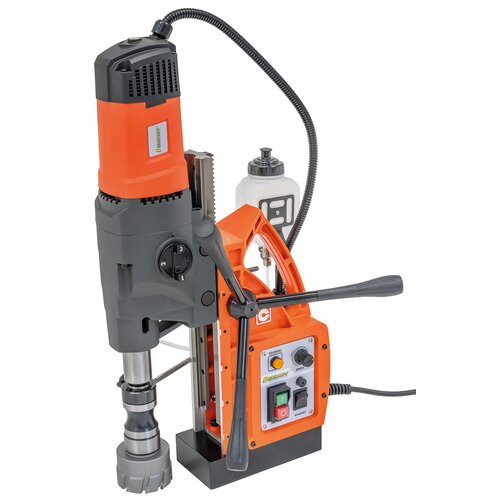

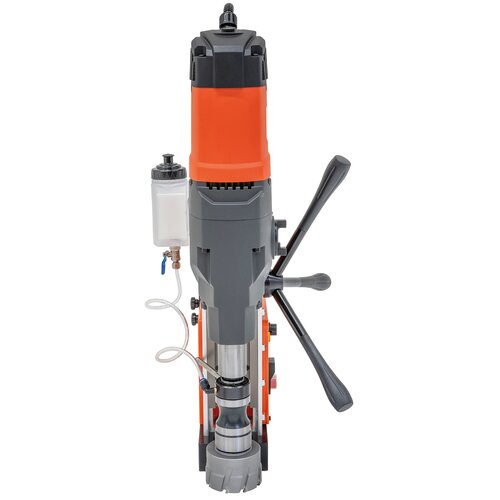

Magnetic-core drilling machine TPC 2000 Pro *

Art. No.: 01-13812
Wishlist Comparison List

€1,380.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Automatic internal lubrication, the coolant is directed directly to the tip of the core drill
  • Comes as standard with MK 3 cone to accommodate various tools (twist drills, countersinks, reamers, thread cutting chuck, hole saw,...)
  • High-torque drive motor with soft start and overload protection
  • 3-stage gears to adjust the cutting speed to the workpiece
  • The tool holders are available for core drills with 19 (standard) or 32 mm (optional) Weldon shank
  • Powerful electromagnet ensures maximum magnetic holding force

Product Specifications

Core drill max. Ø

85mm

Core drill max. drilling depth

50mm

Spiral drill max. Ø

25mm

Drilling head travel distance max.

190mm

Thread cutting max.

Highway M20

Idle speed

100 - 210/250/530 rpm

spindle mount

MK 3

Weldonschaft admission

19 mm/32 mm

Distance between spindle and base plate max.*

190mm

Distance between weldon mount and base plate max.*

80mm

magnetic holding force

16800 N

Magnetic base dimensions (L x W x H)

200 x 105 x 45mm

engine power

1980 W

Tension

230 V

Machine dimensions (W x D x H)

300 x 390 x 680 mm

Weight ca.

18 kg

*Expandable by up to 80 mm

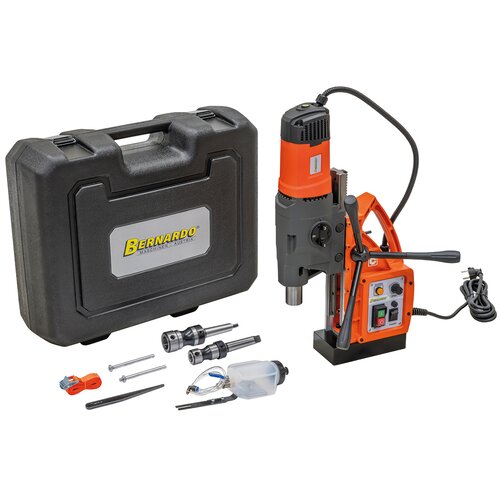

Delivery Contents

  • Seatbelt
  • Plastic box
  • Canned dragonfly
  • Refrigerant container
  • Tool holder with automatic internal cooling MK 3/
  • Weldon shaft 19 mm/32 mm
  • Operating instructions
  • Operating tool
