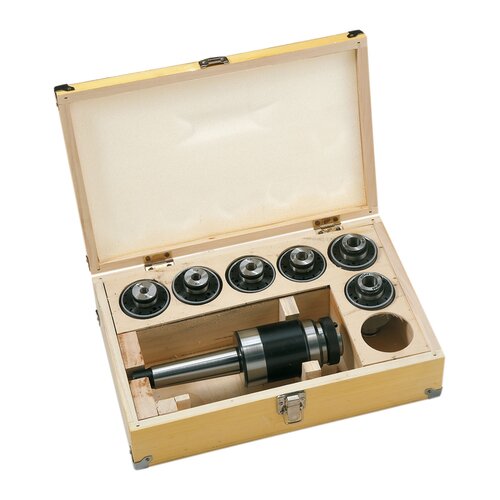

Double roller tapping chuck set MT 3, M 3 - M 12
Art.Nr.: 24-1090€258.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- For use of screw tap for through hole or blind holes
- Quick change inserts serially with adjustable safety overload clutch

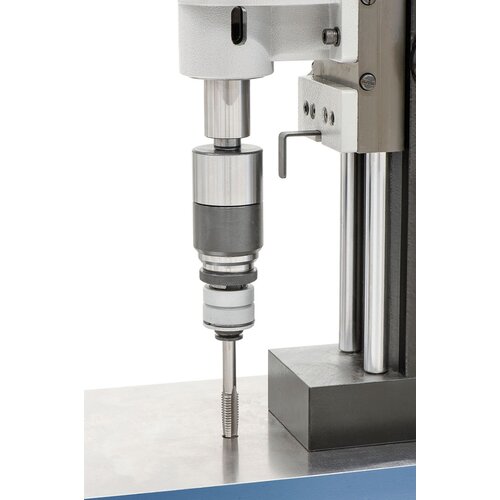

- Machined thread cutting with hand feed at core drilling machines, table and column drilling machines,...
- Quick and easy change of the screw tape without tools
- Useable on machines with left and right turning
- Maintenance free execution

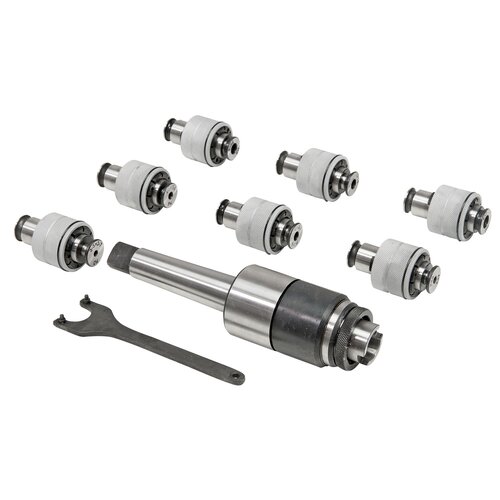

Content
M 3 / M 3,5 / M 4 / M 5 - 6 / M 8 / M 10 / M 12
Available sizes
- MT 2 from M3 to M12
- MT 3 from M3 to M12
- MT 4 from M3 to M12
- MT 3 from M12 to M24
- MT 4 from M12 to M24
- MT 5 from M12 to M24

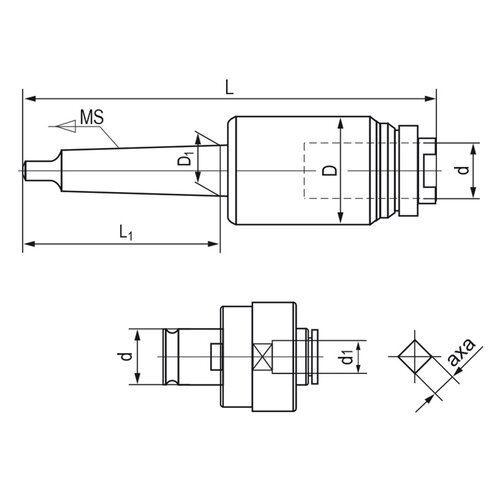

Product Specifications
| Morse taper | MT 3 |
| D | 46 mm |
| D1 | 23,825 mm |
| d | 19 mm |
| L1 | 94 mm |
| L | 191 mm |
| Cutting range | M3 - M12 |
| Torque | 25 Nm |
| Weight approx. | 1,28 kg |
