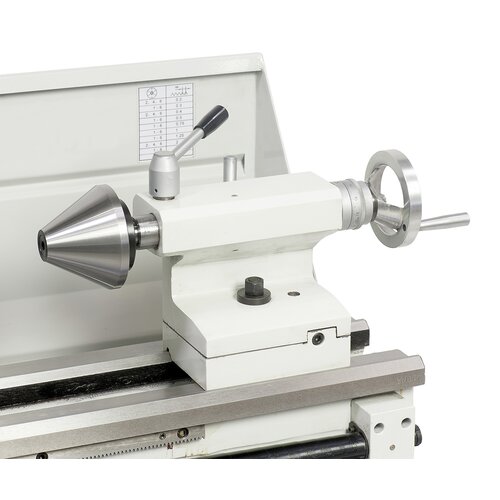

The tailstock with one-hand clamping can be moved for taper turning and is optionally available with a ball nose live center

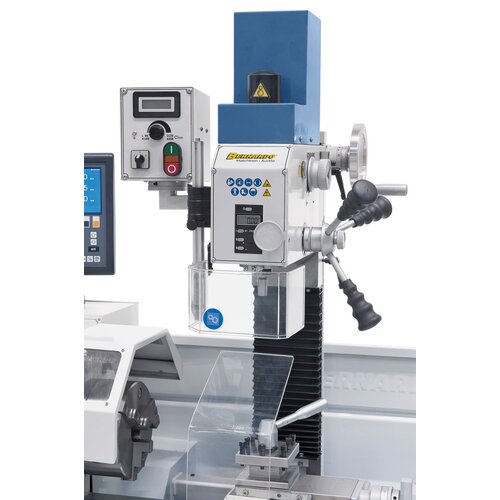

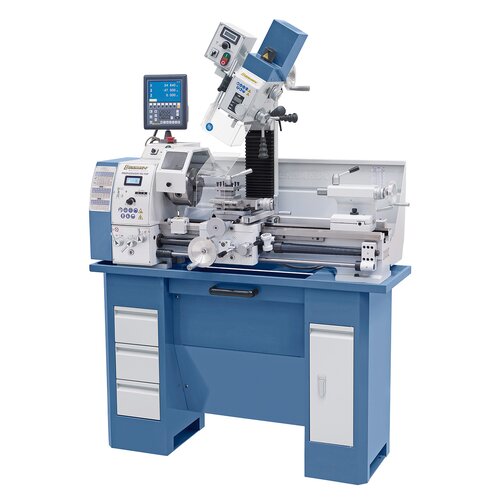

The tiltable mill head offers a variety of applications.

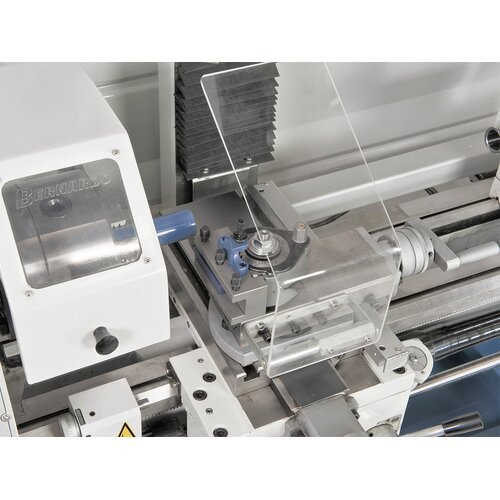

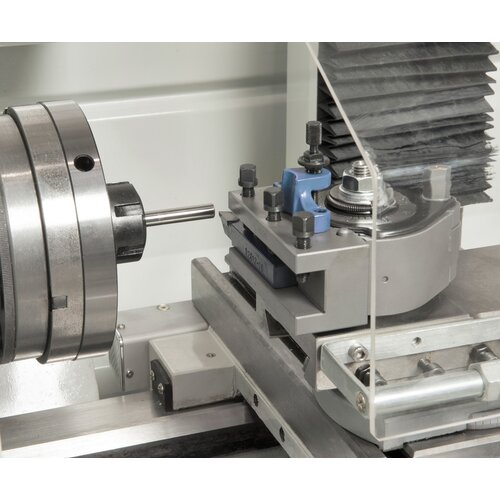

The machine can be equipped with a quick change tool post holder to raise efficiency.

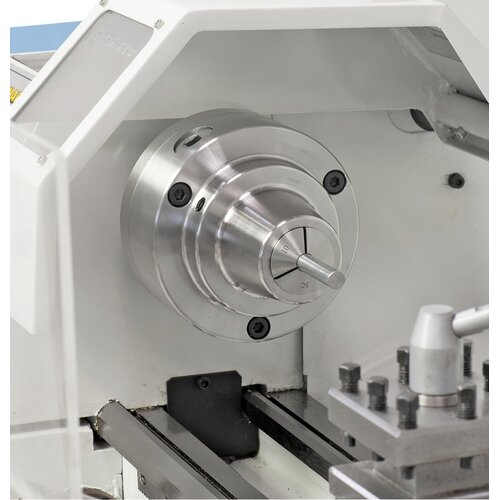

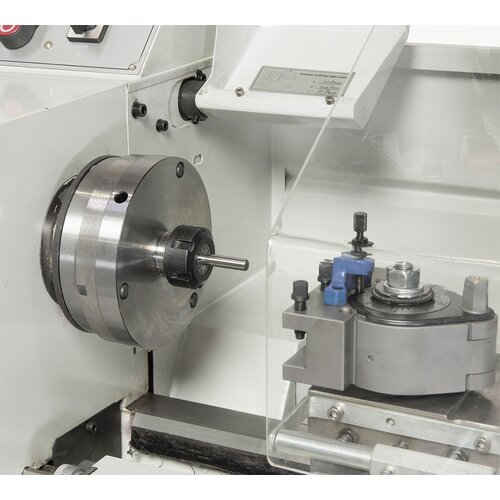

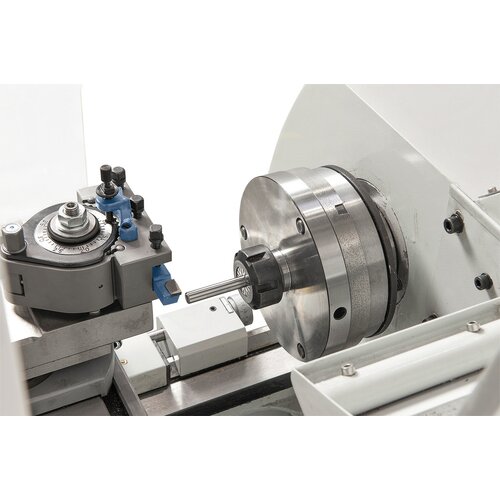

Optionally available: 5C round hole collet set, clamping area 3-26 mm

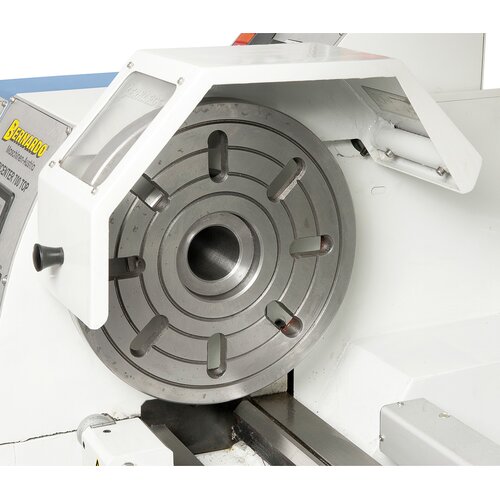

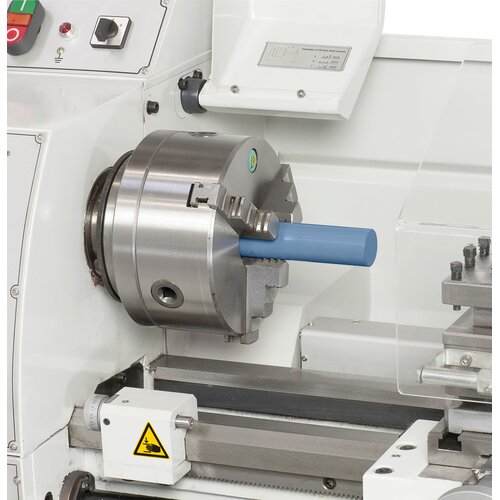

Comes complete with 38 mm spindle bore to allow processing of workpieces with a large shaft diameter

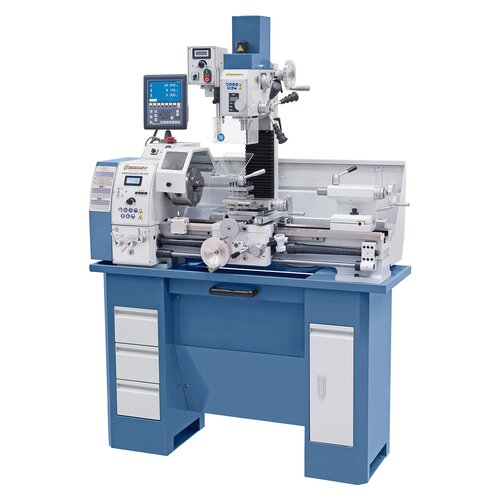

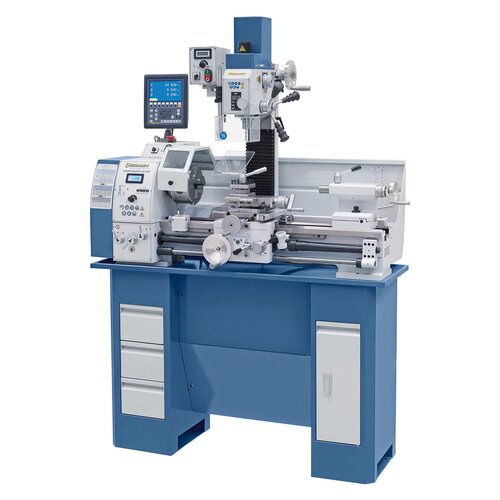

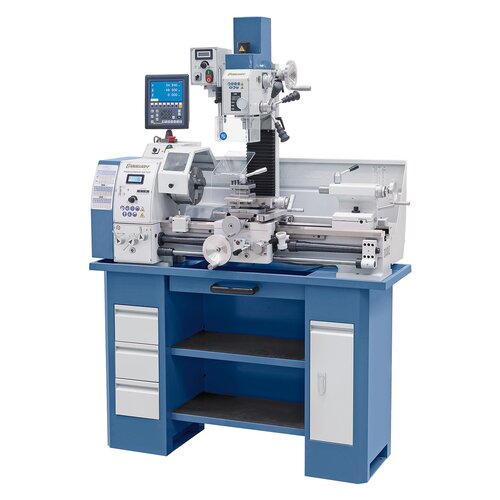

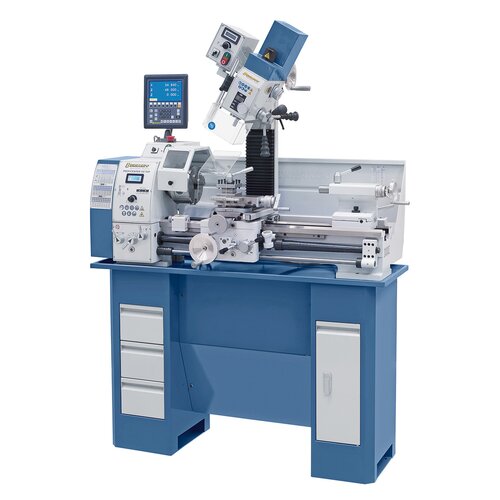

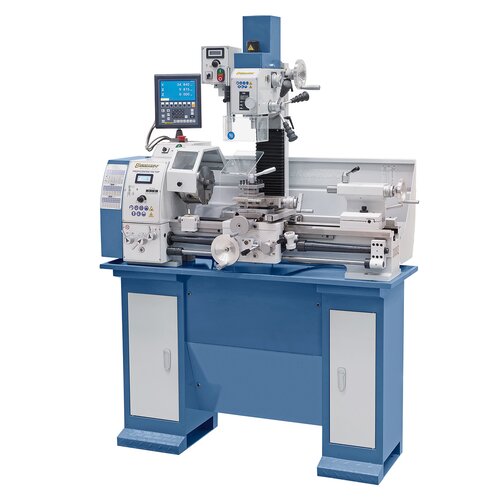

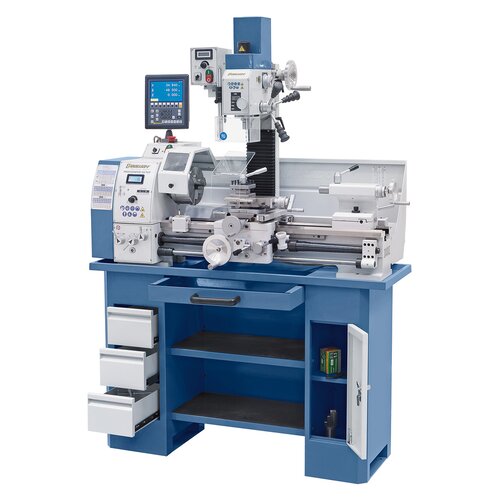

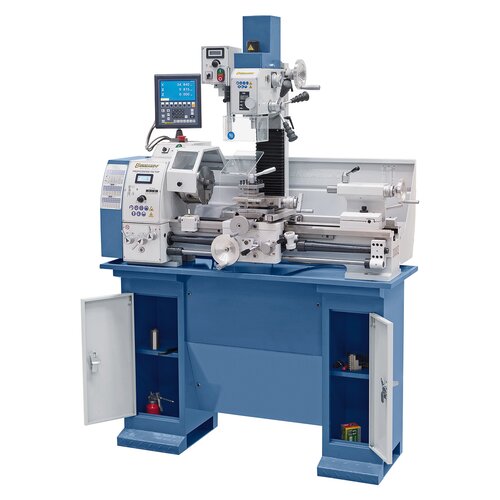

Machining centre Proficenter 700 Top / 230 V incl. 2-axis digital readout ES-12 V

Art.Nr.: 03-1252B

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The new model Proficenter 700 Top comes complete with a frequency inverter which brings advantages, such as high torque in low speed range and nearly constant speed during processing. The extensive range of accessories (DC motor with frequency inverter, main spindle bearing in P5-quality, micrometric longitudinal fence for repetitive work, safety clutch etc.) makes this model ideal for users with high demands.

€5,784.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Suitable for processing of steel, non-ferrous metals and plastics
Electronically adjustable, stepless speed setting comes standard
High concentricity of hardened spindle nose – better than 0.015 mm
Main spindle bearing with adjustable taper roller bearings in P5-quality

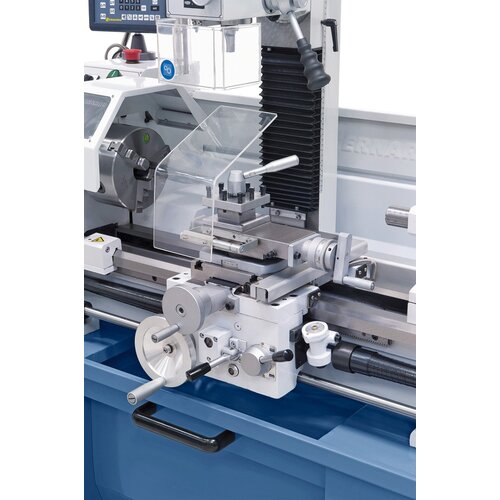

Comes complete with feed rod for automatic longitudinal and cross feed
Solid machine bed with inductive hardened and polished guideways

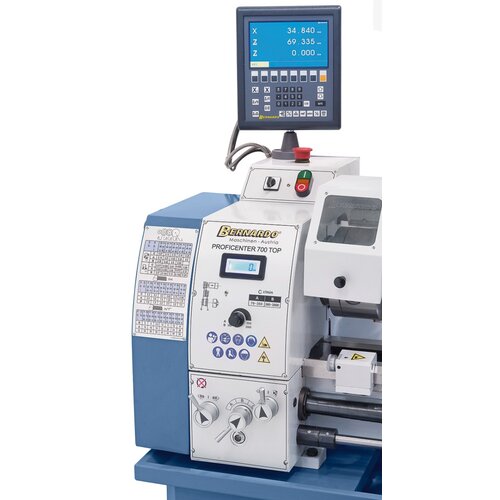

Mill head with digital display for spindle stroke and speed

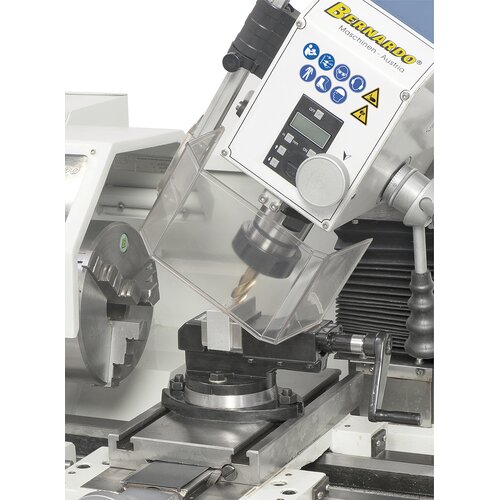

Mill head tilts to both sides allowing angular boring, milling of bevels etc.
Spindle adjustment via handle, fine feed via handwheel
Three-phase motor with frequency inverter for higher performance and high torque

Product Specifications

Turning lathe
Distance between centers	700 mm
Center height	150 mm
Swing over bed	300 mm
Spindle bore	38 mm
Taper at spindle bore	MT 5
Speed range, stepless	70 - 380 / 380 - 2000 rpm
Longitudinal feed	(14) 0,07 - 0,65 mm/rev.
Cross feed	(11) 0,03 - 0,12 mm/rev.
Metric thread	(18) 0,2 - 3,5 mm
Inch thread	(21) 8 - 56 threads/1“
Travel of tailstock sleeve	85 mm
Taper of tailstock sleeve	MT 3
T-slot size at cross slide	12 mm
Motor power output S₁ 100%	0,85 kW / 230 V
Motor power input S₆ 40%	1,1 kW / 230 V
Milling attachment
Drilling capacity max.	20 mm
Face mill capacity max.	63 mm
End mill capacity max.	20 mm
Distance spindle to column	170 mm
Spindle speed, stepless	50 - 2250 rpm
Spindle taper	MT 2
Mill head tiltable	-90° to +90°
Height adjustment of mill head	260 mm
Motor power output S₁ 100%	0,60 kW / 230 V
Motor power input S₆ 40%	0,90 kW / 230 V
Machine dimension (W x D x H)*	1380 x 640 x 1020 mm
Weight approx.	298 kg

* without stand

Delivery Contents

2-axis digital readout ES-12 V with LCD-display
3-jaw chuck DK11-160 mm
Flange 160 mm
Drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 2 / B 16
Dead centers

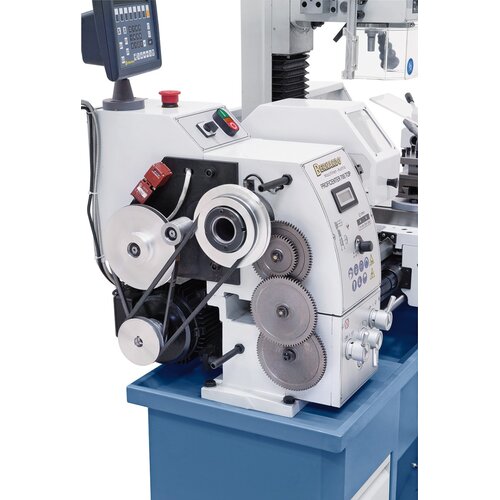

Change gears
4-way tool post holder
Safety clutch

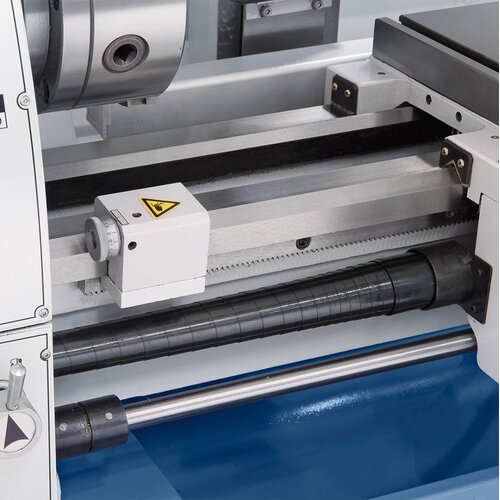

Micrometer longitudinal fence
Cross slide with top support
Frequency inverter
Drawbar M 10
Digital spindle stroke indication
Digital speed indication
Thread dial
Chuck guard
Leadscrew cover
Splash guard
Tools

Suitable accessories

5C round hole collets set, 3 - 26 mm, 24 pcs.

Art.Nr. : 22-1097

€354.00
