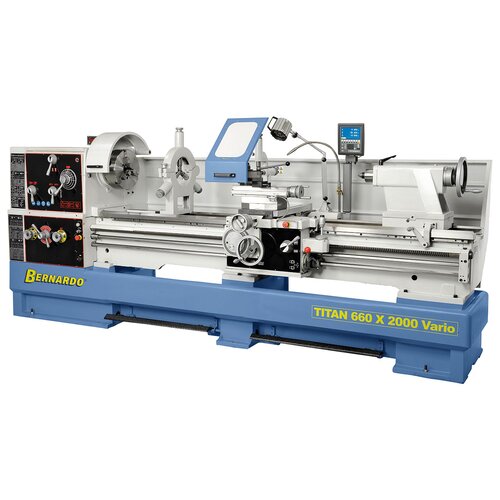

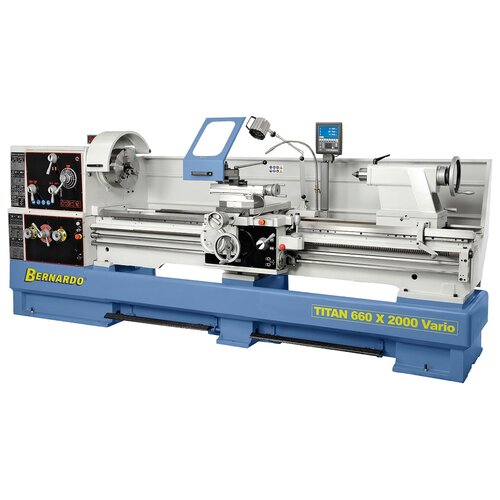

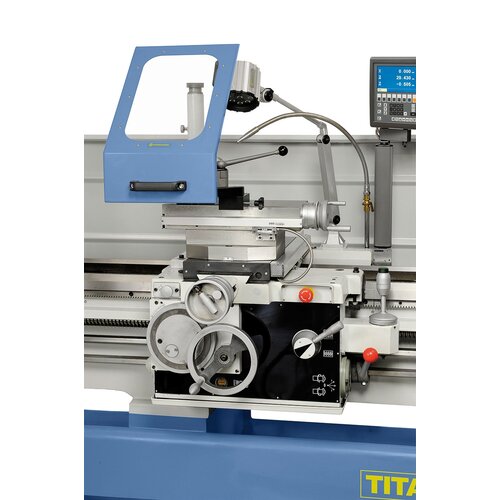

Heavy duty industrial lathe TITAN 660 x 3000 Vario *
Art.Nr.: 03-1355XLThe Titan 660 Vario production lathe features top performance and high accuracy. This is an excellent model for medium to difficult turning works and extremely suitable for economic production of single units and serial operations in machine construction, plant engineering, production etc. The serially Delta frequency inverter features many advantages such as the high torque at low speed and the almost constant speed during processing.
€39,720.00
incl. 20% VATAvailability
Product Properties
- Machine bed features strong reinforcements to minimize oscillations and to stabilize bed guiding
- Fully equipped with 3-axis digital readout, quick change tool post holder, 3-jaw steel chuck etc.
- Stepless speed adjustment at gear head, ideal adjustment of the cutting speed to the workpiece and the feed speed
- State-of-the-art main spindle bedding with high-quality angular roller bearing
- Complete with rapid traverse longitudinal and cross to reduce downtime
- Large spindle bore (105 mm) for workpieces with a large diameter
- Tailstock with fine scale, removeable for taper turning
- Elektromechanical foot brake clearly reduces downtime
- Mechanic coupling allows for soft start
Product Specifications
|
Distance between centers |
3000 mm |
|
Center height |
330 mm |
|
Swing over bed |
660 mm |
|
Swing over gap |
900 mm |
|
Swing over cross slide |
460 mm |
|
Bed with |
400 mm |
|
Spindle bore |
105 mm |
|
Spindle nose fixture |
DIN 55029, D1-8 |
|
Speed range |
16 – 70 / 50 – 215 / 100 – 475 / 350 - 1500 rpm |
|
Longitudinal feed |
(25) 0,044 - 1,48 mm/rev. |
|
Cross feed |
(25) 0,022 - 0,74 mm/rev. |
|
Metric thread |
(54) 0,45 - 120 mm |
|
Inch thread |
(54) 7/16 - 80 threads/1" |
|
Diameter of tailstock sleeve |
90 mm |
|
Travel of tailstock sleeve |
235 mm |
|
Taper of tailstock sleeve |
MT 5 |
|
Motor power |
7,5 kW (10,0 HP) |
|
Machine dimension (L x W x H) |
4630 x 1200 x 1520 mm |
|
Weight approx. |
3300 kg |
Delivery Contents
- Frequency inverter
- Face plate 500 mm
- Rapid feed longitudinal and cross
- 3-jaw chuck PS3-315 mm / D8
- 3-axis digital readout ES-12 V with LCD display

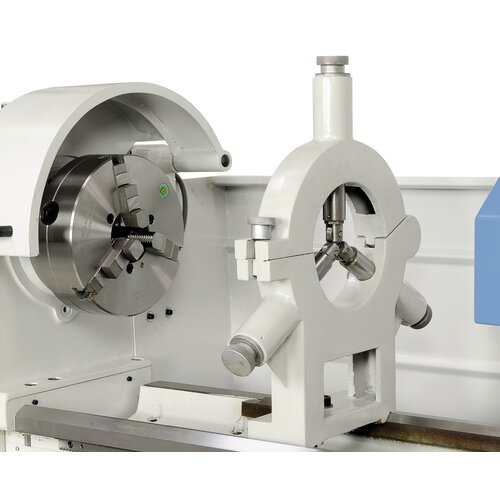

- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 100 mm
- 2 dead centers
- Foot pedal with brake function according to CE
- Initial filling with Shell Tellus 46

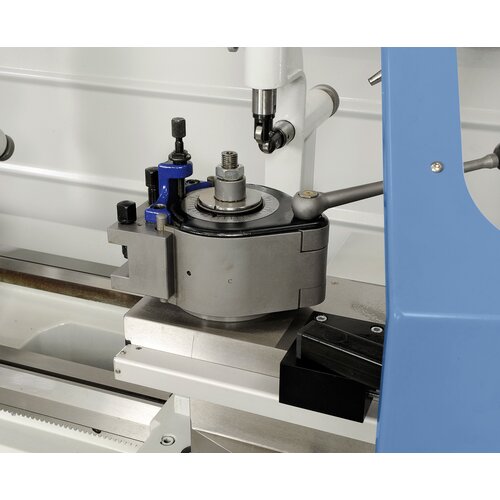

- 40 pos. tool post and holder set with 4 inserts

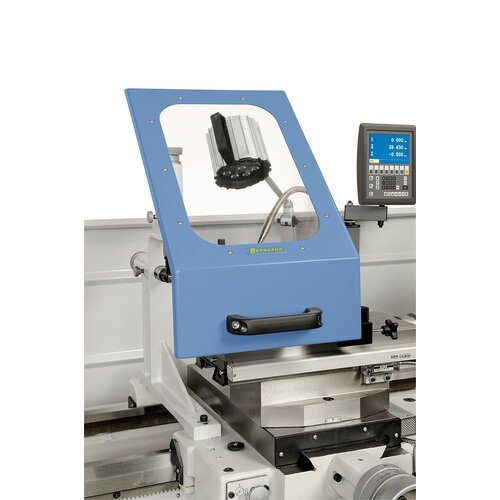

- Protective device for tool post holder
- Safety clutch
- Spindle support
- Coolant device
- LED machine light
- Change gears
- Morse taper drill sleeve
- Splash guard

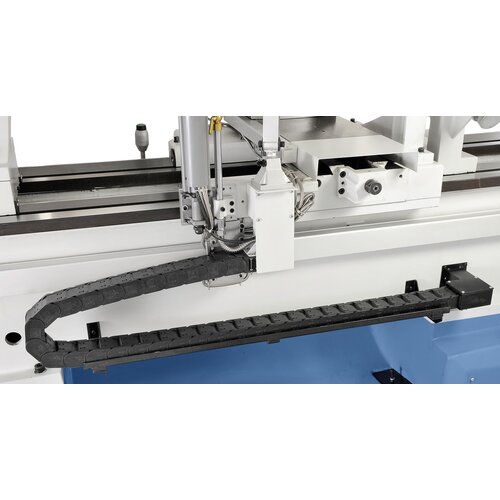

- Cable guide by energy chain
- Tools
