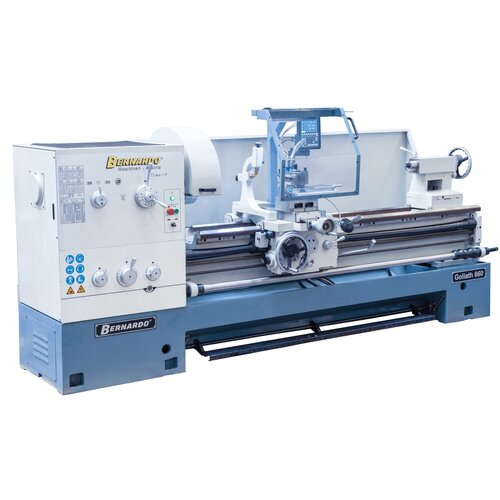

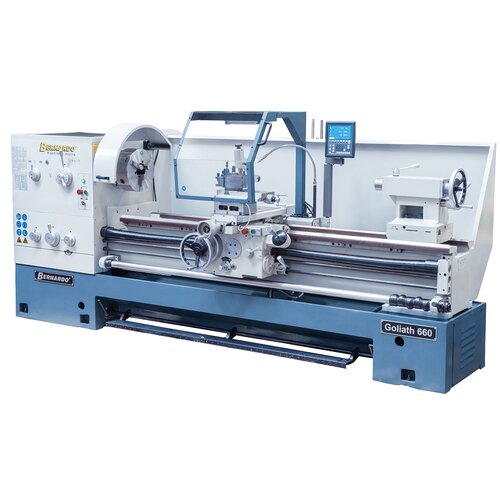

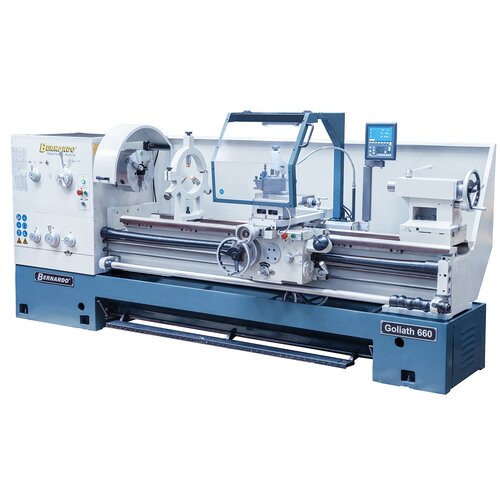

Heavy duty industrial lathe Goliath 660 x 2000 incl. 3-axis digital readout *

Art.Nr.: 03-1355XL2

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Goliath 660 is a state-of-the-art, revolutionary manufacturing lathe. The wide range of standard equipment, such as the 3-jaw chuck, steady and follow rest, change gears and the 3-axis digital readout, 40 pos. tool post and holder set, make this model extremely versatile.

€33,960.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Various possible applications in general machine construction, production, single part manufacturing etc.
Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy
State-of-the-art main spindle bearing with high-quality angular ball bearings

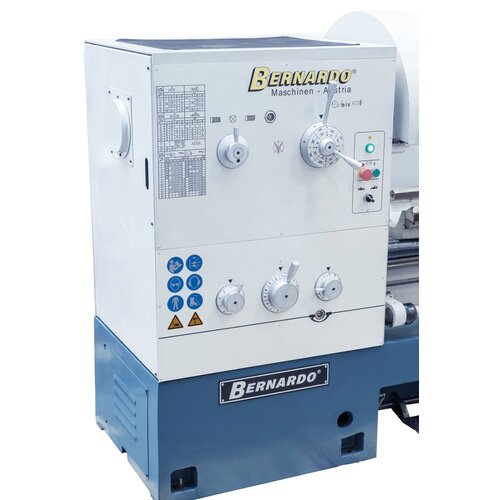

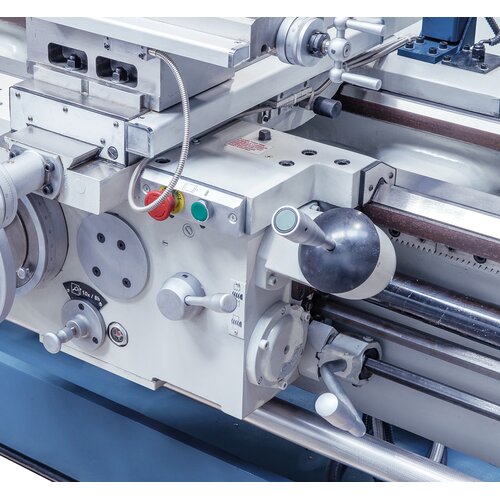

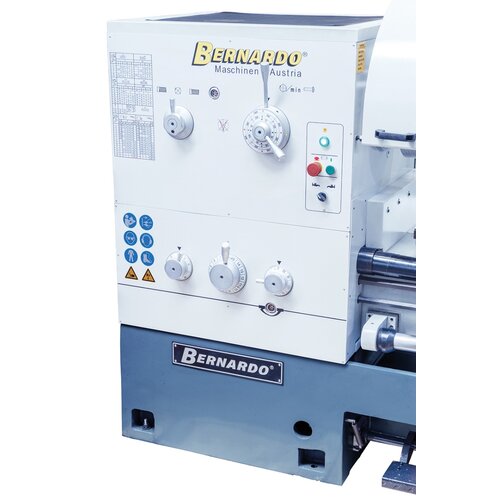

Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
Complete with longitudinal and cross rapid feed to reduce downtime

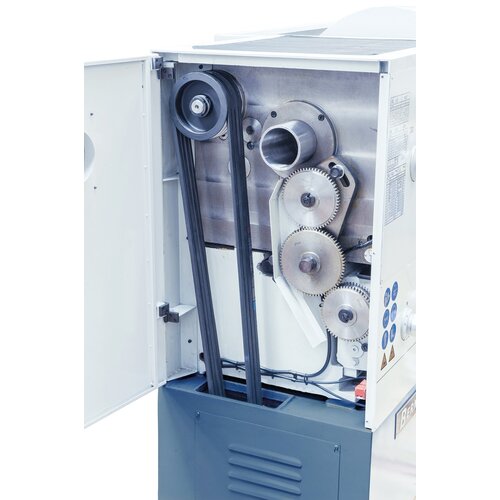

Large gear wheels, hardened and polished
Removable bridge allows machining of oversize workpieces

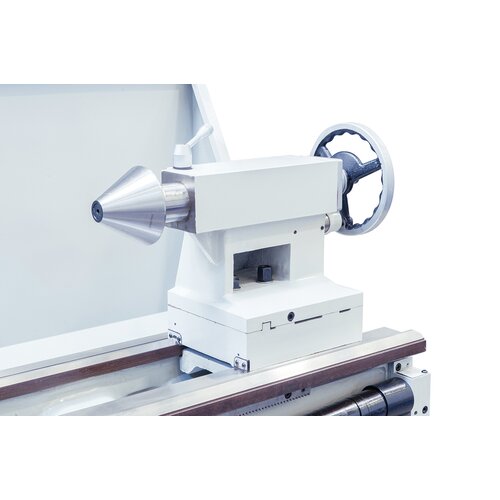

Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
Electro-mechanical foot brake keeps downtime to a minimum
High performance even at face turning

Product Specifications

Distance between centers	2000 mm
Center height	330 mm
Swing over bed	660 mm
Swing over gap*	870 mm
Swing over cross slide	420 mm
Bed with	400 mm
Spindle bore	105 mm
Spindle nose fixture	DIN 55029, D1-8
Speed range	(16) 36 - 1600 rpm
Longitudinal feed	(65) 0,063 - 2,52 mm/rev.
Cross feed	(65) 0,027 - 1,07 mm/rev.
Metric thread	(22) 1 - 14 mm
Inch thread	(26) 2 - 28 threads/1“
Diameter of tailstock sleeve	75 mm
Travel of tailstock sleeve	150 mm
Taper of tailstock sleeve	MT 5
Motor power	9,0 kW (12,0 HP)
Machine dimension (W x D x H)	3500 x 1280 x 1650 mm
Weight approx.	3750 kg

* Removeable bed length: 240 mm

Delivery Contents

Safety clutch
Rapid feed longitudinal and cross
LED machine light

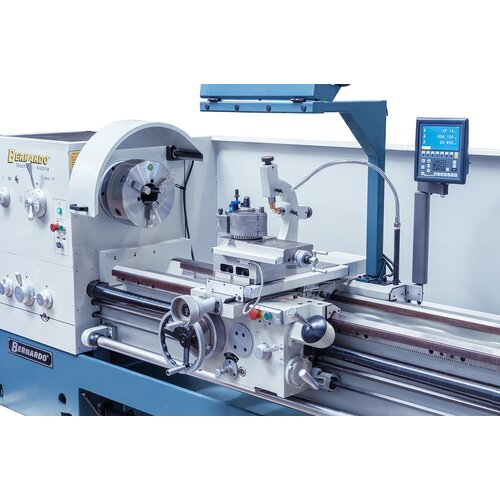

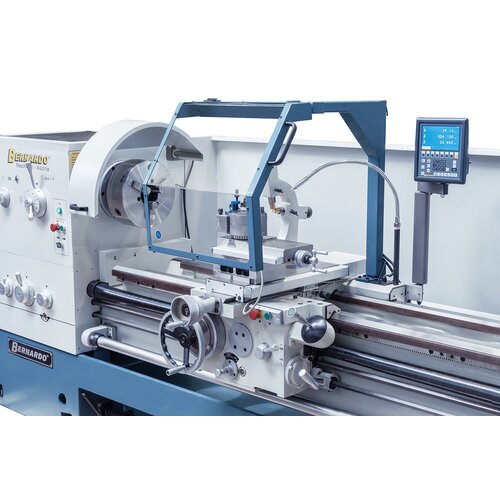

3-axis digital readout ES-12 V with LCD-display

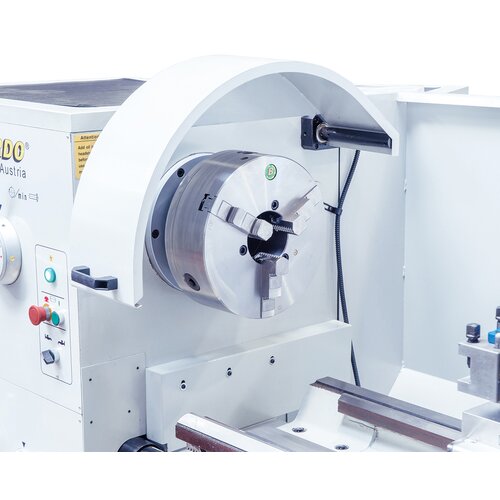

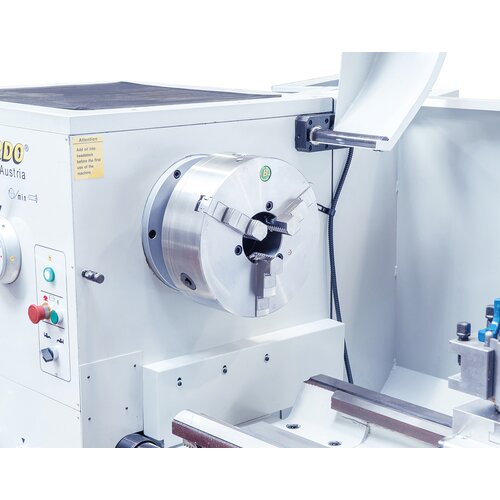

3-jaw chuck PS3-315 mm / D8
Face plate 630 mm

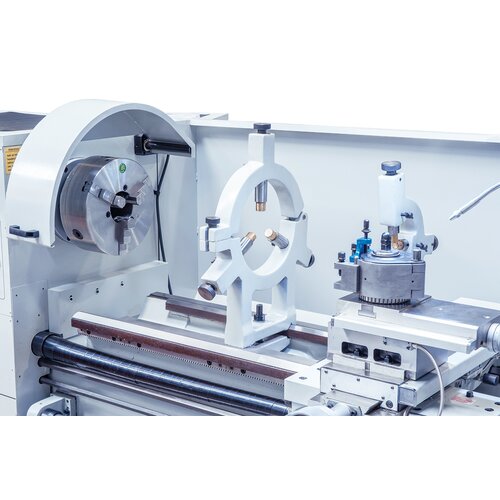

Steady rest - Passage up to max. 250 mm

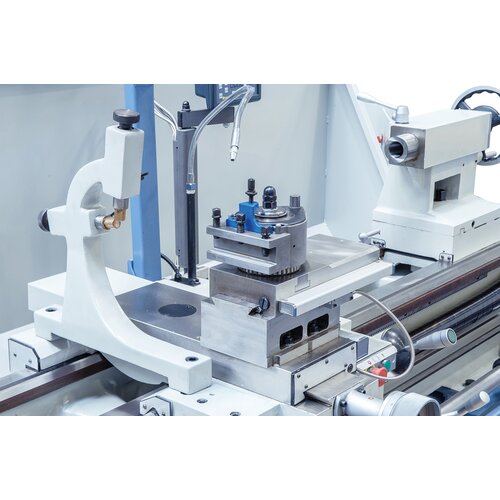

Follow rest - Passage up to max. 110 mm
1 dead center / 1 live center
Motor with magnetic brake according to CE
Foot pedal with brake function acc. to CE
Initial filling with Shell Tellus 46
Coolant device

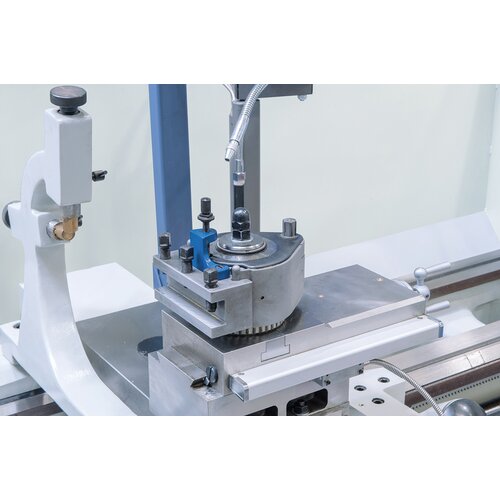

40 pos. tool post and holder set with 4 inserts

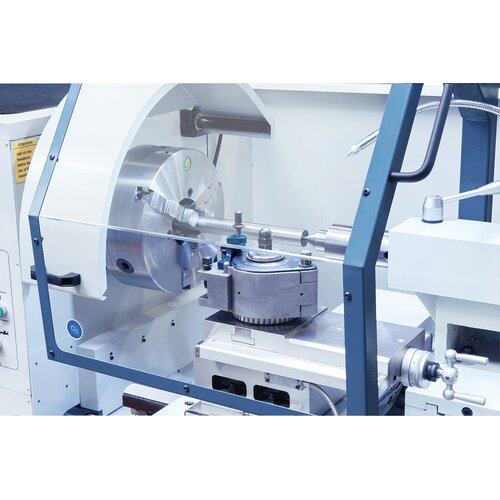

Protective device at tool post holder
Morse taper drill sleeve

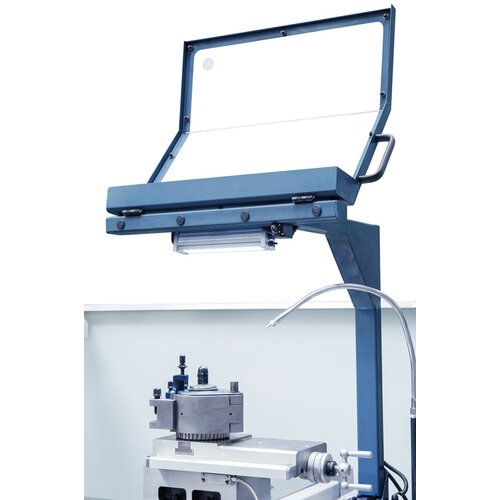

Splash guard
