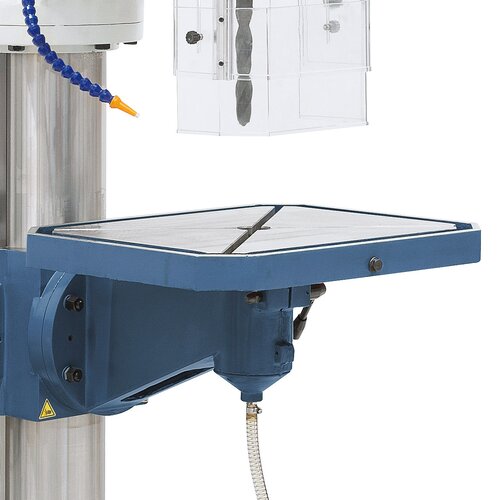

Tilt- and rotatable, hand-polished drill table includes positioning motor.
Tilt- and rotatable, hand-polished drill table includes positioning motor.

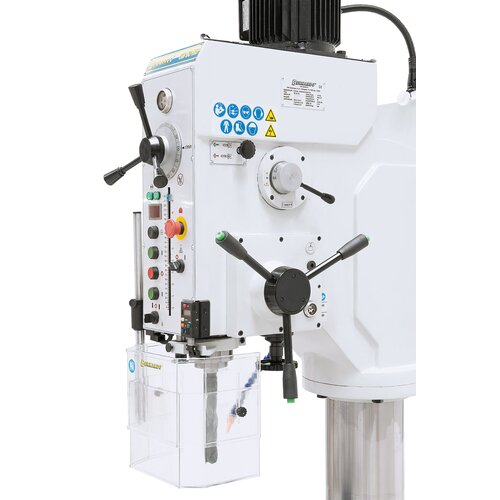

Serially equipped with automatic, quadruple drill feed.
Serially equipped with automatic, quadruple drill feed.

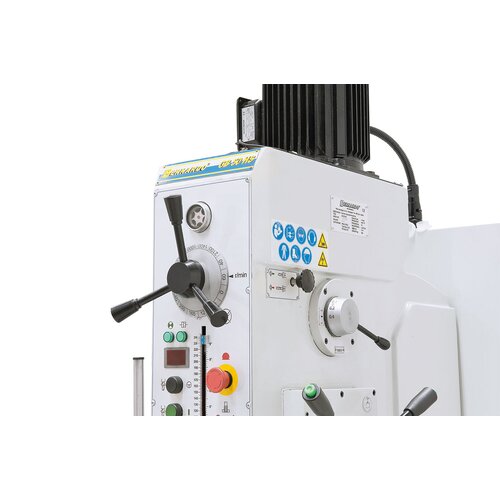

Lever allow easy and quick speed change.
Lever allow easy and quick speed change.
Tilt- and rotatable, hand-polished drill table includes positioning motor.
Serially equipped with automatic, quadruple drill feed.
Lever allow easy and quick speed change.

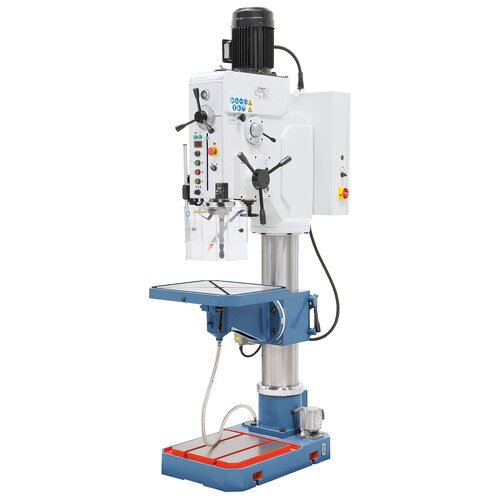

Gearhead drilling machine GB 50 HS *

Art.Nr.: 01-1294XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GB 50 HS drilling machine comes with a wide range of standard accessories making it great value for money. The solid construction and the large drilling capacity of 50 mm make this model suitable for industrial and series production.

€9,264.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Motorized table stroke reduces non-production times
  • Thread cutting device and automatic tool release device as standard
  • Solid, vibration-free construction ensures  accurate results
  • Solid, polished steel column suitable for heavy workload
  • Digital displays for speed and drill depth
  • Solid grey cast iron table with tilt- and rotatable support
  • Wide range of standard equipment increases efficiency
  • Hardened and polished gear wheels ensure smooth running
  • 4 automatic spindle feeds via electromagnetic clutch

Product Specifications

Drilling capacity in steel

50 mm

Drilling capacity in cast iron

60 mm

Thread cutting max.

M42

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speeds / Steps

40 - 2100 rpm / 12

Feed range

0,1 / 0,2 / 0,3 / 0,4 mm/rev.

Distance spindle to column

370 mm

Distance spindle to table max.

600 mm

Distance spindle to base

1190 mm

Spindle stroke

250 mm

Column diameter

200 mm

Table size / T-slot size

600 x 500 mm / 14 mm

Motor power

2,2 / 2,8 kW

Machine dimension (W x D x H)

700 x 1050 x 2350 mm

Weight approx.

670 kg

Delivery Contents

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 /3, MT 4 /2
  • Motoric table stroke
  • Coolant pump
  • Electromagnetic spindle feed
  • Thread cutting device
  • Automatic tool release device
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Digital readout of speeds
  • Digital readout of drill depth
  • Height adjustable protective cover
