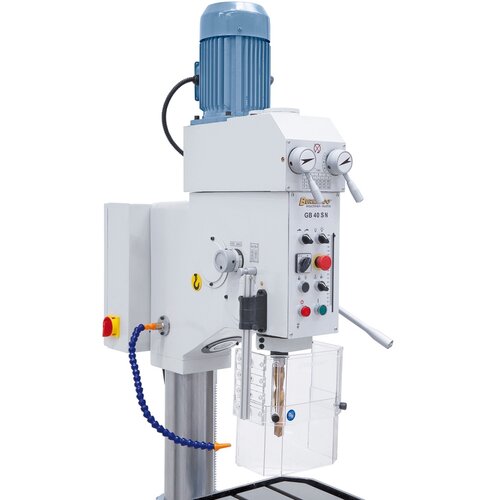

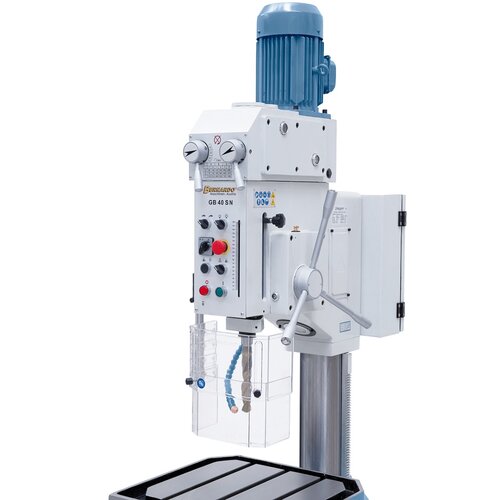

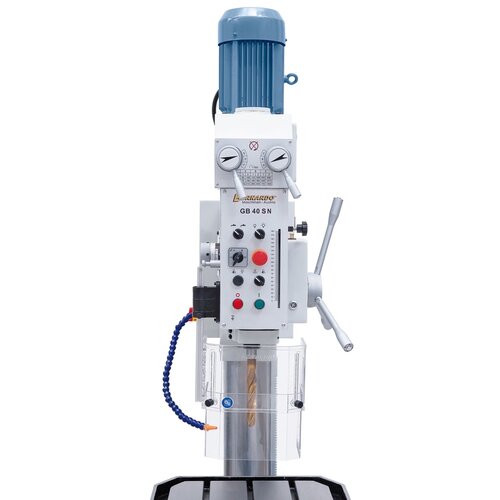

Control elements on front of machine make operating very user-friendly.
Control elements on front of machine make operating very user-friendly.
Serially equipped with automatic, dobule drill feed.
Serially equipped with automatic, dobule drill feed.

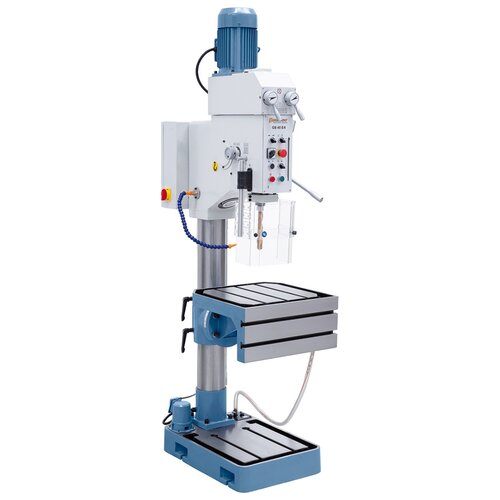

Solid work table, turn- and tiltable, for universal clamping possibilities.
Solid work table, turn- and tiltable, for universal clamping possibilities.
Control elements on front of machine make operating very user-friendly.
Serially equipped with automatic, dobule drill feed.
Solid work table, turn- and tiltable, for universal clamping possibilities.

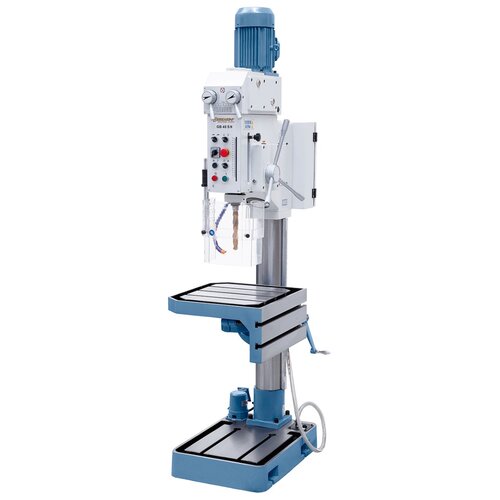

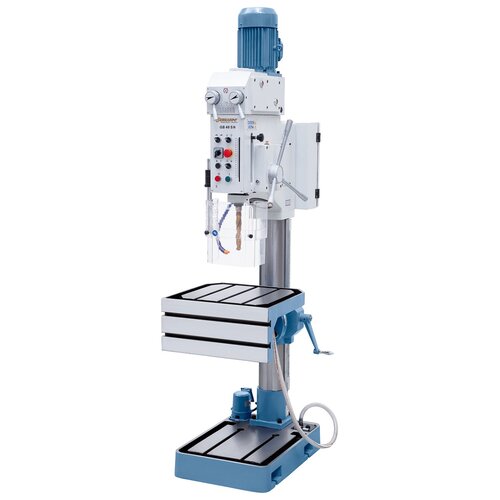

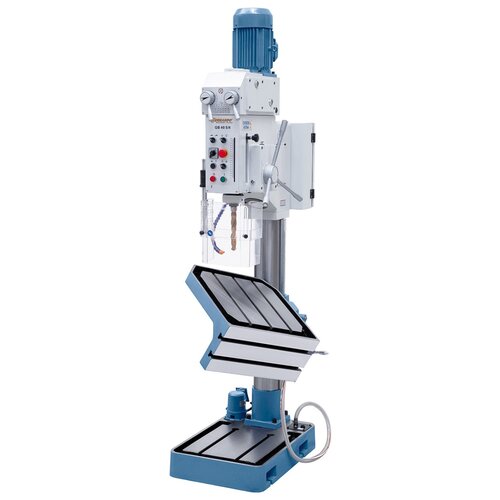

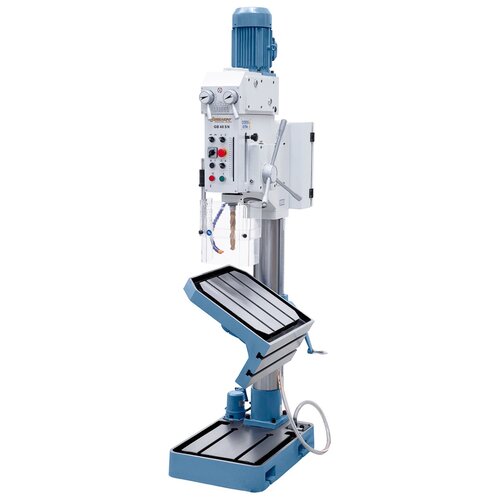

Gearhead drilling machine GB 40 SN with angle table

Art.Nr.: 01-1293XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The gear head drilling machine is solidly constructed and powerful, making this model ideal for repair shops as well as industrial production. Increased range of applications by the serially angle table featuring additional clamping possibilities.

€6,216.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Comes complete with automatic spindle feed, tapping device and work lamp
  • Hardened gears with a smooth finish ensure a smooth run
  • High-quality base with T-slots allows clamping of overly long workpieces
  • Worktable swivels horizontally around column, 90 tiltable left and right
  • Right and left spindle rotation allows thread-cutting
  • Lever on gear box allows for speed settings
  • High concentricity ≤ 0,02 mm, measured at spindle
  • Protective cover with limit switch for increased security

Product Specifications

Drilling capacity max.

40 mm

Thread cutting max

M24

Drill chuck

1 – 16 mm / B 16

Morse taper

MT 4

Spindle speeds

(18) 50 – 1450 rpm

Feed range

0,1 / 0,2 mm/rev.

Distance spindle to column

345 mm

Distance spindle to table max.

680 mm

Distance spindle to base

1200 mm

Spindle stroke

195 mm

Column diameter

140 mm

Table size / T-slot size

560 x 520 mm / 18 mm

Vertical clamping area / T-slot size

560 x 250 mm / 18 mm

Working surface of base

505 x 540 mm

Motor power output S1 100%



0,85 KW / 1,5 KW

Motor power input S6 40%

1,1 kW / 2,2 KW

Machine dimension (W x D x H)

560 x 930 x 2250 mm

Weight approx.

495 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3

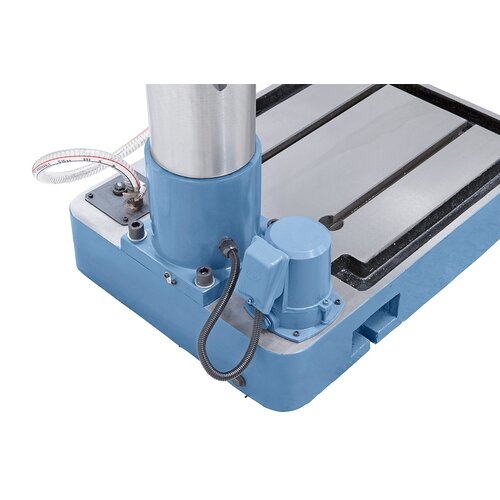

  • Coolant device
  • Electromagnetic spindle feed
  • Thread cutting device
  • Initial filling with Shell Tellus 46
  • LED machine light
  • Automatic tool release device
  • Height adjustable protective cover
