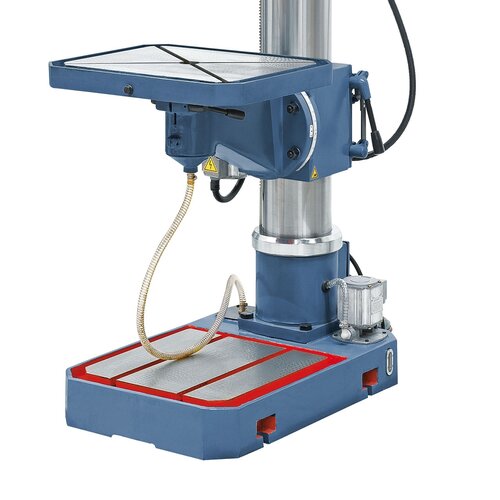

Treated machine base, serially equipped with integrated coolant pump, tank capacity 7 l, flow rate 6 l/min.
Treated machine base, serially equipped with integrated coolant pump, tank capacity 7 l, flow rate 6 l/min.

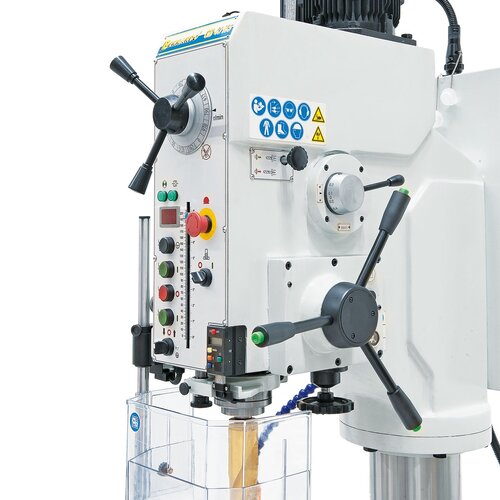

User-friendly arranged control elements.
User-friendly arranged control elements.

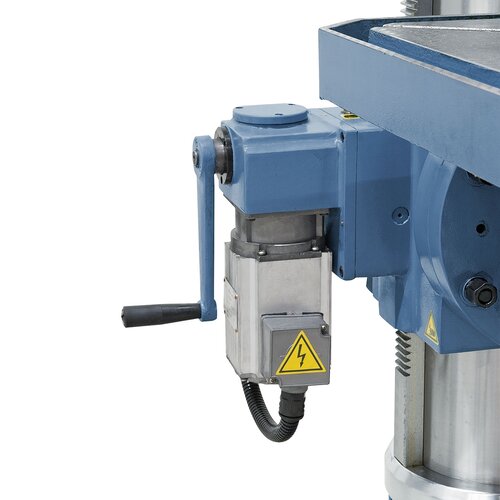

Convenient, motorized table height adjustment.
Convenient, motorized table height adjustment.
Treated machine base, serially equipped with integrated coolant pump, tank capacity 7 l, flow rate 6 l/min.
User-friendly arranged control elements.
Convenient, motorized table height adjustment.

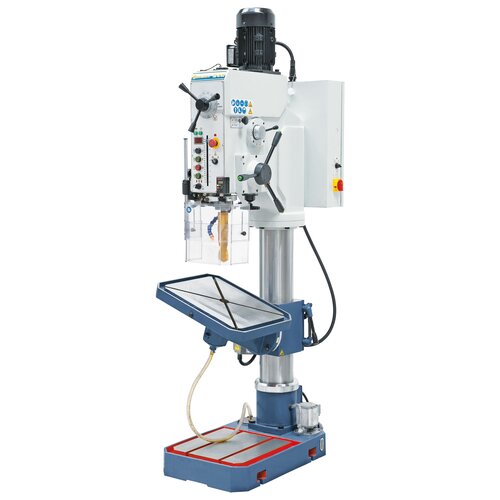

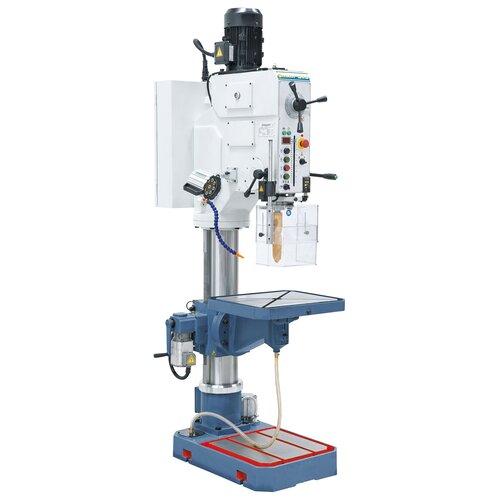

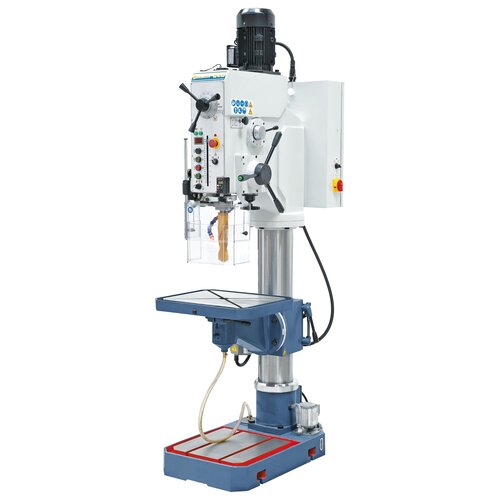

Gearhead drilling machine GB 40 HS *

Art.Nr.: 01-1296XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GB 40 HS drilling machine comes with a wide range of standard accessories making it great value for money. The machine is widely used among mechanics and machine construction.

€8,376.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Includes motorized table stroke and digital displays for drill depth and speed
  • Hand-polished, grey cast-iron table, tiltable from -45° to +45°
  • T-slots in base allow mounting of oversized workpieces
  • Automatic tool release device allows quick change of drilling tools
  • Electromechanic feed, adjustable from 0,1 to 0,4 mm/rev.
  • Gear shift located on front of machine allows quick speed change
  • Adjustable drill depth stop includes scale for easy readout
  • Protective cover with limit switch for increased security
  • Excellent illumination at working by LED machine light

Product Specifications

Drilling capacity in steel

40 mm

Drilling capacity in cast iron

45 mm

Thread cutting max.

M32

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speeds / Steps

55 - 2120 rpm / 12

Feed range

0,1 / 0,2 / 0,3 / 0,4 mm/rev.

Distance spindle to column

355 mm

Distance spindle to table max.

580 mm

Distance spindle to base

1185 mm

Spindle stroke

200 mm

Column diameter

180 mm

Table size / T-slot size

580 x 460 mm / 14 mm

Motor power

2,2 kW

Machine dimension (W x D x H)

700 x 950 x 2280 mm

Weight approx.

563 kg

Delivery Contents

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Motoric table stroke
  • Coolant pump
  • Electromagnetic spindle feed
  • Thread cutting device
  • Morse taper drill sleeve MT 4 / 3, MT 4 / 2
  • Automatic tool release device
  • Initial filling with Shell Tellus 46
  • LED machine light
  • Digital readout of speeds
  • Digital readout of drill depth
  • Height adjustable protective cover
