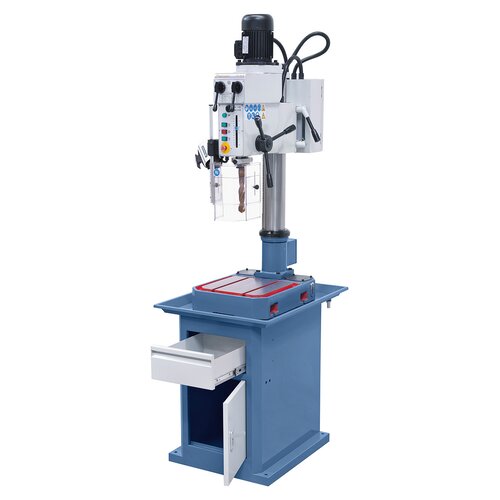

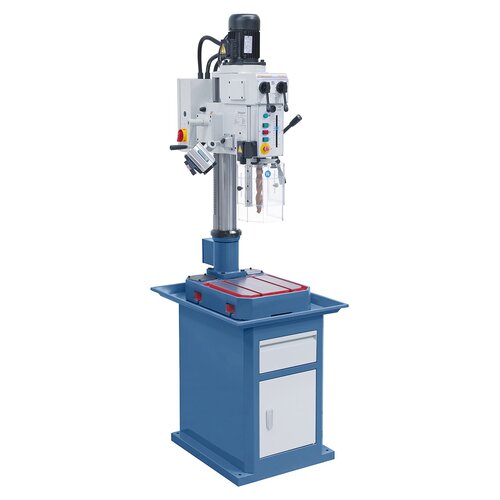

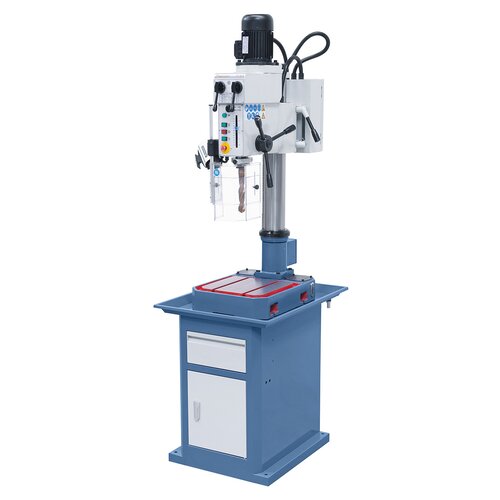

Machine partially shown with special accessories
Machine partially shown with special accessories

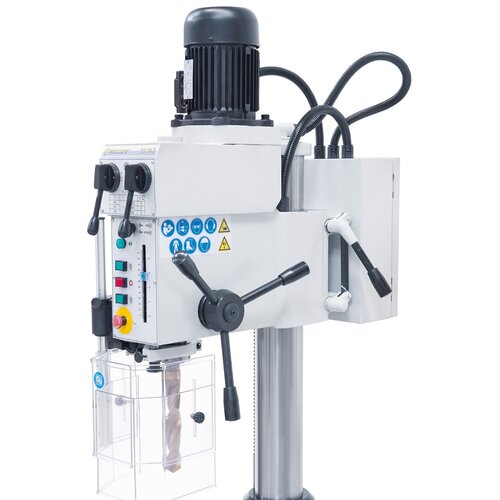

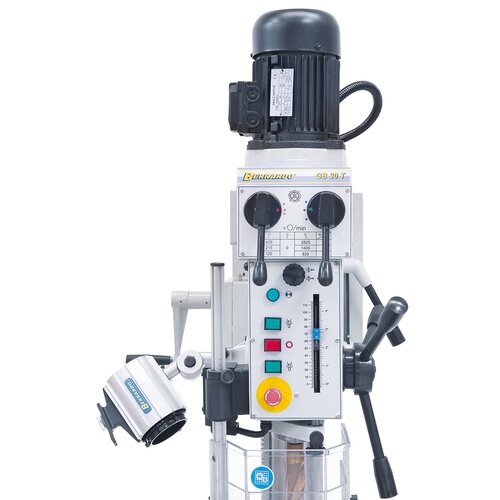

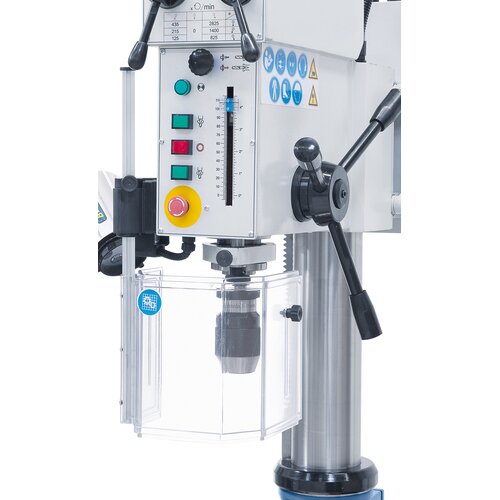

Control elements are clearly arranged on front of machine.
Control elements are clearly arranged on front of machine.

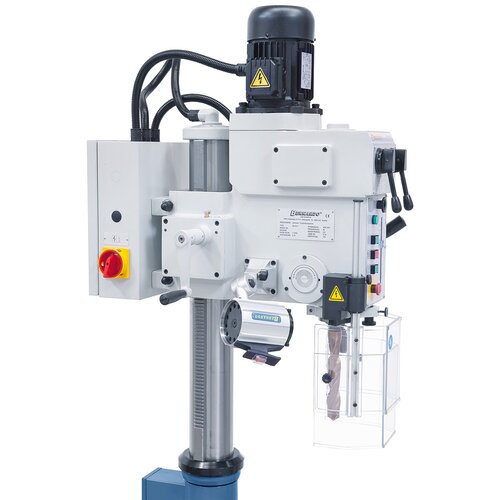

Crank ensures easy height adjustment of drill head.
Crank ensures easy height adjustment of drill head.

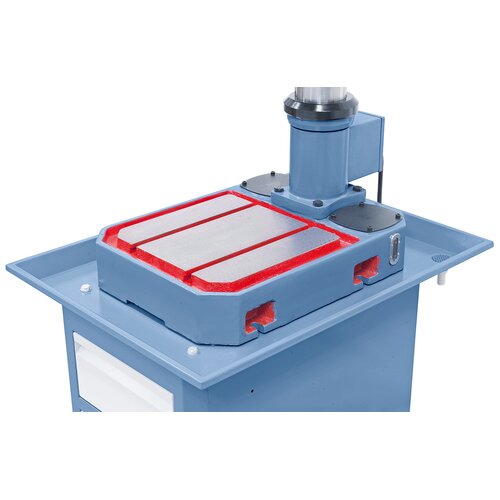

Solid and large machine base features T-slots
Solid and large machine base features T-slots
BERNARDO keyless drill chuck 1 - 16 mm / B 16 available
BERNARDO keyless drill chuck 1 - 16 mm / B 16 available
Machine partially shown with special accessories
Control elements are clearly arranged on front of machine.
Crank ensures easy height adjustment of drill head.
Solid and large machine base features T-slots
BERNARDO keyless drill chuck 1 - 16 mm / B 16 available

Gearhead drilling machine GB 30 T

Art. No.: 01-1251
Wishlist Comparison List

Low cost and high performance make this gearhead table drill with a drilling capacity of 30 mm a popular model for workshops and locksmiths.

€2,610.00

excl. VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Lever on gear head allows easy speed adjustment
  • Adjustable drill depth stop includes scale
  • Absolute concentricity ≤0,02 mm, measured at spindle
  • Left and right rotation allows thread cutting
  • Grey, cast-iron table includes T-slots and coolant grooves
  • Automatic tool release device and LED working light come standard
  • High concentricity - spindle runs on high-quality bearings
  • Hardened, polished gear wheels ensure smooth run
  • Solid, polished steel column is designed for constant use

Product Specifications

Drilling capacity max.

30 mm

Thread cutting max.

M 16

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 3

Spindle speeds

(6) 125 - 2825 rpm

Distance spindle to column

240 mm

Distance spindle to base

655 mm

Spindle stroke

115 mm

Column diameter

100 mm

T-slot size

14 mm

Work surface base

320 x 315 mm

Motor power output S1 100%

0,75 kW / 400 V

Motor power input S6 40%

1,1 kW / 400 V

Machine dimensions (W x D x H)*

450 x 700 x 1440 mm

Weight approx.

170 kg




* without stand

Delivery Contents

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device
  • LED working light
  • Height adjustable protective cover
