3 automatic feeds as standard.

3 automatic feeds as standard.

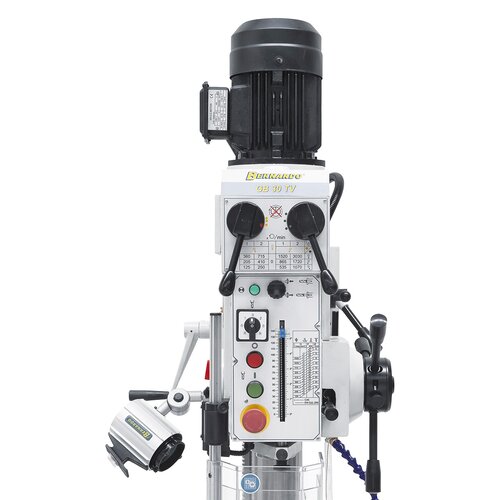

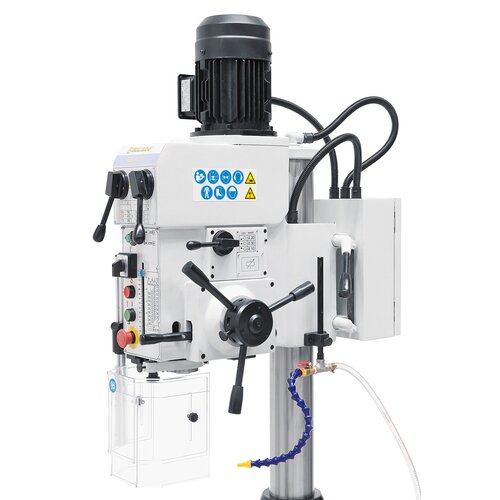

Control elements are clearly arranged on solidly designed drill head.

Control elements are clearly arranged on solidly designed drill head.

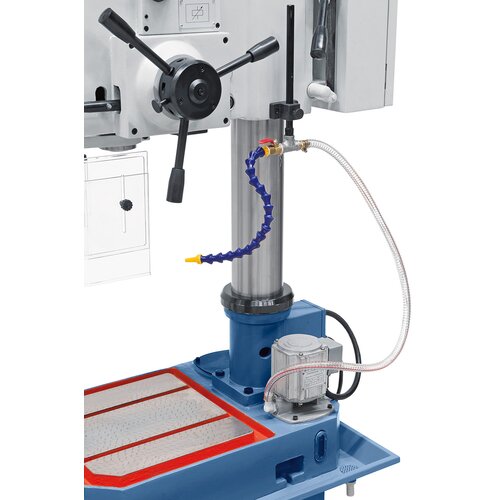

Hand-polished base includes integrated coolant device.

Hand-polished base includes integrated coolant device.

3 automatic feeds as standard.

Control elements are clearly arranged on solidly designed drill head.

Hand-polished base includes integrated coolant device.

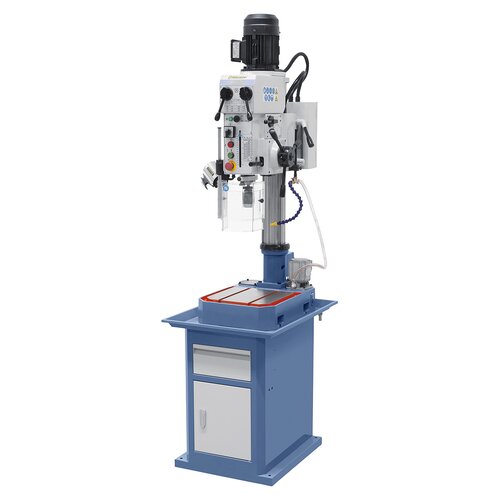

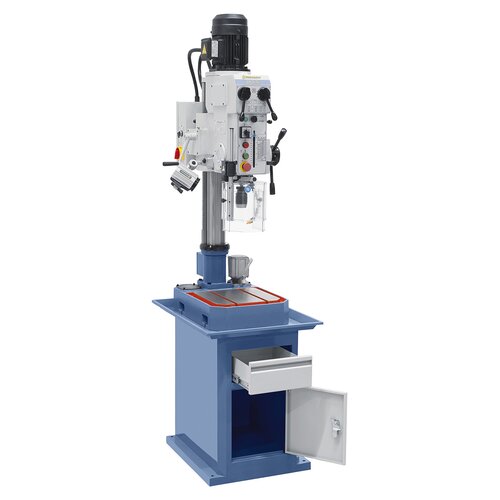

Gearhead drilling machine GB 30 TV *

Art.Nr.: 01-1252

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GB 30 TV drilling machine offers extraordinary performance at a moderate price. The solid construction makes this model popular for general applications.

€3,840.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Precisely treated base includes T-slots and integrated coolant device
LED working light and automatic tool release device as standard
Hardened, polished gear wheels ensure smooth running
Absolute concentricity ≤0,02 mm, measured at spindle
3 automatic spindle feeds come standard
Switch for left and right spindle rotation
T-slots allow clamping of workpiece
2-speed motor allows 12 speed settings
Drill depth stop includes scale
Lever on gear head for quick speed adjustment
Powerful motor even at permanent use

Product Specifications

Drilling capacity max.	32 mm
Thread cutting max.	M20
Drill chuck	1 - 13 mm / B 16
Morse taper	MT 3
Spindle speeds	(12) 125 - 3030 rpm
Feed range	0,10 / 0,20 / 0,30 mm/rev.
Distance spindle to column	260 mm
Distance spindle to base	700 mm
Spindle stroke	140 mm
Column diameter	110 mm
Working surface of base	340 x 335 mm
T-slot size	14 mm
Motor power output S₁ 100%	0,85 / 1,1 kW (400 V)
Motor power input S₆ 40%	1,1 / 1,5 kW (400 V)
Machine dimension (W x D x H)*	500 x 750 x 1620 mm
Weight approx.	235 kg

* without stand

Delivery Contents

Drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 3 / B 16
Morse taper drill sleeve MT 3 / 2, MT 3 / 1
Automatic tool release device
LED working light
Coolant pump
Height adustable protective cover
