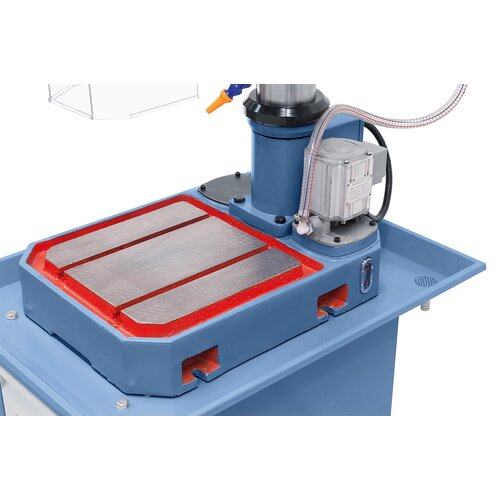

Solid and large machine base features T-slots.
Solid and large machine base features T-slots.

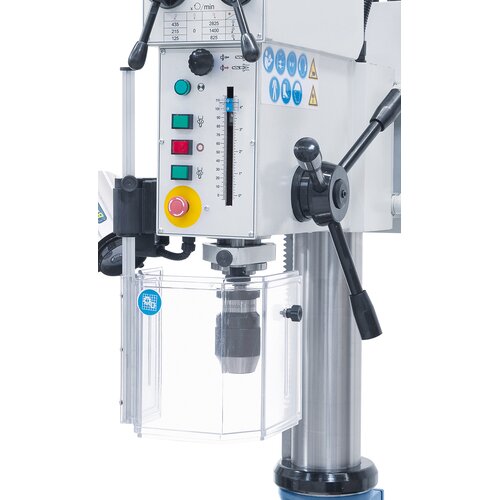

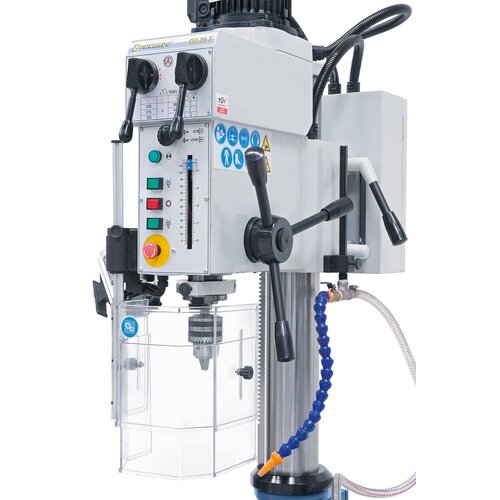

BERNARDO keyless drill chuck 1 - 16 mm / B 16 available
BERNARDO keyless drill chuck 1 - 16 mm / B 16 available

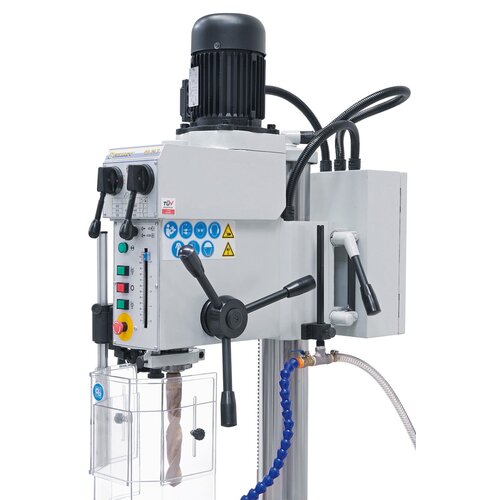

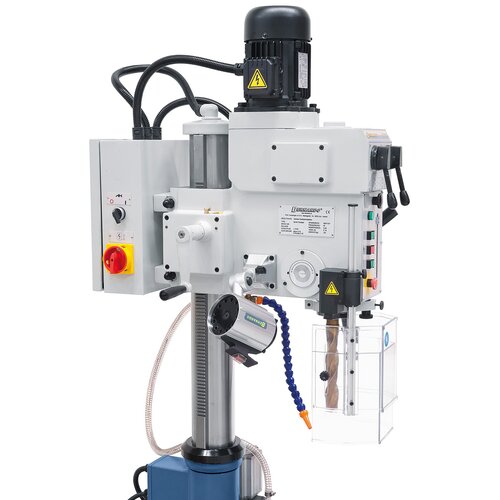

Crank ensures easy height adjustment of drill head
Crank ensures easy height adjustment of drill head

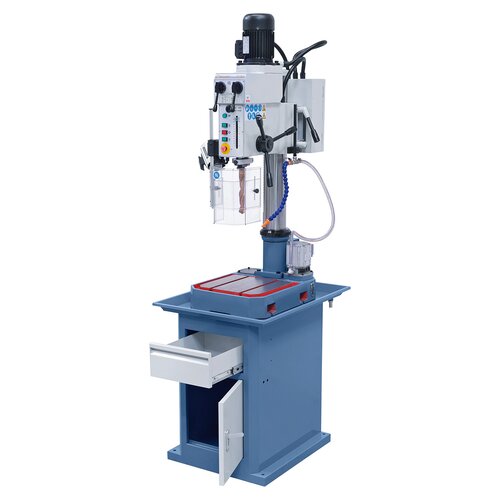

Solid and large machine base features T-slots. Picture show GB 30 T with coolant device
Solid and large machine base features T-slots. Picture show GB 30 T with coolant device
Solid and large machine base features T-slots.
BERNARDO keyless drill chuck 1 - 16 mm / B 16 available
Crank ensures easy height adjustment of drill head
Solid and large machine base features T-slots. Picture show GB 30 T with coolant device

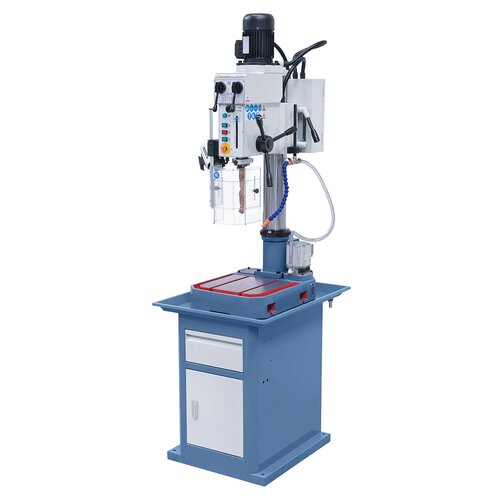

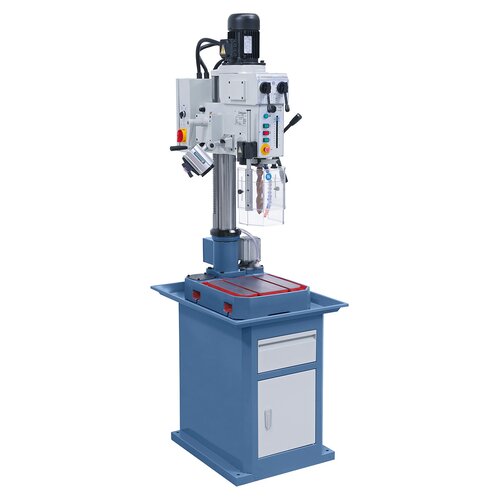

Gearhead drilling machine GB 30 T with coolant

Art.Nr.: 01-1250
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Low cost and high performance make this gearhead table drill with a drilling capacity of 30 mm a popular model for workshops and locksmiths. This model is additional equiped with a coolant device.

€3,264.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

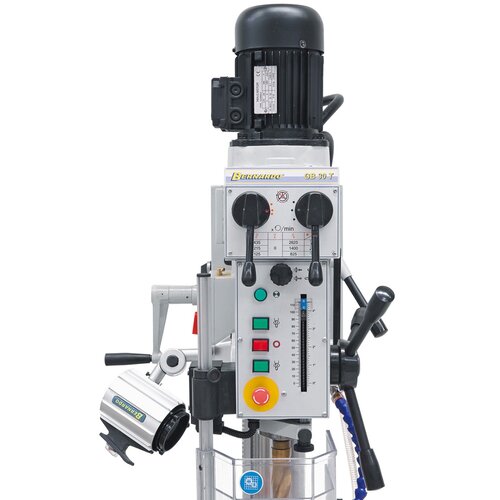

  • Lever on gear head allows easy speed adjustment
  • Adjustable drill depth stop includes scale
  • Absolute concentricity ≤0,02 mm, measured at spindle
  • Left and right rotation allows thread cutting
  • Grey, cast-iron table includes T-slots and coolant grooves
  • Automatic tool release device and LED lamp come standard
  • High concentricity - spindle runs on high-quality bearings
  • Hardened, polished gear wheels ensure smooth run
  • Solid, polished steel column is designed for constant use

Product Specifications

Drilling capacity max.

30 mm

Thread cutting max.

M16

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 3

Spindle speeds

(6) 125 - 2825 rpm

Distance spindle to column

240 mm

Distance spindle to base

655 mm

Spindle stroke

115 mm

Column diameter

100 mm

T-slot size

14 mm

Working surface of base

320 x 315 mm

Motor power output S1 100%

0,75 kW / 400 V

Motor power input S6 40%

1,1 kW / 400 V

Machine dimension (W x D x H)*

450 x 700 x 1440 mm

Weight approx.

170 kg




* without stand

Delivery Contents

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device

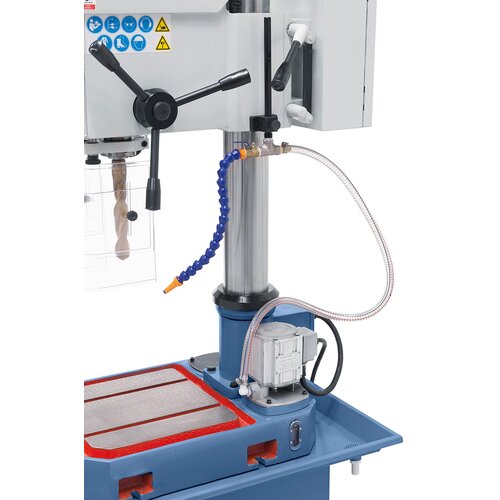

  • Coolant device
  • LED working light
  • Height adjustable protective cover
