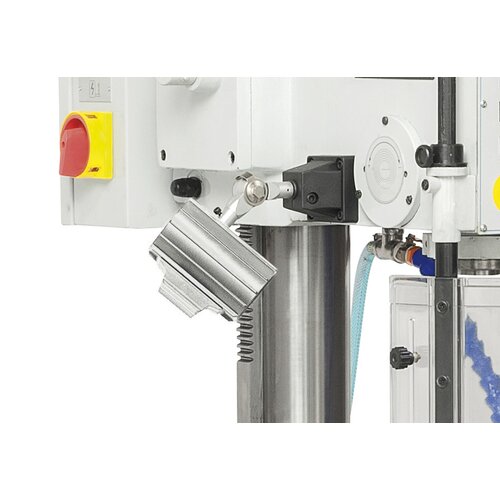

LED working light for optimum lighting
LED working light for optimum lighting

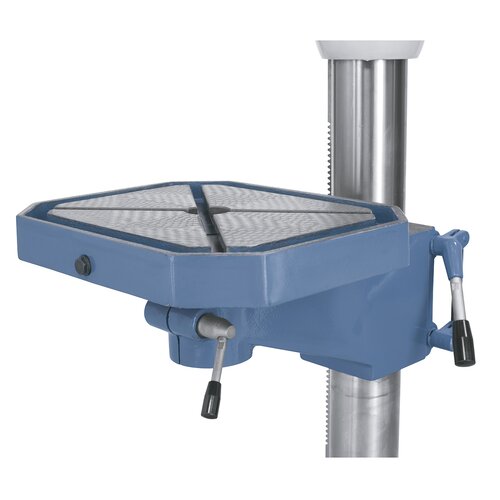

Solid, hand-polished table includes T-slots.
Solid, hand-polished table includes T-slots.

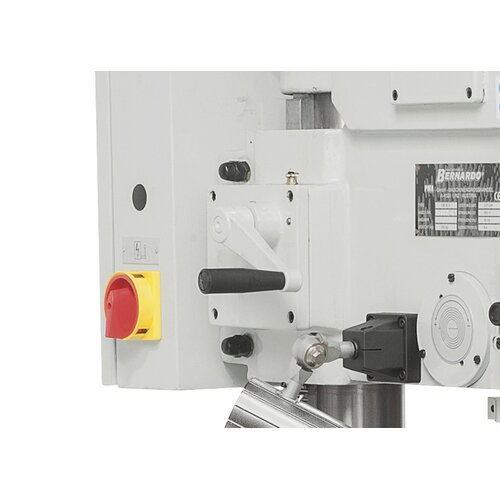

Crank ensures easy height adjustment of drill head.
Crank ensures easy height adjustment of drill head.

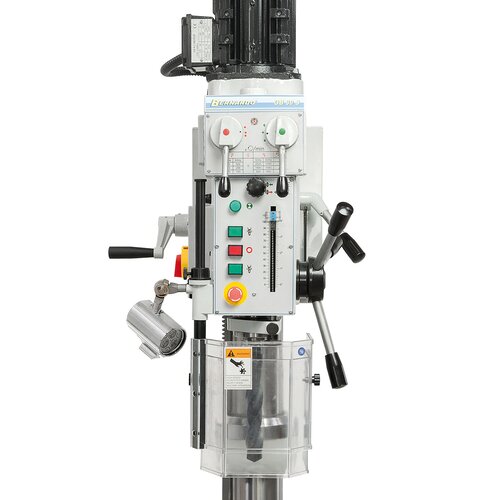

Control elements are clearly arranged on front of machine.
Control elements are clearly arranged on front of machine.
LED working light for optimum lighting
Solid, hand-polished table includes T-slots.
Crank ensures easy height adjustment of drill head.
Control elements are clearly arranged on front of machine.

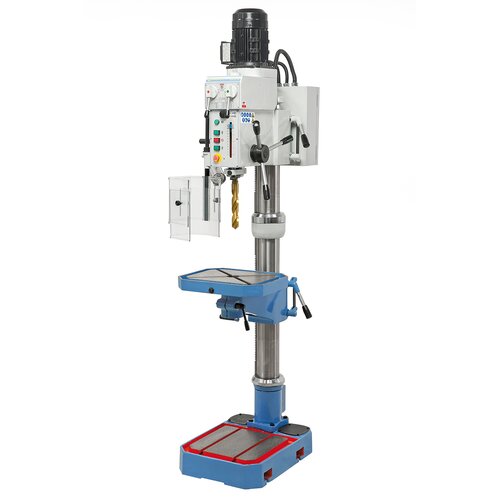

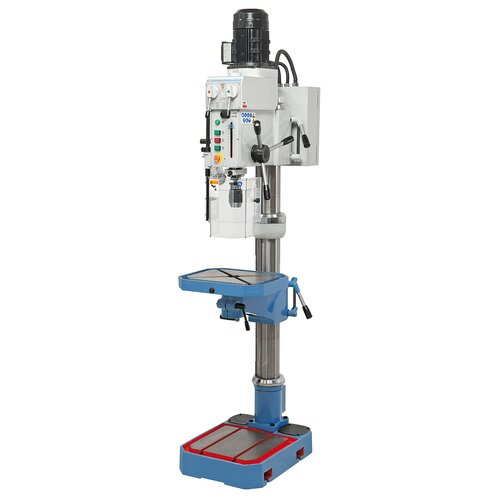

Gearhead drilling machine GB 30 S

Art.Nr.: 01-1253
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The GB 30 S powerful gearhead column drilling machine features a solid, torsion-free construction. It is mainly used in repair shops, mechanical workshops and training.



€3,948.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Lever on gear head allows easy speed adjustment
  • Adjustable drill depth stop includes scale
  • Absolute concentricity ≤0,02 mm, measured at spindle
  • Left and right rotation allows thread cutting
  • Grey, cast-iron table includes T-slots and coolant grooves
  • Automatic tool release device and LED working light come standard
  • Polished base plate featues T-slots features T-slots for mounting of oversized workpieces
  • High concentricity - spindle runs on high-quality bearings
  • Hardened, polished gear wheels ensure smooth run
  • Solid, polished steel column designed for constant use

Product Specifications

Drilling capacity max.

30 mm

Thread cutting max.

M 16

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 3

Spindle speeds

125 - 2825 rpm / 6

Distance spindle to column

240 mm

Distance spindle to table max.

655 mm

Distance spindle to base

1130 mm

Spindle stroke

115 mm

Column diameter

100 mm

Table size/ T-slot size

405 x 335 mm / 14 mm

Working surface of base

320 x 315 mm

Motor power output S1 100%

0,75 kW / 400 V

Motor power input S6 40%

1,1 kW / 400 V

Machine dimensions (W x D x H)

500 x 700 x 1910 mm

Weight approx.

235 kg

Delivery Contents

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device
  • LED working light
  • Height adjustable protective cover
