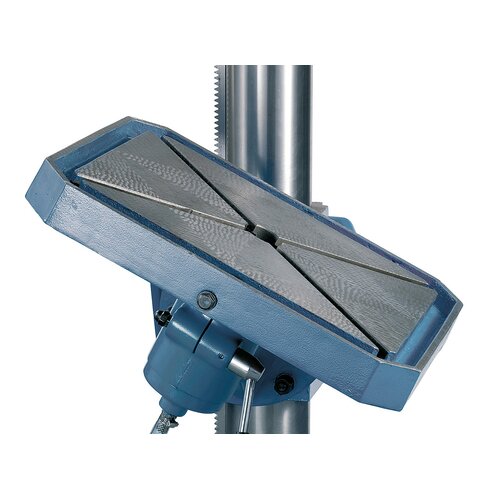

Solid, polished column, drill table tilts from -50° to +50°.
Solid, polished column, drill table tilts from -50° to +50°.
Manual or mechanical (0,1 / 0,2 / 0,3 mm/re v) spindle feed.
Manual or mechanical (0,1 / 0,2 / 0,3 mm/re v) spindle feed.
Standard accessories: digital speed indicator, automatic tool release device, right and left turning for thread cutting, digital readout of drill depth
Standard accessories: digital speed indicator, automatic tool release device, right and left turning for thread cutting, digital readout of drill depth
Solid, polished column, drill table tilts from -50° to +50°.
Manual or mechanical (0,1 / 0,2 / 0,3 mm/re v) spindle feed.
Standard accessories: digital speed indicator, automatic tool release device, right and left turning for thread cutting, digital readout of drill depth

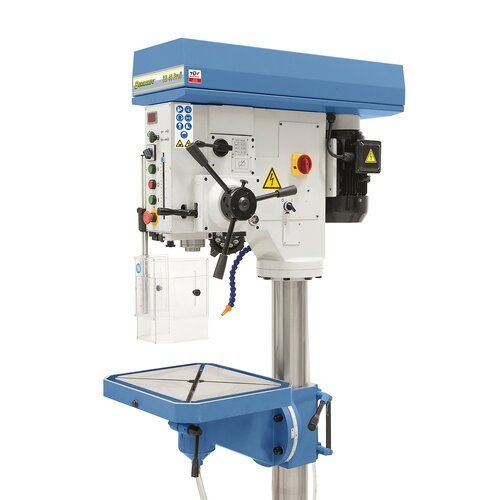

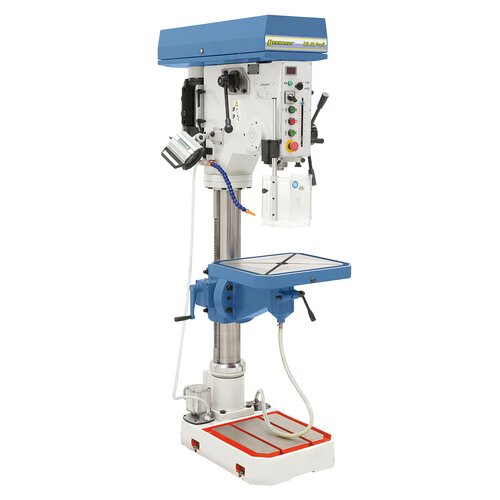

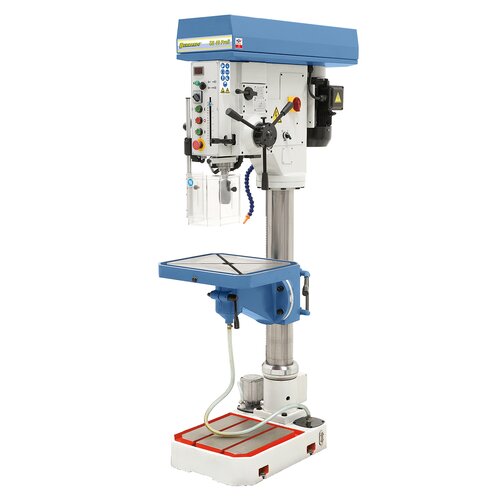

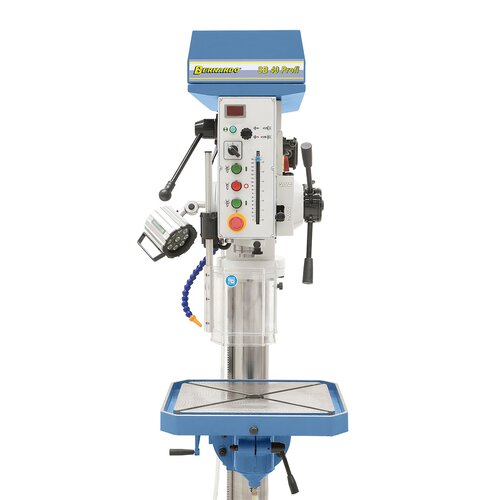

Column drilling machine SB 40 Profi *

Art.Nr.: 01-1175XL
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Heavy drilling machine with stepless speed adjustment, automatic spindle feed and digital speed indicator. This model is popular in repair workshops and industrial production.

€5,340.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Vario-drive for precise speed adjustment
  • Manual or automatic spindle feed
  • Automatic tool release device allows easy tool change
  • Speed settings are read quickly on digital readout
  • Solid, tiltable grey cast iron table with T-slots and cooling grooves
  • Coolant pump and work lamp included as standard accessories
  • Adjustable drill depth stop, drill depth can be read on scale
  • Right and left turning for thread cutting

Product Specifications

Drilling capacity max.

40 mm

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 4

Spindle speed, stepless

90 - 1455 rpm

Distance spindle to column

320 mm

Table tiltable

-50° to +50°

Distance spindle to table max.

590 mm

Distance spindle to base

1155 mm

Spindle stroke

160 mm

Spindle feed

0,1 / 0,2 / 0,3 mm/rev.

Column diameter

120 mm

Tabe size / T-slot size

505 x 425 mm / 14 mm

Working surface of base

360 x 370 mm

Motor power

1,0 / 1,5 kW
Machine dimension (W x D x H)

500 x 930 x 1870 mm

Weight approx.

380 kg

Delivery Contents

  • Drill chuck arbor MT 4 / B 16
  • Coolant pump
  • Digital readout of speeds
  • Keyless drill chuck 1 - 16 mm / B 16
  • Morse taper drill sleeve MT 4 / 3, MT 4 / 2, MT 3 / 1
  • LED working light
  • Automatic tool release device
  • Height adjustable protective cover
