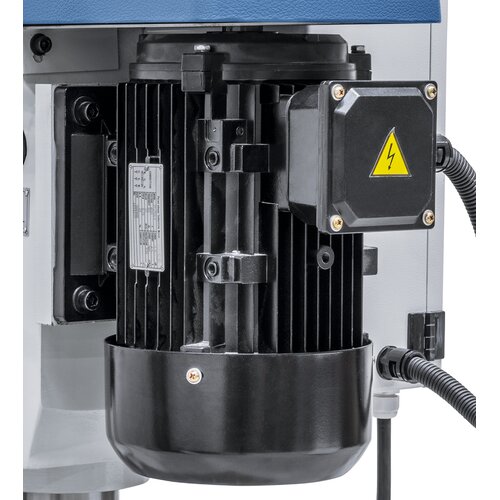

High quality and powerful drive motor.
High quality and powerful drive motor.

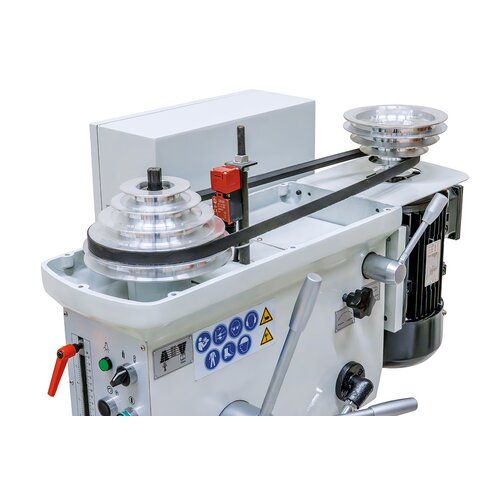

Balanced aluminium drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Balanced aluminium drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.

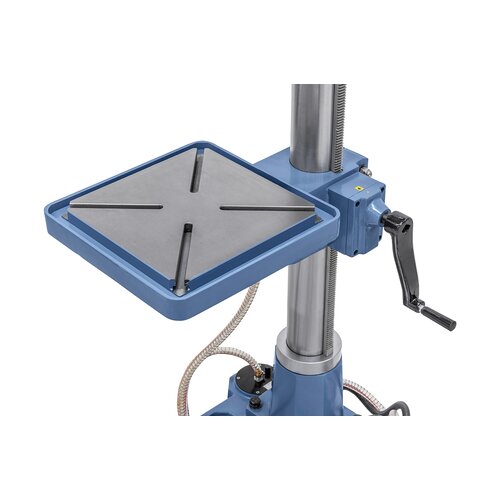

Polished work table features diagonal T-slots.
Polished work table features diagonal T-slots.

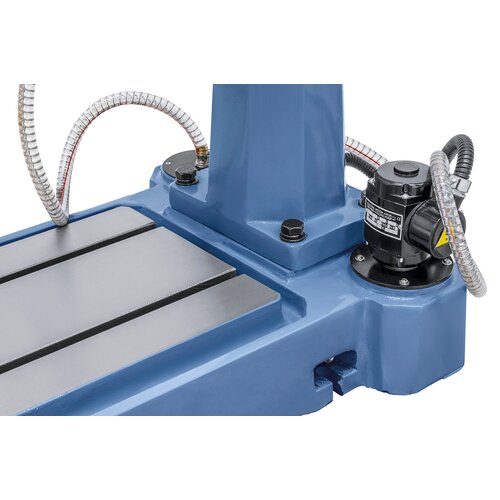

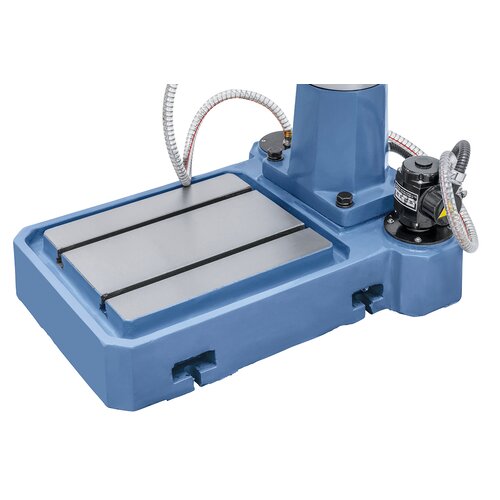

Treated machine base, serially equipped with integrated coolant pump.
Treated machine base, serially equipped with integrated coolant pump.
High quality and powerful drive motor.
Balanced aluminium drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Polished work table features diagonal T-slots.
Treated machine base, serially equipped with integrated coolant pump.

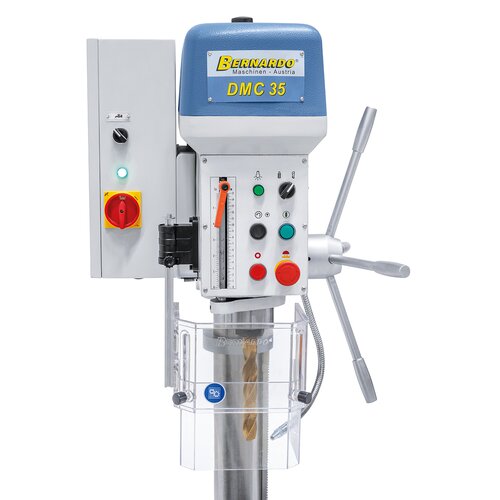

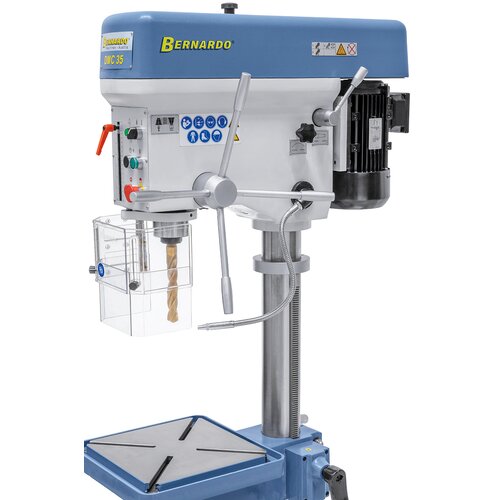

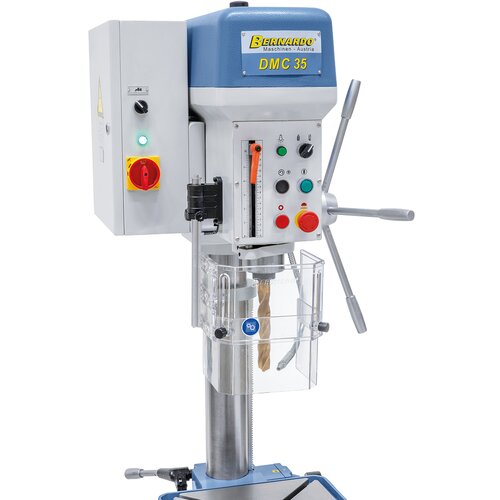

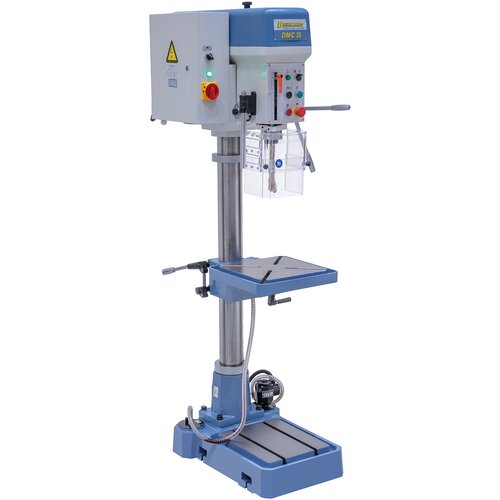

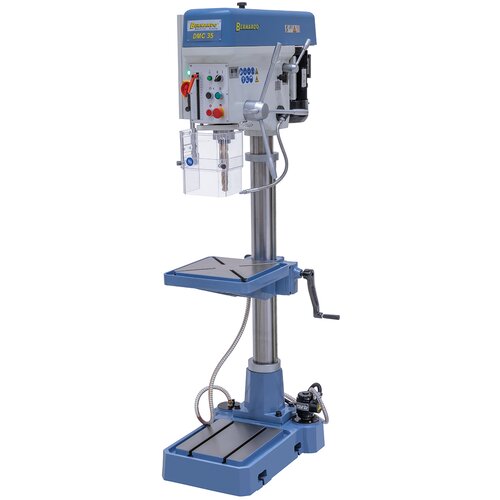

Column drilling machine DMC 35

Art. No.: 01-11870
Wishlist Comparison List

The DMC 35 is a powerful column drilling machine which excels in robust and vibration-free construction. This model is predominantly used in repair shops, mechanical workshops and for training purposes.

€2,604.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Protective cover in accordance to CE standards, adjustable to various drill bit sizes
  • Surface treated work table, height adjustable via gear rack and crank
  • Precisely treated base includes T-slots and integrated coolant device
  • Height adjustable protective cover with micro switch for increased safety
  • High concentricity ≤ 0,02 mm measured at spindle
  • Powerful motor even at continuous operation
  • Solid and powerful drilling machine for high demands
  • Including automatic reverse rotation for thread cutting
  • Solid, polished steel column suitable for heavy workload

Product Specifications

Drilling capacity max.

32 mm

Thread cutting max.

M 24

Morse taper

MT 3

Spindle speed

(5) 320 - 1820 rpm

Distance spindle to column

265 mm

Distance spindle to table max.

815 mm

Distance spindle to base

1240 mm

Spindle stroke

150 mm

Column diameter

100 mm

Table size / T-slot size

332 x 332 mm / 14 mm

Working surface of base

382 x 312 mm

Motor power output S1 100%

1,5 kW / 400 V

Motor power input S6 40%

2,2 kW / 400 V

Machine dimension (W x D x H)

570 x 940 x 1870 mm

Weight approx.

310 kg



Delivery Contents

  • Drill chuck 5 - 20 mm / B 22
  • Drill chuck arbor MT 3 / B 22
  • Morse taper drill sleeve MT 3 / MT 2
  • Coolant device
  • Thread cutting device
  • LED machine light
  • Height adjustable protective cover
