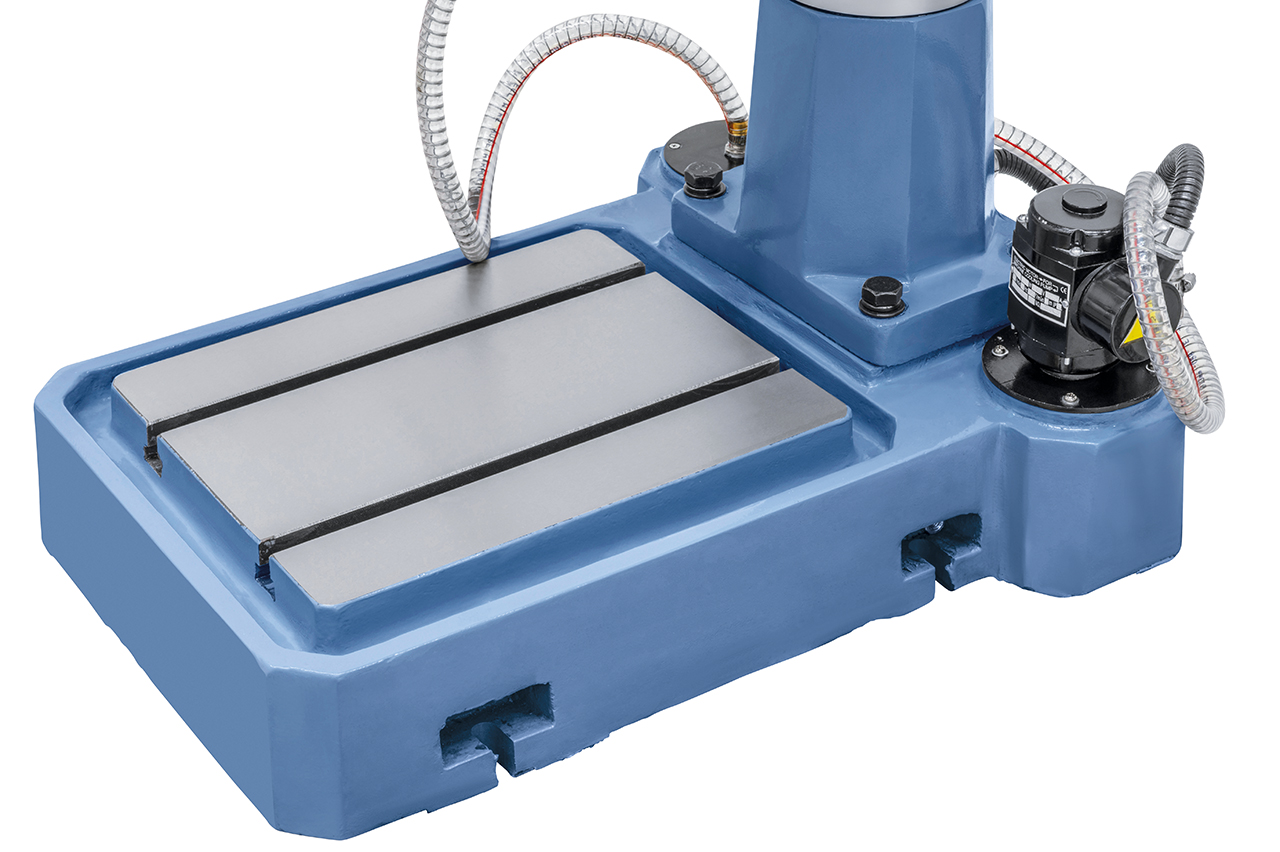

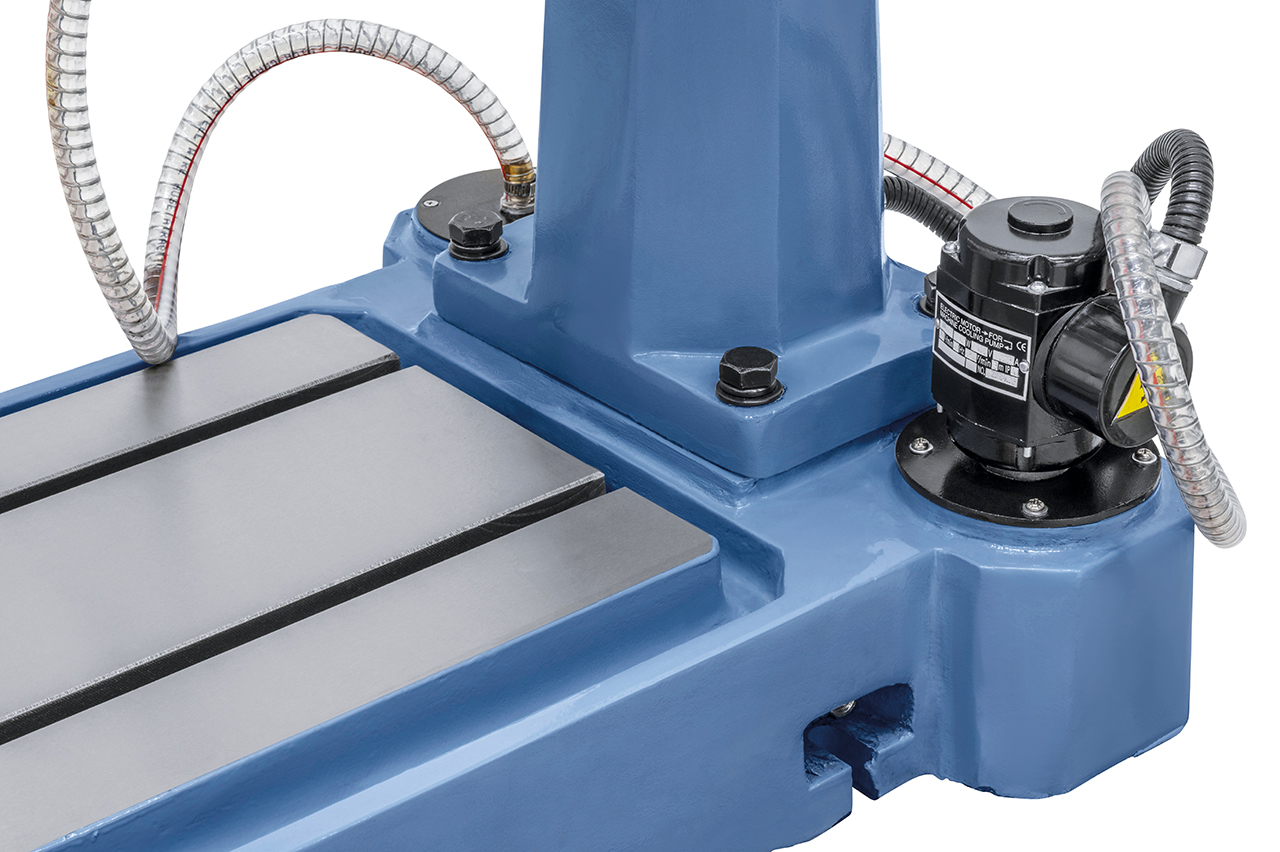

Treated machine base, serially equipped with integrated coolant pump.

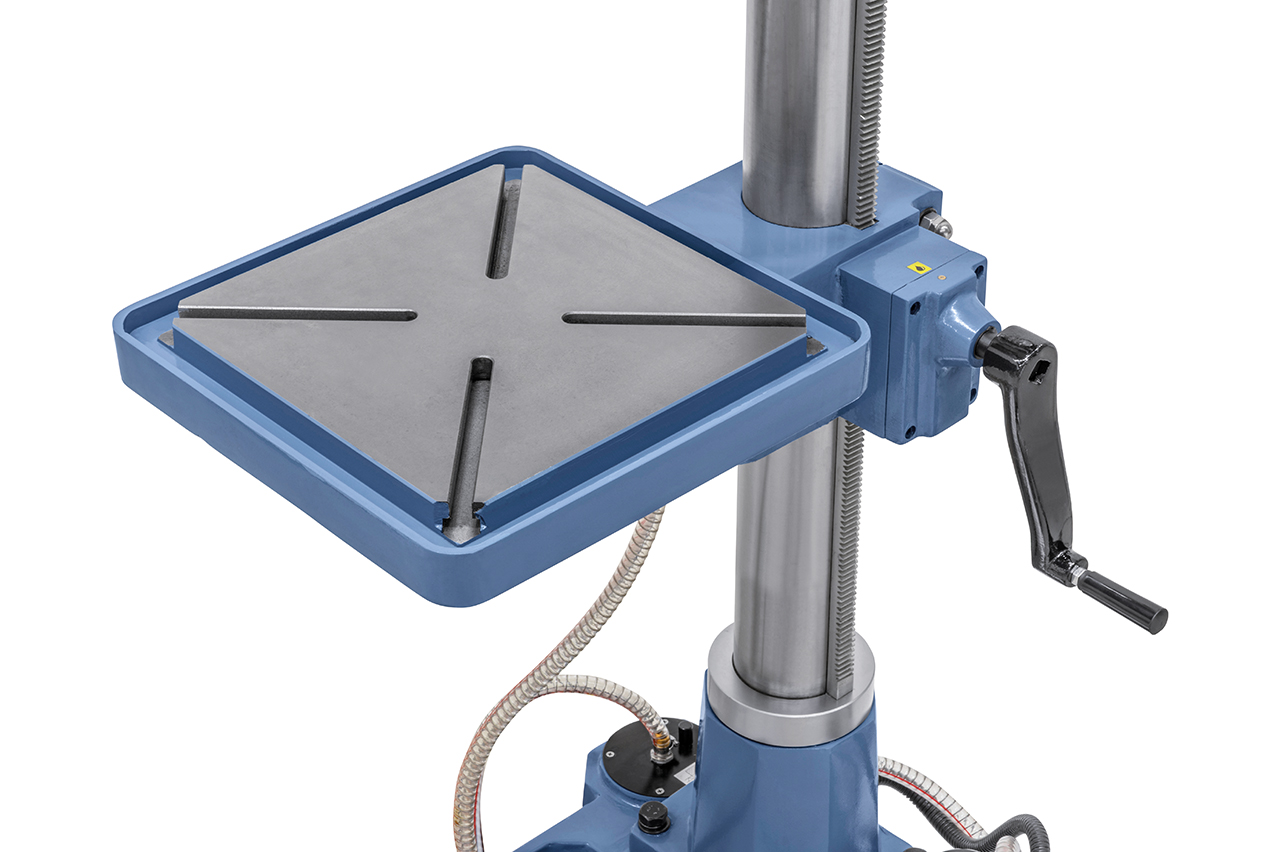

Polished work table features diagonal T-slots.

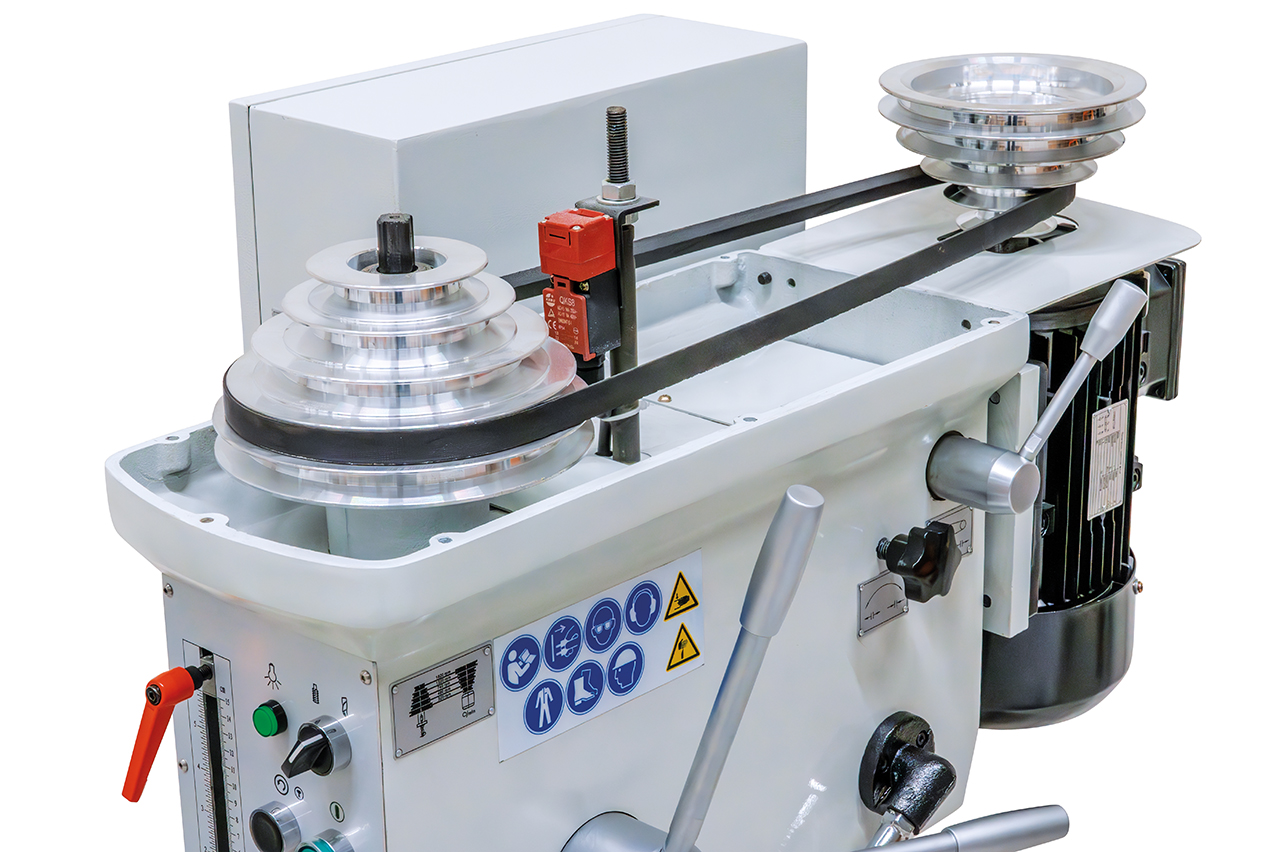

Balanced aluminium drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.

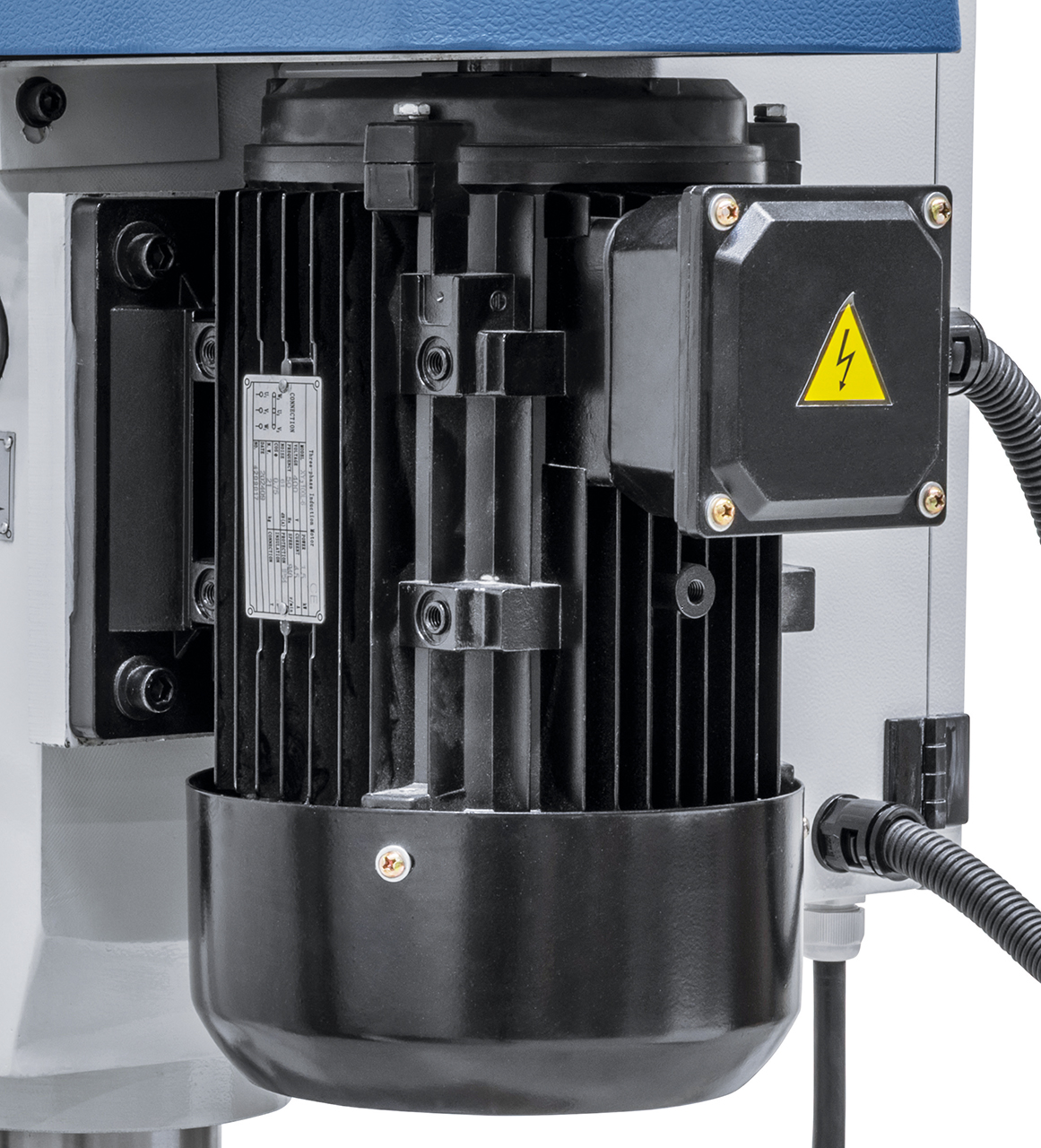

High quality and powerful drive motor.

Sloupová vrtačka DMC 35

product.detail.art-no: 01-11870

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

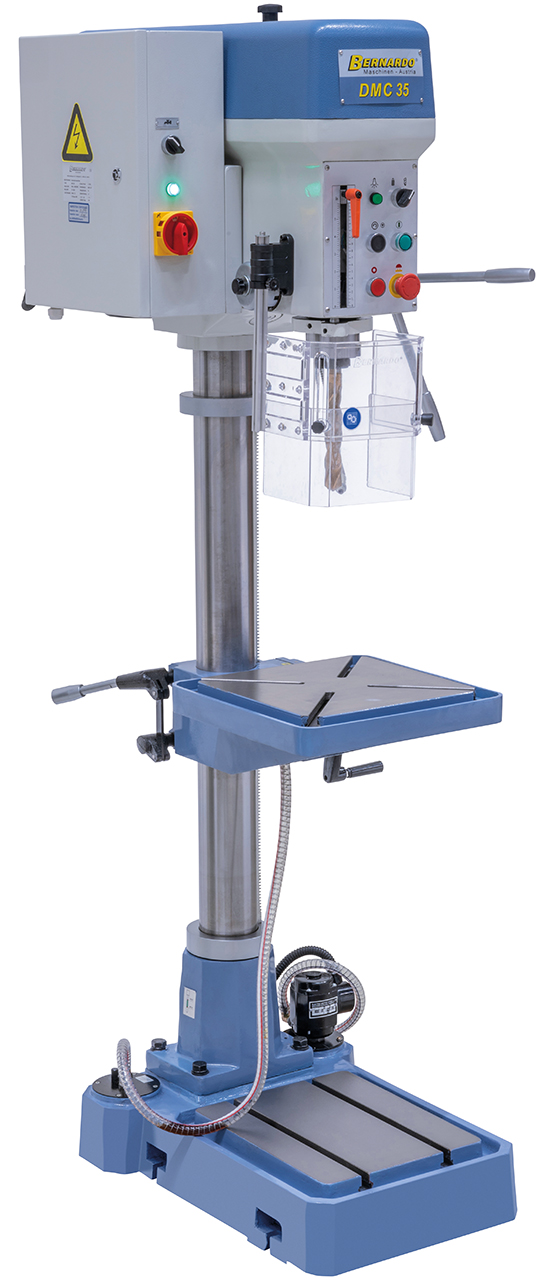

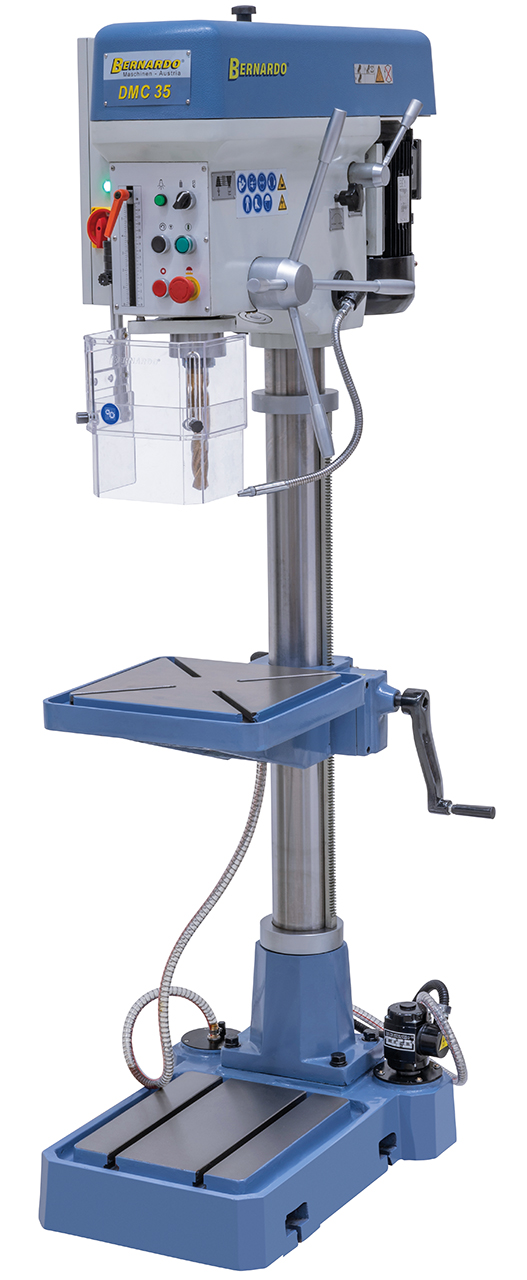

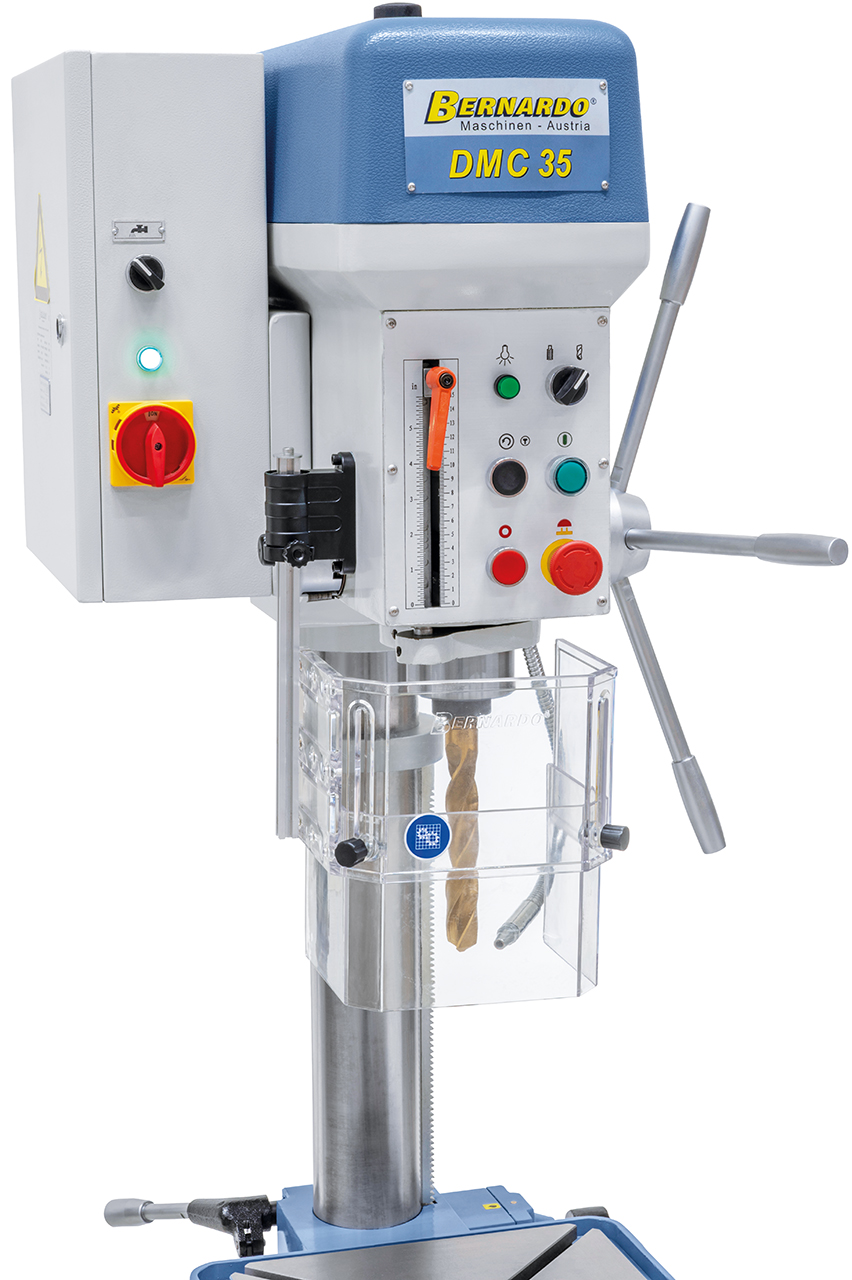

The DMC 35 is a powerful column drilling machine which excels in robust and vibration-free construction. This model is predominantly used in repair shops, mechanical workshops and for training purposes.

2 604,00 €

incl. 20% VAT

Availability

Out of Stock

Product Properties

Protective cover in accordance to CE standards, adjustable to various drill bit sizes
Surface treated work table, height adjustable via gear rack and crank
Precisely treated base includes T-slots and integrated coolant device

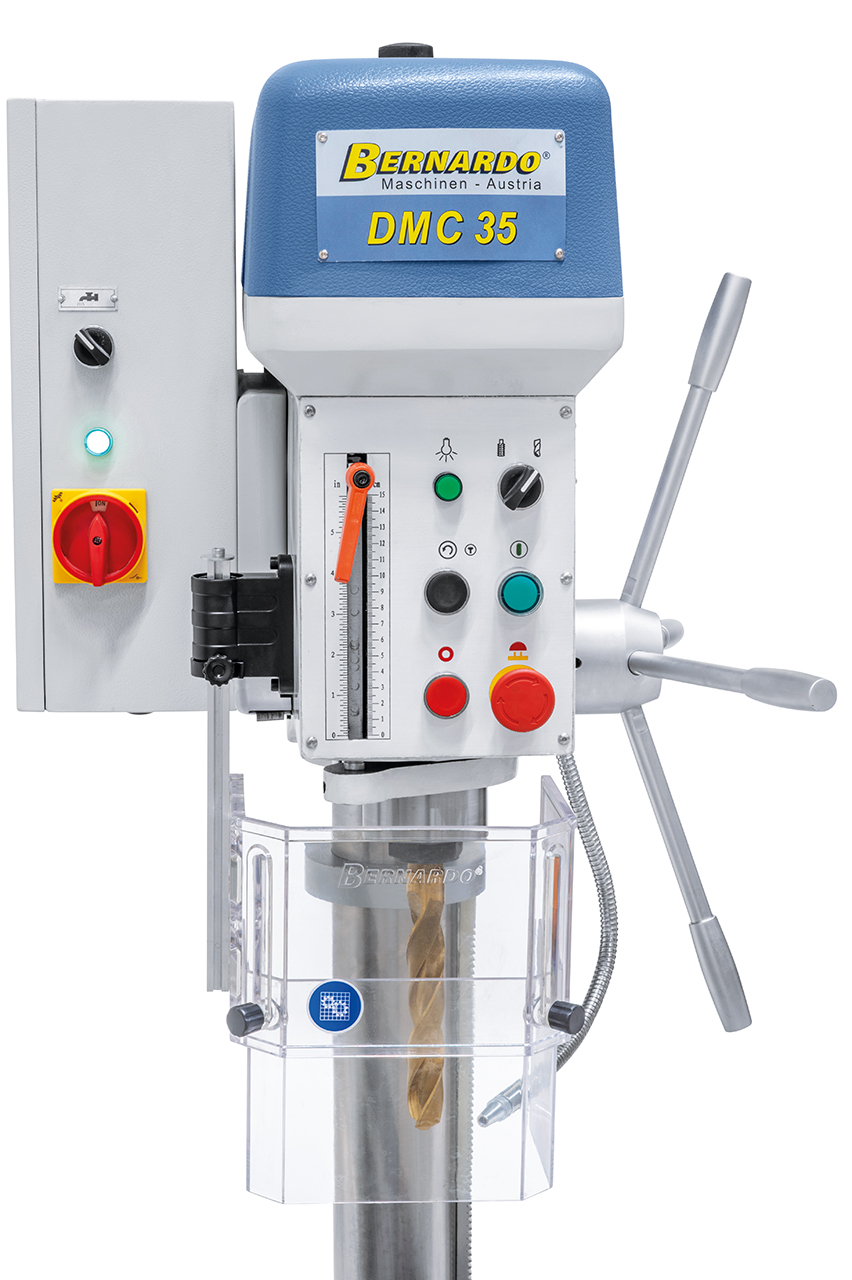

Height adjustable protective cover with micro switch for increased safety
High concentricity ≤ 0,02 mm measured at spindle
Powerful motor even at continuous operation
Solid and powerful drilling machine for high demands
Including automatic reverse rotation for thread cutting
Solid, polished steel column suitable for heavy workload

Product Specifications

Drilling capacity max.	32 mm
Thread cutting max.	M 24
Morse taper	MT 3
Spindle speed	(5) 320 - 1820 rpm
Distance spindle to column	265 mm
Distance spindle to table max.	815 mm
Distance spindle to base	1240 mm
Spindle stroke	150 mm
Column diameter	100 mm
Table size / T-slot size	332 x 332 mm / 14 mm
Working surface of base	382 x 312 mm
Motor power output S₁ 100%	1,5 kW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Machine dimension (W x D x H)	570 x 940 x 1870 mm
Weight approx.	310 kg
