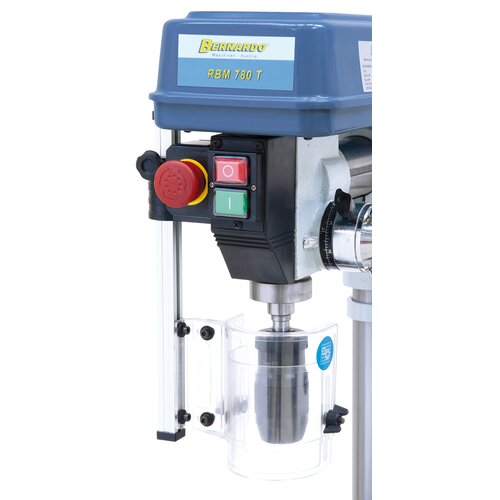

ON-OFF switch according to IP 54 and separate emergency stop switch
ON-OFF switch according to IP 54 and separate emergency stop switch

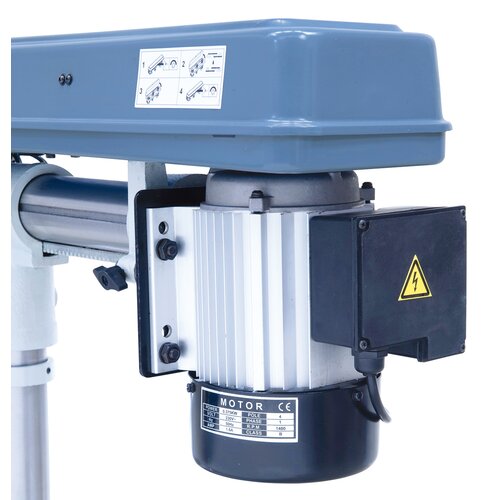

Powerful aluminium motor in accordance with the IP 54 standard
Powerful aluminium motor in accordance with the IP 54 standard

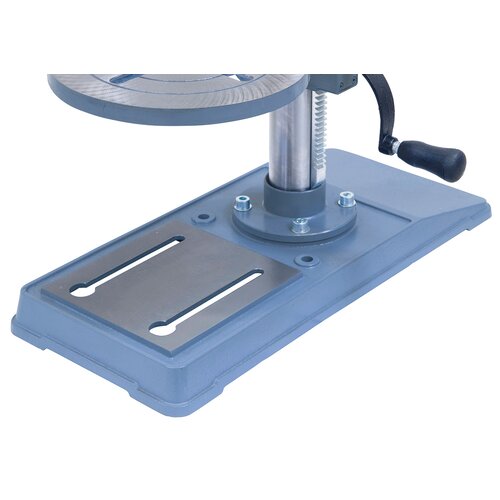

Surface treated base allows clamping of large workpieces
Surface treated base allows clamping of large workpieces

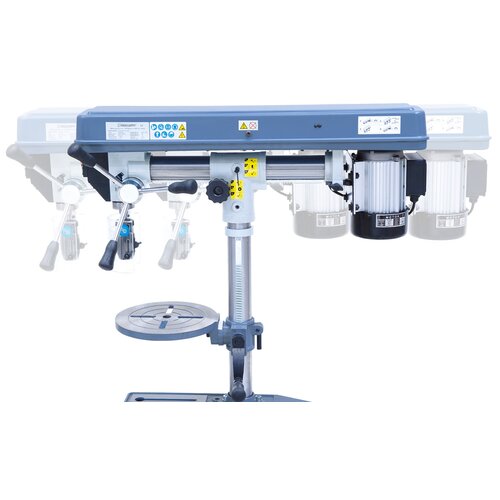

Stepless adjustment of drill head
Stepless adjustment of drill head

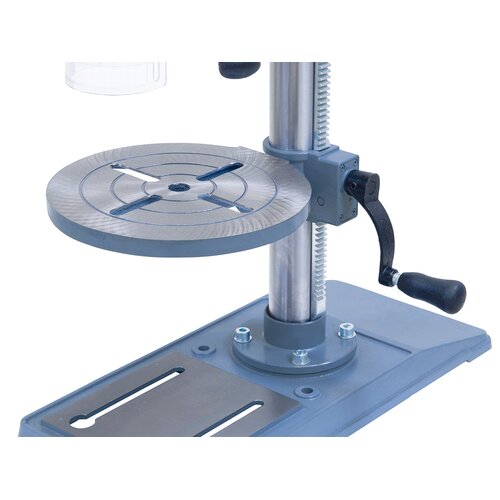

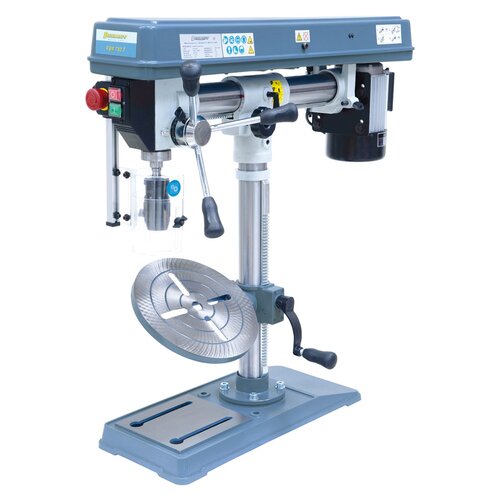

Drill table can be tilted from -45° to +45° and swivels around the column.
Drill table can be tilted from -45° to +45° and swivels around the column.
ON-OFF switch according to IP 54 and separate emergency stop switch
Powerful aluminium motor in accordance with the IP 54 standard
Surface treated base allows clamping of large workpieces
Stepless adjustment of drill head
Drill table can be tilted from -45° to +45° and swivels around the column.

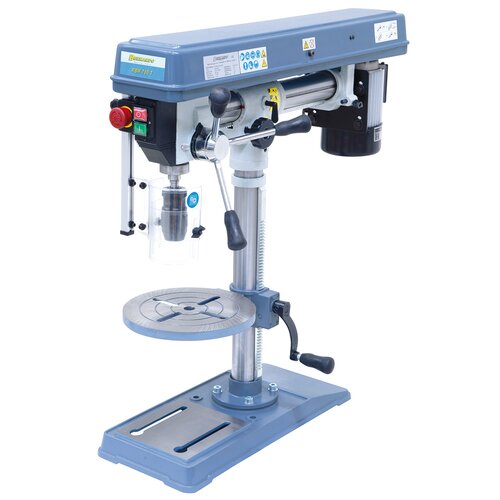

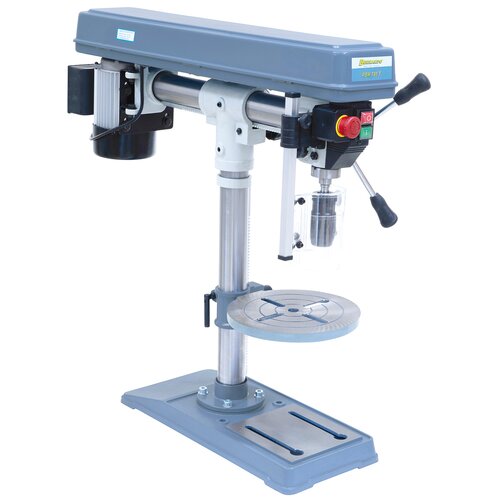

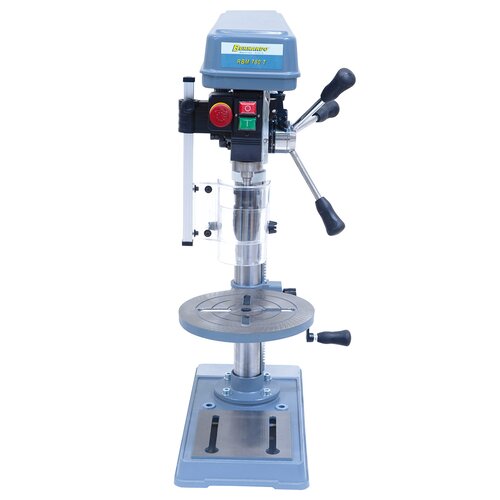

Bench drilling machine RBM 780 T / 230 V

Art. No.: Z-01-1134
Wishlist Comparison List

The RBM 780 T radial drilling machine features an extendable, tilt- and turnable drill head, making it extremly versatile. The great price to performance ratio makes this model an attractive choice for hobby craftsmen.



€474.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Precise machined work table tilts -45° to +45°
  • Safety switch in accordance with the IP 54 standard features undervoltage release
  • High concentricity, spindle seated in precision ball bearings
  • Extendable, turn- and tiltable drill head ensures high productivity
  • Solid, smooth steel column comes with gear rack for table height adjustment

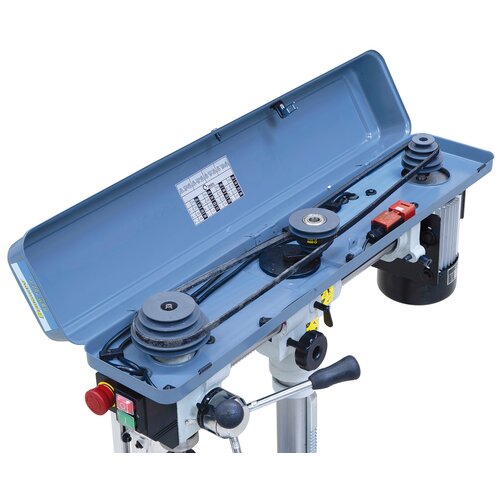

  • Grey cast-iron pulleys ensure smooth operation
  • Ergonomically positioned handles allow for high operating comfort
  • High-quality ball bearings ensure high spindle concentricity
  • Large machine base increases stability

Product Specifications

Drilling capacity max.

16 mm

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 2

Distance spindle to column min./max.

115 - 395 mm

Spindle speeds

(12) 300 - 2550 rpm

Drill head tiltable

-90° to +45°

Spindle stroke

60 mm

Column diameter

58 mm

Table size

Ø 255 mm

Working surface of base

185 x 200 mm

Motor power output S1 100%

0,37 kW

Motor power input S6 40%

0,55 kW

Voltage

230 V

Machine dimension (W x D x H)

280 x 850 x 820 mm

Weight approx.

40 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • T-slot nuts
  • Height adjustable protective cover
  • Separate emergency stop switch
  • Tools
