Safety guard round for drills size 1 / 230 V

• Safety guard with telescopic shield and vertical adjustment possibilities.
• Equipped with 180° rotation and safety microswitch. Protecting the operator against direct
  frontal contact with rotating components of the spindle, of the tool and against shavings and
  splashes of lubricants and coolants. It is attachable to the left side of the machine.
• The main function is the two-piece safety glass, vertically adjusteable (refer to dimension „B“.
  The shield is opening laterally with 180° rotary movement, allowing easy access for tool change.
• Complete with safety microswitch.

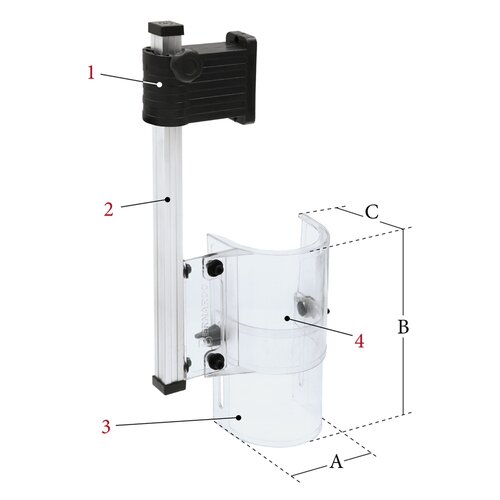

1   Bracket with limit switch

2   Guide bar made of aluminium

3   Adjustable protection cover

4   Fixed protection cover
